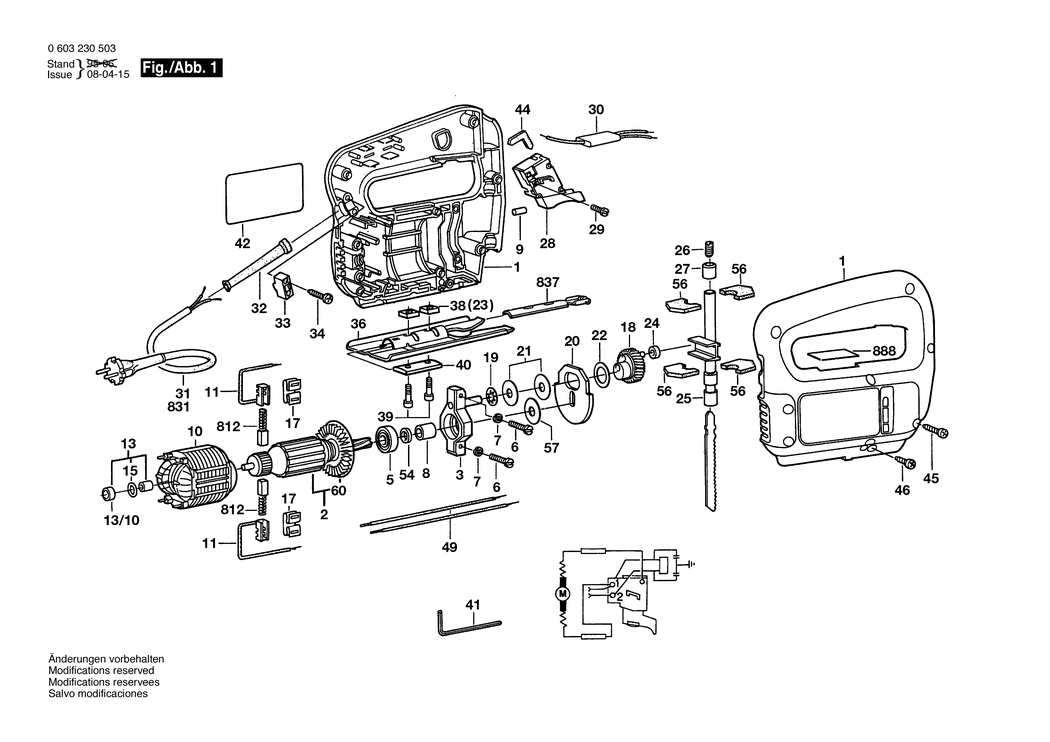

1 - HOUSING SECTION
BSD-2605104142.A20
2605104142
|
-
|
|
|
|
2 - ARMATURE 220-240V
BSD-2604010558.A36
2604010558
|
-
|
|
|
|
3 - BEARING BRACKET
BSD-1619P02422.A27
1619P02422
|
£13.12
|
£15.75
|
|
|
5 - GROOVE BALL BEARING 9x24x7
BSD-2600905021.A130
2600905021
|
£8.67
|
£10.41
|
|
|
6 - SCREW AM 4x18 DIN 84-8.8
BSD-2910020128.A7
2910020128
|
-
|
|
|
|
6 - SCREW AND WASHER ASSEMBLY DIN7985-M4x18Z1-4.8
BSD-2914500009.A26
2914500009
|
-
|
|
|
|
7 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A801
2916690003
|
£1.75
|
£2.10
|
|
|
8 - GUIDE SLEEVE
BSD-2600400024.A13
2600400024
|
£2.80
|
£3.36
|
|
|
9 - BEARING BOLT
BSD-2603201020.A9
2603201020
|
£1.75
|
£2.10
|
|
|
10 - FIELD 230V
BSD-2604220392.A65
2604220392
|
£23.86
|
£28.63
|
|
|
11 - BRUSH HOLDER
BSD-2604465077.A32
2604465077
|
-
|
|
|
|
13 - SINTERED-METAL BUSHING
BSD-1600301900.A60
1600301900
|
-
|
|
|
|
13/10 - FELT WASHER
BSD-1600205023.A92
1600205023
|
£1.32
|
£1.58
|
|
|
15 - O-RING 8.0x2.5 MM
BSD-1610210014.A7
1610210014
|
-
|
|
|
|
17 - HOLDING SPRING
BSD-1619P09928.A19
1619P09928
|
£1.75
|
£2.10
|
|
|
18 - ECCENTRIC COG WHEEL Z=39
BSD-2606319073.A53
2606319073
|
-
|
|
|
|
19 - SPRING WASHER
BSD-2600150050.A13
2600150050
|
£1.75
|
£2.10
|
|
|
20 - COUNTER WEIGHT
BSD-1619P02421.A24
1619P02421
|
£8.67
|
£10.41
|
|
|
21 - SHIM 0.5 MM
BSD-2600102658.A13
2600102658
|
£1.32
|
£1.58
|
|
|
21 - SHIM 0.2 MM
BSD-2600102656.A57
2600102656
|
£1.32
|
£1.58
|
|
|
22 - SHIM dia 18.3 MM
BSD-2600101673.A24
2600101673
|
£1.75
|
£2.10
|
|
|
22 - SHIM dia 18.3 MM
BSD-2600101673.A25
2600101673
|
£1.75
|
£2.10
|
|
|
23 - FIXING PLATE
BSD-2601030006.A121
2601030006
|
-
|
|
|
|
24 - NEEDLE BEARING
BSD-2600917904.A19
2600917904
|
£7.36
|
£8.83
|
|
|
25 - LIFTING ROD
BSD-1619P12589.A5
1619P12589
|
£21.68
|
£26.01
|
|
|
26 - CLAMP SCREW
BSD-2603400000.A52
2603400000
|
£4.26
|
£5.11
|
|
|
27 - SINTERED-METAL BUSHING
BSD-2600301049.A17
2600301049
|
£1.75
|
£2.10
|
|
|
28 - SWITCH
BSD-2607200084.A99
2607200084
|
£10.10
|
£12.12
|
|
|
28 - SWITCH
BSD-2607200260.A216
2607200260
|
£11.30
|
£13.56
|
|
|
29 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A2206
2603410001
|
£1.75
|
£2.10
|
|
|
30 - SUPPRESSION CAPACITOR
BSD-2607329101.A21
2607329101
|
-
|
|
|
|
31 - POWER SUPPLY CORD CH 2.65m 2 x 1.0mm H05 VV-F
BSD-1604460427.A119
1604460427
|
£12.04
|
£14.45
|
|
|
32 - GROMMET dia6.4-dia7.5x75 MM
BSD-1600703016.A44
1600703016
|
£1.75
|
£2.10
|
|
|
32 - GROMMET dia9.5 MM
BSD-2600703006.A171
2600703006
|
-
|
|
|
|
33 - CABLE CLIP
BSD-2601035001.A2860
2601035001
|
£1.75
|
£2.10
|
|
|
34 - TAPPING SCREW DIN 7981-ST3.9x16-C-H
BSD-2910611019.A583
2910611019
|
£2.80
|
£3.36
|
|
|
36 - BASE PLATE
BSD-2601016012.A80
2601016012
|
£8.67
|
£10.41
|
|
|
38 - FIXING PLATE
BSD-2601030006.A120
2601030006
|
-
|
|
|
|
38 - HEX NUT
BSD-2603300009.A5
2603300009
|
-
|
|
|
|
39 - HEX SOCKET HEAD CAP SCREW DIN 912-M4x16-8.8
BSD-2910141126.A32
2910141126
|
-
|
|
|
|
40 - PROFILE BEADING
BSD-2601032017.A0
2601032017
|
£1.75
|
£2.10
|
|
|
40 - PROFILE BEADING
BSD-2601032017.A1
2601032017
|
£1.75
|
£2.10
|
|
|
41 - OFFSET SCREWDRIVER DIN 911. SW3
BSD-1907950004.A94
1907950004
|
£5.58
|
£6.70
|
|
|
42 - STICKER
BSD-2601110367.A0
2601110367
|
-
|
|
|
|
44 - DAMPING PLATE
BSD-2601022000.A12
2601022000
|
£1.75
|
£2.10
|
|
|
45 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST
BSD-2912401020.A17
2912401020
|
£2.16
|
£2.59
|
|
|
46 - TAPPING SCREW DIN 7981-BZ3.9x9.5-A2
BSD-2910611417.A23
2910611417
|
-
|
|
|
|
49 - CONNECTING CABLE L = 278 MM
BSD-2604448012.A66
2604448012
|
£1.32
|
£1.58
|
|
|
54 - SUPPORTING DISC
BSD-2600103013.A61
2600103013
|
£1.32
|
£1.58
|
|
|
56 - LUBRICATING FELT
BSD-2601020007.A6
2601020007
|
£1.75
|
£2.10
|
|
|
57 - SHIM
BSD-2600100624.A8
2600100624
|
-
|
|
|
|
60 - FAN
BSD-2606610022.A28
2606610022
|
£4.26
|
£5.11
|
|
|
812 - CARBON-BRUSH SET
BSD-2604321904.A142
2604321904
|
£10.10
|
£12.12
|
|
|
837 - RETAINING BRACKET
BSD-2608135901.A7
2608135901
|
£11.30
|
£13.56
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A3535
160111A3H3
|
£2.61
|
£3.13
|
|
