Bosch PMF 220 CE / 3603A02040 / --- 240 Volt Spare Parts

Bosch PMF 220 CE / 3603A02040 / --- 240 Volt Spare Parts

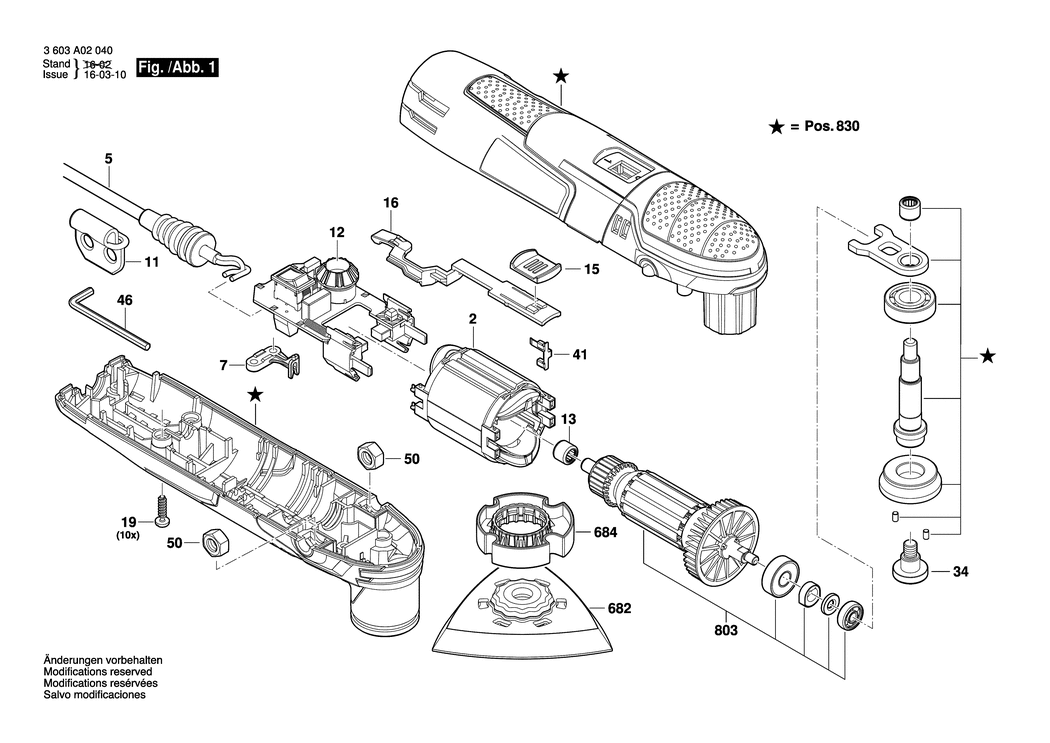

An exploded drawing and listing for the Bosch PMF 220 CE / 3603A02040 / --- 240 Volt
Ex VAT Inc VAT
2 - FIELD BSD-2609007814.A5 2609007814 £27.23 £32.68
5 - POWER SUPPLY CORD AUS 240V 2.6m 2 x 0.75mm H05 VV-F BSD-2604460297.A1 2604460297 £11.30 £13.56
7 - CABLE CLIP BSD-2609006171.A14 2609006171 £1.75 £2.10
11 - KEY HOLDER BSD-2609006359.A4 2609006359 £2.80 £3.36
12 - ELECTRONIC MODULE BSD-2609007131.A0 2609007131 £48.38 £58.06
13 - NEEDLE BEARING BSD-2600917002.A20 2600917002 £3.72 £4.47
15 - SLIDE BUTTON BSD-2609005541.A3 2609005541 £2.80 £3.36
16 - SLIDER BSD-2609007716.A13 2609007716 £1.75 £2.10
19 - SCREW 4x16 BSD-2603490022.A749 2603490022 £1.75 £2.10
34 - HEX SCREW BSD-160343507R.A1 160343507R £3.26 £3.91
41 - CONTACT SPRING BSD-2601329037.A49 2601329037 £1.75 £2.10
46 - HEXAGON SOCKET SCREW KEY 5 MM BSD-2610364015.A32 2610364015 £3.72 £4.47
50 - HEX NUT DIN 934-M8-8-A BSD-2915011009.A96 2915011009 £2.61 £3.13
682 - SANDER PLATE BSD-1600A008LS.A0 1600A008LS £14.91 £17.89
684 - DEPTH GAUGE BSD-1600A0087V.A8 1600A0087V £1.75 £2.10
803 - ARMATURE ASSEMBLY 220-240V BSD-1604010B5G.A1 1604010B5G £48.38 £58.06
830 - DRIVE ASSEMBLY BSD-1600A00K1V.A2 1600A00K1V £45.67 £54.80
