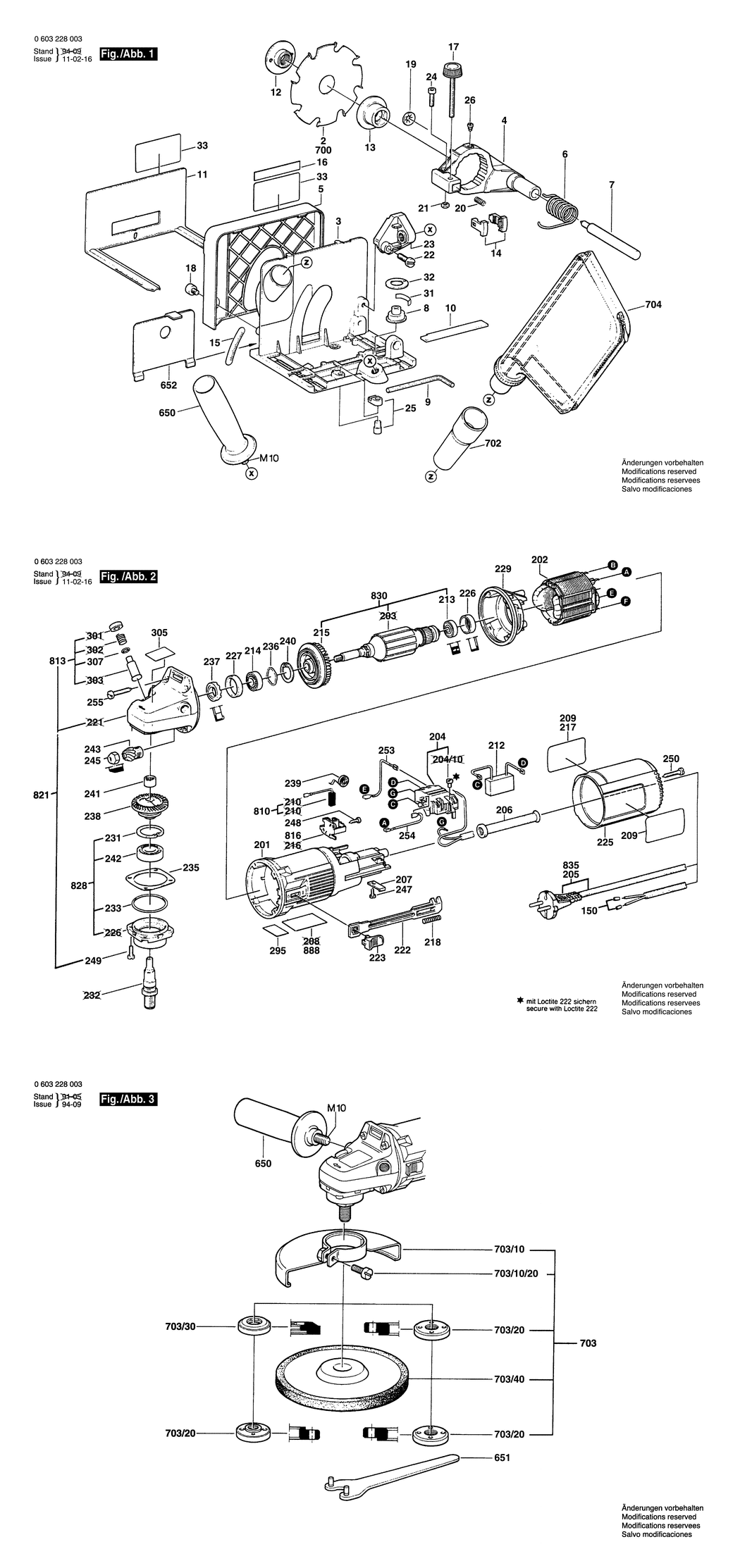

An exploded drawing and listing for the Bosch PSF 22 / 0603228032 / CH 220 Volt
Ex VAT Inc VAT
3 - BASE PLATE BSD-3601329005.A6 3601329005 -
4 - SWIVELLING LEVER BSD-3602013000.A7 3602013000 -
5 - COVERING HOOD BSD-3605500101.A3 3605500101 -
6 - TORSION SPRING BSD-3604651003.A14 3604651003 £4.75 £5.70
7 - SWIVELLING AXIS BSD-3603120004.A2 3603120004 -
8 - ECCENTRIC DISC BSD-3602200000.A4 3602200000 -
9 - OFFSET SCREWDRIVER DIN 911-4 BSD-2607950004.A139 2607950004 £1.75 £2.10
10 - THRUST MEMBER BSD-3601000002.A20 3601000002 £2.33 £2.80
11 - PARALLEL-GUIDE BSD-3601329004.A9 3601329004 -
12 - ROUND NUT M14 BSD-3603340009.A13 3603340009 -
13 - CLAMPING-FLANGE BSD-3600328032.A3 3600328032 £8.49 £10.19
14 - DETENT PIN BSD-2602305045.A6 2602305045 -
15 - STICKER BSD-3601119024.A10 3601119024 £1.95 £2.34
16 - MANUFACTURER'S NAMEPLATE BSD-1601110481.A2 1601110481 £2.16 £2.59
17 - KNURLED THUMBSCREW BSD-3603490008.A8 3603490008 -
18 - THREAD-FORMING TAP. SCREW DIN 7500-M5x14MM BSD-2914455059.A3 2914455059 -
19 - LOCKING WASHER DIN 6799-4-FSt BSD-2916080007.A152 2916080007 £2.61 £3.13
20 - COMPRESSION SPRING BSD-3604611018.A6 3604611018 -
21 - HEX NUT DIN 934-M 5-m-8 BSD-2915011006.A85 2915011006 -
22 - PAN HEAD SCREW DIN 85-M6x20-4.8 BSD-2910095201.A18 2910095201 -
23 - CARRIER BRACKET BSD-3602380000.A8 3602380000 £7.78 £9.33
24 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x12-8.8 BSD-2910141154.A41 2910141154 £1.75 £2.10
25 - SUPPORT CLAMP BSD-3602012000.A10 3602012000 £1.75 £2.10
26 - PAN HEAD SCREW DIN 922-M4x3x3-5.8 BSD-2910271900.A1 2910271900 £1.32 £1.58
31 - VERTEBRAS BSD-3601251001.A15 3601251001 £3.34 £4.01
32 - PLAIN WASHER DIN 9021-A10.5-ST BSD-2916015886.A9 2916015886 -
33 - REFERENCE PLATE BSD-3601119063.A8 3601119063 £1.95 £2.34
201 - MOTOR HOUSING BSD-1605108127.A62 1605108127 -
202 - FIELD 230-240V BSD-1604220224.A17 1604220224 -
204 - ON-OFF SWITCH BSD-1607200086.A226 1607200086 £11.30 £13.56
205 - POWER SUPPLY CORD CH 2.65m 2 x 1.0mm H05 VV-F BSD-1604460148.A24 1604460148 -
206 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703012.A1488 2600703012 £2.80 £3.36
207 - FASTENING CLAMP BSD-1601302017.A1069 1601302017 £1.75 £2.10
209 - MANUFACTURER'S NAMEPLATE BSD-1601110480.A2 1601110480 -
212 - SUPPRESSION FILTER BSD-2607329124.A29 2607329124 £10.10 £12.12
213 - BALL BEARING 7x19x6 BSD-2600905032.A1230 2600905032 £5.30 £6.36
214 - GROOVE BALL BEARING 8x22x7 BSD-1600905011.A126 1600905011 £5.58 £6.70
215 - FAN BSD-1606610121.A148 1606610121 £1.75 £2.10
217 - MANUFACTURER'S NAMEPLATE BSD-1601110479.A2 1601110479 -
218 - COMPRESSION SPRING BSD-1604611026.A641 1604611026 £1.75 £2.10
222 - ADJUSTING SLIDE BSD-1602319002.A92 1602319002 £2.61 £3.13
223 - SWITCH HANDLE BSD-1602026057.A360 1602026057 £1.97 £2.36
225 - HOUSING COVER BSD-1600508005.A34 1600508005 £3.80 £4.56
226 - RUBBER BUSHING BSD-1600502020.A14 1600502020 £2.61 £3.13
227 - RUBBER RING BSD-1600206025.A915 1600206025 £2.16 £2.59
229 - AIR-DEFLECTOR RING BSD-1601328005.A152 1601328005 £2.61 £3.13
231 - RETAINING CLIP DIN 472-32x1.2 MM BSD-2916660013.A35 2916660013 £2.16 £2.59
233 - O-RING 46.0x1.1 MM BSD-3600210124.A283 3600210124 £2.80 £3.36
235 - SHIM 0.2 MM BSD-1600136010.A171 1600136010 £2.61 £3.13
235 - SHIM 0.3 MM BSD-1600136011.A158 1600136011 £2.16 £2.59
235 - SHIM 0.1 MM BSD-1600136012.A165 1600136012 £1.75 £2.10
236 - SPRING WASHER BSD-1600150011.A251 1600150011 £1.75 £2.10
237 - ROTARY SHAFT LIP SEAL BSD-1600290016.A73 1600290016 £2.61 £3.13
238 - CROWN GEAR Z=36 BSD-1606333601.A114 1606333601 £8.49 £10.19
239 - SPIRAL SPRING BSD-1604652013.A1069 1604652013 £1.75 £2.10
240 - SPRING RETAINING RING DIN 472-25x1.2MM BSD-2916660009.A4 2916660009 £2.16 £2.59
241 - NEEDLE BEARING dia8xdia12x8 MM BSD-1600910018.A555 1600910018 £5.30 £6.36
242 - GROOVE BALL BEARING 12x32x10 BSD-1600905006.A77 1600905006 £12.04 £14.45
243 - BEVEL GEAR Z=11 BSD-1606333242.A144 1606333242 £48.38 £58.06
245 - HEX NUT M7. SW10 BSD-1603300016.A384 1603300016 £1.75 £2.10
247 - TAPPING SCREW DIN 7971-ST3.9x13-F BSD-2910211018.A181 2910211018 £1.75 £2.10
248 - LENS HEAD SCREW 3x10 ST BSD-1613435034.A405 1613435034 £1.75 £2.10
249 - THREAD-FORMING TAP. SCREW BSD-1603435026.A54 1603435026 £2.16 £2.59
250 - TAPPING SCREW DIN 7971-ST3.9x22-F BSD-2910211021.A905 2910211021 £1.75 £2.10
253 - CONNECTING CABLE L=95 MM BSD-1604448005.A108 1604448005 £2.80 £3.36
254 - CONNECTING CABLE L=40 MM BSD-1604448006.A14 1604448006 £2.61 £3.13
255 - TAPPING SCREW DIN7981-ST3.9x22-C-Z BSD-2912401021.A81 2912401021 £1.75 £2.10
305 - REFERENCE PLATE BSD-1601110470.A55 1601110470 £1.75 £2.10
307 - O-RING 4.5x1.0 MM BSD-1600210044.A367 1600210044 £1.75 £2.10
650 - AUXILIARY HANDLE M10. dia32.5x105 MM BSD-160202509T.A455 160202509T £3.72 £4.47
651 - PIN-TYPE FACE-WRENCH BSD-1607950052.A426 1607950052 £3.72 £4.47
652 - MOUNTING PLATE BSD-3601012001.A4 3601012001 £4.26 £5.11
700 - SIDE-MILLING CUTTER Z=8 BSD-3608641008.A1 3608641008 £44.69 £53.63
700 - SIDE-MILLING CUTTER dia 105x20x2.2 MM. Z=12 BSD-3608641001.A1 3608641001 £26.66 £31.99
700 - SIDE-MILLING CUTTER dia 105x20x2.8 MM. Z=22 BSD-3608641002.A14 3608641002 £39.16 £46.99
702 - FITTING dia 25x35 MM BSD-1600499005.A126 1600499005 £3.49 £4.19
703 - PARTS SET BSD-3607030020.A4 3607030020 -
703/10 - PROTECTIVE COVER dia 115 MM(4 1/2) BSD-2605510125.A108 2605510125 £27.23 £32.68
703/10/20 - SOCKET HEAD CAP SCREW DIN 84-M 6x16-8.8 BSD-2910022197.A226 2910022197 -
703/20 - ROUND NUT M14 BSD-1603340015.A33 1603340015 £3.87 £4.64
703/30 - FASTENING FLANGE BSD-2605703023.A14 2605703023 -
703/40 - GRINDING WHEEL dia 115xdia 22.2x6 MM BSD-2608600003.A2 2608600003 -
704 - DUST BAG BSD-2605411011.A2 2605411011 -
704 - DUST BAG BSD-1605411028.A1 1605411028 £15.74 £18.89
810 - CARBON-BRUSH SET BSD-1607014116.A244 1607014116 £11.30 £13.56
813 - PUSH-BUTTON BSD-1607000253.A268 1607000253 £2.49 £2.99
816 - BRUSH HOLDER BSD-1600A003G4.A377 1600A003G4 £3.72 £4.47
821 - GEAR HOUSING BSD-1605806480.A85 1605806480 £48.38 £58.06
828 - ASSEMBLY OF SERVICE PARTS BSD-1607000937.A10 1607000937 -
830 - ARMATURE WITH FAN 230-240V BSD-1604010259.A41 1604010259 -
888 - NAMEPLATE BSD-160111A3H3.A2623 160111A3H3 £2.61 £3.13
