Bosch PSF 22 A / 0603228132 / CH 230 Volt Spare Parts

Home Details Reviews Delivery

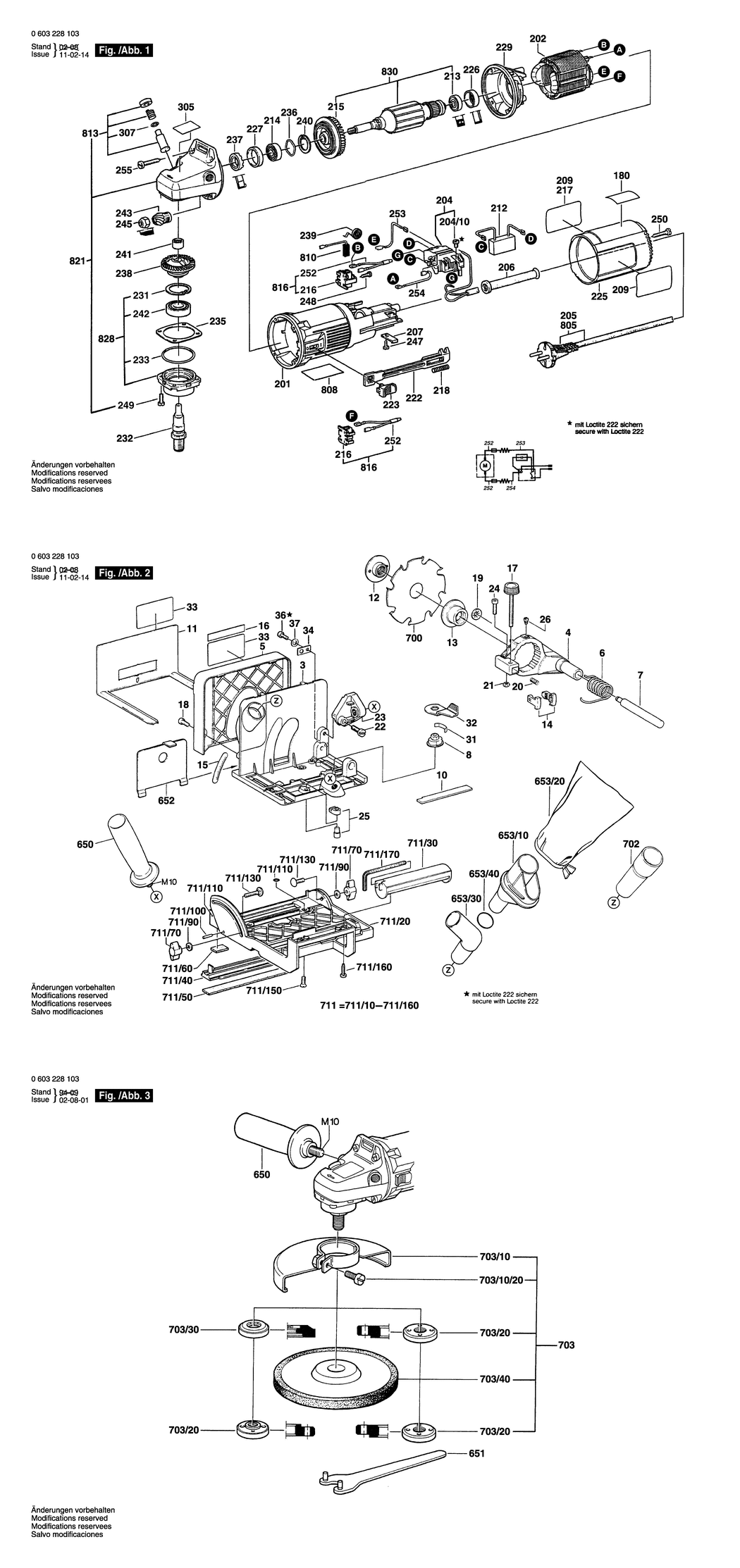

An exploded drawing and listing for the Bosch PSF 22 A / 0603228132 / CH 230 Volt

	Ex VAT	Inc VAT
3 - BASE PLATE BSD-3601329011.A1 3601329011	£61.98	£74.38
4 - SWIVELLING LEVER BSD-3602013000.A1 3602013000	-
5 - COVERING HOOD BSD-3605500101.A7 3605500101	-
6 - TORSION SPRING BSD-3604651003.A22 3604651003	£4.75	£5.70
7 - SWIVELLING AXIS BSD-3603120010.A6 3603120010	£12.04	£14.45
8 - ECCENTRIC DISC BSD-3602200001.A11 3602200001	£5.30	£6.36
10 - THRUST MEMBER BSD-3601000002.A15 3601000002	£2.33	£2.80
11 - PARALLEL-GUIDE BSD-3601329004.A4 3601329004	-
12 - ROUND NUT M14 BSD-3603340009.A18 3603340009	-
13 - CLAMPING-FLANGE BSD-3600328032.A8 3600328032	£8.49	£10.19
14 - DETENT PIN BSD-2602305045.A16 2602305045	-
15 - STICKER BSD-3601119024.A14 3601119024	£1.95	£2.34
16 - MANUFACTURER'S NAMEPLATE BSD-1601110481.A10 1601110481	£2.16	£2.59
17 - KNURLED THUMBSCREW BSD-3603490008.A17 3603490008	-
18 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x10-8.8 BSD-2910141152.A26 2910141152	£1.75	£2.10
19 - LOCKING WASHER DIN 6799-4-FSt BSD-2916080007.A147 2916080007	£2.61	£3.13
20 - COMPRESSION SPRING BSD-3604611018.A12 3604611018	-
21 - HEX NUT DIN 934-M 5-m-8 BSD-2915011006.A76 2915011006	-
22 - PAN HEAD SCREW DIN 85-M6x20-4.8 BSD-2910095201.A12 2910095201	-
23 - CARRIER BRACKET BSD-3602380000.A12 3602380000	£7.78	£9.33
24 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x12-8.8 BSD-2910141154.A48 2910141154	£1.75	£2.10
25 - SUPPORT CLAMP BSD-3602012000.A17 3602012000	£1.75	£2.10
26 - PAN HEAD SCREW DIN 922-M4x3x3-5.8 BSD-2910271900.A11 2910271900	£1.32	£1.58
31 - VERTEBRAS BSD-3601251001.A19 3601251001	£3.34	£4.01
32 - TENSIONING LEVER BSD-3601923000.A2 3601923000	£3.34	£4.01
33 - REFERENCE PLATE BSD-3601119063.A4 3601119063	£1.95	£2.34
34 - ADJUSTING PLATE BSD-3601032001.A4 3601032001	£1.75	£2.10
36 - THREAD-FORMING TAP. SCREW DIN 7500-TM4x12 BSD-2914471401.A69 2914471401	£1.75	£2.10
37 - LOCKING WASHER BSD-3600190018.A1 3600190018	£1.32	£1.58
201 - MOTOR HOUSING BSD-1605108127.A53 1605108127	-
202 - FIELD 230-240V BSD-1604220224.A25 1604220224	-
204 - ON-OFF SWITCH BSD-1607200086.A222 1607200086	£11.30	£13.56
204/10 - PAN HEAD SCREW DIN 85-AM3x6-CUZN BSD-2910110048.A457 2910110048	£1.75	£2.10
205 - POWER SUPPLY CORD CH 4.15m 2 x 1.0mm H05VV-F BSD-1604460146.A4 1604460146	£10.82	£12.99
206 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703012.A1498 2600703012	£2.80	£3.36
207 - FASTENING CLAMP BSD-1601302017.A1067 1601302017	£1.75	£2.10
209 - MANUFACTURER'S NAMEPLATE BSD-1601110736.A0 1601110736	-
212 - SUPPRESSION FILTER BSD-2607329124.A24 2607329124	£10.10	£12.12
213 - BALL BEARING 7x19x6 BSD-2600905032.A1247 2600905032	£5.30	£6.36
214 - GROOVE BALL BEARING 8x22x7 BSD-1600905011.A117 1600905011	£5.58	£6.70
215 - FAN BSD-1606610121.A143 1606610121	£1.75	£2.10
216 - BRUSH HOLDER BSD-1600A003G4.A384 1600A003G4	£3.72	£4.47
217 - MANUFACTURER'S NAMEPLATE BSD-1601110737.A6 1601110737	-
218 - COMPRESSION SPRING BSD-1604611026.A645 1604611026	£1.75	£2.10
222 - ADJUSTING SLIDE BSD-1602319002.A94 1602319002	£2.61	£3.13
223 - SWITCH HANDLE BSD-1602026057.A358 1602026057	£1.97	£2.36
225 - HOUSING COVER BSD-1600508005.A29 1600508005	£3.80	£4.56
226 - RUBBER BUSHING BSD-1600502020.A19 1600502020	£2.61	£3.13
227 - RUBBER RING BSD-1600206025.A909 1600206025	£2.16	£2.59
229 - AIR-DEFLECTOR RING BSD-1601328005.A142 1601328005	£2.61	£3.13
231 - RETAINING CLIP DIN 472-32x1.2 MM BSD-2916660013.A27 2916660013	£2.16	£2.59
232 - GRINDING SPINDLE M14. SW17 BSD-1603523101.A4 1603523101	£18.96	£22.75
233 - O-RING 46.0x1.1 MM BSD-3600210124.A278 3600210124	£2.80	£3.36
235 - SHIM 0.2 MM BSD-1600136010.A164 1600136010	£2.61	£3.13
235 - SHIM 0.3 MM BSD-1600136011.A165 1600136011	£2.16	£2.59
235 - SHIM 0.1 MM BSD-1600136012.A158 1600136012	£1.75	£2.10
236 - SPRING WASHER BSD-1600150011.A258 1600150011	£1.75	£2.10
237 - ROTARY SHAFT LIP SEAL BSD-1600290016.A43 1600290016	£2.61	£3.13
238 - CROWN GEAR Z=36 BSD-1606333601.A105 1606333601	£8.49	£10.19
239 - SPIRAL SPRING BSD-1604652013.A1075 1604652013	£1.75	£2.10
240 - SPRING RETAINING RING DIN 472-25x1.2MM BSD-2916660009.A11 2916660009	£2.16	£2.59
241 - NEEDLE BEARING dia8xdia12x8 MM BSD-1600910018.A548 1600910018	£5.30	£6.36
242 - GROOVE BALL BEARING 12x32x10 BSD-1600905006.A82 1600905006	£12.04	£14.45
243 - BEVEL GEAR Z=11 BSD-1606333242.A152 1606333242	£48.38	£58.06
245 - HEX NUT M7. SW10 BSD-1603300016.A382 1603300016	£1.75	£2.10
247 - TAPPING SCREW DIN 7971-ST3.9x13-F BSD-2910211018.A186 2910211018	£1.75	£2.10
248 - LENS HEAD SCREW 3x10 ST BSD-1613435034.A394 1613435034	£1.75	£2.10
249 - THREAD-FORMING TAP. SCREW BSD-1603435026.A47 1603435026	£2.16	£2.59
250 - TAPPING SCREW DIN 7971-ST3.9x22-F BSD-2910211021.A907 2910211021	£1.75	£2.10
252 - SUPPRESSOR BOX BSD-1604465104.A3 1604465104	-
253 - CONNECTING CABLE L=95 MM BSD-1604448005.A103 1604448005	£2.80	£3.36
254 - CONNECTING CABLE L=40 MM BSD-1604448006.A19 1604448006	£2.61	£3.13
255 - TORX OVAL-HEAD SCREW BSD-2914201508.A136 2914201508	£1.75	£2.10
305 - REFERENCE PLATE BSD-1601110470.A45 1601110470	£1.75	£2.10
307 - O-RING 4.5x1.0 MM BSD-1600210044.A362 1600210044	£1.75	£2.10
650 - AUXILIARY HANDLE M10. dia32.5x105 MM BSD-160202509T.A447 160202509T	£3.72	£4.47
651 - PIN-TYPE FACE-WRENCH BSD-1607950052.A420 1607950052	£3.72	£4.47
652 - MOUNTING PLATE BSD-3601012001.A7 3601012001	£4.26	£5.11
653/10 - FITTING BSD-2605702009.A4 2605702009	£2.80	£3.36
653/20 - DUST BAG BSD-2605411017.A5 2605411017	£6.61	£7.93
653/30 - ELBOW BSD-2605702019.A11 2605702019	-
653/40 - O-RING 20.0x1.5 MM BSD-1610210075.A25 1610210075	£2.61	£3.13
700 - SIDE-MILLING CUTTER Z=8 BSD-3608641008.A6 3608641008	£44.69	£53.63
700 - SIDE-MILLING CUTTER dia 105x20x2.2 MM. Z=12 BSD-3608641001.A6 3608641001	£26.66	£31.99
700 - SIDE-MILLING CUTTER dia 105x20x2.8 MM. Z=22 BSD-3608641002.A9 3608641002	£39.16	£46.99
702 - FITTING dia 25x35 MM BSD-1600499005.A121 1600499005	£3.49	£4.19
703 - PARTS SET BSD-3607030020.A11 3607030020	-
703/10 - PROTECTIVE COVER dia 115 MM(4 1/2) BSD-2605510125.A110 2605510125	£27.23	£32.68
703/10/20 - SOCKET HEAD CAP SCREW DIN 84-M 6x16-8.8 BSD-2910022197.A232 2910022197	-
703/20 - ROUND NUT M14 BSD-1603340015.A40 1603340015	£3.87	£4.64
703/30 - FASTENING FLANGE BSD-2605703023.A9 2605703023	-
703/40 - GRINDING WHEEL dia 115xdia 22.2x6 MM BSD-2608600003.A7 2608600003	-
711 - PARALLEL-GUIDE BSD-3601329013.A16 3601329013	£93.88	£112.65
711/10 - CARRIER BSD-3601328004.A4 3601328004	£19.45	£23.34
711/20 - STOP PLATE BSD-3601328005.A8 3601328005	£33.45	£40.14
711/30 - HANDLE BSD-3601328006.A4 3601328006	£3.34	£4.01
711/40 - PLASTIC BAR BSD-3601328007.A8 3601328007	£2.52	£3.02
711/50 - RUBBER BAR BSD-3601006001.A3 3601006001	£2.52	£3.02
711/60 - RUBBER PLATE BSD-3601006002.A9 3601006002	£3.80	£4.56
711/70 - WING NUT M6 BSD-1603339006.A149 1603339006	£2.52	£3.02
711/90 - PLAIN WASHER DIN 125-A 6.4-ST BSD-2916011014.A24 2916011014	£1.75	£2.10
711/100 - STRAIGHT PIN DIN 7-2m6x10-ST BSD-2917510036.A5 2917510036	£1.75	£2.10
711/110 - O-RING 5x2 MM BSD-1900210301.A6 1900210301	£1.32	£1.58
711/130 - ROUND-HEAD BOLT DIN 603-M6x20 BSD-2910281201.A186 2910281201	£1.75	£2.10
711/150 - COUNTERSUNK-HEAD SCREW DIN 7991-M6x12-8.8 BSD-2910545193.A11 2910545193	£1.75	£2.10
711/160 - TAPPING SCREW DIN 7971-BZ3.9x19 BSD-2910211020.A42 2910211020	£2.16	£2.59
711/170 - OFFSET SCREWDRIVER DIN 911-4 BSD-2607950004.A126 2607950004	£1.75	£2.10
808 - NAMEPLATE BSD-160111A3H3.A2603 160111A3H3	£2.61	£3.13
810 - CARBON-BRUSH SET BSD-1607014116.A237 1607014116	£11.30	£13.56
813 - PUSH-BUTTON BSD-1607000253.A261 1607000253	£2.49	£2.99
816 - PARTS SET BSD-1607000244.A8 1607000244	£9.49	£11.39
821 - GEAR HOUSING BSD-1605806480.A79 1605806480	£48.38	£58.06
828 - ASSEMBLY OF SERVICE PARTS BSD-1607000937.A17 1607000937	-
830 - ARMATURE WITH FAN 230-240V BSD-1604010259.A43 1604010259	-

Attribute Name	Value
Brand	Bosch
