Bosch PSP 60 / 0603266142 / GB 240 Volt Spare Parts

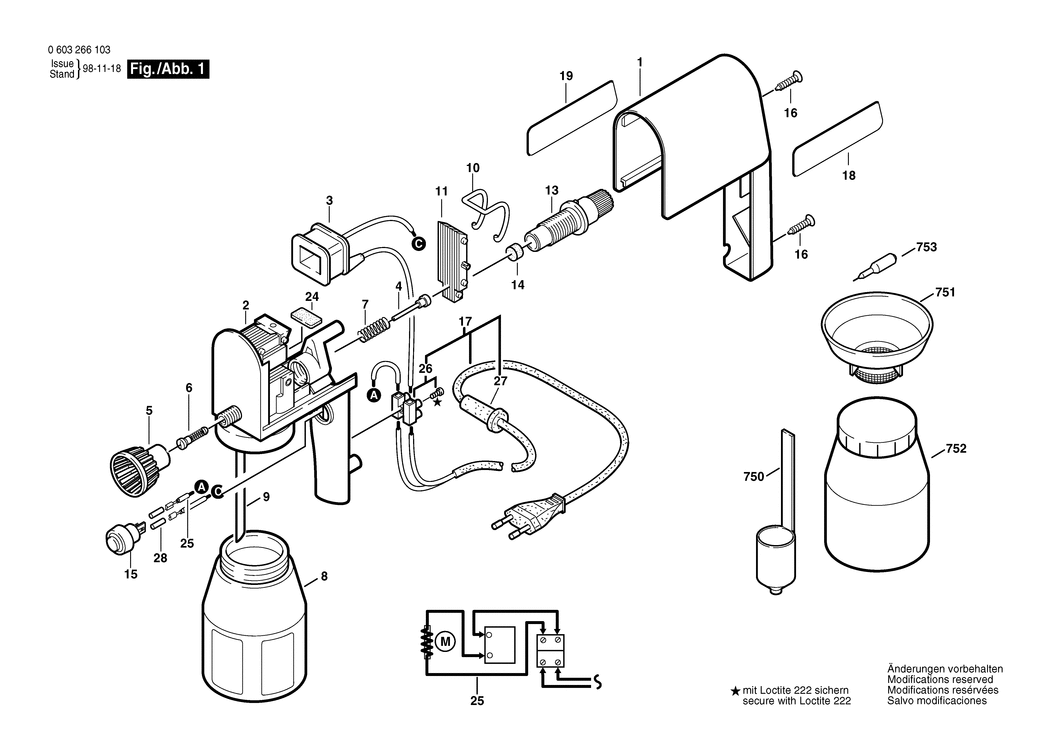

An exploded drawing and listing for the Bosch PSP 60 / 0603266142 / GB 240 Volt

	Ex VAT	Inc VAT
1 - HOUSING COVER BSD-1609390567.A1 1609390567	-
2 - PUMP HOUSING BSD-1609390361.A4 1609390361	-
3 - CURRENT COIL 240V BSD-1609390571.A0 1609390571	-
4 - PUMP PISTON BSD-1609390364.A3 1609390364	-
5 - CYLINDRICAL-SPRAY NOZZLE BSD-1609390365.A1 1609390365	-
6 - VACUUM/PRESSURE VALVE BSD-1609390366.A3 1609390366	-
7 - COMPRESSION SPRING BSD-1609390367.A1 1609390367	-
8 - PAINT BEAKER BSD-1609390368.A3 1609390368	£7.78	£9.33
9 - SUCTION PIPE BSD-1609390369.A1 1609390369	-
10 - HOLDING SPRING BSD-1609390370.A3 1609390370	-
11 - OSCILLATING ARMATURE BSD-1609390371.A1 1609390371	-
13 - ADJUSTING SCREW BSD-1609390373.A1 1609390373	-
14 - RUBBER BUFFER BSD-1609390044.A8 1609390044	-
15 - ON-OFF SWITCH BSD-1609390374.A2 1609390374	-
16 - OVAL-HEAD SCREW DIN 7985-M 4x16-4.8-Z BSD-2912301126.A1 2912301126	-
17 - POWER SUPPLY CORD BSD-1609390570.A0 1609390570	£33.45	£40.14
18 - MANUFACTURER'S NAMEPLATE BSD-1601118296.A0 1601118296	-
19 - NAMEPLATE BSD-1601118292.A0 1601118292	-
24 - RUBBER BUFFER BSD-1609390372.A3 1609390372	-
25 - CABLE BSD-1609390360.A9 1609390360	£3.80	£4.56
26 - CONNECTING TERMINAL BSD-1609390042.A23 1609390042	£3.34	£4.01
27 - GROMMET BSD-1609390048.A14 1609390048	£3.34	£4.01
28 - INSULATION TUBING BSD-1609390595.A1 1609390595	-
750 - PAINT CONTAINER BSD-1609200248.A14 1609200248	-
751 - STRAINER BSD-1609390045.A1 1609390045	-
752 - PAINT BEAKER BSD-2609390300.A0 2609390300	-
753 - NOZZLE NEEDLE BSD-2609390301.A1 2609390301	-
