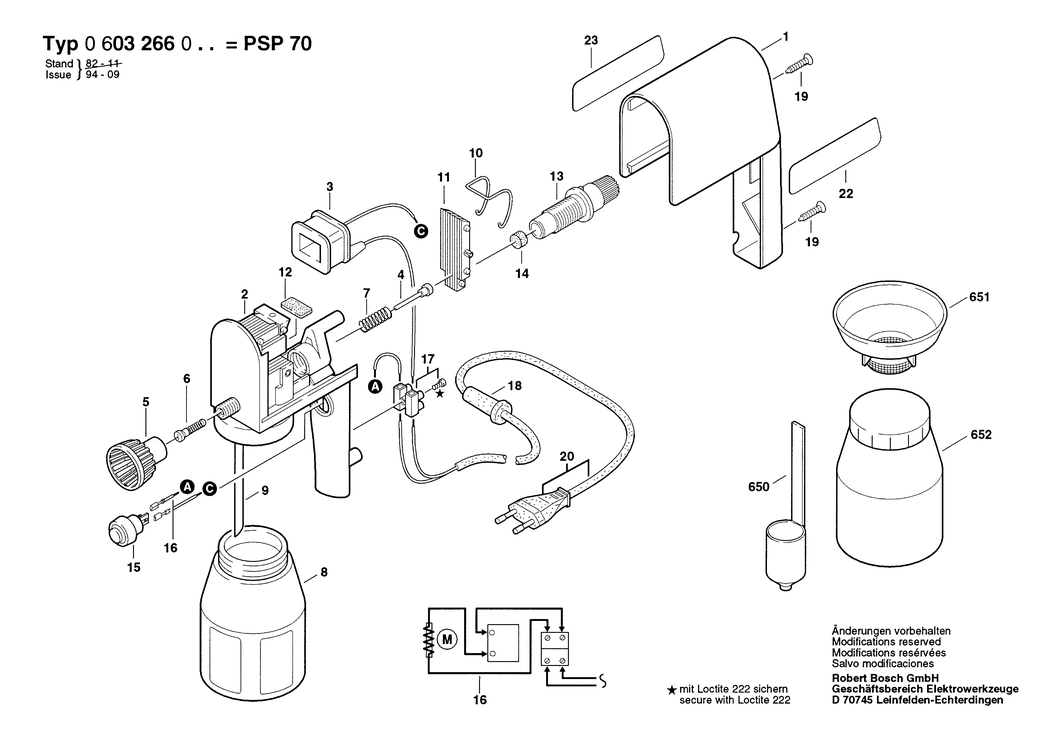

1 - HOUSING COVER
BSD-1609390362.A2
1609390362
|
-
|
|
|
|
2 - PUMP HOUSING
BSD-1609390361.A0
1609390361
|
-
|
|
|
|
3 - OSCILL. ARMATURE MAGNET
BSD-1609390379.A0
1609390379
|
-
|
|
|
|
4 - PUMP PISTON
BSD-1609390364.A2
1609390364
|
-
|
|
|
|
5 - CYLINDRICAL-SPRAY NOZZLE
BSD-1609390365.A2
1609390365
|
-
|
|
|
|
6 - VACUUM/PRESSURE VALVE
BSD-1609390366.A2
1609390366
|
-
|
|
|
|
7 - COMPRESSION SPRING
BSD-1609390367.A2
1609390367
|
-
|
|
|
|
8 - PAINT BEAKER
BSD-1609390368.A2
1609390368
|
£7.78
|
£9.33
|
|
|
9 - SUCTION PIPE
BSD-1609390369.A2
1609390369
|
-
|
|
|
|
10 - HOLDING SPRING
BSD-1609390370.A2
1609390370
|
-
|
|
|
|
11 - OSCILLATING ARMATURE
BSD-1609390371.A2
1609390371
|
-
|
|
|
|
12 - RUBBER BUFFER
BSD-1609390372.A1
1609390372
|
-
|
|
|
|
13 - ADJUSTING SCREW
BSD-1609390373.A2
1609390373
|
-
|
|
|
|
14 - RUBBER BUFFER
BSD-1609390044.A10
1609390044
|
-
|
|
|
|
15 - ON-OFF SWITCH
BSD-1609390374.A1
1609390374
|
-
|
|
|
|
16 - POWER SUPPLY CORD
BSD-1609390562.A7
1609390562
|
£24.45
|
£29.34
|
|
|
17 - CONNECTING TERMINAL
BSD-1609390042.A26
1609390042
|
£3.34
|
£4.01
|
|
|
18 - GROMMET
BSD-1609390048.A17
1609390048
|
£3.34
|
£4.01
|
|
|
19 - TAPPING SCREW DIN 7972-BZ3.9x16
BSD-2910601119.A1
2910601119
|
-
|
|
|
|
20 - POWER SUPPLY CORD
BSD-1609390043.A0
1609390043
|
£14.75
|
£17.70
|
|
|
22 - REFERENCE PLATE
BSD-1601110237.A0
1601110237
|
-
|
|
|
|
650 - PAINT CONTAINER
BSD-1609390375.A2
1609390375
|
-
|
|
|
|
651 - STRAINER
BSD-1609390376.A0
1609390376
|
-
|
|
|
|
652 - PAINT BEAKER
BSD-1609390378.A2
1609390378
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A2499
160111A3H3
|
£2.61
|
£3.13
|
|
