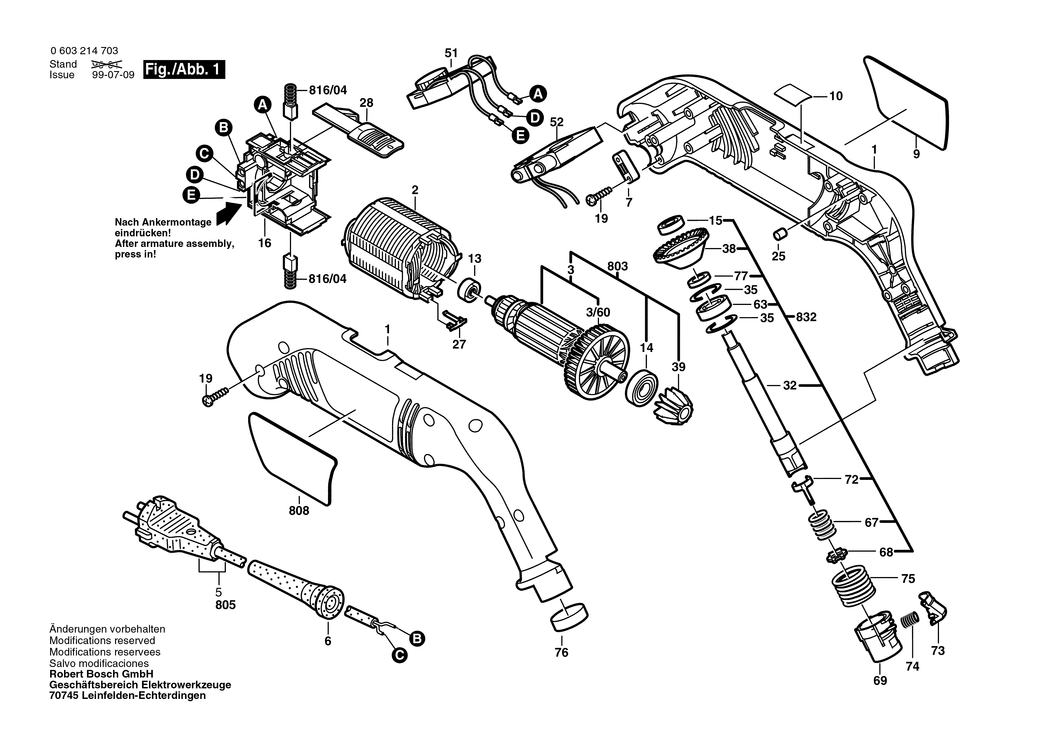

1 - HOUSING SECTION
BSD-2605104627.A1
2605104627
|
-
|
|
|
|
2 - FIELD 220-240V
BSD-2604220616.A4
2604220616
|
-
|
|
|
|
3 - ARMATURE 220-240V
BSD-2604011172.A1
2604011172
|
-
|
|
|
|
3/60 - FAN
BSD-2606610090.A7
2606610090
|
£1.75
|
£2.10
|
|
|
6 - GROMMET dia6.4-dia7.2x76 MM
BSD-2600703017.A142
2600703017
|
£2.61
|
£3.13
|
|
|
7 - CABLE CLIP
BSD-2601035001.A2055
2601035001
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601119693.A2
2601119693
|
-
|
|
|
|
10 - WARNING PLATE
BSD-1601118792.A13
1601118792
|
£3.34
|
£4.01
|
|
|
13 - FLANGED BEARING
BSD-2605805008.A106
2605805008
|
£5.30
|
£6.36
|
|
|
14 - GROOVE BALL BEARING 9x24x7
BSD-1900905021.A9
1900905021
|
£5.30
|
£6.36
|
|
|
15 - GROOVE BALL BEARING DIN 625-607-2Z/C3
BSD-1900905023.A3
1900905023
|
-
|
|
|
|
16 - BRUSH PLATE
BSD-2604337031.A3
2604337031
|
-
|
|
|
|
19 - SCREW 4x16
BSD-2603490022.A1920
2603490022
|
£1.75
|
£2.10
|
|
|
25 - DAMPING RUBBER
BSD-2603100056.A38
2603100056
|
£1.75
|
£2.10
|
|
|
27 - CONTACT SPRING
BSD-2601329037.A103
2601329037
|
£1.75
|
£2.10
|
|
|
28 - SWITCH SLIDE
BSD-2602319023.A1
2602319023
|
-
|
|
|
|
32 - DRIVE SHAFT
BSD-2603020030.A6
2603020030
|
-
|
|
|
|
35 - SHIM 0.2 MM
BSD-2600101088.A6
2600101088
|
£1.75
|
£2.10
|
|
|
35 - SHIM 0.3 MM
BSD-2600101089.A28
2600101089
|
-
|
|
|
|
35 - SHIM 0.4 MM
BSD-2600101090.A6
2600101090
|
-
|
|
|
|
35 - SHIM 0.5 MM
BSD-2600101091.A38
2600101091
|
£2.16
|
£2.59
|
|
|
38 - CROWN GEAR Z=36
BSD-2606100064.A4
2606100064
|
£13.41
|
£16.09
|
|
|
39 - PINION
BSD-2606333035.A6
2606333035
|
£7.78
|
£9.33
|
|
|
51 - SPEED GOVERNOR 220-240V
BSD-2607233038.A3
2607233038
|
-
|
|
|
|
52 - SUPPRESSION FILTER
BSD-2604465109.A33
2604465109
|
-
|
|
|
|
63 - GROOVE BALL BEARING 12x28x8
BSD-1900905121.A183
1900905121
|
£18.96
|
£22.75
|
|
|
67 - COMPRESSION SPRING
BSD-2604616009.A14
2604616009
|
£1.75
|
£2.10
|
|
|
68 - CONICAL SPRING WASHER
BSD-2600190089.A13
2600190089
|
£2.52
|
£3.02
|
|
|
69 - ACTUATING ELEMENT
BSD-2600499053.A4
2600499053
|
-
|
|
|
|
72 - HOLDING SPRING
BSD-2601290022.A13
2601290022
|
£1.95
|
£2.34
|
|
|
73 - SWITCH SLIDE
BSD-2602319016.A4
2602319016
|
£2.33
|
£2.80
|
|
|
74 - COMPRESSION SPRING
BSD-2604611046.A5
2604611046
|
-
|
|
|
|
75 - COMPRESSION SPRING
BSD-2604615013.A2
2604615013
|
£1.32
|
£1.58
|
|
|
76 - CLAMPING RING
BSD-2600290038.A3
2600290038
|
£1.75
|
£2.10
|
|
|
77 - FELT WASHER
BSD-2600108014.A17
2600108014
|
-
|
|
|
|
803 - ARMATURE 220-240V
BSD-2604010950.A4
2604010950
|
-
|
|
|
|
805 - POWER SUPPLY CORD EU 2.65m 2 x 1.0mm H05 RN-F
BSD-1607000388.A185
1607000388
|
£12.04
|
£14.45
|
|
|
808 - NAMEPLATE
BSD-2601119915.A0
2601119915
|
-
|
|
|
|
816/04 - CARBON-BRUSH SET
BSD-2604321922.A3
2604321922
|
-
|
|
|
|
832 - DRIVE SHAFT
BSD-2603020900.A3
2603020900
|
-
|
|
|
