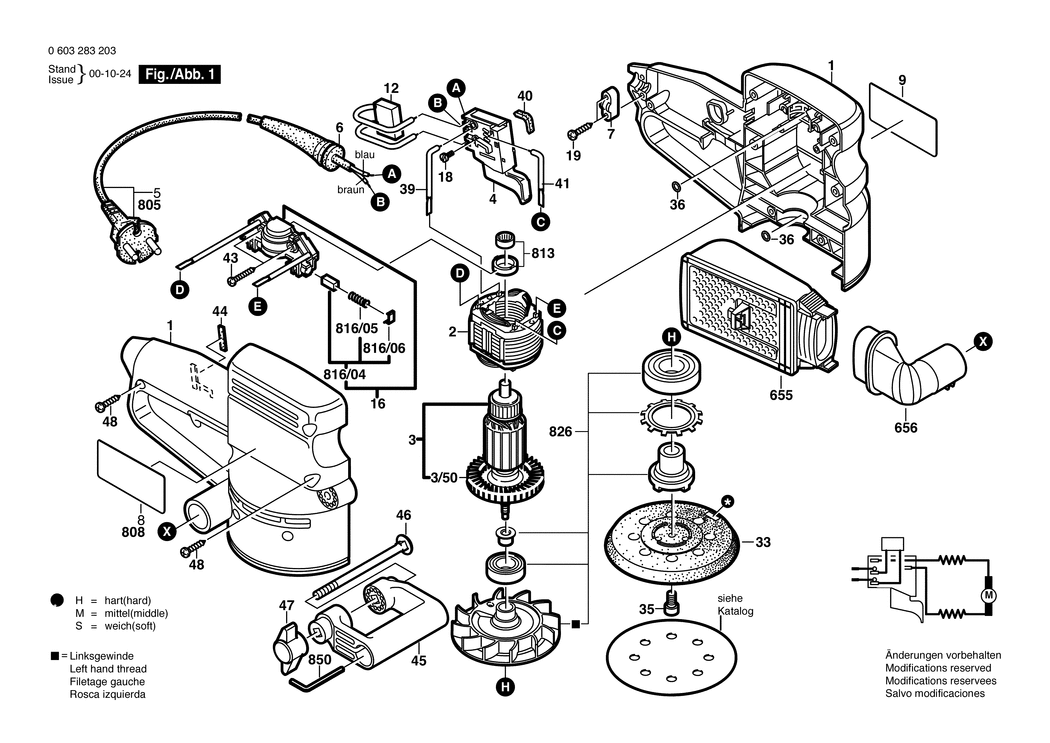

1 - HOUSING SECTION
BSD-2605104288.A17
2605104288
|
-
|
|
|
|
2 - FIELD 230V
BSD-2604220538.A15
2604220538
|
-
|
|
|
|
3 - ARMATURE 230-240V
BSD-2604011018.A14
2604011018
|
-
|
|
|
|
3/50 - FAN
BSD-2606610079.A18
2606610079
|
-
|
|
|
|
4 - SWITCH
BSD-2607200260.A175
2607200260
|
£11.30
|
£13.56
|
|
|
5 - POWER SUPPLY CORD I / BR 2.65m 2 x 1.0mm H05VV-F
BSD-2604460280.A40
2604460280
|
£14.91
|
£17.89
|
|
|
6 - GROMMET dia7 MM
BSD-2600703007.A218
2600703007
|
-
|
|
|
|
7 - CABLE CLIP
BSD-2601035004.A165
2601035004
|
£2.16
|
£2.59
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601119195.A0
2601119195
|
-
|
|
|
|
12 - SUPPRESSION FILTER
BSD-1607328028.A46
1607328028
|
£5.30
|
£6.36
|
|
|
16 - BRUSH PLATE
BSD-2604337118.A117
2604337118
|
£23.86
|
£28.63
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A2069
2603410001
|
£1.75
|
£2.10
|
|
|
19 - TORX OVAL-HEAD SCREW 4x12
BSD-2603490021.A87
2603490021
|
£1.75
|
£2.10
|
|
|
33 - BACKING PAD
BSD-2608601902.A0
2608601902
|
£23.86
|
£28.63
|
|
|
35 - HEX SOCKET HEAD CAP SCREW DIN 7984-M6x16-10.9
BSD-2910975197.A44
2910975197
|
-
|
|
|
|
36 - O-RING 5.0x1.75 MM
BSD-2600210036.A38
2600210036
|
-
|
|
|
|
39 - CONNECTING CABLE L=154 MM
BSD-2604448000.A169
2604448000
|
-
|
|
|
|
40 - DAMPING PLATE
BSD-2601022000.A106
2601022000
|
£1.75
|
£2.10
|
|
|
41 - CABLE L=233 MM
BSD-1614431010.A103
1614431010
|
£3.72
|
£4.47
|
|
|
43 - TORX OVAL-HEAD SCREW 4x20
BSD-2603490023.A316
2603490023
|
£1.75
|
£2.10
|
|
|
44 - SEAL STRIP
BSD-2602380003.A35
2602380003
|
£1.32
|
£1.58
|
|
|
45 - AUXILIARY HANDLE
BSD-2602025058.A4
2602025058
|
-
|
|
|
|
46 - ROUND-HEAD BOLT DIN 603-M6x110
BSD-2910285226.A4
2910285226
|
£1.75
|
£2.10
|
|
|
47 - WING NUT M6
BSD-1603339006.A300
1603339006
|
£2.52
|
£3.02
|
|
|
48 - SCREW 4x16
BSD-2603490022.A2557
2603490022
|
£1.75
|
£2.10
|
|
|
655 - DUST CONTAINER
BSD-2605411121.A0
2605411121
|
-
|
|
|
|
656 - FITTING
BSD-2605702038.A3
2605702038
|
£5.30
|
£6.36
|
|
|
808 - NAMEPLATE
BSD-2601119194.A1
2601119194
|
-
|
|
|
|
813 - CARTRIDGE BEARING
BSD-2605805005.A35
2605805005
|
£4.75
|
£5.70
|
|
|
816/04 - CARBON-BRUSH SET
BSD-2604321905.A183
2604321905
|
£11.30
|
£13.56
|
|
|
816/05 - COMPRESSION SPRING
BSD-2604610026.A107
2604610026
|
£2.61
|
£3.13
|
|
|
816/06 - RATCHET CAP
BSD-2601322013.A397
2601322013
|
£1.75
|
£2.10
|
|
|
826 - FAN
BSD-2606610902.A4
2606610902
|
-
|
|
|
|
850 - OFFSET SCREWDRIVER DIN 911-4
BSD-2607950004.A429
2607950004
|
£1.75
|
£2.10
|
|
