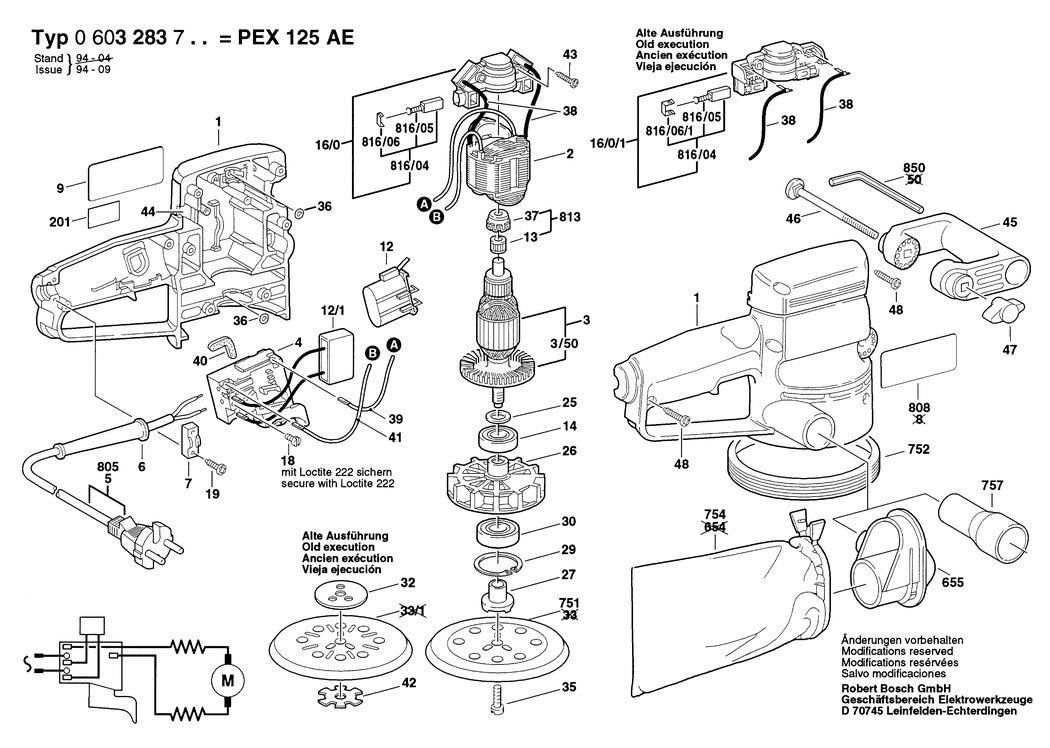

1 - HOUSING SECTION
BSD-2605104288.A12
2605104288
|
-
|
|
|
|
2 - FIELD 230V
BSD-2604220475.A0
2604220475
|
-
|
|
|
|
3 - ARMATURE 220V
BSD-2604010754.A1
2604010754
|
-
|
|
|
|
3/50 - FAN
BSD-2606610055.A47
2606610055
|
£4.26
|
£5.11
|
|
|
4 - ON-OFF SWITCH
BSD-2607200223.A0
2607200223
|
-
|
|
|
|
5 - POWER SUPPLY CORD CH 2.65m 2 x 1.0mm H05VV-F
BSD-2604460125.A18
2604460125
|
£8.49
|
£10.19
|
|
|
6 - GROMMET dia7 MM
BSD-2600703007.A224
2600703007
|
-
|
|
|
|
7 - CABLE CLIP
BSD-2601035001.A2733
2601035001
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601110757.A2
2601110757
|
-
|
|
|
|
12 - SUPPRESSION FILTER
BSD-1607328028.A50
1607328028
|
£5.30
|
£6.36
|
|
|
13 - NEEDLE BEARING
BSD-2600917002.A127
2600917002
|
£3.72
|
£4.47
|
|
|
14 - GROOVE BALL BEARING
BSD-2600905034.A89
2600905034
|
£13.12
|
£15.75
|
|
|
16 - BRUSH PLATE
BSD-2604337118.A112
2604337118
|
£23.86
|
£28.63
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A2063
2603410001
|
£1.75
|
£2.10
|
|
|
19 - TORX OVAL-HEAD SCREW 4x12
BSD-2603490021.A94
2603490021
|
£1.75
|
£2.10
|
|
|
25 - PLAIN WASHER DIN 315-M8-GT-C
BSD-2600100041.A214
2600100041
|
£1.75
|
£2.10
|
|
|
26 - FAN
BSD-2606610058.A9
2606610058
|
£14.75
|
£17.70
|
|
|
27 - CARRIER
BSD-2600328017.A9
2600328017
|
-
|
|
|
|
29 - SPRING RETAINING RING
BSD-2600116014.A24
2600116014
|
£1.75
|
£2.10
|
|
|
30 - GROOVE BALL BEARING 15x35x11
BSD-2600905111.A35
2600905111
|
£12.04
|
£14.45
|
|
|
32 - PLASTIC DISC
BSD-2600009008.A6
2600009008
|
-
|
|
|
|
35 - HEX SOCKET HEAD CAP SCREW DIN 7984-M6x16-10.9
BSD-2910975197.A35
2910975197
|
-
|
|
|
|
36 - O-RING 5.0x1.75 MM
BSD-2600210036.A46
2600210036
|
-
|
|
|
|
37 - BEARING SLEEVE
BSD-2600222002.A31
2600222002
|
-
|
|
|
|
39 - CONNECTING CABLE L=154 MM
BSD-2604448000.A177
2604448000
|
-
|
|
|
|
40 - DAMPING PLATE
BSD-2601022000.A98
2601022000
|
£1.75
|
£2.10
|
|
|
41 - CABLE L=233 MM
BSD-1614431010.A96
1614431010
|
£3.72
|
£4.47
|
|
|
42 - PLAIN WASHER
BSD-2600190150.A2
2600190150
|
-
|
|
|
|
43 - SPECIAL SCREW 4x20 MM
BSD-2603435032.A6
2603435032
|
-
|
|
|
|
44 - SEAL STRIP
BSD-2602380003.A40
2602380003
|
£1.32
|
£1.58
|
|
|
45 - AUXILIARY HANDLE
BSD-2602025058.A13
2602025058
|
-
|
|
|
|
46 - ROUND-HEAD BOLT DIN 603-M6x110
BSD-2910285226.A14
2910285226
|
£1.75
|
£2.10
|
|
|
47 - WING NUT M6
BSD-1603339006.A308
1603339006
|
£2.52
|
£3.02
|
|
|
48 - SPECIAL SCREW 4x16 MM
BSD-2603435036.A2
2603435036
|
-
|
|
|
|
655 - FITTING
BSD-2605702012.A29
2605702012
|
-
|
|
|
|
751 - BACKING PAD dia 125 MM
BSD-2608601062.A8
2608601062
|
£10.49
|
£12.59
|
|
|
751 - BACKING PAD dia 125 MM
BSD-2608601063.A9
2608601063
|
£10.49
|
£12.59
|
|
|
751 - BACKING PAD dia 125 MM
BSD-2608601061.A8
2608601061
|
£10.49
|
£12.59
|
|
|
752 - SUCTION HOOD dia 125 MM
BSD-2600282003.A5
2600282003
|
-
|
|
|
|
754 - DUST BAG
BSD-2605411067.A2
2605411067
|
£6.12
|
£7.34
|
|
|
754 - DUST BAG
BSD-2605411025.A6
2605411025
|
-
|
|
|
|
754 - DUST BAG
BSD-2605411027.A19
2605411027
|
-
|
|
|
|
754 - DUST BAG
BSD-2605411096.A6
2605411096
|
£18.37
|
£22.04
|
|
|
757 - SUCTION PIPE dia 49/35 MM
BSD-1609200976.A64
1609200976
|
£3.61
|
£4.33
|
|
|
808 - NAMEPLATE
BSD-2601110751.A0
2601110751
|
-
|
|
|
|
813 - NEEDLE BEARING
BSD-2600917002.A134
2600917002
|
£3.72
|
£4.47
|
|
|
816/04 - CARBON-BRUSH SET
BSD-2607014001.A55
2607014001
|
-
|
|
|
|
816/05 - COMPRESSION SPRING
BSD-2604610026.A105
2604610026
|
£2.61
|
£3.13
|
|
|
816/06 - RATCHET CAP
BSD-2601329051.A115
2601329051
|
£2.33
|
£2.80
|
|
|
816/06 - RATCHET CAP
BSD-2601322013.A400
2601322013
|
£1.75
|
£2.10
|
|
|
850 - OFFSET SCREWDRIVER DIN 911-4
BSD-2607950004.A436
2607950004
|
£1.75
|
£2.10
|
|
