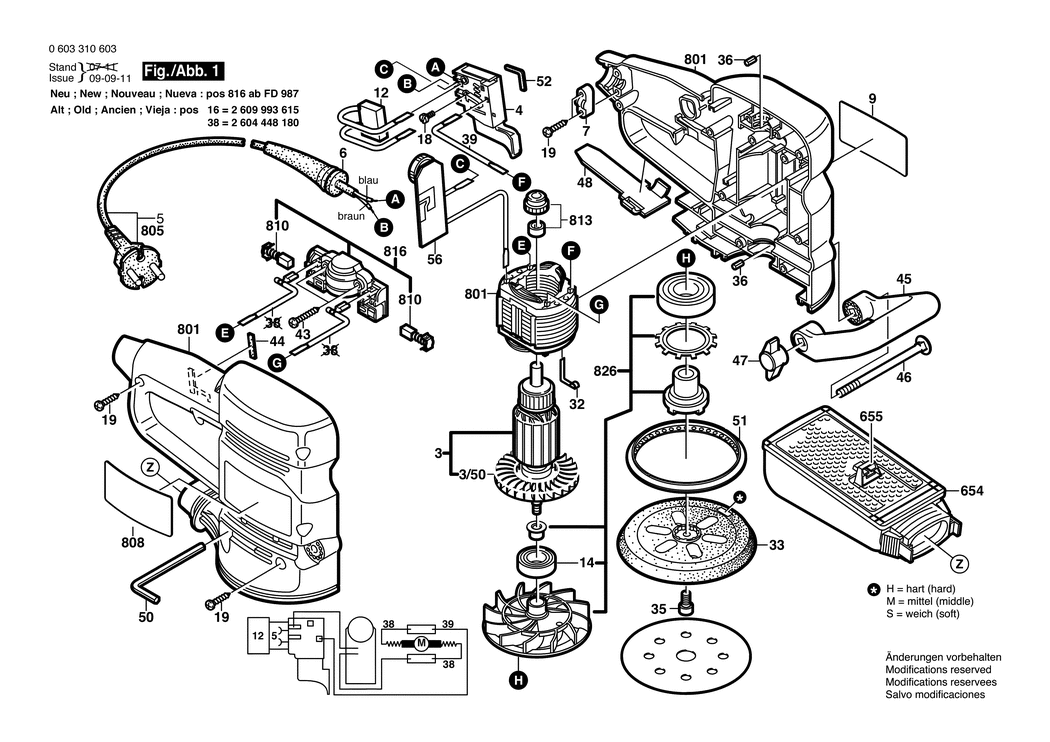

3 - ARMATURE 220-240V
BSD-2604011265.A6
2604011265
|
£33.45
|
£40.14
|
|
|
3/50 - FAN
BSD-2606610077.A6
2606610077
|
£4.75
|
£5.70
|
|
|
4 - SWITCH
BSD-2607200260.A339
2607200260
|
£11.30
|
£13.56
|
|
|
5 - POWER SUPPLY CORD CH 2.65m 2 x 1.0mm H05VV-F
BSD-2604460125.A48
2604460125
|
£8.49
|
£10.19
|
|
|
6 - GROMMET dia6.4-dia7.2x76 MM
BSD-2600703017.A169
2600703017
|
£2.61
|
£3.13
|
|
|
7 - CABLE CLIP
BSD-2601035001.A2191
2601035001
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601117752.A1
2601117752
|
£3.34
|
£4.01
|
|
|
12 - SUPPRESSION FILTER
BSD-1607328028.A320
1607328028
|
£5.30
|
£6.36
|
|
|
14 - GROOVE BALL BEARING
BSD-2600905034.A49
2600905034
|
£13.12
|
£15.75
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A1699
2603410001
|
£1.75
|
£2.10
|
|
|
19 - SCREW 4x16
BSD-2603490022.A1812
2603490022
|
£1.75
|
£2.10
|
|
|
32 - CONTACT SPRING
BSD-2601329057.A232
2601329057
|
-
|
|
|
|
33 - BACKING PAD
BSD-2608601902.A14
2608601902
|
£23.86
|
£28.63
|
|
|
35 - HEX SOCKET HEAD CAP SCREW
BSD-2603414062.A25
2603414062
|
£2.16
|
£2.59
|
|
|
36 - RUBBER BUFFER
BSD-1603100036.A34
1603100036
|
£1.75
|
£2.10
|
|
|
39 - CONNECTING CABLE L=233 MM
BSD-2604448181.A8
2604448181
|
£2.16
|
£2.59
|
|
|
43 - TORX OVAL-HEAD SCREW 4x20
BSD-2603490023.A651
2603490023
|
£1.75
|
£2.10
|
|
|
44 - SEAL STRIP
BSD-2602380003.A17
2602380003
|
£1.32
|
£1.58
|
|
|
45 - HANDLE
BSD-2602025068.A13
2602025068
|
-
|
|
|
|
46 - ROUND-HEAD BOLT DIN 603-M6x110
BSD-2910285226.A28
2910285226
|
£1.75
|
£2.10
|
|
|
47 - WING NUT M6
BSD-1603339006.A255
1603339006
|
£2.52
|
£3.02
|
|
|
48 - PUSHER
BSD-2608005043.A13
2608005043
|
£1.75
|
£2.10
|
|
|
50 - OFFSET SCREWDRIVER DIN 911-SW5
BSD-1907950006.A951
1907950006
|
£4.26
|
£5.11
|
|
|
51 - FRICTION RING
BSD-2600206015.A5
2600206015
|
-
|
|
|
|
52 - DAMPING PLATE
BSD-2601022000.A256
2601022000
|
£1.75
|
£2.10
|
|
|
56 - RPM ACTUATOR 230-240V
BSD-2607233023.A3
2607233023
|
£27.31
|
£32.77
|
|
|
654 - DUST CHAMBER
BSD-2605411129.A15
2605411129
|
£13.12
|
£15.75
|
|
|
655 - ADAPTER
BSD-2605702039.A60
2605702039
|
£5.30
|
£6.36
|
|
|
801 - HOUSING SECTION
BSD-2605104800.A1
2605104800
|
-
|
|
|
|
808 - NAMEPLATE
BSD-2601117767.A0
2601117767
|
-
|
|
|
|
810 - CARBON-BRUSH SET
BSD-2607014001.A80
2607014001
|
-
|
|
|
|
813 - CARTRIDGE BEARING
BSD-2605805005.A16
2605805005
|
£4.75
|
£5.70
|
|
|
816 - BRUSH PLATE
BSD-2604337911.A3
2604337911
|
£14.75
|
£17.70
|
|
|
826 - FAN
BSD-2606610901.A5
2606610901
|
-
|
|
|
