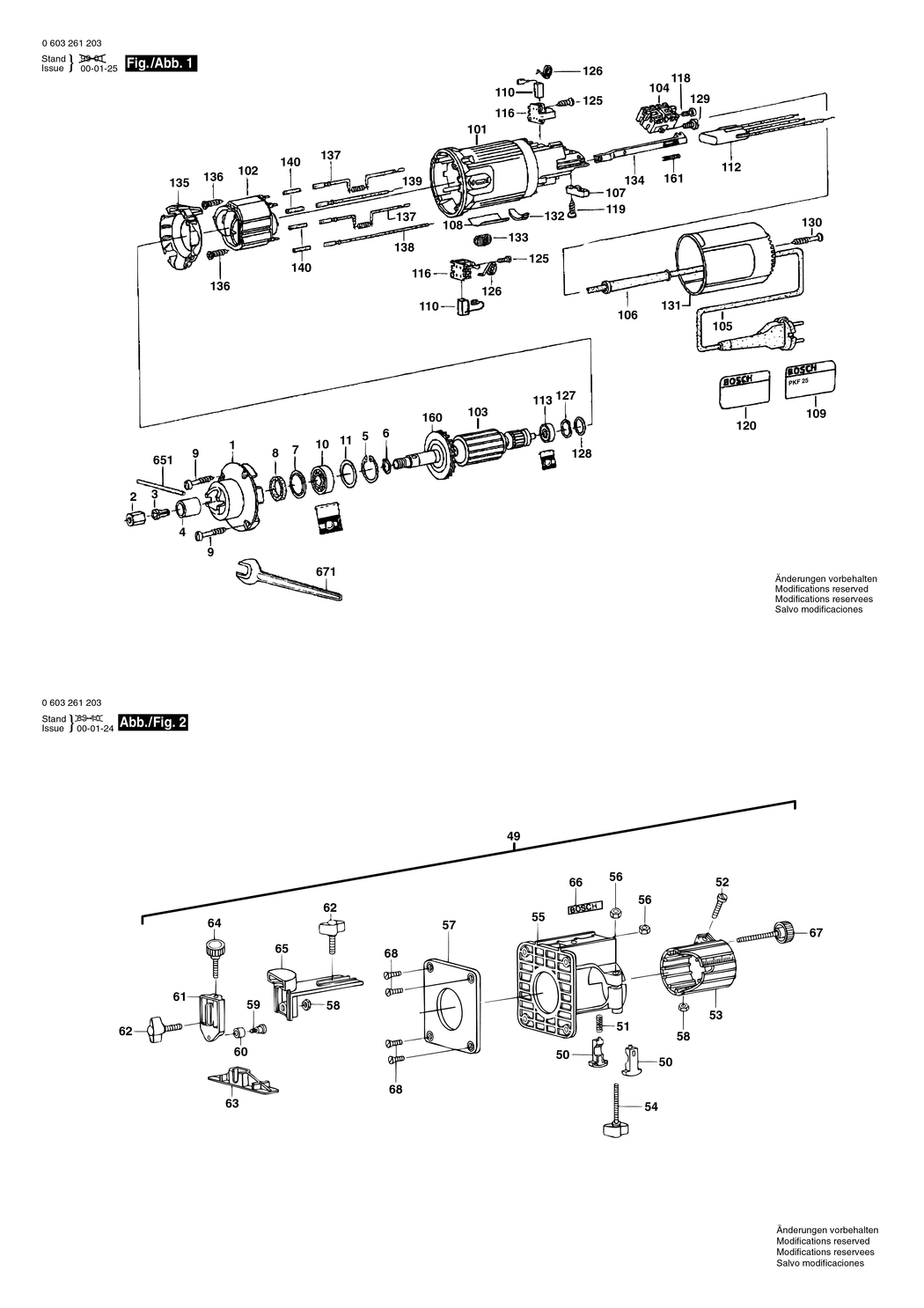

1 - SPINDLE HOUSING
BSD-2605806376.A20
2605806376
|
-
|
|
|
|
2 - UNION NUT SW 14
BSD-2603312001.A15
2603312001
|
-
|
|
|
|
3 - COLLET dia 6 MM / dia 8 MM
BSD-2608570065.A16
2608570065
|
-
|
|
|
|
3 - COLLET dia 6.4 MM=1/4/dia 8 MM
BSD-2608570066.A15
2608570066
|
£12.45
|
£14.94
|
|
|
4 - SEAL BUSHING
BSD-2600300073.A15
2600300073
|
£6.52
|
£7.83
|
|
|
5 - RETAINING CLIP DIN 472-32x1.2 MM
BSD-2916660013.A274
2916660013
|
£2.16
|
£2.59
|
|
|
6 - RETAINING CLIP DIN 471-15x1-FSt
BSD-2916650006.A486
2916650006
|
£1.75
|
£2.10
|
|
|
7 - CUPPED WASHER
BSD-2600500033.A103
2600500033
|
£2.61
|
£3.13
|
|
|
8 - FELT WASHER
BSD-2600108033.A65
2600108033
|
£1.75
|
£2.10
|
|
|
9 - TAPPING SCREW DIN 7971-BZ3.9x19
BSD-2910211020.A143
2910211020
|
£2.16
|
£2.59
|
|
|
10 - GROOVE BALL BEARING 15x32x9
BSD-2600905017.A23
2600905017
|
£10.10
|
£12.12
|
|
|
11 - SHIM 0.1 MM
BSD-1600102626.A67
1600102626
|
£2.16
|
£2.59
|
|
|
49 - EDGE CUTTER ATTACHMENT
BSD-2607020301.A9
2607020301
|
-
|
|
|
|
50 - DETENT PIN
BSD-2602305045.A3
2602305045
|
-
|
|
|
|
51 - COMPRESSION SPRING
BSD-2604612003.A4
2604612003
|
-
|
|
|
|
52 - SOCKET HEAD CAP SCREW DIN 84-AM6x14-5.8
BSD-2910011195.A1
2910011195
|
-
|
|
|
|
53 - GUIDE SLEEVE
BSD-2608040022.A6
2608040022
|
-
|
|
|
|
54 - WING SCREW
BSD-2603480002.A1
2603480002
|
-
|
|
|
|
55 - HOUSING
BSD-2608000008.A4
2608000008
|
-
|
|
|
|
56 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A1263
2915011007
|
-
|
|
|
|
57 - COVER PLATE
BSD-2601039003.A2
2601039003
|
-
|
|
|
|
58 - HEX NUT DIN 439-AM6-04
BSD-2915051106.A2
2915051106
|
£1.75
|
£2.10
|
|
|
59 - PAN HEAD SCREW DIN 923-M4x5-5.8
BSD-2910271115.A4
2910271115
|
-
|
|
|
|
60 - GUIDE BUSHING
BSD-2600328015.A6
2600328015
|
-
|
|
|
|
61 - GUIDE ARM
BSD-2608030004.A6
2608030004
|
-
|
|
|
|
62 - WING SCREW M6x20 MM
BSD-1613480008.A217
1613480008
|
£1.75
|
£2.10
|
|
|
63 - GUIDE
BSD-2608030008.A1
2608030008
|
£1.75
|
£2.10
|
|
|
64 - KNURLED THUMBSCREW
BSD-2603481017.A3
2603481017
|
-
|
|
|
|
65 - GUIDE SUPPORT
BSD-2608010001.A4
2608010001
|
-
|
|
|
|
66 - MANUFACTURER'S NAMEPLATE
BSD-2601110601.A76
2601110601
|
-
|
|
|
|
67 - KNURLED THUMBSCREW
BSD-2603481016.A4
2603481016
|
£2.61
|
£3.13
|
|
|
68 - THREAD-FORMING TAP. SCREW 4x10 MM
BSD-2914431046.A2
2914431046
|
-
|
|
|
|
101 - MOTOR HOUSING
BSD-2605108905.A2
2605108905
|
-
|
|
|
|
102 - FIELD 240V
BSD-2604220441.A2
2604220441
|
£31.64
|
£37.97
|
|
|
103 - ARMATURE 220-230V
BSD-2604010915.A5
2604010915
|
£93.88
|
£112.65
|
|
|
104 - SWITCH
BSD-2607200674.A9
2607200674
|
£16.41
|
£19.69
|
|
|
105 - POWER SUPPLY CORD CH 2.65m 2 x 1.0mm H05 VV-F
BSD-1604460427.A45
1604460427
|
£12.04
|
£14.45
|
|
|
106 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A979
2600703012
|
£2.80
|
£3.36
|
|
|
107 - CABLE CLIP
BSD-2601035001.A472
2601035001
|
£1.75
|
£2.10
|
|
|
108 - NAMEPLATE
BSD-160111A3H3.A1390
160111A3H3
|
£2.61
|
£3.13
|
|
|
109 - STICKER
BSD-2601110373.A0
2601110373
|
-
|
|
|
|
110 - CARBON-BRUSH SET
BSD-2604320912.A19
2604320912
|
£10.10
|
£12.12
|
|
|
112 - SUPPRESSION FILTER
BSD-2607329104.A141
2607329104
|
£10.10
|
£12.12
|
|
|
113 - GROOVE BALL BEARING 7x22x7
BSD-2600905018.A20
2600905018
|
-
|
|
|
|
116 - BRUSH HOLDER
BSD-1600A003G4.A236
1600A003G4
|
£3.72
|
£4.47
|
|
|
116 - BRUSH HOLDER
BSD-2601323022.A100
2601323022
|
£2.80
|
£3.36
|
|
|
118 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A414
2603410001
|
£1.75
|
£2.10
|
|
|
119 - SCREW 4x16
BSD-2603490022.A1363
2603490022
|
£1.75
|
£2.10
|
|
|
120 - STICKER
BSD-2601110290.A9
2601110290
|
-
|
|
|
|
125 - TAPPING SCREW DIN 7981-ST2.9x13-C-H
BSD-2910611006.A105
2910611006
|
£1.75
|
£2.10
|
|
|
126 - SPIRAL SPRING
BSD-1604652013.A596
1604652013
|
£1.75
|
£2.10
|
|
|
127 - SHIM
BSD-2600150004.A237
2600150004
|
£2.16
|
£2.59
|
|
|
128 - SHIM 0.3 MM
BSD-2600101023.A12
2600101023
|
£1.75
|
£2.10
|
|
|
128 - SHIM 0.2 MM
BSD-2600101022.A638
2600101022
|
£1.75
|
£2.10
|
|
|
128 - SHIM 0.5 MM
BSD-2600101020.A12
2600101020
|
£1.75
|
£2.10
|
|
|
129 - TAPPING SCREW DIN 7971-BZ2.9x16
BSD-2910211007.A66
2910211007
|
£1.75
|
£2.10
|
|
|
130 - TAPPING SCREW DIN 7982-BZ3.9x22
BSD-2910601421.A11
2910601421
|
-
|
|
|
|
131 - HOUSING COVER
BSD-2600508040.A14
2600508040
|
-
|
|
|
|
132 - INTERMEDIATE PIECE
BSD-2600026002.A15
2600026002
|
-
|
|
|
|
133 - SWITCH HANDLE
BSD-2602026015.A84
2602026015
|
£1.75
|
£2.10
|
|
|
134 - ADJUSTING SLIDE
BSD-2602319005.A92
2602319005
|
£1.75
|
£2.10
|
|
|
135 - COVER DISC
BSD-2601328045.A93
2601328045
|
£2.16
|
£2.59
|
|
|
136 - TAPPING SCREW
BSD-2603435086.A255
2603435086
|
£1.75
|
£2.10
|
|
|
137 - SUPPRESSOR BOX
BSD-2604465106.A42
2604465106
|
£4.26
|
£5.11
|
|
|
137 - CONNECTING CABLE L=88 MM
BSD-2604448034.A195
2604448034
|
£1.75
|
£2.10
|
|
|
138 - CONNECTING CABLE L=125MM
BSD-2604448040.A4
2604448040
|
£2.61
|
£3.13
|
|
|
139 - CONNECTING CABLE L=68MM
BSD-2604448039.A37
2604448039
|
£2.16
|
£2.59
|
|
|
140 - SHRINKABLE TUBE
BSD-1610712034.A36
1610712034
|
£1.66
|
£1.99
|
|
|
160 - FAN
BSD-2606610050.A0
2606610050
|
-
|
|
|
|
651 - STRAIGHT PIN 4x60 MM
BSD-2603101035.A140
2603101035
|
£2.80
|
£3.36
|
|
|
671 - SINGLE-HEAD ENG. WRENCH SW 14
BSD-1907950508.A141
1907950508
|
£14.91
|
£17.89
|
|
