Bosch AdvancedRotak 36-650 / 3600HB9600 / EU 36 Volt Spare Parts

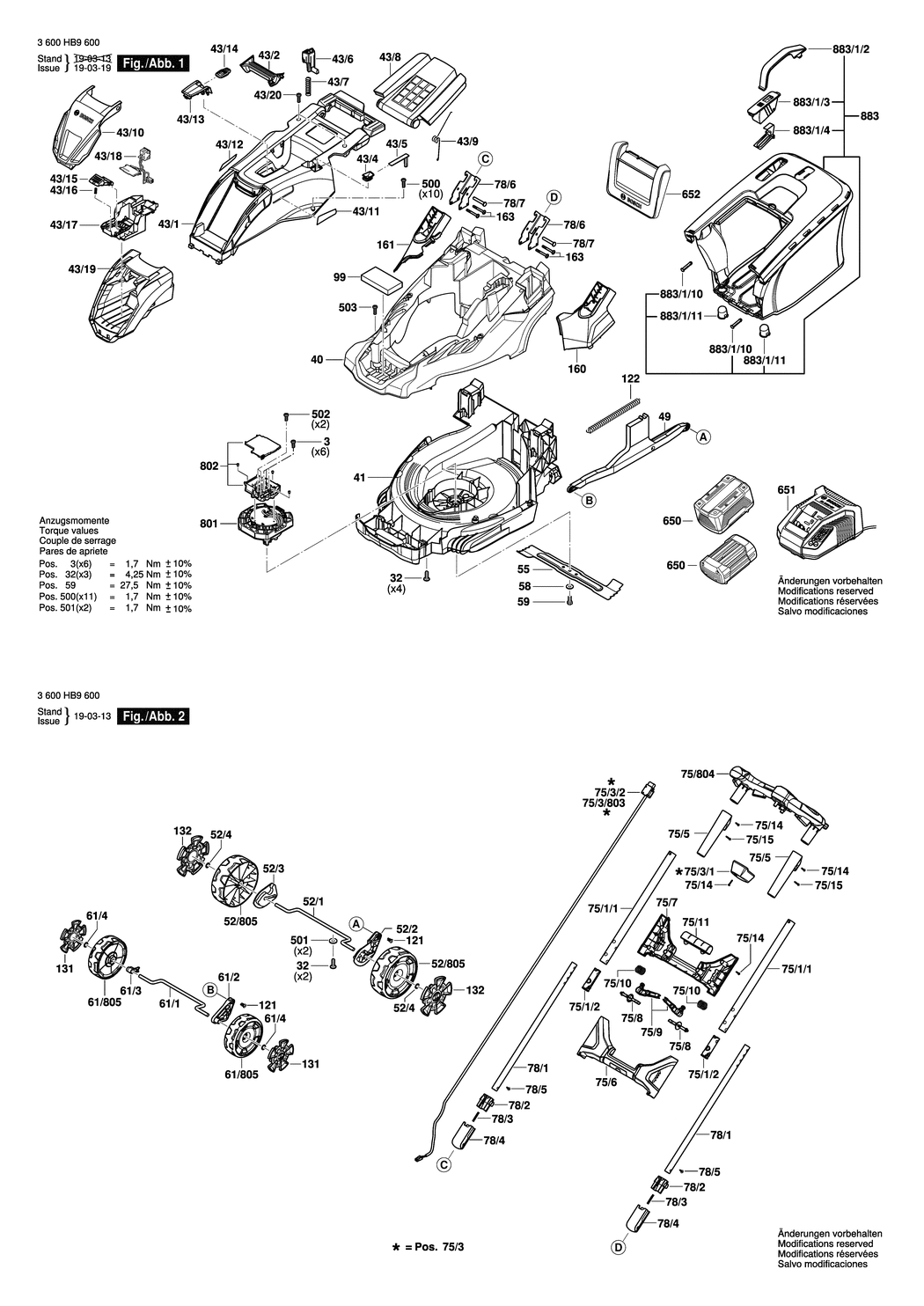

An exploded drawing and listing for the Bosch AdvancedRotak 36-650 / 3600HB9600 / EU 36 Volt

	Ex VAT	Inc VAT
3 - THREAD-FORMING TAP. SCREW M4x8 BSD-2603410048.A114 2603410048	£1.75	£2.10
32 - TORX HEAD SCREW BSD-F016L69108.A1 F016L69108	-
40 - MOWER DECK 42/46 BSD-F016L90982.A0 F016L90982	-
41 - HOUSING 42 BSD-F016L69359.A0 F016L69359	-
43/1 - MOTOR HOOD BSD-F016L90017.A19 F016L90017	£18.96	£22.75
43/2 - CARRYING HANDLE BSD-F016L90018.A48 F016L90018	£1.75	£2.10
43/4 - TRANSPARENT COVER BSD-F016L90432.A17 F016L90432	£1.75	£2.10
43/5 - INDICATOR BSD-F016L90433.A40 F016L90433	£3.72	£4.47
43/6 - BUTTON BSD-1600A022AC.A18 1600A022AC	£3.75	£4.50
43/7 - BUTTON SPRING BSD-F016L91168.A3 F016L91168	£1.75	£2.10
43/8 - GUARD FLAP BSD-F016L90022.A1 F016L90022	£7.36	£8.83
43/9 - SPRING BSD-F016L90868.A3 F016L90868	£2.83	£3.40
43/10 - GRILLE BSD-F016L91059.A0 F016L91059	-
43/11 - STICKER logo l BSD-F016L90076.A42 F016L90076	£2.61	£3.13
43/12 - STICKER logo r BSD-F016L90077.A12 F016L90077	£2.61	£3.13
43/13 - COVER PANEL BSD-F016L90021.A4 F016L90021	-
43/14 - KEY BSD-F016L90054.A4 F016L90054	£7.36	£8.83
43/15 - RELEASE LEVER BSD-F016L90773.A5 F016L90773	-
43/16 - BUTTON SPRING BSD-F016L90701.A1 F016L90701	£1.75	£2.10
43/17 - SWITCH SUPPORT BSD-F016L90777.A0 F016L90777	-
43/18 - WIRING HARNESS BSD-F016L90833.A4 F016L90833	-
43/19 - BATTERY HOUSING BSD-F016L90057.A1 F016L90057	-
43/20 - TORX HEAD SCREW BSD-F016L68124.A217 F016L68124	£1.75	£2.10
49 - LINKAGE PART BSD-F016L90028.A0 F016L90028	£10.10	£12.12
52/1 - AXLE BSD-F016L90007.A40 F016L90007	£5.30	£6.36
52/2 - LINK PIECE BSD-F016L90033.A51 F016L90033	£1.75	£2.10
52/3 - LINK PIECE BSD-F016L90037.A51 F016L90037	£1.75	£2.10
52/4 - RATCHET CAP BSD-F016L68095.A117 F016L68095	£1.75	£2.10
52/805 - WHEEL BSD-F016105108.A35 F016105108	£9.47	£11.36
55 - CUTTER BLADE 40 cm BSD-F016L90159.A0 F016L90159	£21.52	£25.83
58 - SPRING WASHER 1/2 BSD-F016L66173.A55 F016L66173	£1.75	£2.10
59 - BOLT M10x30 BSD-F016L66141.A47 F016L66141	£2.61	£3.13
61/1 - AXLE 42/46 BSD-F016L90006.A1 F016L90006	£5.30	£6.36
61/2 - LINK PIECE BSD-F016L90032.A16 F016L90032	£1.75	£2.10
61/3 - SPACER BSD-F016L90036.A16 F016L90036	£1.75	£2.10
61/4 - RATCHET CAP BSD-F016L68095.A116 F016L68095	£1.75	£2.10
61/805 - WHEEL BSD-F016105369.A2 F016105369	-
75/1/1 - HANDLE BSD-F016L90012.A0 F016L90012	£16.41	£19.69
75/1/2 - BUSHING BSD-F016L90064.A3 F016L90064	£1.75	£2.10
75/3 - WIRING UNIT BSD-F016L90850.A0 F016L90850	£18.96	£22.75
75/3/1 - CONNECTOR HOUSING BSD-F016L67218.A32 F016L67218	£5.30	£6.36
75/3/2 - CONNECTION CABLE BSD-F016L90848.A0 F016L90848	-
75/3/803 - SWITCH KIT BSD-F016104163.A33 F016104163	£14.91	£17.89
75/5 - SLEEVE BSD-F016L90070.A21 F016L90070	£2.16	£2.59
75/6 - HANDLE BSD-F016L90066.A16 F016L90066	£5.30	£6.36
75/7 - HANDLE BSD-F016L90067.A23 F016L90067	£5.58	£6.70
75/8 - LOCKING PIN BSD-F016L90068.A16 F016L90068	£1.75	£2.10
75/9 - LEVER BSD-F016L91109.A3 F016L91109	-
75/10 - COMPRESSION SPRING BSD-F016L90074.A1 F016L90074	£1.75	£2.10
75/11 - BUTTON BSD-F016L91039.A2 F016L91039	-
75/14 - SCREW M5x8 Csk Hd. BSD-F016L36542.A211 F016L36542	£2.61	£3.13
75/15 - TORX HEAD SCREW BSD-F016L68124.A206 F016L68124	£1.75	£2.10
75/804 - SWITCH ASSEMBLY BSD-F016105448.A3 F016105448	£27.23	£32.68
78/1 - BOTTOM HANDLE BSD-F016L90013.A35 F016L90013	£12.04	£14.45
78/2 - RELEASE MECHANISM BSD-F016L90063.A43 F016L90063	£1.75	£2.10
78/3 - COMPRESSION SPRING BSD-F016L90841.A6 F016L90841	£1.75	£2.10
78/4 - RELEASE MECHANISM BSD-F016L90062.A0 F016L90062	£2.61	£3.13
78/5 - SCREW M5x8 Csk Hd. BSD-F016L36542.A212 F016L36542	£2.61	£3.13
78/6 - BRACKET BSD-F016L90082.A8 F016L90082	£5.58	£6.70
78/7 - PIVOT PIN BSD-F016L90014.A7 F016L90014	£1.75	£2.10
99 - BALANCE WEIGHTS BSD-F016L69400.A14 F016L69400	£21.52	£25.83
121 - CLIP BSD-F016L91066.A44 F016L91066	£1.75	£2.10
122 - SPRING BSD-F016L90072.A40 F016L90072	£2.80	£3.36
131 - COVER BSD-F016L91046.A12 F016L91046	-
132 - COVER BSD-F016L91047.A25 F016L91047	-
160 - COVER BSD-F016L90060.A0 F016L90060	£2.61	£3.13
161 - COVER BSD-F016L90061.A41 F016L90061	£2.61	£3.13
163 - TORX OVAL-HEAD SCREW M6x50 BSD-1613490011.A14 1613490011	£2.16	£2.59
500 - TORX HEAD SCREW BSD-F016L68124.A205 F016L68124	£1.75	£2.10
501 - PLAIN WASHER BSD-8716107299.A2 8716107299	-
502 - SELF-CUTTING SCREW BSD-F016L37433.A156 F016L37433	£1.75	£2.10
503 - THREAD-FORMING TAP. SCREW M4x8 BSD-2603410048.A107 2603410048	£1.75	£2.10
650 - SLIDE-IN ACCU PACKAGE 36V 2.0 Ah Li BSD-2607336913.A15 2607336913	£195.26	£234.31
650 - SLIDE-IN ACCU PACKAGE 36V. 4.0Ah. LI BSD-2607337047.A41 2607337047	£263.33	£316.00
650 - SLIDE-IN ACCU PACKAGE BBS 36V. 4.0Ah BSD-2607337047.A30 2607337047	£263.33	£316.00
650 - BATTERY PACK PBA 36V 2.0Ah H-B 72Wh BSD-1607A3502V.A1 1607A3502V	£187.56	£225.07
650 - BATTERY PACK 36V. 6.0Ah. LI BSD-1607A350RC.A7 1607A350RC	£306.65	£367.98
651 - CHARGER EU 230V/14.4-36V BSD-2607225657.A38 2607225657	£70.24	£84.29
651 - FAST CHARGER EU AL 36V-20/36V BSD-2607226273.A0 2607226273	-
652 - DEFLECTOR PLATE BSD-F016L90830.A0 F016L90830	£21.52	£25.83
801 - DC MOTOR BSD-F016105449.A2 F016105449	-
802 - ELECTRONICS MODULE BSD-F016105440.A0 F016105440	-
883 - COLLECTION BOX BSD-F016105378.A6 F016105378	£59.53	£71.44
883/1/10 - PIN BSD-F016L91107.A8 F016L91107	-
883/1/11 - SOCKET INSERT BSD-F016L90639.A17 F016L90639	-
883/1/2 - HANDLE BSD-F016L90040.A27 F016L90040	£2.19	£2.63
883/1/3 - COVER BSD-F016L90557.A8 F016L90557	£2.16	£2.59
883/1/4 - PIVOT PLATE BSD-F016L91038.A23 F016L91038	-
