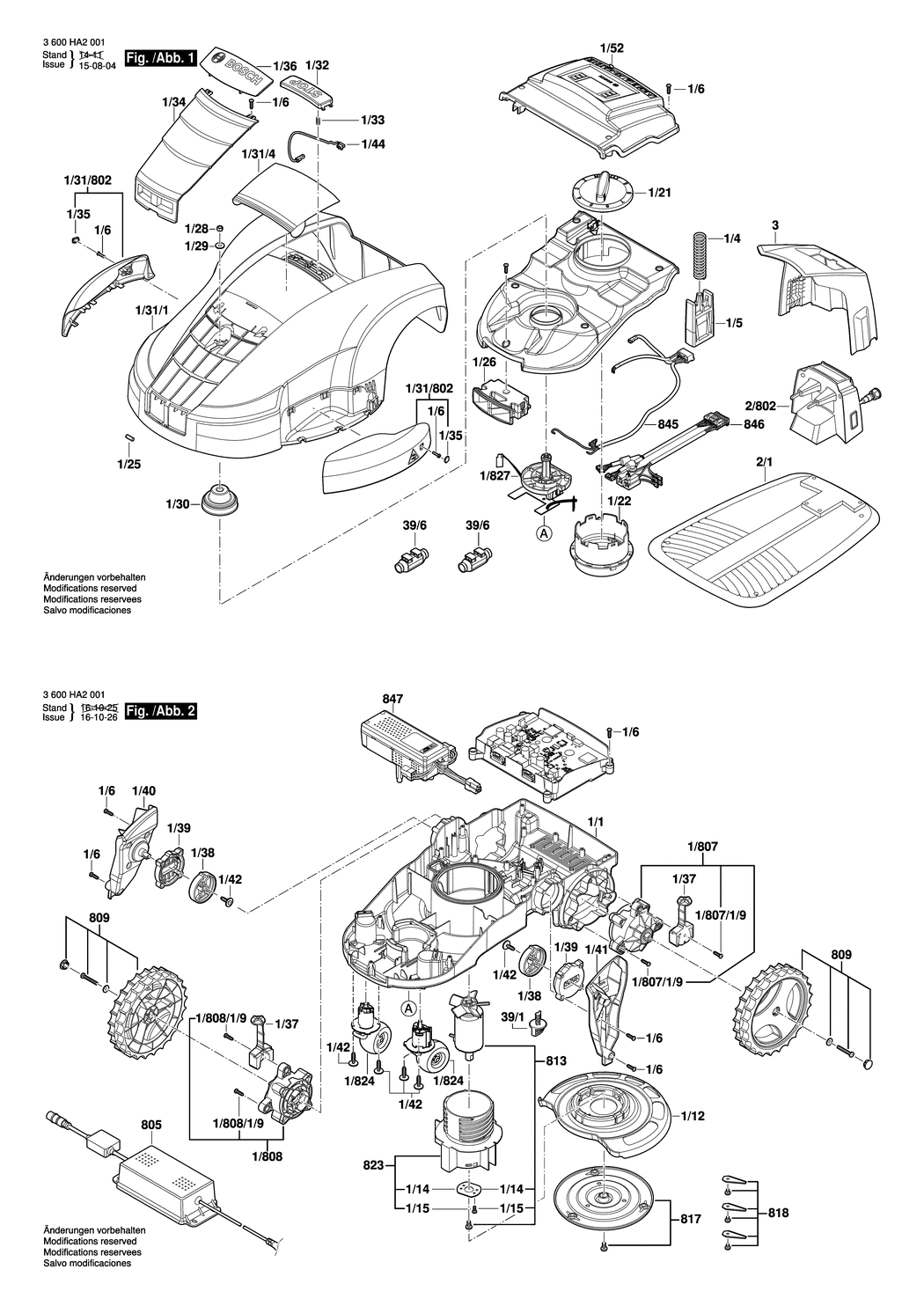

1/1 - CHASSIS
BSD-F016L68576.A8
F016L68576
|
£33.74
|
£40.49
|
|
|
1/4 - SPRING
BSD-F016L67704.A5
F016L67704
|
£2.16
|
£2.59
|
|
|
1/5 - PLUNGER
BSD-F016L67705.A9
F016L67705
|
£2.61
|
£3.13
|
|
|
1/6 - SCREW M4x20 PLASTIC
BSD-F016L67706.A17
F016L67706
|
£1.75
|
£2.10
|
|
|
1/12 - PIVOTING BLADE GUARD
BSD-F016L67729.A9
F016L67729
|
£23.86
|
£28.63
|
|
|
1/14 - BEARING PLATE
BSD-F016L67872.A5
F016L67872
|
£2.80
|
£3.36
|
|
|
1/15 - MOTOR FIXING SCREW
BSD-F016L67734.A5
F016L67734
|
£1.75
|
£2.10
|
|
|
1/21 - ROTARY KNOB
BSD-F016L67742.A9
F016L67742
|
£5.58
|
£6.70
|
|
|
1/22 - THREADED SLEEVE
BSD-F016L67743.A5
F016L67743
|
£10.10
|
£12.12
|
|
|
1/25 - CONTROL MAGNET
BSD-F016L67750.A9
F016L67750
|
£2.16
|
£2.59
|
|
|
1/26 - SOCKET
BSD-F016L68265.A8
F016L68265
|
£23.86
|
£28.63
|
|
|
1/28 - NUT
BSD-F016L18118.A9
F016L18118
|
£1.75
|
£2.10
|
|
|
1/29 - WASHER
BSD-F016L67862.A6
F016L67862
|
£1.75
|
£2.10
|
|
|
1/30 - SEALING BELLOWS
BSD-F016L67768.A6
F016L67768
|
-
|
|
|
|
1/31/1 - OUTER SHELL
BSD-F016L67770.A8
F016L67770
|
£70.24
|
£84.29
|
|
|
1/31/4 - HINGED LID
BSD-F016L67777.A2
F016L67777
|
£12.04
|
£14.45
|
|
|
1/31/802 - SIDE COVER
BSD-F016104257.A0
F016104257
|
£31.64
|
£37.97
|
|
|
1/32 - STOP COVER
BSD-F016L67771.A6
F016L67771
|
£3.72
|
£4.47
|
|
|
1/33 - BUTTON SPRING
BSD-F016L67772.A8
F016L67772
|
£2.61
|
£3.13
|
|
|
1/34 - COVER GUIDE
BSD-F016L67773.A6
F016L67773
|
£13.41
|
£16.09
|
|
|
1/35 - CAP PLATE
BSD-F016L67776.A0
F016L67776
|
£1.32
|
£1.58
|
|
|
1/36 - COMPANY LOGO
BSD-F016L67782.A0
F016L67782
|
£6.61
|
£7.93
|
|
|
1/37 - SUPPORT ELEMENT
BSD-F016L68494.A7
F016L68494
|
£13.12
|
£15.75
|
|
|
1/38 - MOUNTING RING
BSD-F016L67785.A5
F016L67785
|
£18.96
|
£22.75
|
|
|
1/39 - RETAINING PLATE
BSD-F016L67786.A9
F016L67786
|
£5.58
|
£6.70
|
|
|
1/40 - MOUNTING BRACKET
BSD-F016L67778.A0
F016L67778
|
£8.67
|
£10.41
|
|
|
1/41 - MOUNTING BRACKET
BSD-F016L67779.A14
F016L67779
|
£10.10
|
£12.12
|
|
|
1/42 - SCREW AND WASHER ASSEMBLY
BSD-F016L67951.A9
F016L67951
|
£2.61
|
£3.13
|
|
|
1/44 - WIRE HARNESS ASSEMBLY
BSD-F016L67867.A9
F016L67867
|
£5.58
|
£6.70
|
|
|
1/52 - STICKER
BSD-F016L69304.A13
F016L69304
|
£2.80
|
£3.36
|
|
|
1/802 - NAMEPLATE
BSD-F016105061.A4
F016105061
|
£2.33
|
£2.80
|
|
|
1/824 - WHEEL LIFT UNIT
BSD-F016104876.A7
F016104876
|
-
|
|
|
|
1/827 - INPUT DEVICE
BSD-F016104492.A0
F016104492
|
£120.11
|
£144.13
|
|
|
2/1 - BASE PLATE
BSD-F016L68409.A5
F016L68409
|
£33.74
|
£40.49
|
|
|
2/802 - SIGNAL TOWER
BSD-F016104662.A4
F016104662
|
£306.81
|
£368.17
|
|
|
3 - COVERING HOOD
BSD-F016L67822.A5
F016L67822
|
£13.12
|
£15.75
|
|
|
39/1 - STOPPER
BSD-F016L67841.A9
F016L67841
|
£4.26
|
£5.11
|
|
|
39/6 - CONNECTOR
BSD-F016L68737.A8
F016L68737
|
£7.36
|
£8.83
|
|
|
805 - POWER SUPPLY UNIT EU
BSD-F016L69116.A13
F016L69116
|
£167.68
|
£201.22
|
|
|
805 - POWER SUPPLY UNIT CH
BSD-F016L69117.A1
F016L69117
|
£195.26
|
£234.31
|
|
|
805 - POWER SUPPLY UNIT
BSD-F016L69118.A13
F016L69118
|
£154.03
|
£184.84
|
|
|
805 - POWER SUPPLY UNIT
BSD-F016L69119.A0
F016L69119
|
£154.03
|
£184.84
|
|
|
1/807 - DRIVE UNIT
BSD-F016104253.A3
F016104253
|
£116.15
|
£139.38
|
|
|
1/807/1/9 - SCREW M4x20 PLASTIC
BSD-F016L67706.A20
F016L67706
|
£1.75
|
£2.10
|
|
|
1/808 - DRIVE UNIT
BSD-F016104251.A4
F016104251
|
£116.15
|
£139.38
|
|
|
809 - DRIVE WHEEL
BSD-F016104502.A9
F016104502
|
£23.86
|
£28.63
|
|
|
1/808/1/9 - SCREW M4x20 PLASTIC
BSD-F016L67706.A19
F016L67706
|
£1.75
|
£2.10
|
|
|
813 - MOTOR SPARE PARTS SET
BSD-F016104254.A10
F016104254
|
£271.18
|
£325.41
|
|
|
817 - CUTTING UNIT
BSD-F016104259.A9
F016104259
|
£40.80
|
£48.96
|
|
|
818 - CUTTER BLADE
BSD-F016104255.A3
F016104255
|
£27.23
|
£32.68
|
|
|
823 - MOTOR HOUSING
BSD-F016104252.A10
F016104252
|
£27.31
|
£32.77
|
|
|
845 - WIRE HARNESS ASSEMBLY
BSD-F016104258.A5
F016104258
|
£134.16
|
£160.99
|
|
|
846 - WIRE HARNESS ASSEMBLY
BSD-F016104682.A6
F016104682
|
-
|
|
|
|
847 - BATTERY PACK
BSD-F016104299.A6
F016104299
|
£283.50
|
£340.20
|
|
