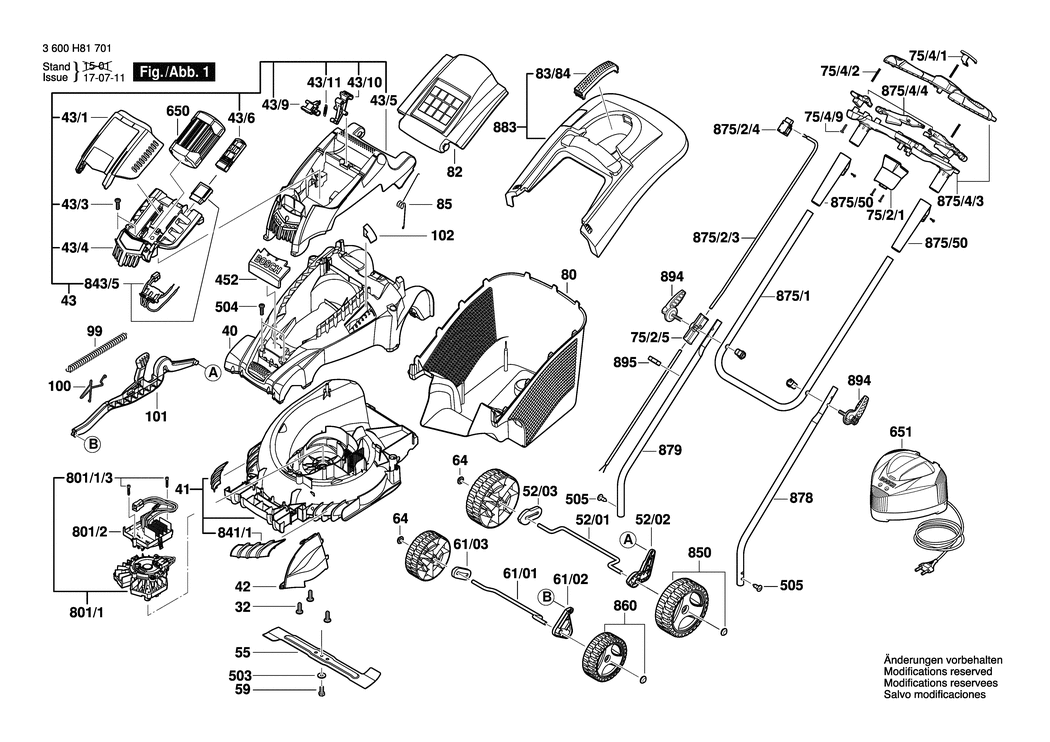

32 - SCREW
BSD-F016L66162.A55
F016L66162
|
£1.75
|
£2.10
|
|
|
40 - MOWER DECK
BSD-F016L66158.A64
F016L66158
|
£33.74
|
£40.49
|
|
|
41 - HOUSING
BSD-F016L66003.A19
F016L66003
|
£37.72
|
£45.27
|
|
|
42 - COVER PANEL
BSD-F016L66039.A27
F016L66039
|
£3.34
|
£4.01
|
|
|
43 - MOTOR HOOD
BSD-F016L67439.A3
F016L67439
|
£81.81
|
£98.17
|
|
|
43/1 - BATTERY COVER
BSD-F016L67438.A2
F016L67438
|
£11.78
|
£14.13
|
|
|
43/3 - SELF-CUTTING SCREW 4x19 MM
BSD-F016T49429.A280
F016T49429
|
£1.75
|
£2.10
|
|
|
43/4 - BATTERY TRAY
BSD-F016L65952.A40
F016L65952
|
£36.62
|
£43.95
|
|
|
43/5 - MOTOR HOOD
BSD-F016L66779.A41
F016L66779
|
-
|
|
|
|
43/6 - INSULATOR
BSD-F016L66669.A30
F016L66669
|
-
|
|
|
|
43/9 - RELEASE LEVER
BSD-F016L66107.A14
F016L66107
|
£3.34
|
£4.01
|
|
|
43/10 - LOCKING DEVICE
BSD-F016L65988.A9
F016L65988
|
£1.95
|
£2.34
|
|
|
43/11 - SPRING
BSD-F016L66108.A46
F016L66108
|
£1.75
|
£2.10
|
|
|
52/01 - AXLE
BSD-F016L66465.A38
F016L66465
|
£3.34
|
£4.01
|
|
|
52/02 - LEVER
BSD-F016L90582.A26
F016L90582
|
-
|
|
|
|
52/03 - SPACER
BSD-F016L90583.A166
F016L90583
|
£2.33
|
£2.80
|
|
|
55 - CUTTER BLADE
BSD-F016L66005.A15
F016L66005
|
£31.64
|
£37.97
|
|
|
59 - BOLT M10x30
BSD-F016L66141.A85
F016L66141
|
£2.61
|
£3.13
|
|
|
61/01 - AXLE
BSD-F016L66464.A16
F016L66464
|
£4.75
|
£5.70
|
|
|
61/02 - LEVER
BSD-F016L90581.A166
F016L90581
|
£7.78
|
£9.33
|
|
|
61/03 - SPACER
BSD-F016L90585.A26
F016L90585
|
£1.75
|
£2.10
|
|
|
64 - RATCHET CAP 9 MM
BSD-F016F05700.A71
F016F05700
|
£1.95
|
£2.34
|
|
|
75/2/1 - CONNECTOR HOUSING
BSD-F016L67218.A14
F016L67218
|
£5.30
|
£6.36
|
|
|
75/2/5 - CABLE GUIDE
BSD-F016104213.A27
F016104213
|
£8.67
|
£10.41
|
|
|
75/4/1 - PUSH-BUTTON
BSD-F016L67150.A67
F016L67150
|
£2.08
|
£2.50
|
|
|
75/4/2 - BUTTON SPRING
BSD-F016L67151.A74
F016L67151
|
£1.75
|
£2.10
|
|
|
75/4/9 - SELF-CUTTING SCREW 4x19 MM
BSD-F016T49429.A279
F016T49429
|
£1.75
|
£2.10
|
|
|
80 - COLLECTOR BOX BOTTOM
BSD-F016L65674.A68
F016L65674
|
£40.80
|
£48.96
|
|
|
82 - GUARD FLAP
BSD-F016L66137.A35
F016L66137
|
£13.32
|
£15.99
|
|
|
83/84 - HANDLE
BSD-F016L66441.A92
F016L66441
|
£4.75
|
£5.70
|
|
|
85 - SPRING
BSD-F016L66165.A102
F016L66165
|
£2.82
|
£3.39
|
|
|
99 - SPRING
BSD-F016L59327.A90
F016L59327
|
£2.80
|
£3.36
|
|
|
100 - SPRING
BSD-F016L65790.A75
F016L65790
|
£1.95
|
£2.34
|
|
|
101 - LINKAGE PART
BSD-F016L67260.A56
F016L67260
|
-
|
|
|
|
102 - RESTRICTOR
BSD-F016L66111.A14
F016L66111
|
£3.80
|
£4.56
|
|
|
452 - COMPANY LOGO ROTAK 37 LI
BSD-F016L66286.A3
F016L66286
|
£4.75
|
£5.70
|
|
|
503 - SPRING WASHER 1/2
BSD-F016L66173.A46
F016L66173
|
£1.75
|
£2.10
|
|
|
504 - SELF-CUTTING SCREW 4x19 MM
BSD-F016T49429.A281
F016T49429
|
£1.75
|
£2.10
|
|
|
505 - SCREW
BSD-F016L65803.A31
F016L65803
|
-
|
|
|
|
650 - BATTERY PACK 36V. 4.5Ah. LI
BSD-2607336006.A1
2607336006
|
-
|
|
|
|
651 - FAST CHARGER EU 230/18-36V. 1h
BSD-2607225099.A15
2607225099
|
£134.16
|
£160.99
|
|
|
801/1 - DC MOTOR
BSD-F016104031.A30
F016104031
|
£218.41
|
£262.09
|
|
|
801/1/3 - PAN HEAD SCREW 4x35
BSD-F016L69251.A74
F016L69251
|
£1.75
|
£2.10
|
|
|
801/1/3 - SCREW M4x35
BSD-F016L66662.A24
F016L66662
|
£1.75
|
£2.10
|
|
|
801/2 - PRINTED-BOARD ASSEMBLY
BSD-F016104888.A26
F016104888
|
£93.88
|
£112.65
|
|
|
841/1 - COVER
BSD-F016104316.A3
F016104316
|
£8.49
|
£10.19
|
|
|
843/5 - WIRING HARNESS
BSD-F016104244.A33
F016104244
|
-
|
|
|
|
850 - WHEEL
BSD-F016103992.A66
F016103992
|
-
|
|
|
|
860 - WHEEL
BSD-F016103994.A22
F016103994
|
-
|
|
|
|
875/1 - HANDLE
BSD-F016L67133.A7
F016L67133
|
£9.49
|
£11.39
|
|
|
875/2/3 - CONNECTING CABLE
BSD-F016104165.A13
F016104165
|
£13.41
|
£16.09
|
|
|
875/2/4 - SWITCH KIT
BSD-F016104163.A29
F016104163
|
£14.91
|
£17.89
|
|
|
875/4/3 - HOUSING SET
BSD-F016104159.A33
F016104159
|
£21.52
|
£25.83
|
|
|
875/4/4 - SWITCH SEGMENT
BSD-F016104160.A99
F016104160
|
£10.82
|
£12.99
|
|
|
875/50 - SLEEVE
BSD-F016104161.A33
F016104161
|
£5.58
|
£6.70
|
|
|
878 - BOTTOM HANDLE
BSD-F016L67209.A23
F016L67209
|
-
|
|
|
|
879 - BOTTOM HANDLE
BSD-F016L67210.A17
F016L67210
|
-
|
|
|
|
883 - COVER
BSD-F016103608.A39
F016103608
|
£27.23
|
£32.68
|
|
|
894 - CLAMPING LEVER
BSD-F016L67530.A65
F016L67530
|
£11.30
|
£13.56
|
|
|
895 - CABLE CLIP
BSD-F016L66895.A77
F016L66895
|
£1.75
|
£2.10
|
|
