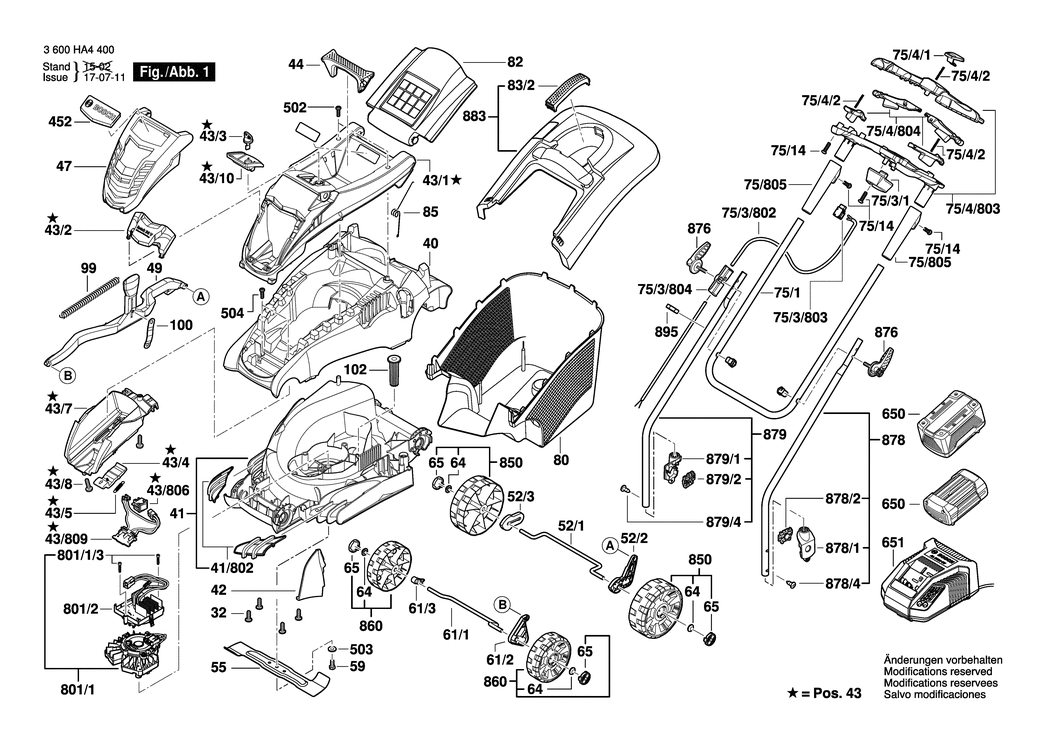

An exploded drawing and listing for the Bosch Rotak 37 LI / 3600HA4400 / EU 36 Volt
Ex VAT Inc VAT
32 - SCREW BSD-F016L66162.A62 F016L66162 £1.75 £2.10
40 - MOWER DECK BSD-F016L68101.A1 F016L68101 £27.31 £32.77
41 - HOUSING BSD-F016L68100.A10 F016L68100 £40.80 £48.96
41/802 - COVER PANEL BSD-F016104420.A7 F016104420 £19.45 £23.34
42 - COVER PANEL BSD-F016L66039.A44 F016L66039 £3.34 £4.01
43 - MOTOR HOOD BSD-F016L68080.A34 F016L68080 £45.67 £54.80
43/1 - MOTOR HOOD BSD-F016L68081.A1 F016L68081 £13.41 £16.09
43/2 - COVER BSD-F016L68086.A35 F016L68086 £2.52 £3.02
43/3 - KEY BSD-F016L68003.A10 F016L68003 £2.49 £2.99
43/4 - RELEASE LEVER BSD-F016L68004.A35 F016L68004 £1.95 £2.34
43/5 - SPRING BSD-F016L66108.A95 F016L66108 £1.75 £2.10
43/7 - BATTERY TRAY BSD-F016L68082.A35 F016L68082 £6.61 £7.93
43/8 - SELF-CUTTING SCREW 4x19 MM BSD-F016T49429.A796 F016T49429 £1.75 £2.10
43/10 - COVER BSD-F016L68083.A1 F016L68083 £2.33 £2.80
43/806 - SWITCH BSD-F016104250.A10 F016104250 £8.67 £10.41
43/809 - WIRING HARNESS BSD-F016104654.A10 F016104654 -
44 - CARRYING HANDLE BSD-F016L68084.A35 F016L68084 £2.16 £2.59
47 - GRILLE BSD-F016L68085.A0 F016L68085 £6.61 £7.93
49 - LINKAGE PART BSD-F016L68111.A19 F016L68111 -
52/1 - AXLE BSD-F016L68527.A19 F016L68527 £3.80 £4.56
52/2 - LEVER BSD-F016L90582.A192 F016L90582 -
52/3 - SPACER BSD-F016L90583.A0 F016L90583 £2.33 £2.80
55 - CUTTER BLADE BSD-F016L66005.A28 F016L66005 £31.64 £37.97
59 - BOLT M10x30 BSD-F016L66141.A35 F016L66141 £2.61 £3.13
61/1 - AXLE BSD-F016L68526.A0 F016L68526 £3.34 £4.01
61/2 - LEVER BSD-F016L90581.A0 F016L90581 £7.78 £9.33
61/3 - SPACER BSD-F016L90585.A192 F016L90585 £1.75 £2.10
64 - RATCHET CAP BSD-F016L68095.A19 F016L68095 £1.75 £2.10
65 - COVER BSD-F016L68116.A0 F016L68116 £1.75 £2.10
75/1 - HANDLE BSD-F016L90608.A57 F016L90608 £16.41 £19.69
75/3/1 - CONNECTOR HOUSING BSD-F016L67218.A38 F016L67218 £5.30 £6.36
75/3/802 - CONNECTING CABLE BSD-F016104165.A30 F016104165 £13.41 £16.09
75/3/803 - SWITCH KIT BSD-F016104163.A36 F016104163 £14.91 £17.89
75/3/804 - CABLE GUIDE BSD-F016104213.A124 F016104213 £8.67 £10.41
75/4/1 - PUSH-BUTTON BSD-F016L67150.A139 F016L67150 £2.08 £2.50
75/4/2 - BUTTON SPRING BSD-F016L67151.A2 F016L67151 £1.75 £2.10
75/4/803 - HOUSING SET BSD-F016104360.A34 F016104360 £16.41 £19.69
75/4/804 - SWITCH SEGMENT BSD-F016104160.A51 F016104160 £10.82 £12.99
75/14 - SELF-CUTTING SCREW 4x19 MM BSD-F016T49429.A793 F016T49429 £1.75 £2.10
75/805 - SLEEVE BSD-F016104361.A53 F016104361 £4.26 £5.11
80 - COLLECTOR BOX BOTTOM BSD-F016L65674.A77 F016L65674 £40.80 £48.96
82 - GUARD FLAP BSD-F016L66137.A125 F016L66137 £13.32 £15.99
83/2 - HANDLE BSD-F016L66441.A173 F016L66441 £4.75 £5.70
85 - SPRING BSD-F016L66165.A35 F016L66165 £2.82 £3.39
99 - SPRING BSD-F016L59327.A187 F016L59327 £2.80 £3.36
100 - LEAF SPRING BSD-F016L68117.A80 F016L68117 £1.75 £2.10
102 - HOLDING PLUG BSD-F016L68536.A0 F016L68536 £21.52 £25.83
452 - COMPANY LOGO BSD-F016L90673.A0 F016L90673 £5.87 £7.04
502 - TORX HEAD SCREW BSD-F016L68124.A46 F016L68124 £1.75 £2.10
503 - SPRING WASHER 1/2 BSD-F016L66173.A68 F016L66173 £1.75 £2.10
504 - SELF-CUTTING SCREW 4x19 MM BSD-F016T49429.A794 F016T49429 £1.75 £2.10
650 - SLIDE-IN ACCU PACKAGE BBS 36V. 4.0Ah BSD-2607337047.A27 2607337047 £263.33 £316.00
651 - CHARGER EU 230V/14.4-36V BSD-2607225657.A34 2607225657 £70.24 £84.29
801/1 - DC MOTOR BSD-F016104031.A78 F016104031 £218.41 £262.09
801/1/3 - PAN HEAD SCREW 4x35 BSD-F016L69251.A34 F016L69251 £1.75 £2.10
801/1/3 - SCREW M4x35 BSD-F016L66662.A78 F016L66662 £1.75 £2.10
801/2 - PRINTED-BOARD ASSEMBLY BSD-F016104888.A46 F016104888 £93.88 £112.65
850 - WHEEL BSD-F016104422.A8 F016104422 £13.12 £15.75
860 - WHEEL BSD-F016104421.A11 F016104421 £10.82 £12.99
876 - CLAMPING LEVER BSD-F016L67530.A88 F016L67530 £11.30 £13.56
878 - BOTTOM HANDLE BSD-F016104581.A0 F016104581 £13.41 £16.09
878/1 - MOUNTING BRACKET BSD-F016L68102.A34 F016L68102 -
878/2 - PUSH-BUTTON BSD-F016L68103.A1 F016L68103 £1.75 £2.10
878/4 - SCREW M5x8 Csk Hd. BSD-F016L36542.A378 F016L36542 £2.61 £3.13
879 - BOTTOM HANDLE BSD-F016104582.A17 F016104582 £10.82 £12.99
879/1 - MOUNTING BRACKET BSD-F016L68102.A35 F016L68102 -
879/2 - PUSH-BUTTON BSD-F016L68103.A0 F016L68103 £1.75 £2.10
879/4 - SCREW M5x8 Csk Hd. BSD-F016L36542.A379 F016L36542 £2.61 £3.13
883 - COLLECTOR BOX TOP BSD-F016104465.A7 F016104465 £16.74 £20.09
895 - CABLE CLIP BSD-F016L66895.A129 F016L66895 £1.75 £2.10
