Bosch EasyGrassCut 12-23 / 3600HA8104 / EU 12 Volt Spare Parts

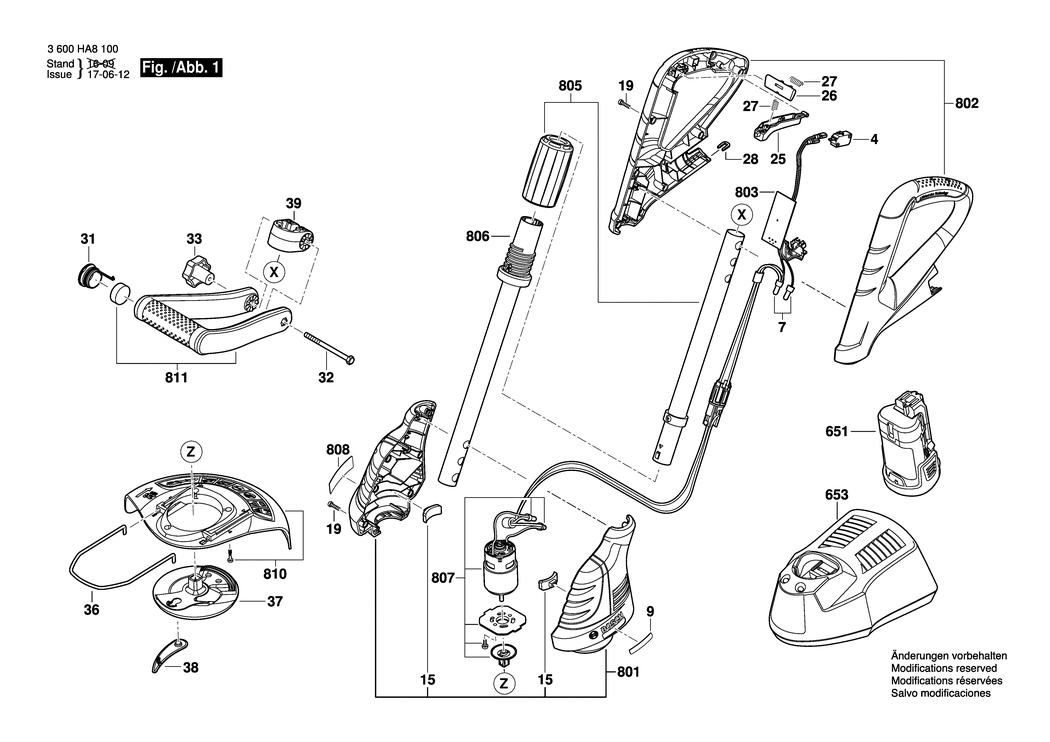

An exploded drawing and listing for the Bosch EasyGrassCut 12-23 / 3600HA8104 / EU 12 Volt

	Ex VAT	Inc VAT
4 - MICROSWITCH BSD-F016L72979.A3 F016L72979	£3.72	£4.47
7 - CONNECTING TERMINAL BSD-F016L72733.A1 F016L72733	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-F016L74056.A0 F016L74056	£2.61	£3.13
15 - RUBBER PAD BSD-F016L72983.A0 F016L72983	£2.16	£2.59
19 - SCREW BSD-F016L72752.A2 F016L72752	£1.75	£2.10
25 - TRIGGER BSD-F016L72977.A2 F016L72977	£1.75	£2.10
26 - INTERLOCK BSD-F016L72978.A1 F016L72978	£1.75	£2.10
27 - SWITCH SPRING BSD-F016L72410.A2 F016L72410	£1.75	£2.10
28 - CLIP BSD-F016L73207.A1 F016L73207	£1.75	£2.10
31 - CAP BSD-F016L72984.A0 F016L72984	£1.75	£2.10
32 - BOLT BSD-F016L72986.A3 F016L72986	£5.30	£6.36
33 - KNOB BSD-F016L72405.A3 F016L72405	£1.75	£2.10
36 - PROTECTOR BSD-F016L72987.A0 F016L72987	£2.61	£3.13
37 - DISC BSD-2609007083.A4 2609007083	£5.98	£7.17
38 - BLADE BSD-2609007088.A1 2609007088	£1.75	£2.10
39 - CLAMP BSD-F016L72404.A0 F016L72404	£2.61	£3.13
651 - BATTERY PACK PBA 12V 2.5Ah O-B BSD-1607A3503L.A13 1607A3503L	£68.42	£82.10
653 - FAST CHARGER EU GAL 1230 CV 230/12V BSD-2607226101.A86 2607226101	£63.50	£76.20
653 - FAST CHARGER GB AL 1130 VC 230/10.8V/12V. 30 MIN BSD-2607225135.A33 2607225135	£68.42	£82.10
653 - FAST CHARGER GB AL 1115 CV 230/3.6-12V. 1h BSD-2607225515.A25 2607225515	£48.38	£58.06
653 - FAST CHARGER EU GAL 1215CV 230/3.6-12V BSD-2607226103.A3 2607226103	£46.82	£56.18
801 - MOTOR HOUSING BSD-F016F04851.A0 F016F04851	£12.04	£14.45
802 - HANDLE BSD-F016F04852.A3 F016F04852	£8.67	£10.41
803 - ELECTRONIC MODULE BSD-F016F04853.A0 F016F04853	£40.80	£48.96
805 - TUBE BSD-F016F04854.A3 F016F04854	£14.91	£17.89
806 - TUBE BSD-F016F04991.A0 F016F04991	£27.23	£32.68
807 - DC MOTOR BSD-F016F04856.A3 F016F04856	£31.64	£37.97
808 - NAMEPLATE BSD-F016F04990.A0 F016F04990	£2.61	£3.13
810 - SAFETY GUARD BSD-F016F04860.A3 F016F04860	£7.36	£8.83
811 - AUXILIARY HANDLE BSD-F016F04861.A0 F016F04861	£6.52	£7.83
