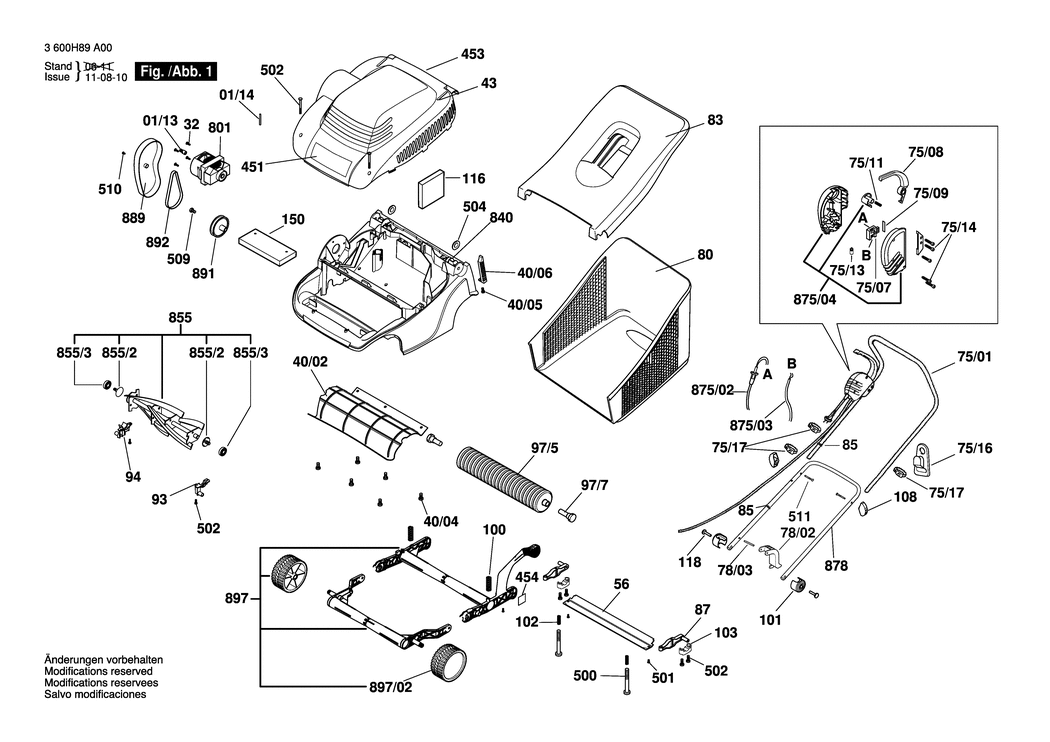

An exploded drawing and listing for the Bosch ASM 32 / 3600H89A30 / CH 230 Volt
Ex VAT Inc VAT
01/13 - PINION BSD-F016L62280.A15 F016L62280 -
01/14 - COILED SPRING PIN BSD-F016T44492.A5 F016T44492 £2.61 £3.13
32 - SELF-CUTTING SCREW BSD-F016L37433.A50 F016L37433 £1.75 £2.10
40/02 - DEFLECTOR PLATE BSD-F016L62281.A4 F016L62281 -
40/04 - SELF-CUTTING SCREW 3x8 MM BSD-F016L66420.A7 F016L66420 £2.61 £3.13
40/05 - SELF-CUTTING SCREW 4x19 MM BSD-F016T49429.A548 F016T49429 £1.75 £2.10
40/06 - INSERT BSD-F016102782.A6 F016102782 £4.75 £5.70
43 - MOTOR HOOD BSD-F016L62269.A6 F016L62269 -
56 - LOWER BLADE BSD-F016102772.A4 F016102772 -
75/01 - HANDLE BSD-F016L62651.A1 F016L62651 £19.45 £23.34
75/07 - ON-OFF SWITCH BSD-F016F05717.A80 F016F05717 £14.91 £17.89
75/08 - POSITIONING LEVER BSD-F016L66238.A58 F016L66238 £5.98 £7.18
75/09 - SPIRAL SPRING BSD-F016T49633.A18 F016T49633 £2.16 £2.59
75/11 - COMPRESSION SPRING BSD-F016T49226.A28 F016T49226 -
75/13 - CONDENSER BSD-F016L36952.A79 F016L36952 £1.95 £2.34
75/14 - SELF-CUTTING SCREW 4x19 MM BSD-F016T49429.A593 F016T49429 £1.75 £2.10
75/16 - STRAIN-RELIEF CLAMP BSD-F016L65387.A13 F016L65387 £9.49 £11.39
75/17 - CABLE CLIP BSD-F016T56393.A24 F016T56393 -
78/02 - STOPPING PIECE BSD-F016L62669.A6 F016L62669 £3.34 £4.01
78/03 - COILED SPRING PIN BSD-F016L62760.A10 F016L62760 £1.75 £2.10
80 - COLLECTOR BOX BOTTOM BSD-F016L62300.A7 F016L62300 £19.45 £23.34
83 - COLLECTOR BOX TOP BSD-F016L62299.A5 F016L62299 £14.91 £17.89
85 - CABLE CLEAT BSD-F016L11580.A47 F016L11580 £1.75 £2.10
87 - BLADE HOLDER BSD-F016L62272.A18 F016L62272 £4.75 £5.70
93 - BEARING HOLDER BSD-F016L65830.A7 F016L65830 -
94 - BEARING HOLDER BSD-F016L65831.A9 F016L65831 -
97/5 - ROLLER BSD-F016L62282.A9 F016L62282 £8.49 £10.19
97/7 - STUB SHAFT BSD-F016L63341.A11 F016L63341 £3.80 £4.56
100 - COMPRESSION SPRING BSD-F016L62298.A19 F016L62298 -
101 - PIVOT BSD-F016L62285.A10 F016L62285 -
102 - COMPRESSION SPRING BSD-F016L62284.A12 F016L62284 -
103 - CLAMPING BLOCK BSD-F016L62283.A10 F016L62283 £1.75 £2.10
108 - WING NUT BSD-F016L66136.A68 F016L66136 £4.26 £5.11
116 - AIR FILTER BSD-F016L62487.A22 F016L62487 -
118 - PIVOT PIN BSD-F016L64240.A3 F016L64240 -
150 - BALANCE WEIGHTS BSD-F016L62596.A3 F016L62596 -
451 - STICKER BSD-F016L62309.A6 F016L62309 £3.72 £4.47
453 - REFERENCE PLATE BSD-F016L61033.A6 F016L61033 £2.52 £3.02
454 - STICKER BSD-F016L64170.A3 F016L64170 £2.33 £2.80
500 - BOLT BSD-F016L62288.A12 F016L62288 £1.95 £2.34
501 - SCREW M5x8 Csk Hd. BSD-F016L36542.A37 F016L36542 £2.61 £3.13
502 - SELF-CUTTING SCREW 4x19 MM BSD-F016T49429.A595 F016T49429 £1.75 £2.10
504 - SET RING 12 MM T40 BSD-F016T49100.A28 F016T49100 £1.95 £2.34
509 - NUT BSD-F016L62388.A24 F016L62388 £3.34 £4.01
510 - SELF-CUTTING SCREW 4x19 MM BSD-F016T49429.A594 F016T49429 £1.75 £2.10
511 - BOLT M6x50 BSD-F016L59277.A34 F016L59277 £3.80 £4.56
801 - MOTOR BSD-F016L80980.A14 F016L80980 -
840 - PARTS SET BSD-F016103636.A2 F016103636 -
855 - CUTTER CYLINDER BSD-F016103681.A4 F016103681 -
855/2 - BEARING COVER BSD-F016L65939.A6 F016L65939 £1.75 £2.10
855/3 - GROOVE BALL BEARING 6200-2Z DIN 625 BSD-1900905232.A159 1900905232 £21.68 £26.01
875/02 - POWER SUPPLY CORD CH BSD-F016104359.A12 F016104359 £21.52 £25.83
875/03 - CONNECTING CABLE BSD-F016102355.A10 F016102355 £5.58 £6.70
875/04 - ASSEMBLY KIT BSD-F016103136.A5 F016103136 -
878 - HANDLE BSD-F016102330.A25 F016102330 £14.72 £17.67
889 - BELT COVER BSD-F016102356.A12 F016102356 £4.75 £5.70
891 - PULLEY BSD-F016102357.A17 F016102357 £3.80 £4.56
892 - DRIVE BELT BSD-F016102358.A12 F016102358 £7.78 £9.33
897 - PARTS SET BSD-F016103640.A12 F016103640 -
897/02 - WHEEL BSD-F016L62270.A3 F016L62270 £3.34 £4.01
