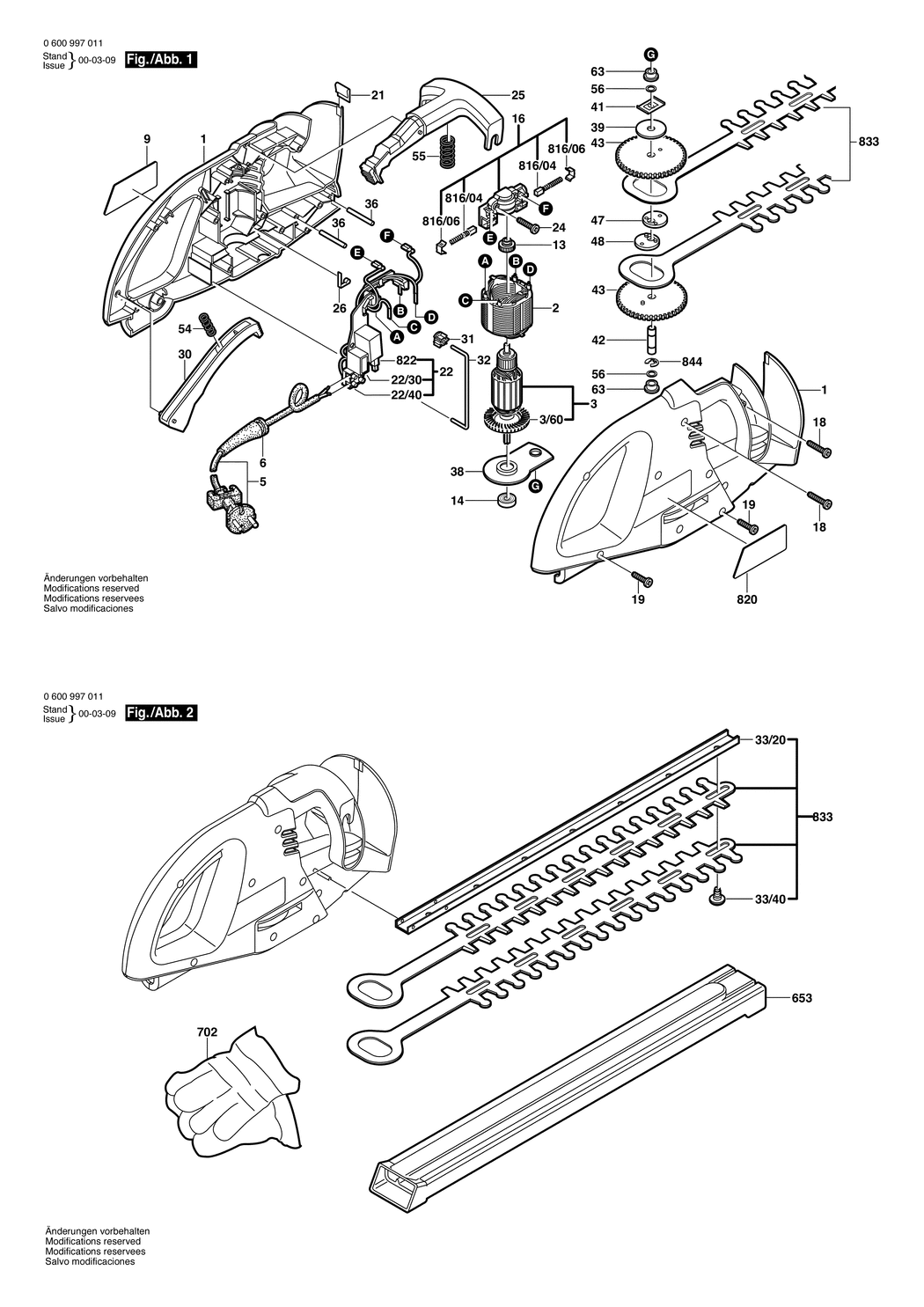

1 - HOUSING SECTION
BSD-2605104719.A1
2605104719
|
£37.27
|
£44.72
|
|
|
2 - FIELD 230-240V
BSD-2604220694.A0
2604220694
|
-
|
|
|
|
3 - ARMATURE 230-240V
BSD-2604011248.A1
2604011248
|
-
|
|
|
|
3/60 - FAN
BSD-2606610027.A141
2606610027
|
£2.80
|
£3.36
|
|
|
5 - POWER SUPPLY CORD EU 0.46m 2 x 1.0mm H05 VV-F
BSD-2604460255.A72
2604460255
|
£8.67
|
£10.41
|
|
|
6 - GROMMET dia6.4-dia7.2x76 MM
BSD-2600703017.A118
2600703017
|
£2.61
|
£3.13
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601117905.A0
2601117905
|
-
|
|
|
|
13 - FLANGED BEARING
BSD-2605805004.A52
2605805004
|
£8.67
|
£10.41
|
|
|
14 - GROOVE BALL BEARING 9x24x7
BSD-2600905021.A237
2600905021
|
£8.67
|
£10.41
|
|
|
16 - BRUSH PLATE
BSD-2609992620.A26
2609992620
|
-
|
|
|
|
18 - TORX OVAL-HEAD SCREW 4x25
BSD-2603490024.A618
2603490024
|
£1.75
|
£2.10
|
|
|
19 - SCREW 4x16
BSD-2603490022.A2031
2603490022
|
£1.75
|
£2.10
|
|
|
21 - SPRING CLIP
BSD-2601310010.A29
2601310010
|
-
|
|
|
|
22 - CIRCUIT UNIT
BSD-2607235007.A27
2607235007
|
-
|
|
|
|
22/30 - SUPPRESSION CAPACITOR
BSD-2607329005.A0
2607329005
|
-
|
|
|
|
22/40 - CLAMPING STRIP
BSD-2604490012.A75
2604490012
|
-
|
|
|
|
24 - TORX OVAL-HEAD SCREW 4x20
BSD-2603490023.A559
2603490023
|
£1.75
|
£2.10
|
|
|
25 - SWITCH SEGMENT
BSD-2605190219.A21
2605190219
|
-
|
|
|
|
26 - CONTACT SPRING
BSD-2601329057.A216
2601329057
|
-
|
|
|
|
30 - SWITCH SEGMENT
BSD-1605190091.A34
1605190091
|
-
|
|
|
|
31 - SWITCH WHEEL
BSD-1606330021.A29
1606330021
|
£1.75
|
£2.10
|
|
|
32 - SHIFTER ROD
BSD-2608040108.A26
2608040108
|
-
|
|
|
|
33/20 - GUIDE
BSD-2601038070.A15
2601038070
|
-
|
|
|
|
33/40 - THREAD-FORMING TAP. SCREW
BSD-2603413026.A109
2603413026
|
-
|
|
|
|
36 - STRAIGHT PIN
BSD-2609002714.A215
2609002714
|
£1.75
|
£2.10
|
|
|
38 - BEARING BRACKET
BSD-2605807080.A1
2605807080
|
-
|
|
|
|
39 - SHIM WASHER
BSD-2600100083.A25
2600100083
|
-
|
|
|
|
41 - SPRING NUT
BSD-2601310011.A1
2601310011
|
-
|
|
|
|
42 - BEARING BOLT
BSD-2603105054.A26
2603105054
|
£1.95
|
£2.34
|
|
|
43 - CYLINDRICAL GEAR Z=86
BSD-2606316163.A0
2606316163
|
-
|
|
|
|
47 - ECCENTRIC DISC
BSD-2600030010.A0
2600030010
|
£2.52
|
£3.02
|
|
|
48 - ECCENTRIC DISC
BSD-2600030011.A26
2600030011
|
£2.52
|
£3.02
|
|
|
54 - COMPRESSION SPRING
BSD-2604610028.A123
2604610028
|
£1.75
|
£2.10
|
|
|
55 - COMPRESSION SPRING
BSD-2604610045.A101
2604610045
|
£1.75
|
£2.10
|
|
|
56 - SHIM
BSD-2600101676.A0
2600101676
|
£1.75
|
£2.10
|
|
|
63 - BUSHING 8 x 12 x 8MM
BSD-1900322018.A26
1900322018
|
£1.75
|
£2.10
|
|
|
653 - OIL RESERVOIR
BSD-2605411122.A24
2605411122
|
-
|
|
|
|
702 - PROTECTIVE GLOVE
BSD-2607000134.A41
2607000134
|
-
|
|
|
|
816/04 - CARBON-BRUSH SET
BSD-2604321920.A1
2604321920
|
-
|
|
|
|
816/06 - RATCHET CAP
BSD-2601322017.A57
2601322017
|
£1.75
|
£2.10
|
|
|
820 - REFERENCE PLATE
BSD-2601117906.A0
2601117906
|
-
|
|
|
|
822 - CIRCUIT UNIT
BSD-2607235007.A28
2607235007
|
-
|
|
|
|
833 - SET OF KNIVES
BSD-2607001907.A0
2607001907
|
-
|
|
|
|
844 - LOCKING WASHER DIN 6799-7-FSt
BSD-2916080910.A209
2916080910
|
£2.16
|
£2.59
|
|
