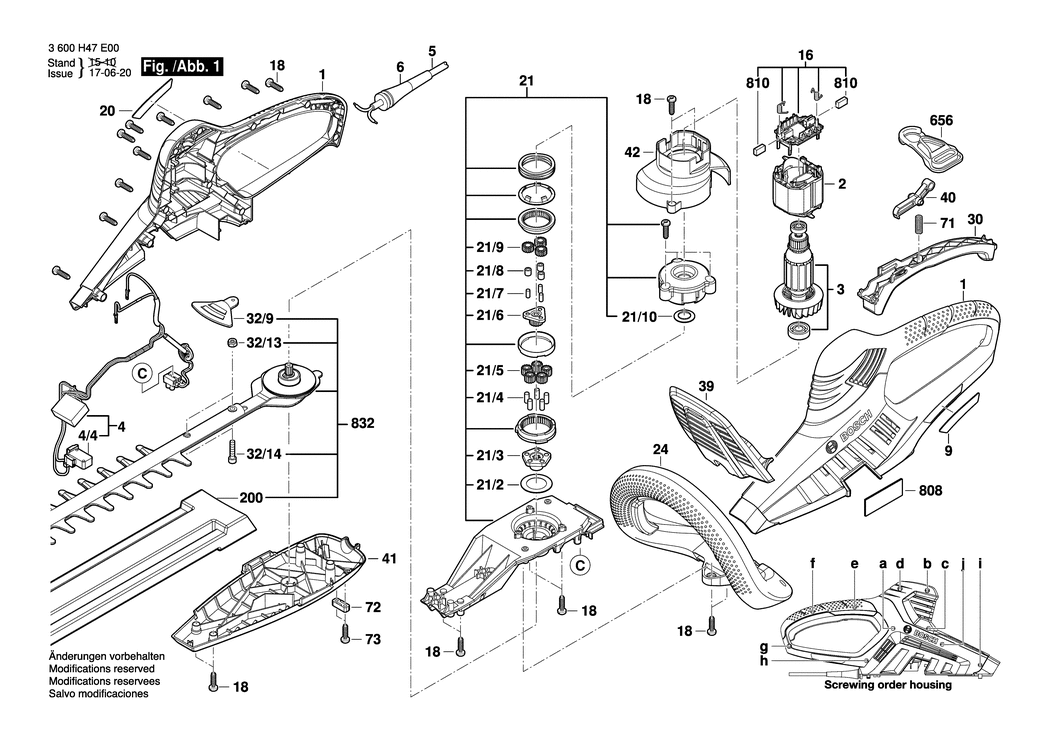

1 - HOUSING SECTION
BSD-2609004993.A9
2609004993
|
£27.23
|
£32.68
|
|
|
2 - FIELD 220-240V
BSD-2609005073.A13
2609005073
|
£18.96
|
£22.75
|
|
|
3 - ARMATURE 220-240V
BSD-2609005074.A18
2609005074
|
£37.27
|
£44.72
|
|
|
4 - ELECTRONIC MODULE
BSD-2609005076.A3
2609005076
|
£57.05
|
£68.46
|
|
|
4/4 - SWITCH
BSD-2609006801.A18
2609006801
|
-
|
|
|
|
5 - POWER SUPPLY CORD GB 240V 10.2m 2 x 1.0mm H05 VV-F
BSD-1604460184.A20
1604460184
|
£33.73
|
£40.48
|
|
|
6 - GROMMET dia6.4-dia7.2x76 MM
BSD-2600703017.A318
2600703017
|
£2.61
|
£3.13
|
|
|
9 - MANUFACTURER'S NAMEPLATE AHS 45-26
BSD-2609005906.A1
2609005906
|
£2.61
|
£3.13
|
|
|
16 - BRUSH HOLDER
BSD-2609005884.A16
2609005884
|
£11.30
|
£13.56
|
|
|
18 - SCREW 4x16
BSD-2603490022.A2915
2603490022
|
£1.75
|
£2.10
|
|
|
20 - WARNING LABEL
BSD-2609005882.A2
2609005882
|
£2.33
|
£2.80
|
|
|
21 - GEAR BOX
BSD-2609005008.A17
2609005008
|
£45.67
|
£54.80
|
|
|
21/2 - SHIM
BSD-2609005018.A3
2609005018
|
£1.75
|
£2.10
|
|
|
21/3 - PLANETARY-GEAR CARRIER
BSD-2609005019.A17
2609005019
|
£4.26
|
£5.11
|
|
|
21/4 - BOLT
BSD-2609005020.A9
2609005020
|
£1.75
|
£2.10
|
|
|
21/5 - CYLINDRICAL GEAR
BSD-2609005012.A50
2609005012
|
£1.75
|
£2.10
|
|
|
21/6 - PLANETARY-GEAR CARRIER
BSD-2609005016.A9
2609005016
|
£1.95
|
£2.34
|
|
|
21/7 - BOLT
BSD-2609005017.A50
2609005017
|
£1.32
|
£1.58
|
|
|
21/8 - NEEDLE-ROLLER BEARING
BSD-2609005318.A20
2609005318
|
£1.75
|
£2.10
|
|
|
21/9 - CYLINDRICAL GEAR
BSD-2609005011.A9
2609005011
|
£1.32
|
£1.58
|
|
|
21/10 - SHIM
BSD-2609005021.A50
2609005021
|
£1.75
|
£2.10
|
|
|
24 - HANDLE
BSD-2609005132.A17
2609005132
|
£31.64
|
£37.97
|
|
|
30 - SWITCH SEGMENT
BSD-2609005006.A17
2609005006
|
£2.61
|
£3.13
|
|
|
32/9 - PROTECTOR
BSD-2609005045.A9
2609005045
|
£2.80
|
£3.36
|
|
|
32/13 - BUSHING
BSD-160030010C.A9
160030010C
|
-
|
|
|
|
32/14 - TORX OVAL-HEAD SCREW
BSD-2609005695.A57
2609005695
|
£1.75
|
£2.10
|
|
|
39 - GUARD SEGMENT
BSD-2609005047.A50
2609005047
|
£5.30
|
£6.36
|
|
|
40 - LEVER
BSD-2609005007.A3
2609005007
|
£1.75
|
£2.10
|
|
|
41 - COVER
BSD-2609004994.A14
2609004994
|
£5.58
|
£6.70
|
|
|
42 - BAFFLE
BSD-2609004996.A45
2609004996
|
£1.75
|
£2.10
|
|
|
71 - COMPRESSION SPRING
BSD-2604610028.A100
2604610028
|
£1.75
|
£2.10
|
|
|
72 - CABLE CLIP
BSD-2601035001.A3014
2601035001
|
£1.75
|
£2.10
|
|
|
73 - SCREW 4x16
BSD-2603490022.A2914
2603490022
|
£1.75
|
£2.10
|
|
|
200 - KNIFE GUARD
BSD-2609005512.A14
2609005512
|
£13.12
|
£15.75
|
|
|
808 - NAMEPLATE
BSD-160111A4CV.A0
160111A4CV
|
£2.61
|
£3.13
|
|
|
810 - CARBON-BRUSH SET
BSD-1607000CE3.A19
1607000CE3
|
£6.52
|
£7.83
|
|
|
832 - BLADE 45 cm
BSD-2609005911.A2
2609005911
|
£59.53
|
£71.44
|
|
