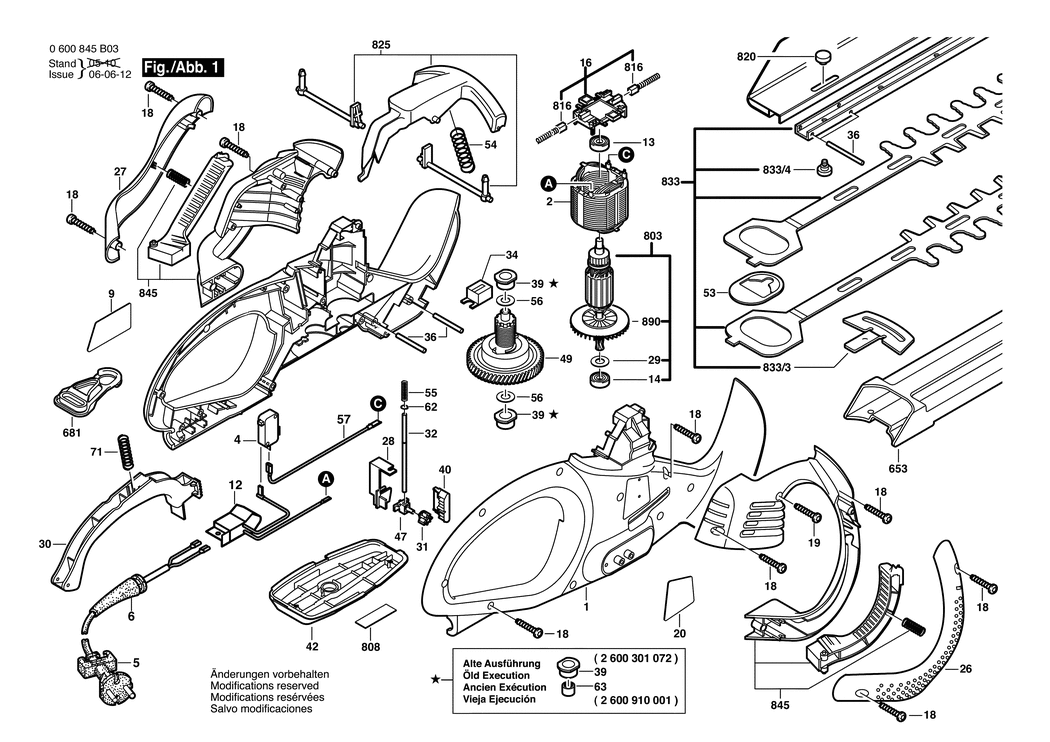

1 - HOUSING SECTION
BSD-2609002758.A56
2609002758
|
£37.27
|
£44.72
|
|
|
2 - FIELD 220-240V
BSD-2604220688.A87
2604220688
|
£27.23
|
£32.68
|
|
|
4 - SWITCH
BSD-2607200446.A39
2607200446
|
-
|
|
|
|
5 - POWER SUPPLY CORD 0.46m
BSD-2604460262.A7
2604460262
|
-
|
|
|
|
6 - GROMMET dia6.4-dia7.2x76 MM
BSD-2600703017.A75
2600703017
|
£2.61
|
£3.13
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601116593.A2
2601116593
|
-
|
|
|
|
12 - INTERFERENCE SUPPR.CHOKE
BSD-2609003984.A36
2609003984
|
£8.67
|
£10.41
|
|
|
13 - FLANGED BEARING
BSD-2605805004.A77
2605805004
|
£8.67
|
£10.41
|
|
|
14 - GROOVE BALL BEARING 9x24x7
BSD-2600905021.A287
2600905021
|
£8.67
|
£10.41
|
|
|
16 - BRUSH PLATE
BSD-1600A012AZ.A68
1600A012AZ
|
£11.30
|
£13.56
|
|
|
18 - TORX OVAL-HEAD SCREW 4x20
BSD-2603490023.A548
2603490023
|
£1.75
|
£2.10
|
|
|
19 - TORX OVAL-HEAD SCREW 4x25
BSD-2603490024.A629
2603490024
|
£1.75
|
£2.10
|
|
|
20 - SWITCH SEGMENT
BSD-2609003055.A65
2609003055
|
£2.80
|
£3.36
|
|
|
26 - FIXING ELEMENT
BSD-2609005342.A37
2609005342
|
£4.26
|
£5.11
|
|
|
27 - FIXING ELEMENT
BSD-2609005343.A38
2609005343
|
£5.58
|
£6.70
|
|
|
28 - SUPPORT
BSD-2608040167.A9
2608040167
|
£4.75
|
£5.70
|
|
|
29 - SPACER RING
BSD-2600209003.A115
2600209003
|
£2.16
|
£2.59
|
|
|
30 - SWITCH SEGMENT
BSD-2609003055.A66
2609003055
|
£2.80
|
£3.36
|
|
|
31 - SWITCH WHEEL
BSD-2606319105.A59
2606319105
|
£1.75
|
£2.10
|
|
|
32 - COUPLING
BSD-2609004249.A61
2609004249
|
£2.16
|
£2.59
|
|
|
34 - PLUG
BSD-2600502012.A17
2600502012
|
£1.75
|
£2.10
|
|
|
36 - STRAIGHT PIN
BSD-2609002714.A158
2609002714
|
£1.75
|
£2.10
|
|
|
39 - BUSHING
BSD-2600301073.A57
2600301073
|
£3.72
|
£4.47
|
|
|
40 - SHIFTER ROD
BSD-2608040163.A65
2608040163
|
£1.75
|
£2.10
|
|
|
42 - GEAR COVER
BSD-2605808086.A41
2605808086
|
£8.67
|
£10.41
|
|
|
47 - CONTROL ELEMENT
BSD-2606314102.A45
2606314102
|
£2.61
|
£3.13
|
|
|
49 - SLIDING CLUTCH
BSD-2606440028.A13
2606440028
|
£52.15
|
£62.58
|
|
|
53 - SPACER
BSD-2608040183.A52
2608040183
|
£1.75
|
£2.10
|
|
|
54 - COMPRESSION SPRING
BSD-2604610045.A94
2604610045
|
£1.75
|
£2.10
|
|
|
55 - COMPRESSION SPRING
BSD-2604610073.A32
2604610073
|
-
|
|
|
|
56 - SHIM 0.3 MM
BSD-2600101617.A232
2600101617
|
£1.75
|
£2.10
|
|
|
57 - CONNECTING CABLE
BSD-2604448234.A39
2604448234
|
£2.16
|
£2.59
|
|
|
62 - LOCKING WASHER
BSD-2916080905.A50
2916080905
|
£1.75
|
£2.10
|
|
|
71 - COMPRESSION SPRING
BSD-2604610074.A43
2604610074
|
£1.75
|
£2.10
|
|
|
653 - KNIFE GUARD
BSD-2605411154.A12
2605411154
|
£13.12
|
£15.75
|
|
|
681 - STRAIN-RELIEF CLAMP
BSD-3601398000.A143
3601398000
|
£5.30
|
£6.36
|
|
|
803 - ARMATURE 230-240V
BSD-2604010982.A12
2604010982
|
-
|
|
|
|
808 - MARKING PLATE
BSD-2601116561.A0
2601116561
|
-
|
|
|
|
816 - CARBON-BRUSH SET
BSD-2604321925.A205
2604321925
|
£8.67
|
£10.41
|
|
|
820 - KNURLED THUMBSCREW
BSD-2603345021.A44
2603345021
|
-
|
|
|
|
825 - SWITCH SEGMENT
BSD-2608001903.A22
2608001903
|
£14.91
|
£17.89
|
|
|
833 - SET OF KNIVES
BSD-2607009901.A1
2607009901
|
-
|
|
|
|
833/3 - PROTECTOR
BSD-2601020016.A6
2601020016
|
£5.58
|
£6.70
|
|
|
833/4 - THREAD-FORMING TAP. SCREW
BSD-2603413040.A19
2603413040
|
£2.16
|
£2.59
|
|
|
845 - SWITCH SEGMENT
BSD-2608001900.A18
2608001900
|
£27.23
|
£32.68
|
|
|
890 - FAN
BSD-2606610093.A121
2606610093
|
£2.80
|
£3.36
|
|
