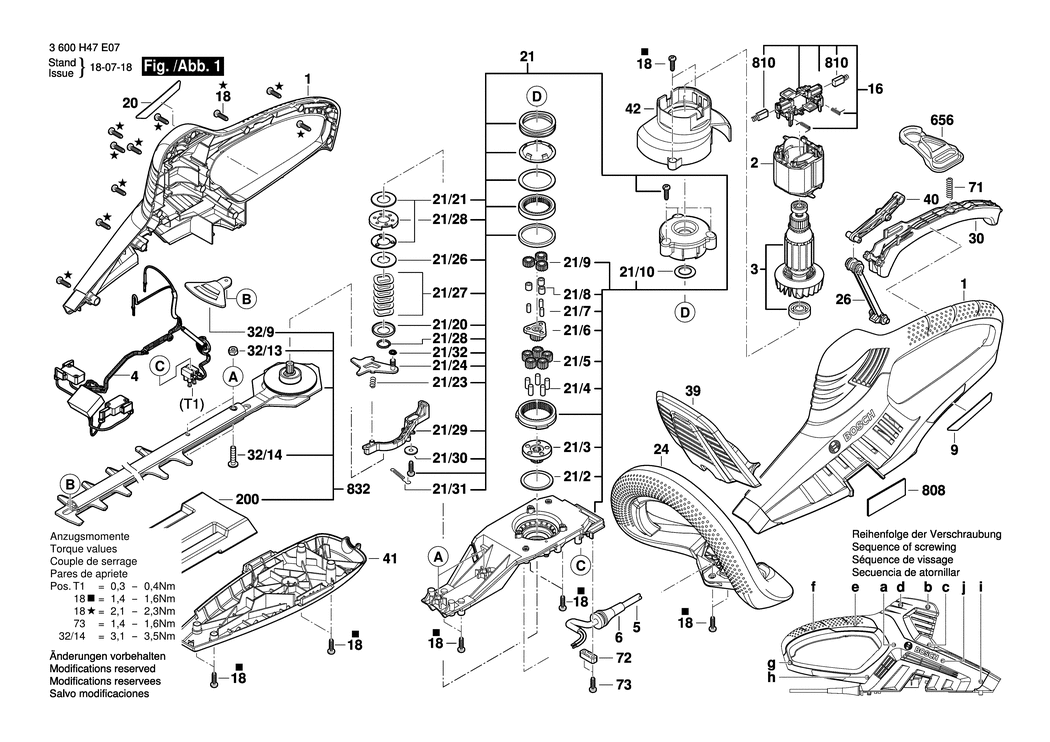

1 - HOUSING SECTION
BSD-2609007200.A0
2609007200
|
£27.23
|
£32.68
|
|
2 - FIELD 220-240V
BSD-2609005073.A45
2609005073
|
£18.96
|
£22.75
|
|
3 - ARMATURE 220-240V
BSD-2609007254.A25
2609007254
|
£37.27
|
£44.72
|
|
4 - ELECTRONIC MODULE
BSD-1600A014RW.A10
1600A014RW
|
-
|
|
|
5 - POWER SUPPLY CORD GB 240V 10.2m 2 x 1.0mm H05 VV-F
BSD-1604460184.A28
1604460184
|
£33.73
|
£40.48
|
|
6 - GROMMET
BSD-2609002019.A27
2609002019
|
£2.61
|
£3.13
|
|
9 - MANUFACTURER'S NAMEPLATE AHS 60-26
BSD-2609005909.A5
2609005909
|
£2.61
|
£3.13
|
|
16 - BRUSH PLATE
BSD-1600A012AZ.A116
1600A012AZ
|
£11.30
|
£13.56
|
|
18 - SCREW 4x16
BSD-2603490022.A2870
2603490022
|
£1.75
|
£2.10
|
|
20 - WARNING LABEL
BSD-2609005882.A43
2609005882
|
£2.33
|
£2.80
|
|
21 - GEAR BOX
BSD-1600A00P4P.A16
1600A00P4P
|
£63.50
|
£76.20
|
|
21/2 - SHIM
BSD-2609007448.A37
2609007448
|
£1.75
|
£2.10
|
|
21/3 - PLANETARY-GEAR CARRIER
BSD-2609007449.A1
2609007449
|
£4.26
|
£5.11
|
|
21/4 - BOLT
BSD-2609005020.A47
2609005020
|
£1.75
|
£2.10
|
|
21/5 - CYLINDRICAL GEAR
BSD-2609005012.A12
2609005012
|
£1.75
|
£2.10
|
|
21/6 - PLANETARY-GEAR CARRIER
BSD-2609005016.A47
2609005016
|
£1.95
|
£2.34
|
|
21/7 - BOLT
BSD-2609005017.A12
2609005017
|
£1.32
|
£1.58
|
|
21/8 - NEEDLE-ROLLER BEARING
BSD-2609005318.A58
2609005318
|
£1.75
|
£2.10
|
|
21/9 - CYLINDRICAL GEAR
BSD-2609005011.A47
2609005011
|
£1.32
|
£1.58
|
|
21/10 - SHIM
BSD-2609005021.A12
2609005021
|
£1.75
|
£2.10
|
|
21/20 - WASHER
BSD-2609007450.A37
2609007450
|
£1.75
|
£2.10
|
|
21/21 - BRAKE DISC
BSD-2609007451.A1
2609007451
|
£2.80
|
£3.36
|
|
21/23 - COMPRESSION SPRING
BSD-2609007216.A31
2609007216
|
£1.75
|
£2.10
|
|
21/24 - PAWL
BSD-1600A00P30.A22
1600A00P30
|
-
|
|
|
21/26 - FRICTION WASHER
BSD-2609007453.A37
2609007453
|
£1.75
|
£2.10
|
|
21/27 - BRAKE SPRING
BSD-2609007454.A1
2609007454
|
£1.75
|
£2.10
|
|
21/28 - RETAINING SNAP RING
BSD-2609007455.A37
2609007455
|
£1.75
|
£2.10
|
|
21/29 - LEVER
BSD-2609007141.A3
2609007141
|
£1.75
|
£2.10
|
|
21/30 - WASHER
BSD-2609007460.A1
2609007460
|
£1.75
|
£2.10
|
|
21/31 - EXTENSION SPRING
BSD-2609007531.A1
2609007531
|
£1.75
|
£2.10
|
|
21/32 - SPRING RETAINING RING
BSD-2609007572.A37
2609007572
|
£1.75
|
£2.10
|
|
24 - HANDLE
BSD-2609007139.A35
2609007139
|
£31.64
|
£37.97
|
|
26 - LEVER
BSD-2609007159.A35
2609007159
|
£1.75
|
£2.10
|
|
30 - SWITCH SEGMENT
BSD-2609007413.A8
2609007413
|
£2.61
|
£3.13
|
|
32/9 - PROTECTOR
BSD-2609005045.A46
2609005045
|
£2.80
|
£3.36
|
|
32/13 - BUSHING
BSD-160030010C.A43
160030010C
|
-
|
|
|
32/14 - TORX OVAL-HEAD SCREW
BSD-2609005695.A16
2609005695
|
£1.75
|
£2.10
|
|
39 - GUARD SEGMENT
BSD-2609005047.A12
2609005047
|
£5.30
|
£6.36
|
|
40 - LEVER
BSD-2609007234.A7
2609007234
|
£1.75
|
£2.10
|
|
41 - COVER
BSD-2609004994.A46
2609004994
|
£5.58
|
£6.70
|
|
42 - BAFFLE
BSD-2609004996.A13
2609004996
|
£1.75
|
£2.10
|
|
71 - COMPRESSION SPRING
BSD-1604612015.A17
1604612015
|
£2.61
|
£3.13
|
|
72 - CABLE CLIP
BSD-2601035001.A3036
2601035001
|
£1.75
|
£2.10
|
|
73 - SCREW 4x16
BSD-2603490022.A2868
2603490022
|
£1.75
|
£2.10
|
|
200 - KNIFE GUARD
BSD-2609005514.A13
2609005514
|
£14.91
|
£17.89
|
|
656 - STRAIN-RELIEF CLAMP
BSD-3601398000.A30
3601398000
|
£5.30
|
£6.36
|
|
808 - NAMEPLATE
BSD-160111A6GL.A0
160111A6GL
|
-
|
|
|
810 - CARBON-BRUSH SET
BSD-2604321925.A149
2604321925
|
£8.67
|
£10.41
|
|
832 - BLADE 60 cm
BSD-2609005914.A7
2609005914
|
£93.88
|
£112.65
|
|
