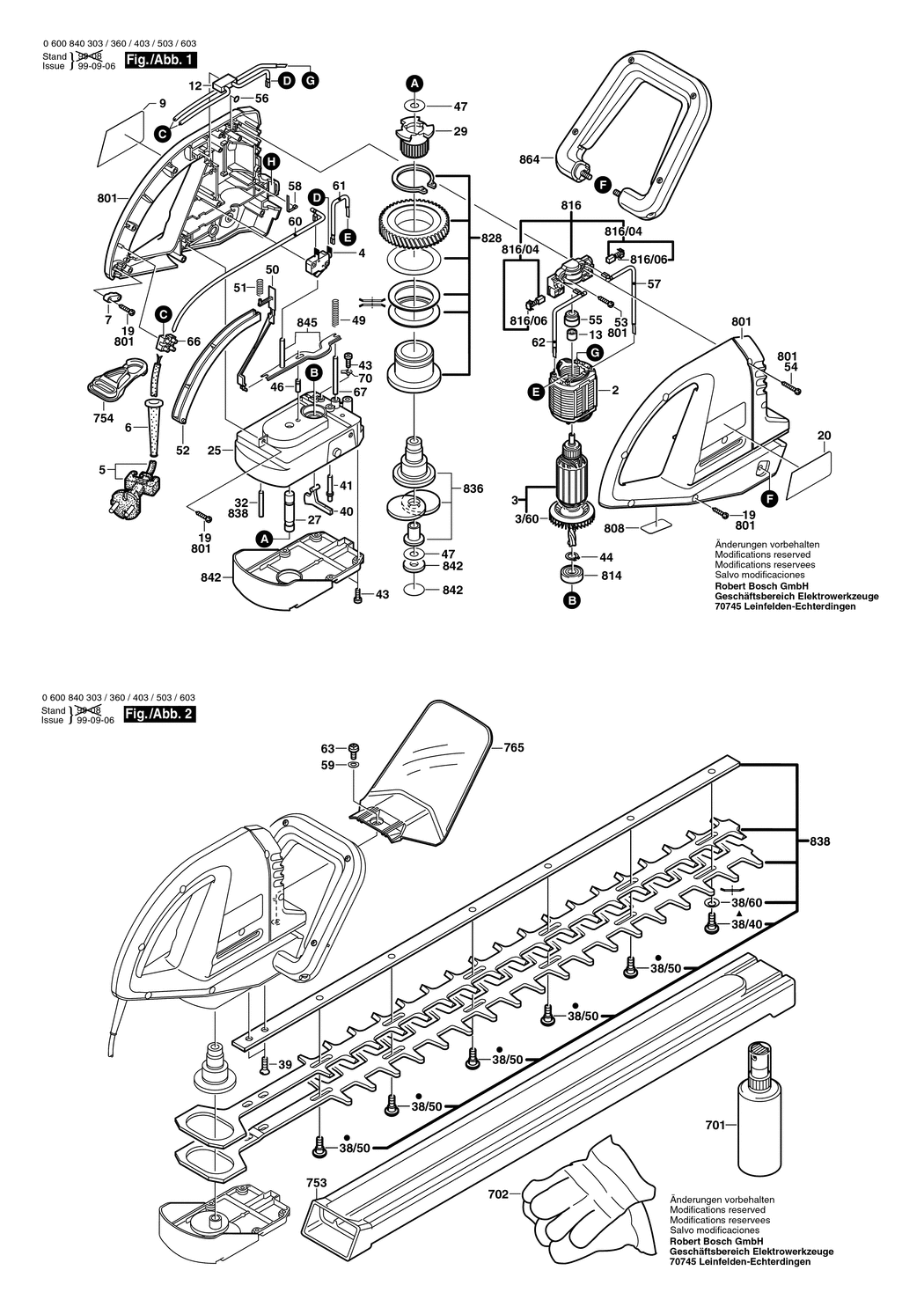

An exploded drawing and listing for the Bosch AHS 700-34 / 0600840650 / I 230 Volt
Ex VAT Inc VAT
2 - FIELD 220-230V BSD-2604220429.A19 2604220429 £23.86 £28.63
3 - ARMATURE 230V BSD-2604010870.A1 2604010870 -
3/60 - FAN BSD-2606610068.A25 2606610068 -
4 - ON-OFF SWITCH BSD-2607200291.A25 2607200291 -
5 - POWER SUPPLY CORD I 0.4m 2 x 1.0mm H05 VV-F BSD-2604460104.A0 2604460104 -
6 - GROMMET dia6.4-dia7.2x76 MM BSD-2600703017.A407 2600703017 £2.61 £3.13
7 - CABLE CLIP BSD-2601035001.A2573 2601035001 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE BSD-2601117073.A1 2601117073 -
12 - SUPPRESSION CAPACITOR BSD-2607329133.A26 2607329133 -
13 - FLANGED BEARING BSD-2605805004.A6 2605805004 £8.67 £10.41
19 - SCREW 4x16 BSD-2603490022.A2302 2603490022 £1.75 £2.10
20 - REFERENCE PLATE BSD-2601118184.A16 2601118184 -
25 - GEAR HOUSING BSD-2605806407.A3 2605806407 -
27 - AXLE BSD-2603120041.A14 2603120041 -
29 - FREEWHEELING BSD-2606490054.A24 2606490054 -
32 - BRAKE SPRING BSD-2603001005.A2 2603001005 -
38/40 - THREAD-FORMING TAP. SCREW BSD-2603413031.A32 2603413031 -
38/50 - THREAD-FORMING TAP. SCREW BSD-2603413032.A26 2603413032 -
38/60 - CUPPED WASHER BSD-2600200036.A2 2600200036 -
39 - COUNTERSUNK-HEAD SCREW TORX T25 BSD-2603421223.A1 2603421223 -
40 - CONTROL LEVER BSD-2603239020.A1 2603239020 -
41 - SWITCH SLIDE BSD-2603123020.A1 2603123020 -
43 - THREAD-FORMING TAP. SCREW M4x12 MM BSD-2603410049.A295 2603410049 £1.75 £2.10
44 - SPRING RETAINING RING DIN 471 9x1MM BSD-2916640006.A57 2916640006 £1.75 £2.10
46 - CRANK ROD BSD-2603123021.A26 2603123021 -
47 - SHIM 0.2 MM BSD-2600101614.A37 2600101614 -
47 - SHIM 0.3 MM BSD-2600101654.A23 2600101654 £2.33 £2.80
49 - COMPRESSION SPRING BSD-2604610029.A26 2604610029 -
50 - SHIFTER ROD BSD-2608040060.A1 2608040060 -
51 - COMPRESSION SPRING BSD-2604610027.A25 2604610027 -
52 - SWITCH SEGMENT BSD-2608001011.A59 2608001011 -
53 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A417 2603490023 £1.75 £2.10
54 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A841 2603490024 £1.75 £2.10
55 - BEARING SLEEVE BSD-2600222002.A27 2600222002 -
56 - O-RING 5.0x1.5 MM BSD-1900210000.A95 1900210000 £1.75 £2.10
57 - CONNECTING CABLE L=50 MM BSD-2604448190.A3 2604448190 -
58 - CONTACT SPRING BSD-2601329057.A152 2601329057 -
59 - SPRING WASHER DIN 137-A 5-FST BSD-2916061006.A1 2916061006 -
60 - CONNECTING CABLE L=273 MM BSD-2604448162.A1 2604448162 -
61 - CONNECTING CABLE L=88 MM BSD-2604448034.A39 2604448034 £1.75 £2.10
62 - CONNECTING CABLE L=73 MM BSD-2604448123.A8 2604448123 -
63 - OVAL-HEAD SCREW DIN 7985-M5x10-4.8 BSD-2910641152.A28 2910641152 -
66 - CLAMPING STRIP BSD-2604490012.A9 2604490012 -
67 - STRAIGHT PIN BSD-2609002714.A144 2609002714 £1.75 £2.10
70 - TAB WASHER BSD-2601098019.A1 2601098019 -
701 - OIL SPRAY TIN BSD-1609200399.A68 1609200399 £8.74 £10.49
702 - PROTECTIVE GLOVE BSD-2607000134.A45 2607000134 -
753 - OIL RESERVOIR BSD-2605411040.A0 2605411040 -
754 - STRAIN-RELIEF CLAMP BSD-2601398012.A6 2601398012 -
765 - PROTECTIVE SHIELD BSD-2607001151.A1 2607001151 -
801 - HOUSING SECTION BSD-2605104836.A25 2605104836 -
808 - NAMEPLATE BSD-160111A3H3.A4255 160111A3H3 £2.61 £3.13
814 - GROOVE BALL BEARING 9x24x7 BSD-2600905039.A288 2600905039 £12.04 £14.45
816 - BRUSH PLATE BSD-2609992604.A66 2609992604 -
816/04 - CARBON-BRUSH SET BSD-2607014001.A36 2607014001 -
816/06 - RATCHET CAP BSD-2601322013.A353 2601322013 £1.75 £2.10
828 - SLIDING CLUTCH BSD-2606490916.A3 2606490916 -
836 - ECCENTRIC BSD-2602210908.A14 2602210908 -
838 - SET OF KNIVES 700 MM BSD-2607001232.A12 2607001232 -
842 - GEAR COVER BSD-2605500132.A16 2605500132 -
845 - SWITCHING ELEMENT BSD-2601901003.A2 2601901003 -
864 - AUXILIARY HANDLE BSD-2602025107.A25 2602025107 -
