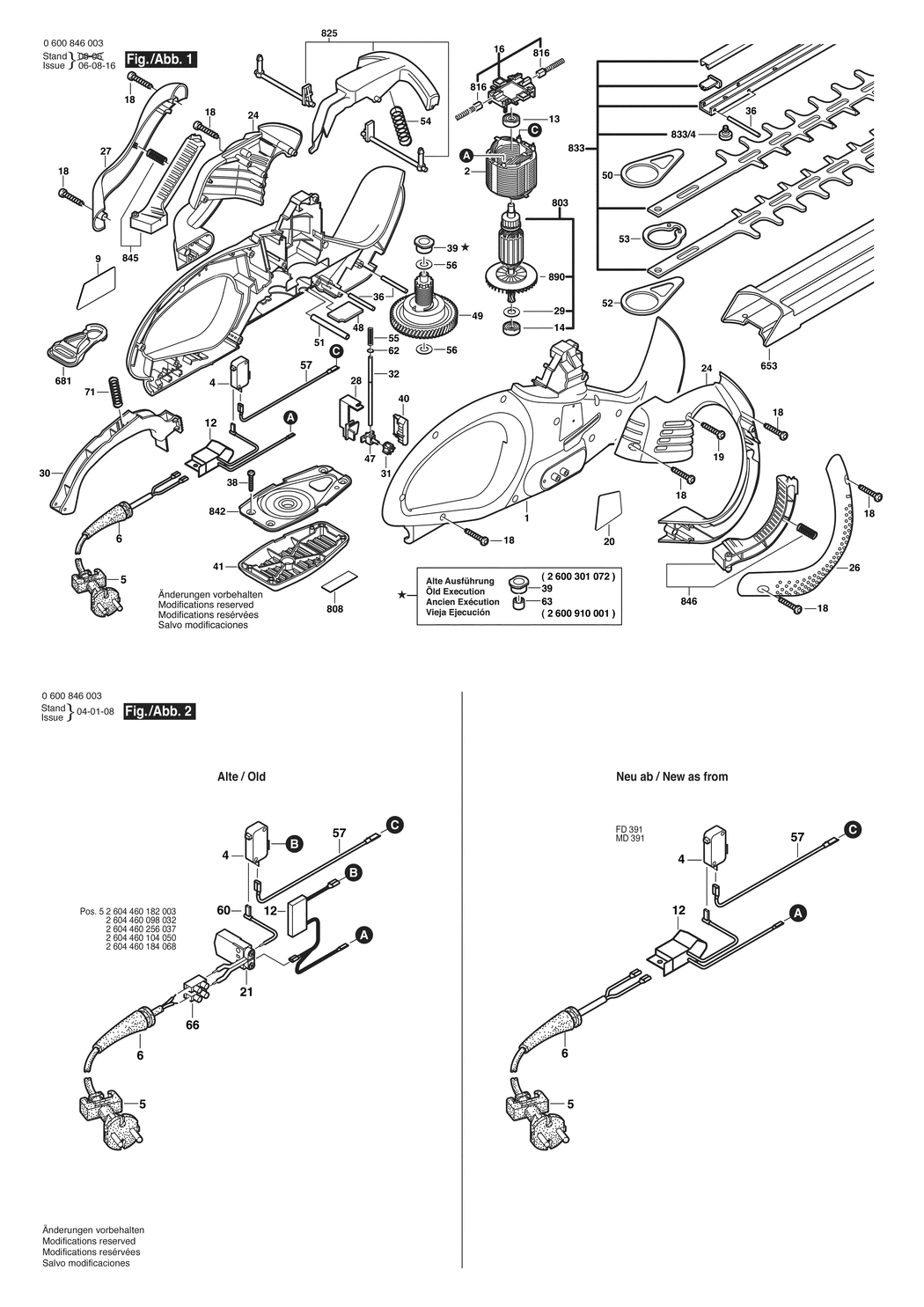

1 - HOUSING SECTION
BSD-2609002758.A28
2609002758
|
£37.27
|
£44.72
|
|
|
2 - FIELD 220-240V
BSD-2604220655.A13
2604220655
|
-
|
|
|
|
4 - SWITCH
BSD-2607200446.A5
2607200446
|
-
|
|
|
|
5 - POWER SUPPLY CORD 0.46m
BSD-2604460262.A3
2604460262
|
-
|
|
|
|
6 - GROMMET dia6.4-dia7.2x76 MM
BSD-2600703017.A122
2600703017
|
£2.61
|
£3.13
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601117510.A1
2601117510
|
-
|
|
|
|
12 - INTERFERENCE SUPPR.CHOKE
BSD-2609003984.A71
2609003984
|
£8.67
|
£10.41
|
|
|
13 - FLANGED BEARING
BSD-2605805004.A60
2605805004
|
£8.67
|
£10.41
|
|
|
14 - GROOVE BALL BEARING 9x24x7
BSD-2600905021.A243
2600905021
|
£8.67
|
£10.41
|
|
|
16 - BRUSH PLATE
BSD-1600A012AZ.A53
1600A012AZ
|
£11.30
|
£13.56
|
|
|
18 - TORX OVAL-HEAD SCREW 4x20
BSD-2603490023.A571
2603490023
|
£1.75
|
£2.10
|
|
|
19 - TORX OVAL-HEAD SCREW 4x25
BSD-2603490024.A612
2603490024
|
£1.75
|
£2.10
|
|
|
20 - REFERENCE PLATE
BSD-2601116118.A5
2601116118
|
-
|
|
|
|
21 - SUPPRESSION FILTER
BSD-2604465109.A3
2604465109
|
-
|
|
|
|
24 - STRAP-SHAPED HANDLE
BSD-2609002910.A14
2609002910
|
£21.42
|
£25.71
|
|
|
26 - FIXING ELEMENT
BSD-2609005342.A72
2609005342
|
£4.26
|
£5.11
|
|
|
27 - FIXING ELEMENT
BSD-2609005343.A3
2609005343
|
£5.58
|
£6.70
|
|
|
28 - SUPPORT
BSD-2608040167.A3
2608040167
|
£4.75
|
£5.70
|
|
|
29 - SPACER RING
BSD-2600209003.A161
2600209003
|
£2.16
|
£2.59
|
|
|
30 - SWITCH SEGMENT
BSD-2609003055.A30
2609003055
|
£2.80
|
£3.36
|
|
|
31 - SWITCH WHEEL
BSD-2606319105.A28
2606319105
|
£1.75
|
£2.10
|
|
|
32 - COUPLING
BSD-2609004249.A25
2609004249
|
£2.16
|
£2.59
|
|
|
36 - STRAIGHT PIN
BSD-2609002714.A209
2609002714
|
£1.75
|
£2.10
|
|
|
38 - TORX OVAL-HEAD SCREW 4x8
BSD-2603490020.A53
2603490020
|
£1.75
|
£2.10
|
|
|
39 - BUSHING
BSD-2600301073.A66
2600301073
|
£3.72
|
£4.47
|
|
|
40 - SHIFTER ROD
BSD-2608040163.A72
2608040163
|
£1.75
|
£2.10
|
|
|
41 - COVER
BSD-2605808938.A13
2605808938
|
£8.67
|
£10.41
|
|
|
47 - CONTROL ELEMENT
BSD-2606314102.A29
2606314102
|
£2.61
|
£3.13
|
|
|
48 - SUPPORT
BSD-2608005081.A16
2608005081
|
£3.72
|
£4.47
|
|
|
49 - SLIDING CLUTCH
BSD-2606440026.A7
2606440026
|
£52.15
|
£62.58
|
|
|
50 - CONNECTING ROD
BSD-2602001013.A10
2602001013
|
£13.12
|
£15.75
|
|
|
51 - STRAIGHT PIN
BSD-2603101053.A1
2603101053
|
£1.75
|
£2.10
|
|
|
52 - CONNECTING ROD
BSD-2602001012.A8
2602001012
|
£12.04
|
£14.45
|
|
|
53 - SPACER
BSD-2606440044.A5
2606440044
|
-
|
|
|
|
54 - COMPRESSION SPRING
BSD-2604610045.A104
2604610045
|
£1.75
|
£2.10
|
|
|
55 - COMPRESSION SPRING
BSD-2604610073.A28
2604610073
|
-
|
|
|
|
56 - SHIM 0.3 MM
BSD-2600101617.A240
2600101617
|
£1.75
|
£2.10
|
|
|
57 - CONNECTING CABLE
BSD-2604448234.A7
2604448234
|
£2.16
|
£2.59
|
|
|
60 - CONNECTING CABLE
BSD-2604448235.A22
2604448235
|
-
|
|
|
|
62 - LOCKING WASHER DIN 6799-2.3
BSD-2916080005.A167
2916080005
|
-
|
|
|
|
63 - NEEDLE-ROLLER BEARING dia14 MM
BSD-2600910001.A406
2600910001
|
£4.26
|
£5.11
|
|
|
66 - CLAMPING STRIP
BSD-2604490012.A81
2604490012
|
-
|
|
|
|
71 - COMPRESSION SPRING
BSD-2604610074.A47
2604610074
|
£1.75
|
£2.10
|
|
|
653 - KNIFE GUARD
BSD-2605411152.A6
2605411152
|
£13.12
|
£15.75
|
|
|
681 - STRAIN-RELIEF CLAMP
BSD-3601398000.A105
3601398000
|
£5.30
|
£6.36
|
|
|
803 - ARMATURE 230-240V
BSD-2604010981.A5
2604010981
|
-
|
|
|
|
808 - MARKING PLATE
BSD-2601117872.A0
2601117872
|
-
|
|
|
|
816 - CARBON-BRUSH SET
BSD-2604321925.A172
2604321925
|
£8.67
|
£10.41
|
|
|
825 - SWITCH SEGMENT
BSD-2608001903.A5
2608001903
|
£14.91
|
£17.89
|
|
|
833 - SET OF KNIVES
BSD-2607001901.A3
2607001901
|
-
|
|
|
|
833/4 - THREAD-FORMING TAP. SCREW
BSD-2603413026.A110
2603413026
|
-
|
|
|
|
842 - PIVOT PLATE
BSD-2609001601.A6
2609001601
|
£8.67
|
£10.41
|
|
|
845 - SWITCH SEGMENT
BSD-2608001901.A5
2608001901
|
£12.04
|
£14.45
|
|
|
846 - SWITCH SEGMENT
BSD-2608001902.A30
2608001902
|
£12.04
|
£14.45
|
|
|
890 - FAN
BSD-2606610093.A77
2606610093
|
£2.80
|
£3.36
|
|
