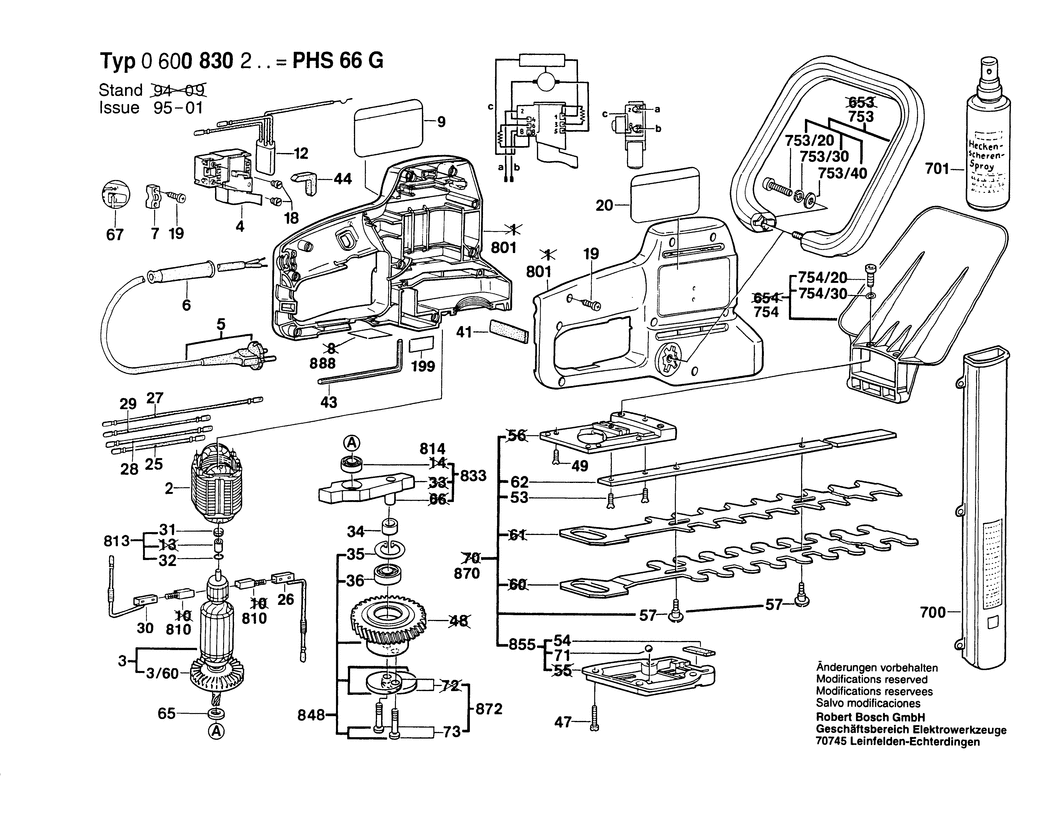

An exploded drawing and listing for the Bosch PHS 66 G / 0600830203 / EU 220 Volt
Ex VAT Inc VAT
2 - FIELD 220-240V BSD-2604220423.A190 2604220423 £24.45 £29.34
3 - ARMATURE 220-230V BSD-2604010604.A58 2604010604 -
3/60 - FAN BSD-2606610027.A93 2606610027 £2.80 £3.36
4 - ON-OFF SWITCH BSD-2607200147.A45 2607200147 -
5 - POWER SUPPLY CORD EU 0.46m 2 x 1.0mm H05 VV-F BSD-2604460255.A50 2604460255 £8.67 £10.41
6 - GROMMET dia7 MM BSD-2600703007.A272 2600703007 -
7 - CABLE CLIP BSD-2601035001.A2557 2601035001 £1.75 £2.10
9 - STICKER BSD-2601118262.A0 2601118262 -
12 - SUPPRESSION CAPACITOR BSD-2607329108.A41 2607329108 -
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A2553 2603410001 £1.75 £2.10
19 - SCREW 4x16 BSD-2603490022.A2297 2603490022 £1.75 £2.10
20 - STICKER BSD-2601118259.A6 2601118259 -
25 - CONNECTING CABLE L=154 MM BSD-2604448000.A115 2604448000 -
26 - CARB BRUSH HOLD W-SUPR BSD-2604465075.A7 2604465075 -
27 - CABLE L=249 MM BSD-2604448057.A72 2604448057 £1.32 £1.58
28 - CONNECTING CABLE L=213 MM BSD-2604448118.A120 2604448118 £1.75 £2.10
29 - CABLE L=98 MM BSD-2604448045.A208 2604448045 -
30 - CARB BRUSH HOLD W-SUPR BSD-2604465076.A35 2604465076 -
31 - FELT WASHER BSD-1600205023.A60 1600205023 £1.32 £1.58
32 - O-RING 8.0x2.5 MM BSD-1610210014.A129 1610210014 -
34 - SPACER RING BSD-2600200023.A18 2600200023 -
35 - SPRING RETAINING RING 30x1.2MM. DIN 472 BSD-2916660012.A68 2916660012 £1.75 £2.10
36 - GROOVE BALL BEARING BSD-2600905028.A30 2600905028 -
41 - FELT STRIP BSD-2601005008.A40 2601005008 -
43 - OFFSET SCREWDRIVER DIN 911-SW5 BSD-1907950006.A710 1907950006 £4.26 £5.11
44 - DAMPING PLATE BSD-2601022000.A136 2601022000 £1.75 £2.10
47 - PAN HEAD SCREW M4x22 MM BSD-2603410018.A40 2603410018 £1.75 £2.10
49 - COUNTERSUNK-HEAD SCREW DIN 965-M4x12-8.8 BSD-2910871122.A39 2910871122 -
53 - COUNTERSUNK-HEAD SCREW BSD-2603421006.A26 2603421006 -
54 - FELT STRIP BSD-2601005002.A4 2601005002 -
57 - THREAD-FORMING TAP. SCREW BSD-2603413031.A29 2603413031 -
62 - GUIDE 660MM BSD-2601038034.A14 2601038034 £14.75 £17.70
65 - SPACER RING BSD-2600209003.A56 2600209003 £2.16 £2.59
67 - STICKER BSD-2601110685.A26 2601110685 -
71 - BALL DIN 5401-4 MM-III-ST BSD-1903230007.A524 1903230007 £1.75 £2.10
73 - DRIVING PIN BSD-2603123018.A1 2603123018 -
75 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x16-8.8 BSD-2910141197.A352 2910141197 £1.75 £2.10
199 - STICKER BSD-1601110265.A346 1601110265 -
700 - DUST BAG BSD-1605411023.A49 1605411023 -
701 - OIL SPRAY TIN BSD-1609200399.A78 1609200399 £8.74 £10.49
753 - AUXILIARY HANDLE BSD-2602025059.A42 2602025059 -
753/20 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x20-8.8 BSD-2910141201.A301 2910141201 £2.61 £3.13
753/30 - SPRING LOCK WASHER M6 BSD-2916690005.A89 2916690005 -
753/40 - PLAIN WASHER DIN 125-A 6.4-ST BSD-2916011014.A292 2916011014 £1.75 £2.10
754 - PROTECTIVE SHIELD BSD-2607001111.A6 2607001111 -
754/20 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x16-8.8 BSD-2910141197.A351 2910141197 £1.75 £2.10
754/30 - SPRING WASHER DIN 137-A6-FST BSD-2916061007.A26 2916061007 -
801 - HOUSING SECTION BSD-2605104865.A3 2605104865 -
810 - CARBON-BRUSH SET BSD-2604321912.A3 2604321912 -
813 - SINTERED-METAL BUSHING BSD-1600301900.A32 1600301900 -
814 - GROOVE BALL BEARING 9x24x7 BSD-2600905039.A281 2600905039 £12.04 £14.45
833 - BEARING BRACKET BSD-2605807910.A34 2605807910 -
848 - OVERLOAD CLUTCH BSD-2606320900.A12 2606320900 -
855 - GEAR COVER BSD-2605500904.A2 2605500904 -
870 - SET OF KNIVES BSD-2607001121.A13 2607001121 -
872 - ECCENTRIC DISC BSD-2600030900.A4 2600030900 -
888 - NAMEPLATE BSD-160111A3H3.A4268 160111A3H3 £2.61 £3.13
