Bosch AHR 1000 / 0600811032 / CH 230 Volt Spare Parts

Home Details Reviews Delivery

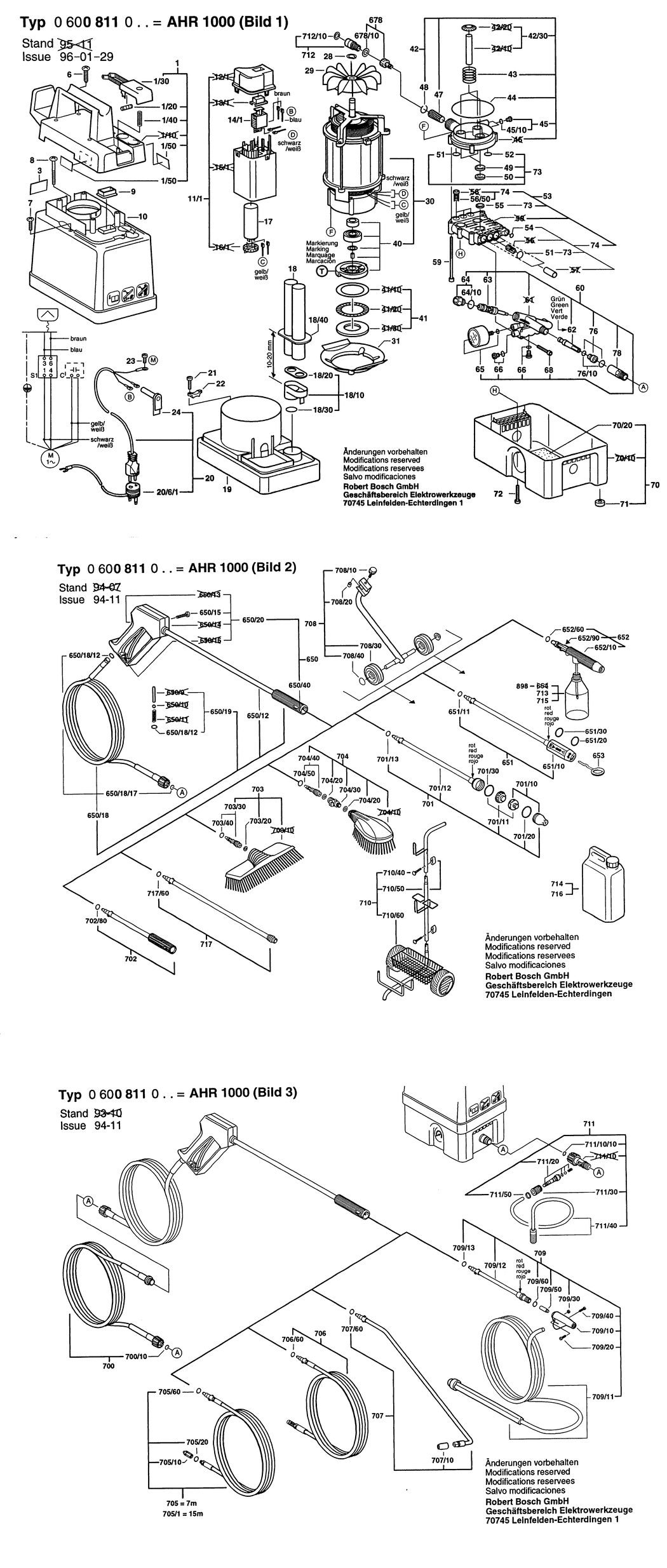

An exploded drawing and listing for the Bosch AHR 1000 / 0600811032 / CH 230 Volt

	Ex VAT	Inc VAT
1 - UPPER HOUSING BSD-1609350001.A8 1609350001	-
1/20 - ROLLER BSD-1609350003.A8 1609350003	-
1/30 - PUSH-BUTTON BSD-1609350004.A26 1609350004	-
1/40 - COMPRESSION SPRING BSD-1609350005.A8 1609350005	-
1/50 - MANUFACTURER'S NAMEPLATE BSD-1601110972.A4 1601110972	-
3 - NAMEPLATE BSD-1601110966.A0 1601110966	-
6 - RAISED CTSK TAPPING SCREW dia6x20 MM BSD-1609350006.A28 1609350006	-
7 - OVAL-HEAD SCREW DIN 7985-M5x20-8.8-H BSD-2910951162.A7 2910951162	-
8 - OVAL-HEAD SCREW M5x60 MM BSD-1609350143.A7 1609350143	-
9 - SEALING CAP BSD-1609350092.A26 1609350092	-
10 - INTERMEDIATE HOUSING BSD-1609350193.A2 1609350193	-
11/1 - UPPER HOUSING BSD-1609350002.A14 1609350002	-
14/1 - PRESSURE SWITCH BSD-1609350194.A3 1609350194	-
17 - MOTOR CAPACITOR 25uF.50HZ BSD-1609350015.A27 1609350015	-
18 - PLASTIC TUBING BSD-1609350022.A7 1609350022	-
18/10 - TUBE MOUNTING BSD-1609350023.A27 1609350023	-
18/20 - SEAL BSD-1609350178.A9 1609350178	-
18/30 - FLAT SEAL RING BSD-1609350179.A25 1609350179	-
18/40 - CUP SEAL BSD-1609350180.A9 1609350180	-
19 - INTERMEDIATE HOUSING BSD-1609350007.A8 1609350007	-
20 - POWER SUPPLY CORD BSD-1609350100.A4 1609350100	-
21 - TAPPING SCREW ST dia3x20 MM BSD-1609350142.A58 1609350142	-
22 - STRAIN-RELIEF CLAMP BSD-1609350025.A7 1609350025	-
23 - OVAL-HEAD SCREW DIN 7985-M5x8-8.8-Z BSD-2912311150.A28 2912311150	-
24 - CORD GUARD BSD-1609350166.A9 1609350166	-
28 - SPRING RETAINING RING BSD-1609350016.A7 1609350016	-
29 - FAN WHEEL BSD-1609350017.A29 1609350017	-
30 - MOTOR 230V/50HZ BSD-1609350202.A12 1609350202	-
31 - SPLASH GUARD BSD-1609350093.A8 1609350093	-
40 - REPAIR KIT 50HZ BSD-1609350195.A14 1609350195	-
41 - THRUST NEEDLE BEARING BSD-1609350020.A7 1609350020	£27.23	£32.68
42 - CYLINDER BLOCK BSD-1609350021.A27 1609350021	-
42/30 - PARTS SET BSD-1609350309.A8 1609350309	-
43 - COMPRESSION SPRING BSD-1609350027.A27 1609350027	-
44 - O-RING 80x2 MM BSD-1609350098.A7 1609350098	-
45 - PLUG BSD-1609350308.A57 1609350308	-
45/10 - PARTS SET dia1.78xdia7.66 MM BSD-1609350081.A65 1609350081	-
47 - FILTER SCREEN BSD-1609350032.A7 1609350032	-
48 - RETAINING RING BSD-1609350033.A27 1609350033	-
49 - RUBBER COLLAR BSD-1609350035.A7 1609350035	-
50 - THRUST RING BSD-1609350036.A29 1609350036	-
51 - PARTS SET dia1.6xdia15.1 MM BSD-1609350038.A29 1609350038	-
52 - PARTS SET dia1.6xdia6.1 MM BSD-1609350039.A7 1609350039	-
53 - CYLINDER HEAD BSD-1609350028.A7 1609350028	-
54 - PARTS SET dia1.78xdia11.11 MM BSD-1609350029.A27 1609350029	-
55 - CUP SEAL BSD-1609350037.A7 1609350037	-
56/50 - PARTS SET dia2x10 MM BSD-1609350065.A83 1609350065	-
59 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x65-8.8 BSD-2910141218.A27 2910141218	£2.61	£3.13
60 - VALVE HOUSING BSD-1609350196.A3 1609350196	-
62 - FLOW THROTTLE BSD-1609350197.A14 1609350197	-
63 - PRESSURE MODULATION VALVE BSD-1609350063.A8 1609350063	-
63/10 - PARTS SET dia2.4xdia12.3 MM BSD-1609350177.A25 1609350177	-
64 - PLUG BSD-1609350306.A26 1609350306	-
64/10 - PARTS SET dia2.4xdia16.6 MM BSD-1609350140.A7 1609350140	-
65 - PRESSURE GAUGE BSD-1609350307.A8 1609350307	-
65/10 - PARTS SET dia2xdia6 MM BSD-1609350175.A25 1609350175	-
66 - PLUG BSD-1609350308.A56 1609350308	-
66/10 - PARTS SET dia1.78xdia7.66 MM BSD-1609350081.A64 1609350081	-
68 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x35-8.8 BSD-2910141207.A50 2910141207	-
70 - HOUSING BASE BSD-1609350041.A27 1609350041	-
70/20 - FOAM PANEL BSD-1609350068.A8 1609350068	-
71 - CASING FOOT BSD-1609350069.A26 1609350069	-
72 - OVAL-HEAD SCREW DIN 7985-M6x20-8.8-Z BSD-2912311201.A27 2912311201	-
73 - SEAL KIT BSD-1609350044.A7 1609350044	-
74 - REPAIR KIT BSD-1609350045.A27 1609350045	-
76 - PACKING SLEEVE BSD-1609350066.A8 1609350066	-
76/10 - PARTS SET dia2x10 MM BSD-1609350065.A85 1609350065	-
78 - INLET CONNECTOR BSD-1609350067.A26 1609350067	-
650 - HANDLE BSD-1609350199.A31 1609350199	-
650/12 - CONNECTING TUBE BSD-1609350089.A28 1609350089	-
650/15 - TAPPING SCREW ST dia3x20 MM BSD-1609350142.A57 1609350142	-
650/18 - PLASTIC HOSE L=9 M. MAX. 150 BAR BSD-1609350504.A10 1609350504	-
650/18 - PLASTIC HOSE L=9 M. MAX. 150 BAR BSD-1609350504.A11 1609350504	-
650/18/12 - PARTS SET dia2xdia11 MM BSD-1609350074.A7 1609350074	-
650/18/17 - PARTS SET dia2.4xdia9.6 MM BSD-1609350078.A477 1609350078	-
650/19 - REPAIR KIT BSD-1609350080.A2 1609350080	-
650/20 - PARTS SET BSD-1609350176.A9 1609350176	-
650/40 - GUIDE SLEEVE BSD-1609350198.A3 1609350198	-
651 - HIGH PRESS CLEAN NOZZLE BSD-1609350186.A4 1609350186	-
651/10 - NOZZLE RETAINING NUT BSD-1609350145.A28 1609350145	-
651/11 - PARTS SET dia2.4xdia9.6 MM BSD-1609350078.A479 1609350078	-
651/20 - PARTS SET dia2.0xdia18.0 MM BSD-1609350182.A11 1609350182	-
651/30 - PARTS SET dia1.78xdia18.77 MM BSD-1609350181.A27 1609350181	-
652 - FOAM SPRAY DEVICE BSD-1609350047.A7 1609350047	-
652/10 - SINGLE-ORIFICE NOZZLE BSD-1609350104.A26 1609350104	-
652/60 - PARTS SET dia2.4xdia9.6 MM BSD-1609350078.A478 1609350078	-
652/90 - PARTS SET BSD-1609350115.A27 1609350115	-
653 - CLEANING PIN BSD-1609350124.A8 1609350124	-
676 - HOSE COUPLING BSD-1609350049.A3 1609350049	-
676/76 - GASKET dia15xdia24x3=3/4 BSD-1609351002.A173 1609351002	-
676/77 - HOSE CLAMP BSD-1609350070.A8 1609350070	-
678 - TAP CONNECTION PIECE 3/4 BSD-0600800001.A6 0600800001	-
678/10 - GASKET dia15xdia24x4.5=3/4 BSD-1609351029.A92 1609351029	£1.75	£2.10
700 - FLEXIBLE CONNECTION L=7 M BSD-2609200276.A8 2609200276	-
700/10 - PARTS SET dia2.4xdia9.6 MM BSD-1609350078.A480 1609350078	-
701 - HIGH PRESS CLEAN NOZZLE BSD-1609350187.A13 1609350187	-
701/10 - NOZZLE CARRIER BSD-1609350190.A3 1609350190	-
701/11 - REPAIR KIT BSD-1609350191.A14 1609350191	-
701/12 - CONNECTING TUBE BSD-1609350090.A8 1609350090	-
701/13 - PARTS SET dia2.4xdia9.6 MM BSD-1609350078.A482 1609350078	-
701/20 - PARTS SET dia2xdia37 MM BSD-1609350084.A2 1609350084	-
701/30 - PARTS SET dia1.78xdia34.65 MM BSD-1609350184.A25 1609350184	-
702 - EXTENSION TUBE BSD-1609350053.A7 1609350053	-
702/80 - PARTS SET dia2.4xdia9.6 MM BSD-1609350078.A481 1609350078	-
703 - CLEANING BRUSH BSD-1609350156.A30 1609350156	-
703/20 - GASKET dia15xdia24x3=3/4 BSD-1609351002.A174 1609351002	-
703/30 - ADAPTER BSD-1609350159.A20 1609350159	-
703/40 - PARTS SET dia2.4xdia9.6 MM BSD-1609350078.A476 1609350078	-
704 - ROTARY CLEANING BRUSH BSD-1609350126.A27 1609350126	-
704/20 - GASKET dia15xdia24x3=3/4 BSD-1609351002.A175 1609351002	-
704/30 - CONNECTING PIECE BSD-1609351014.A66 1609351014	£21.52	£25.83
704/40 - ADAPTER BSD-1609350159.A21 1609350159	-
704/50 - PARTS SET dia2.4xdia9.6 MM BSD-1609350078.A475 1609350078	-
705 - PIPE CLEANING SET L=7 M BSD-1609350054.A33 1609350054	-
705/1 - PIPE CLEANING SET L=15 M BSD-1609350055.A7 1609350055	-
705/10 - PIPE NOZZLE BSD-1609350137.A13 1609350137	-
705/20 - PARTS SET dia1.6xdia10 MM BSD-1609350088.A8 1609350088	-
705/60 - PARTS SET dia2.4xdia9.6 MM BSD-1609350078.A473 1609350078	-
706 - PIPE CLEANING SET L=7 M BSD-1609350056.A27 1609350056	-
706/60 - PARTS SET dia2.4xdia9.6 MM BSD-1609350078.A472 1609350078	-
707 - JET PIPE BSD-1609350057.A7 1609350057	-
707/10 - NOZZLE RETAINING NUT BSD-1609350136.A27 1609350136	-
707/60 - PARTS SET dia2.4xdia9.6 MM BSD-1609350078.A474 1609350078	-
708 - SPACER BSD-1609350119.A27 1609350119	-
708/10 - CLAMP SCREW BSD-1609350120.A13 1609350120	-
708/20 - CLAMPING PIECE BSD-1609350121.A27 1609350121	-
708/30 - WHEEL BSD-1609350122.A13 1609350122	-
708/40 - SEALING CAP BSD-1609350123.A27 1609350123	-
709 - SAND BLAST EQUIPMENT BSD-1609350188.A4 1609350188	-
709/10 - NOZZLE-HOLDER ASSEMBLY BSD-1609350146.A12 1609350146	-
709/11 - SUCTION CONNECTION PIECE BSD-1609350135.A13 1609350135	-
709/12 - CONNECTING TUBE BSD-1609350192.A3 1609350192	-
709/13 - PARTS SET dia2.4xdia9.6 MM BSD-1609350078.A471 1609350078	-
709/20 - OVAL-HEAD SCREW DIN 7985-M4x20-8.8-Z BSD-2912311130.A13 2912311130	-
709/30 - HEX NUT DIN 934 -M4-m-8 BSD-2915011005.A452 2915011005	£1.75	£2.10
709/40 - TAPPING SCREW DIN7981-ST2.9x9.5C-Z BSD-2912401005.A2 2912401005	£1.75	£2.10
709/50 - NOZZLE BSD-1609350134.A33 1609350134	-
709/60 - PARTS SET dia2xdia11 MM BSD-1609350074.A8 1609350074	-
710 - EQUIPMENT TROLLEY BSD-2608005050.A26 2608005050	-
710/40 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x25-8.8 BSD-2910141203.A100 2910141203	£1.75	£2.10
710/50 - WING NUT DIN 1709 BM 6 VERZINKT BSD-2915191106.A28 2915191106	-
710/60 - WHEEL dia200 MM BSD-1609351088.A82 1609351088	£12.04	£14.45
711 - INJECTOR BSD-1609350128.A5 1609350128	-
711/10/10 - PARTS SET dia2x10 MM BSD-1609350065.A84 1609350065	-
711/20 - REPAIR KIT BSD-1609350169.A25 1609350169	-
711/30 - DOSING UNIT BSD-1609350170.A9 1609350170	-
711/40 - HOSE BSD-1609350171.A25 1609350171	£10.82	£12.99
711/50 - HOSE CLAMP BSD-1609350172.A9 1609350172	-
712 - NON-RETURN VALVE BSD-1609350060.A12 1609350060	-
712/10 - GASKET dia15xdia24x3=3/4 BSD-1609351002.A168 1609351002	-
713 - CLEANING AGENT 1x0.55 LITER BSD-1609350152.A4 1609350152	-
714 - CLEANING AGENT 1x2.5 LITER BSD-1609350154.A4 1609350154	-
715 - WAX 1x0.55 LITER BSD-1609350161.A30 1609350161	-
716 - WAX 1x2.5 LITER BSD-1609350162.A10 1609350162	-
717 - EXTENSION TUBE 410 MM BSD-1609350164.A32 1609350164	-
717/60 - PARTS SET dia2.4xdia9.6 MM BSD-1609350078.A444 1609350078	-
