Bosch AQUATAK CLIC 130 / 3600H79170 / GB 230 Volt Spare Parts

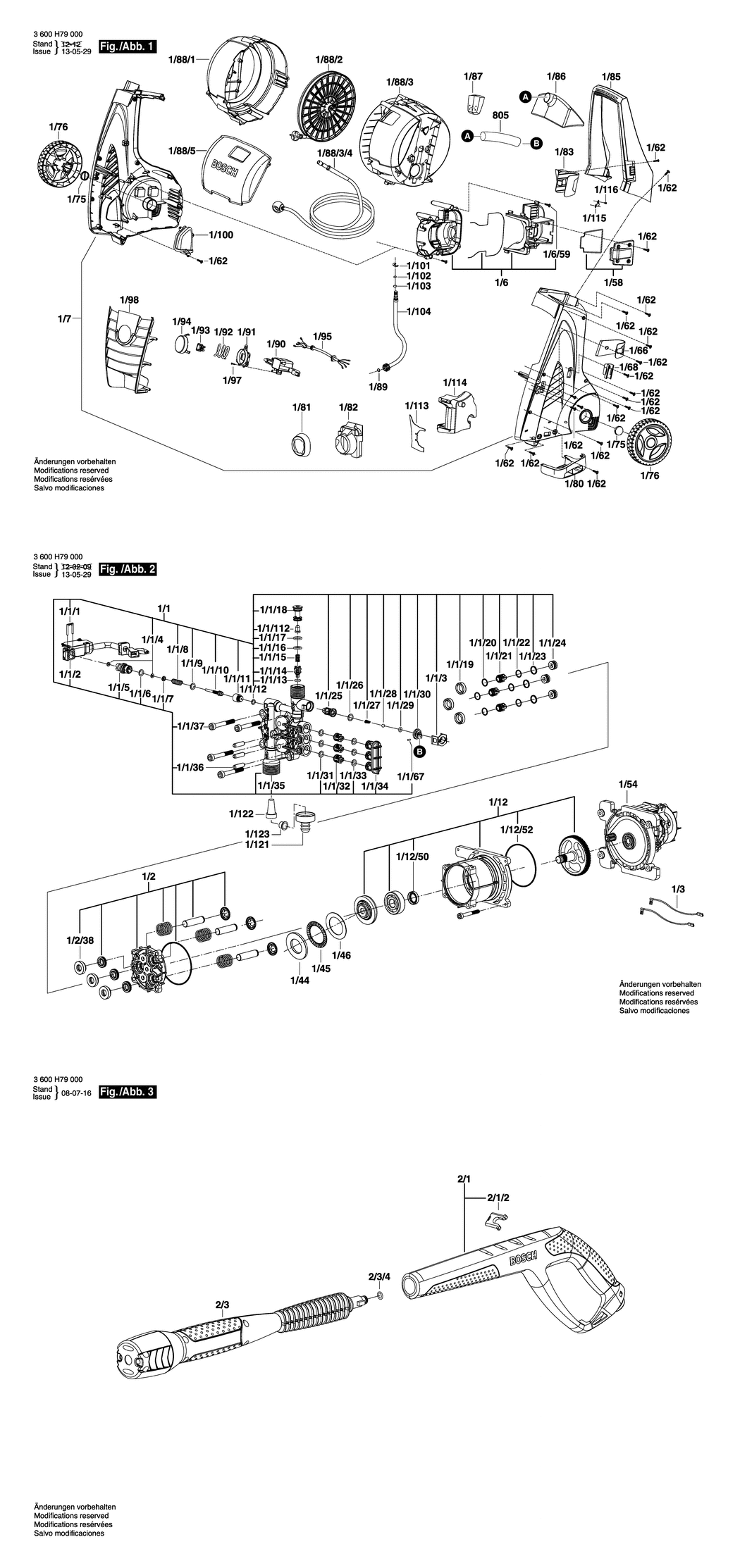

An exploded drawing and listing for the Bosch AQUATAK CLIC 130 / 3600H79170 / GB 230 Volt

	Ex VAT	Inc VAT
1/1 - CYLINDER HEAD BSD-F016F03972.A7 F016F03972	£102.57	£123.08
1/1/1 - HOOK BSD-F016F03862.A27 F016F03862	£1.75	£2.10
1/1/2 - MICROSWITCH BSD-F016F03863.A7 F016F03863	£10.82	£12.99
1/1/3 - CLAMPING PIECE BSD-F016F03864.A12 F016F03864	£1.32	£1.58
1/1/4 - O-RING BSD-F016F03867.A7 F016F03867	£1.32	£1.58
1/1/5 - NIPPLE BSD-F016F03865.A7 F016F03865	£1.75	£2.10
1/1/6 - O-RING BSD-F016F03923.A0 F016F03923	£1.75	£2.10
1/6/59 - SCREW BSD-F016F03989.A4 F016F03989	£1.32	£1.58
1/1/7 - SPACER BSD-F016F03866.A12 F016F03866	£1.32	£1.58
1/1/8 - COMPRESSION SPRING BSD-F016F03936.A7 F016F03936	-
1/1/9 - O-RING BSD-F016F03926.A7 F016F03926	£2.16	£2.59
1/1/10 - PISTON BSD-F016F03958.A7 F016F03958	-
1/1/11 - PISTON BSD-F016F03944.A0 F016F03944	£2.33	£2.80
1/1/12 - O-RING BSD-F016F03924.A7 F016F03924	£1.75	£2.10
1/1/13 - O-RING BSD-F016F03925.A0 F016F03925	£1.75	£2.10
1/1/14 - VALVE BSD-F016F03941.A8 F016F03941	£1.75	£2.10
1/1/15 - COMPRESSION SPRING BSD-F016F03935.A6 F016F03935	£1.75	£2.10
1/1/16 - O-RING 8.73x1.78 MM BSD-F016F03483.A81 F016F03483	£1.75	£2.10
1/1/17 - O-RING BSD-F016F03923.A1 F016F03923	£1.75	£2.10
1/1/18 - NOZZLE BSD-F016F03945.A7 F016F03945	£1.75	£2.10
1/1/19 - BUSHING BSD-F016F03929.A1 F016F03929	£3.80	£4.56
1/1/20 - O-RING 8.73x1.78 MM BSD-F016F03483.A79 F016F03483	£1.75	£2.10
1/1/21 - VALVE BSD-F016F03970.A15 F016F03970	£1.75	£2.10
1/1/22 - O-RING BSD-F016F03919.A3 F016F03919	-
1/1/23 - BUSHING BSD-F016F03927.A0 F016F03927	£1.75	£2.10
1/1/24 - SPACER BSD-F016F03938.A8 F016F03938	£1.75	£2.10
1/1/25 - NIPPLE BSD-F016F03942.A5 F016F03942	£1.32	£1.58
1/1/26 - O-RING BSD-F016F03921.A0 F016F03921	£1.75	£2.10
1/1/27 - COMPRESSION SPRING BSD-F016F03934.A7 F016F03934	£1.75	£2.10
1/1/28 - BALL BSD-F016F03965.A1 F016F03965	£1.75	£2.10
1/1/29 - O-RING BSD-F016F03922.A13 F016F03922	£1.75	£2.10
1/1/30 - NIPPLE BSD-F016F03943.A8 F016F03943	£1.32	£1.58
1/1/31 - O-RING 8.73x1.78 MM BSD-F016F03483.A80 F016F03483	£1.75	£2.10
1/1/32 - VALVE BSD-F016F03970.A14 F016F03970	£1.75	£2.10
1/1/33 - O-RING BSD-F016F03919.A2 F016F03919	-
1/1/34 - COVER BSD-F016F03939.A5 F016F03939	£1.32	£1.58
1/1/35 - CONTROL HEAD BSD-F016F03932.A7 F016F03932	£40.80	£48.96
1/1/36 - PIN BSD-F016F03969.A6 F016F03969	£1.32	£1.58
1/1/37 - SCREW M6x50 BSD-F016F03371.A16 F016F03371	£8.67	£10.41
1/1/67 - PIN BSD-F016F04101.A2 F016F04101	£1.32	£1.58
1/1/112 - NOZZLE BSD-F016F03967.A0 F016F03967	£1.32	£1.58
1/2 - PUMP FLANGE BSD-F016F03973.A0 F016F03973	-
1/2/38 - BUSHING BSD-F016F03963.A0 F016F03963	£4.26	£5.11
1/3 - CONNECTION CABLE BSD-F016F03975.A0 F016F03975	-
1/6 - FAN HOUSING BSD-F016F03976.A7 F016F03976	£21.52	£25.83
1/7 - HOUSING BSD-F016F03971.A6 F016F03971	£40.80	£48.96
1/12 - GEAR HOUSING BSD-F016F03974.A7 F016F03974	-
1/12/50 - BUSHING BSD-F016F03962.A7 F016F03962	£1.75	£2.10
1/12/52 - O-RING BSD-F016F03753.A9 F016F03753	-
1/44 - WASHER BSD-F016F03918.A6 F016F03918	-
1/45 - BEARING BSD-F016F03916.A6 F016F03916	£1.95	£2.34
1/46 - WASHER BSD-F016F03917.A1 F016F03917	£1.32	£1.58
1/54 - MOTOR BSD-F016F03977.A0 F016F03977	-
1/58 - SEAL BSD-F016F03928.A6 F016F03928	£3.80	£4.56
1/62 - SCREW BSD-F016F03517.A40 F016F03517	£2.61	£3.13
1/68 - ACCESSORY DEPOSIT BSD-F016F03955.A2 F016F03955	£2.61	£3.13
1/66 - ACCESSORY DEPOSIT BSD-F016F03956.A6 F016F03956	-
1/75 - CAP BSD-F016F03951.A5 F016F03951	£1.75	£2.10
1/76 - ROLLER BSD-F016F03964.A12 F016F03964	£8.49	£10.19
1/80 - ACCESSORY DEPOSIT BSD-F016F03954.A7 F016F03954	£4.26	£5.11
1/81 - MOTOR HOOD BSD-F016F03961.A1 F016F03961	£3.34	£4.01
1/82 - MOTOR HOOD BSD-F016F03960.A6 F016F03960	£4.26	£5.11
1/83 - ACCESSORY DEPOSIT BSD-F016F03957.A2 F016F03957	£3.72	£4.47
1/85 - HANDLE BSD-F016F03948.A5 F016F03948	£11.30	£13.56
1/86 - TANK BSD-F016F03953.A5 F016F03953	£13.12	£15.75
1/87 - STOPPER BSD-F016F03952.A8 F016F03952	£1.66	£1.99
1/88/1 - OUTER HOUSING BSD-F016F03981.A1 F016F03981	£18.96	£22.75
1/88/2 - POWER SUPPLY CORD BSD-2609004475.A2 2609004475	-
1/88/3 - DRUM UNIT BSD-F016F03991.A2 F016F03991	£135.25	£162.30
1/88/3/4 - HIGH-PRESSURE HOSE BSD-F016F03984.A1 F016F03984	£72.18	£86.62
1/88/5 - COVER BSD-F016F03986.A2 F016F03986	£6.61	£7.93
1/89 - O-RING BSD-F016F03509.A12 F016F03509	£1.75	£2.10
1/90 - SWITCH HOUSING BSD-F016F04118.A6 F016F04118	£6.61	£7.93
1/91 - SWITCH COVER BSD-F016F04119.A7 F016F04119	£2.52	£3.02
1/92 - SPRING BSD-F016F03937.A1 F016F03937	£1.95	£2.34
1/93 - SWITCH BSD-F016F03931.A1 F016F03931	£7.78	£9.33
1/94 - SWITCH BUTTON BSD-F016F04122.A6 F016F04122	-
1/95 - CONNECTION CABLE BSD-F016F03930.A12 F016F03930	£8.67	£10.41
1/97 - SCREW 4x16 BSD-F016F03079.A61 F016F03079	£1.32	£1.58
1/98 - HOUSING BSD-F016F03949.A8 F016F03949	£8.49	£10.19
1/100 - COVER BSD-F016F03980.A7 F016F03980	£1.66	£1.99
1/101 - BUSHING BSD-F016F03968.A8 F016F03968	£1.32	£1.58
1/102 - O-RING BSD-F016F03484.A7 F016F03484	£1.95	£2.34
1/103 - O-RING BSD-F016F03920.A11 F016F03920	£1.32	£1.58
1/104 - MANIFOLD PIPE SET BSD-F016F03966.A11 F016F03966	£31.64	£37.97
1/113 - PACKING BSD-F016F03933.A1 F016F03933	£1.66	£1.99
1/114 - AIR DISTRIBUTOR BSD-F016F03959.A1 F016F03959	-
1/115 - O-RING BSD-F016F03761.A19 F016F03761	£1.75	£2.10
1/116 - SCREW 4;8x16 ZINC BSD-F016F03034.A62 F016F03034	£1.75	£2.10
1/121 - THREADED CONNECTION BSD-F016F03359.A65 F016F03359	£3.34	£4.01
1/122 - FILTER BSD-F016F03884.A12 F016F03884	£1.75	£2.10
1/123 - PLUG BSD-F016F04130.A1 F016F04130	£1.75	£2.10
2/1 - HANDLE BSD-F016F03978.A8 F016F03978	£45.67	£54.80
2/1/2 - STOP PLATE BSD-F016F03988.A4 F016F03988	£1.75	£2.10
2/3 - JET PIPE BSD-F016F03987.A0 F016F03987	£103.14	£123.77
2/3/4 - O-RING BSD-F016F03541.A43 F016F03541	-
805 - HOSE BSD-F016L72004.A6 F016L72004	£5.58	£6.70
