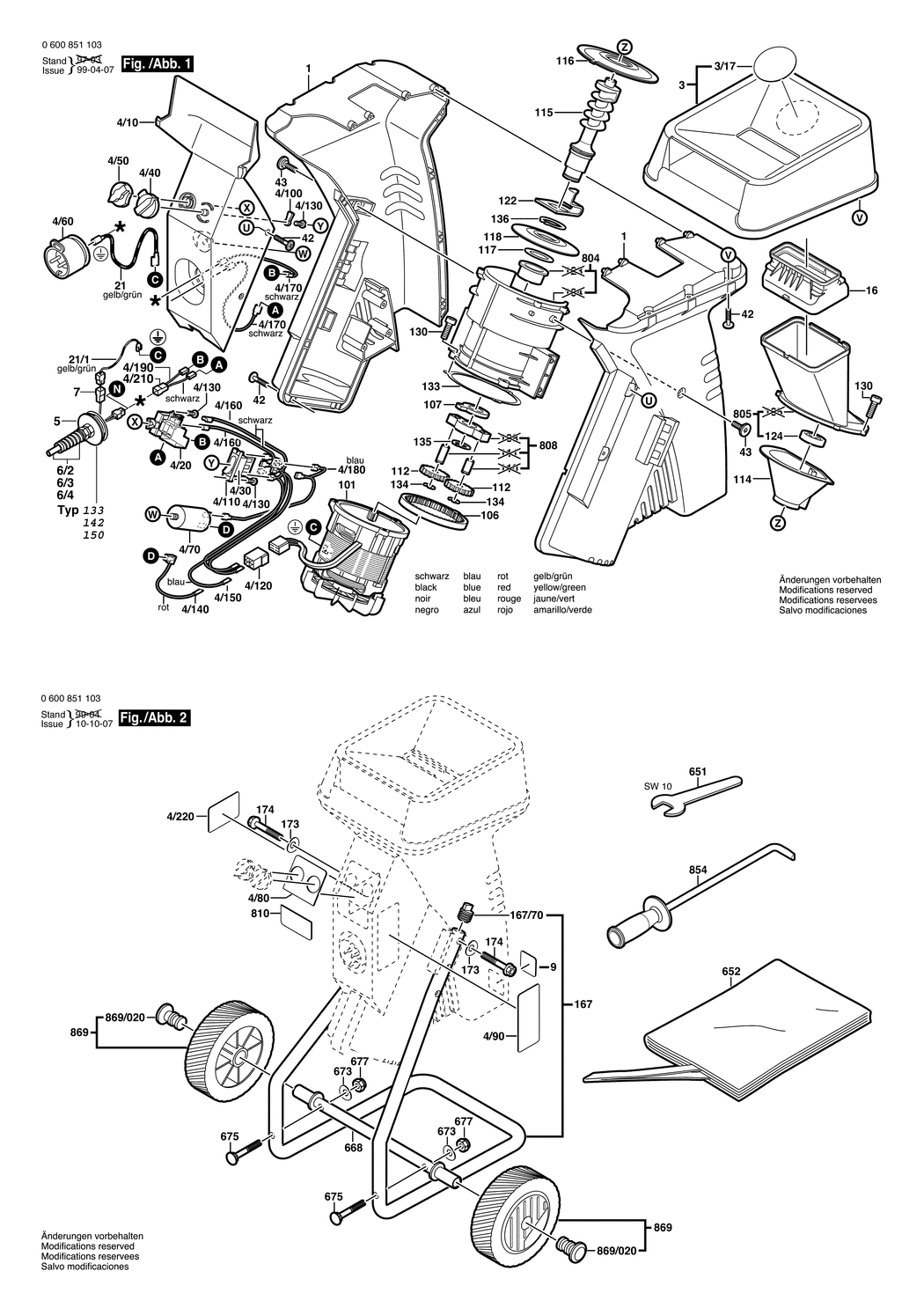

An exploded drawing and listing for the Bosch AXT 18-35 / 0600851132 / CH 230 Volt
Ex VAT Inc VAT
1 - HOUSING SECTION BSD-1605190106.A4 1605190106 -
3 - HOUSING COVER BSD-1605190127.A0 1605190127 -
3/17 - STICKER BSD-1601118916.A41 1601118916 £3.34 £4.01
4/10 - SWITCH PLATE BSD-1605190109.A12 1605190109 -
4/20 - ON-OFF SWITCH BSD-1607200216.A11 1607200216 -
4/30 - SWITCH BSD-1607200143.A5 1607200143 -
4/40 - SWITCH BUTTON BSD-1602026069.A8 1602026069 -
4/50 - SWITCH BUTTON BSD-1602026070.A12 1602026070 -
4/60 - CONNECTION PART BSD-1605190065.A5 1605190065 £13.41 £16.09
4/70 - SUPPRESSION FILTER BSD-CWESSCP20.A3 CWESSCP20 £29.82 £35.78
4/80 - MANUFACTURER'S NAMEPLATE BSD-1601118K73.A7 1601118K73 £2.52 £3.02
4/90 - REFERENCE PLATE BSD-1601118A80.A11 1601118A80 £3.80 £4.56
4/100 - CONTROL LEVER BSD-1602026071.A7 1602026071 £2.33 £2.80
4/110 - FRAME BSD-1605190125.A16 1605190125 £2.33 £2.80
4/120 - CONNECTOR HOUSING BSD-1605190124.A3 1605190124 £2.52 £3.02
4/130 - OVAL-HEAD SCREW BSD-2914211463.A18 2914211463 £1.75 £2.10
4/140 - CONNECTING CABLE L=100 MM BSD-1604438019.A12 1604438019 £1.95 £2.34
4/150 - CONNECTING CABLE L=200/L=100 MM BSD-1604438020.A8 1604438020 £2.52 £3.02
4/160 - CONNECTING CABLE L=200/L=130 MM BSD-1604438021.A12 1604438021 -
4/170 - CONNECTING CABLE L=180 MM BSD-1604438022.A5 1604438022 £1.95 £2.34
4/180 - CONNECTING CABLE L=160/L=100 MM BSD-1604438023.A12 1604438023 £2.33 £2.80
4/220 - REFERENCE PLATE BSD-1601118965.A1 1601118965 -
9 - REFERENCE PLATE BSD-1601118966.A0 1601118966 -
16 - INSERT BSD-1605190055.A15 1605190055 -
21 - CONNECTING CABLE L=250 MM BSD-1604438024.A1 1604438024 £2.33 £2.80
42 - THREAD-FORMING TAP. SCREW TORX-T20 BSD-1603435054.A17 1603435054 £1.75 £2.10
43 - THREAD-FORMING TAP. SCREW BSD-1603435055.A13 1603435055 £1.75 £2.10
101 - MOTOR 230V BSD-1607220041.A5 1607220041 £216.12 £259.35
106 - RING GEAR BSD-1606334007.A8 1606334007 £11.78 £14.13
107 - CARRIER BSD-1606490037.A16 1606490037 £4.75 £5.70
112 - TOOTHED GEAR Z=34 BSD-1606318010.A10 1606318010 £7.78 £9.33
114 - FUNNEL BSD-1600590007.A5 1600590007 -
115 - HELIX BSD-1606122008.A13 1606122008 -
116 - FERRULE BSD-1600590008.A14 1600590008 -
117 - FRICTION WASHER BSD-1600102021.A9 1600102021 £3.34 £4.01
118 - EJECTOR BSD-1600590009.A6 1600590009 -
122 - SCRAPER BSD-1601329030.A4 1601329030 -
124 - GROOVE BALL BEARING 6203-2 Z DIN 625 BSD-1900905227.A118 1900905227 -
130 - THREAD-FORMING TAP. SCREW M6x25 MM BSD-1603414010.A81 1603414010 £1.75 £2.10
133 - SEAL BSD-1600290035.A32 1600290035 -
134 - LOCKING WASHER DIN 6799-10-FSt BSD-2916080013.A20 2916080013 £4.75 £5.70
135 - SPRING RETAINING RING 28x1.5 DIN 471 BSD-2916650016.A14 2916650016 £2.33 £2.80
136 - SPRING RETAINING RING DIN 471-42x1.75-FST-ZNC-B BSD-2916651021.A2 2916651021 -
167 - SUPPORTING FRAME BSD-1600795013.A5 1600795013 £36.63 £43.96
167/70 - PLUG BSD-1600591030.A5 1600591030 -
173 - PLAIN WASHER BSD-1600190030.A87 1600190030 £1.75 £2.10
174 - THREAD-FORMING TAP. SCREW BSD-1603435056.A5 1603435056 £1.75 £2.10
651 - SINGLE-HEAD ENG. WRENCH SW10 BSD-1607950527.A41 1607950527 -
652 - CATCHER CONTAINER BSD-1605411031.A10 1605411031 £11.30 £13.56
668 - AXLE BSD-1607000957.A7 1607000957 £14.91 £17.89
673 - PLAIN WASHER BSD-1600190030.A88 1600190030 £1.75 £2.10
675 - ROUND-HEAD BOLT DIN 603 M6x50 BSD-2910281213.A11 2910281213 £1.32 £1.58
677 - HEX NUT DIN 985-M6-8 BSD-2915061004.A36 2915061004 £1.75 £2.10
804 - GEAR HOUSING BSD-1607000836.A6 1607000836 £58.76 £70.51
805 - BEARING FLANGE BSD-1607000837.A14 1607000837 -
808 - PLANETARY-GEAR CARRIER BSD-1607000838.A6 1607000838 £14.91 £17.89
810 - NAMEPLATE BSD-160111A3H5.A368 160111A3H5 £2.61 £3.13
854 - HOOK BSD-1607959008.A9 1607959008 -
869 - WHEEL dia200 MM BSD-1609351088.A98 1609351088 £12.04 £14.45
869/020 - PLUG BSD-1609351075.A30 1609351075 -
