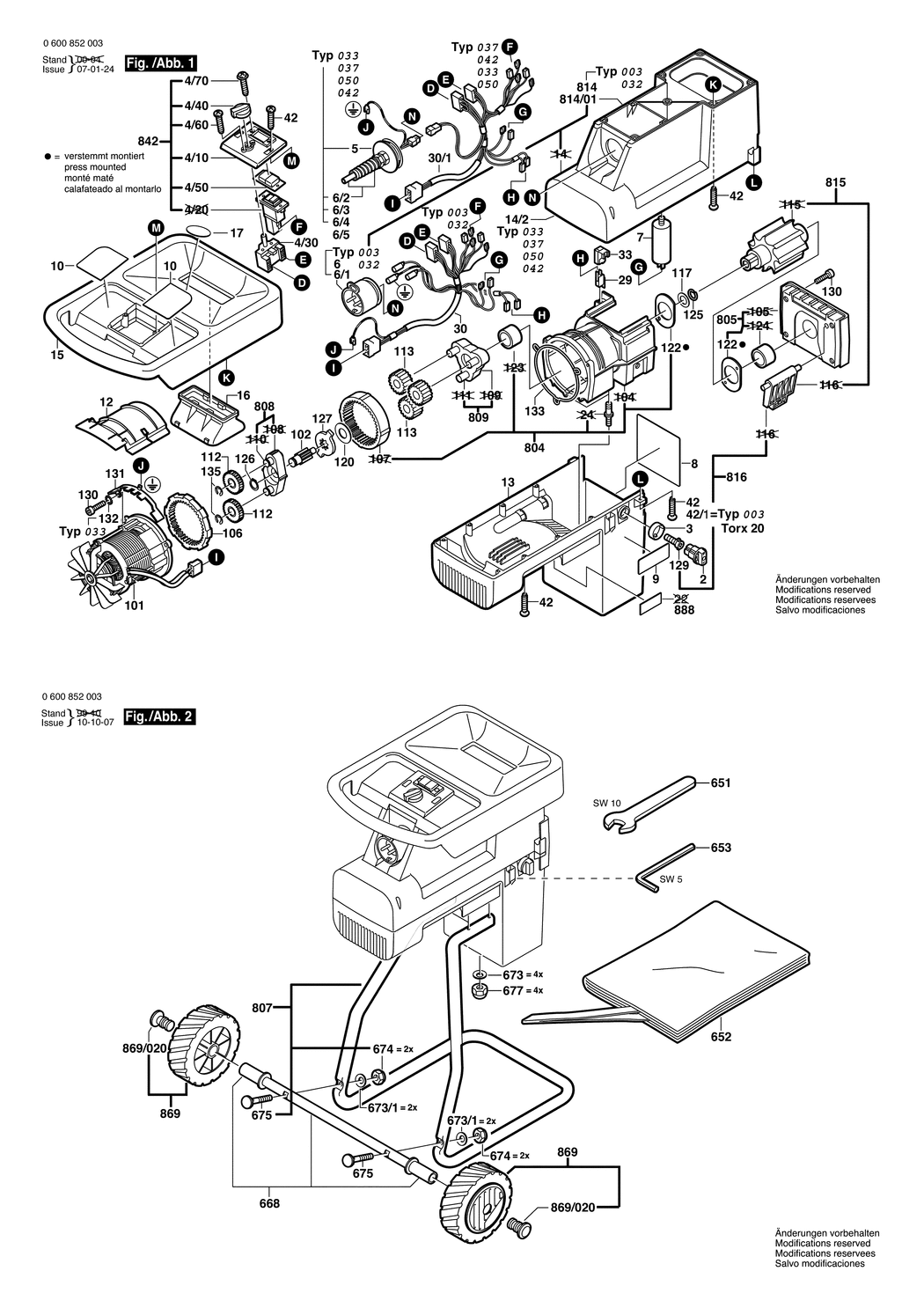

An exploded drawing and listing for the Bosch AXT 2200 HP / 0600852003 / EU 230 Volt
Ex VAT Inc VAT
2 - ADJUSTMENT KNOB BSD-1600591021.A28 1600591021 -
3 - SPRING CLIP BSD-1600290034.A0 1600290034 -
4/10 - SWITCH PLATE BSD-1605190132.A28 1605190132 £3.80 £4.56
4/30 - SWITCH BSD-1607200131.A5 1607200131 -
4/40 - SWITCH BUTTON BSD-1602025029.A28 1602025029 £2.61 £3.13
4/50 - PROTECTIVE CAP BSD-1605500207.A37 1605500207 -
4/60 - OVAL-HEAD SCREW KT 4.0x14 BSD-1603425001.A4 1603425001 £2.52 £3.02
4/70 - OVAL-HEAD SCREW 4x12 MM BSD-2914211503.A28 2914211503 £2.52 £3.02
6 - CONNECTION PART BSD-1605190060.A1 1605190060 -
7 - SUPPRESSION FILTER BSD-CWESSCP20.A22 CWESSCP20 £29.82 £35.78
8 - NAMEPLATE BSD-1601118K71.A0 1601118K71 £1.75 £2.10
9 - REFERENCE PLATE BSD-1601118928.A29 1601118928 £3.80 £4.56
10 - REFERENCE PLATE BSD-1601118A81.A27 1601118A81 £3.34 £4.01
12 - COVER PLATE BSD-1605500190.A0 1605500190 £2.52 £3.02
13 - HOUSING BASE BSD-1605190057.A25 1605190057 £37.72 £45.27
15 - HOUSING COVER BSD-1605190182.A2 1605190182 -
16 - INSERT BSD-1605190055.A51 1605190055 -
17 - STICKER BSD-1601118916.A8 1601118916 £3.34 £4.01
29 - SWITCH BSD-1607200134.A29 1607200134 £6.61 £7.93
30 - WIRING HARNESS BSD-1604449010.A2 1604449010 £24.45 £29.34
33 - SWITCH SUPPORT BSD-1605190059.A35 1605190059 £1.95 £2.34
42 - THREAD-FORMING TAP. SCREW TORX-T20 BSD-1603435054.A59 1603435054 £1.75 £2.10
101 - MOTOR 230V BSD-1607220035.A3 1607220035 -
102 - TOOTHED GEAR Z=8 BSD-1606318011.A27 1606318011 £13.41 £16.09
106 - RING GEAR Z=112 BSD-1606334006.A37 1606334006 -
112 - TOOTHED GEAR Z=49 BSD-1606317088.A0 1606317088 -
113 - TOOTHED GEAR Z=23 BSD-1606318008.A37 1606318008 -
117 - FRICTION WASHER BSD-1600100032.A37 1600100032 £1.66 £1.99
120 - FRICTION WASHER BSD-1600100027.A0 1600100027 £2.33 £2.80
122 - SCRAPER BSD-1601034040.A0 1601034040 £7.78 £9.33
125 - RETAINING RING 10 DIN 9045 BSD-2916600006.A84 2916600006 £1.75 £2.10
126 - SPRING RETAINING RING DIN 471 18x1.2MM BSD-2916650009.A33 2916650009 £1.75 £2.10
127 - CARRIER BSD-1606490040.A28 1606490040 £5.87 £7.04
129 - ADJUSTING SCREW BSD-1603490004.A0 1603490004 £2.80 £3.36
130 - THREAD-FORMING TAP. SCREW M6x25 MM BSD-1603414010.A107 1603414010 £1.75 £2.10
131 - HOLDING PLATE BSD-1601329028.A9 1601329028 £1.75 £2.10
133 - SEAL BSD-1600290035.A54 1600290035 -
135 - LOCKING WASHER DIN 6799-12-FST BSD-2916080014.A52 2916080014 £1.75 £2.10
651 - SINGLE-HEAD ENG. WRENCH SW10 BSD-1607950527.A4 1607950527 -
652 - CATCHER CONTAINER BSD-1605411031.A52 1605411031 £11.30 £13.56
653 - OFFSET SCREWDRIVER SW5 BSD-1607950057.A4 1607950057 £3.34 £4.01
668 - AXLE BSD-1607000957.A41 1607000957 £14.91 £17.89
673 - PLAIN WASHER BSD-1600190030.A17 1600190030 £1.75 £2.10
673/1 - PLAIN WASHER BSD-1600190030.A18 1600190030 £1.75 £2.10
674 - HEX NUT DIN 985-M6-8 BSD-2915061004.A45 2915061004 £1.75 £2.10
675 - ROUND-HEAD BOLT DIN 603 M6x50 BSD-2910281213.A49 2910281213 £1.32 £1.58
677 - CAP NUT DIN 1587-M6-M-6 BSD-2915151001.A6 2915151001 £4.75 £5.70
804 - GEAR HOUSING BSD-1607000819.A6 1607000819 -
805 - BEARING FLANGE BSD-1607000813.A37 1607000813 -
807 - SUPPORTING FRAME BSD-1607000829.A38 1607000829 £37.72 £45.27
808 - PLANETARY-GEAR CARRIER BSD-1607000874.A36 1607000874 £19.45 £23.34
809 - PLANETARY-GEAR CARRIER BSD-1607000820.A20 1607000820 £21.68 £26.01
814 - UPPER HOUSING BSD-1605190078.A5 1605190078 £37.72 £45.27
815 - CUTTING HEAD BSD-1607000821.A5 1607000821 £135.25 £162.30
816 - COUNTER BAR BSD-1601000001.A26 1601000001 £23.86 £28.63
842 - SWITCH KIT BSD-1607000863.A0 1607000863 -
869 - WHEEL dia200 MM BSD-1609351088.A61 1609351088 £12.04 £14.45
869/020 - PLUG BSD-1609351075.A52 1609351075 -
888 - NAMEPLATE BSD-160111A3H5.A278 160111A3H5 £2.61 £3.13
