Bosch AXT 25 TC / 3600H03300 / EU 230 Volt Spare Parts

Bosch AXT 25 TC / 3600H03300 / EU 230 Volt Spare Parts
Home Details Reviews Delivery

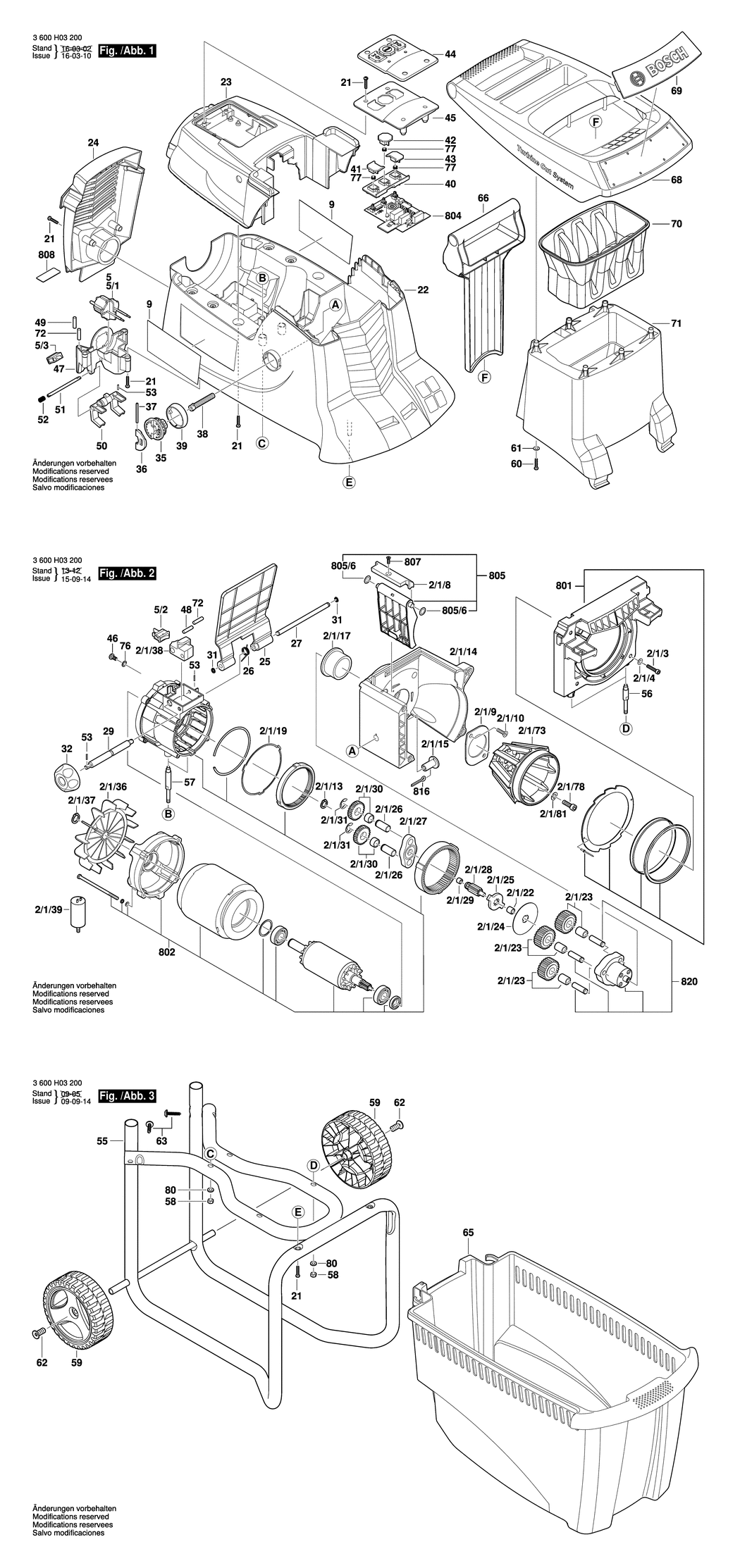

An exploded drawing and listing for the Bosch AXT 25 TC / 3600H03300 / EU 230 Volt
Ex VAT Inc VAT
2/1/3 - SCREW BSD-2609003824.A16 2609003824 £1.75 £2.10
2/1/4 - SPRING WASHER BSD-2609003825.A2 2609003825 £1.75 £2.10
2/1/8 - CONNECTING PLATE BSD-2609003828.A2 2609003828 £12.04 £14.45
2/1/9 - PLATE BSD-2609003829.A16 2609003829 £6.52 £7.83
2/1/10 - SCREW BSD-2609003830.A2 2609003830 £1.75 £2.10
2/1/13 - SPRING RETAINING RING BSD-2609004198.A8 2609004198 £1.75 £2.10
2/1/14 - HOUSING BSD-2609003833.A16 2609003833 £81.81 £98.17
2/1/15 - INSERT BSD-2609003834.A2 2609003834 £5.58 £6.70
2/1/17 - FLANGED BEARING BSD-2609003836.A16 2609003836 £14.91 £17.89
2/1/19 - SEAL RING BSD-2609003838.A2 2609003838 £1.75 £2.10
2/1/22 - POROUS BEARING BSD-2609003841.A16 2609003841 £1.75 £2.10
2/1/23 - PLANET GEAR BSD-2609003842.A2 2609003842 £23.86 £28.63
2/1/24 - WASHER BSD-2609003843.A16 2609003843 £2.61 £3.13
2/1/25 - DRIVE PLATE BSD-2609003844.A0 2609003844 £1.95 £2.34
2/1/26 - BOLT BSD-2609003845.A8 2609003845 £1.75 £2.10
2/1/27 - PLANETARY-GEAR CARRIER BSD-2609003846.A0 2609003846 £12.04 £14.45
2/1/28 - PINION BSD-2609003847.A8 2609003847 £8.67 £10.41
2/1/29 - NEEDLE-ROLLER BEARING BSD-2609003848.A0 2609003848 £2.16 £2.59
2/1/30 - PLANET GEAR BSD-2609003849.A8 2609003849 £14.91 £17.89
2/1/31 - SPRING RETAINING RING BSD-2609003850.A0 2609003850 £1.75 £2.10
2/1/36 - FAN BSD-2609003854.A2 2609003854 £8.67 £10.41
2/1/37 - SPRING RETAINING RING BSD-2609003855.A16 2609003855 £1.75 £2.10
2/1/38 - CLAMPING PIECE BSD-2609002792.A0 2609002792 -
2/1/39 - MOTOR CAPACITOR BSD-2609007667.A16 2609007667 £21.68 £26.01
2/1/73 - TURBINE CUTTER BSD-2609002763.A4 2609002763 £240.72 £288.87
2/1/78 - HEX SOCKET HEAD CAP SCREW BSD-2910400244.A6 2910400244 £1.75 £2.10
2/1/81 - LOCKING WASHER BSD-2609003315.A4 2609003315 £1.75 £2.10
5 - APPLIANCE INLET SET EU BSD-2609003149.A7 2609003149 £31.64 £37.97
5/2 - SWITCH BSD-2609003145.A7 2609003145 £7.36 £8.83
5/3 - SWITCH ROCKER BSD-2609003517.A6 2609003517 £7.36 £8.83
9 - MANUFACTURER'S NAMEPLATE AXT 25 TC BSD-2609003153.A0 2609003153 £2.80 £3.36
21 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A992 2603490024 £1.75 £2.10
22 - HOUSING BSD-2609002554.A2 2609002554 £36.63 £43.96
23 - UPPER HOUSING BSD-2609002555.A6 2609002555 £14.75 £17.70
24 - REAR HOUSING SECTION BSD-2609004513.A17 2609004513 £21.52 £25.83
25 - FLAP BSD-2609002557.A2 2609002557 -
26 - SPRING BSD-2609003144.A12 2609003144 £1.75 £2.10
27 - BOLT BSD-2609002795.A3 2609002795 £2.16 £2.59
29 - BOLT BSD-2609002791.A8 2609002791 £7.78 £9.33
31 - SPRING RETAINING RING DIN 471-8x0.8 FSt BSD-2916640005.A82 2916640005 £1.75 £2.10
32 - KNOB BSD-2609004515.A18 2609004515 £2.16 £2.59
35 - KNOB BSD-2609002804.A0 2609002804 -
36 - TERMINAL LUG BSD-2609002805.A8 2609002805 -
37 - BOLT BSD-2609002806.A0 2609002806 £1.75 £2.10
38 - ADJUSTING SCREW BSD-2609003539.A0 2609003539 £7.78 £9.33
39 - RING BSD-2609002754.A6 2609002754 -
40 - HOLDER BSD-2609003140.A2 2609003140 £3.34 £4.01
41 - CAP BSD-2609003399.A2 2609003399 £1.75 £2.10
42 - CAP BSD-2609003400.A16 2609003400 £1.75 £2.10
43 - CAP BSD-2609003401.A2 2609003401 £1.75 £2.10
44 - RUBBER PAD BSD-2609002755.A3 2609002755 £12.04 £14.45
45 - COVER PLATE BSD-2609003076.A2 2609003076 £4.75 £5.70
46 - OVAL-HEAD SCREW M4x8 BSD-2603413035.A17 2603413035 £1.75 £2.10
47 - SOCKET HOUSING BSD-2609004519.A18 2609004519 £3.72 £4.47
48 - RELAY BSD-2609005130.A15 2609005130 £12.04 £14.45
49 - REED SWITCH BSD-2609003540.A15 2609003540 £21.52 £25.83
50 - ROCKER ROD BSD-2609004603.A16 2609004603 £2.61 £3.13
51 - BOLT BSD-2609002846.A15 2609002846 £5.30 £6.36
52 - SPRING BSD-2609002847.A3 2609002847 £1.75 £2.10
53 - SLOTTED SPRING PIN BSD-2609002793.A15 2609002793 £1.75 £2.10
55 - SUPPORTING FRAME BSD-2609004243.A0 2609004243 £120.11 £144.13
56 - HOLDING PIN BSD-2609003267.A5 2609003267 £5.30 £6.36
57 - HOLDING PIN BSD-2609003268.A13 2609003268 £5.58 £6.70
58 - NUT BSD-2609003551.A4 2609003551 £1.75 £2.10
59 - WHEEL BSD-1607000E3U.A1 1607000E3U £21.68 £26.01
60 - TORX OVAL-HEAD SCREW 4x40 BSD-2603490027.A43 2603490027 £1.75 £2.10
61 - PLAIN WASHER DIN 9021-B 4.3-ST BSD-2916011892.A39 2916011892 £1.75 £2.10
62 - RETAINING PIN BSD-F016L64669.A41 F016L64669 £1.75 £2.10
63 - THREAD-FORMING TAP. SCREW 4.8x22 BSD-2609003552.A14 2609003552 £1.75 £2.10
65 - CATCHER CONTAINER BSD-2609006904.A17 2609006904 £40.80 £48.96
66 - PUSHER BSD-2609002752.A6 2609002752 £6.52 £7.83
68 - HANDLE BSD-2609003622.A2 2609003622 -
69 - COMPANY LOGO AXT 25 D BSD-2609002685.A13 2609002685 £6.52 £7.83
70 - HOPPER BSD-2609002562.A2 2609002562 £16.74 £20.09
71 - CHUTE BSD-2609002564.A1 2609002564 -
72 - MAGNET BSD-2609002799.A17 2609002799 £4.26 £5.11
76 - TOOTHED LOCK WASHER DIN 6797-A4.3-FST BSD-2916030006.A38 2916030006 £1.75 £2.10
77 - COMPRESSION SPRING BSD-2609003683.A1 2609003683 £1.75 £2.10
80 - WASHER DIN 9021-6.4x18x1.6 BSD-2610386712.A32 2610386712 £2.61 £3.13
801 - BEARING PLATE BSD-2609004913.A1 2609004913 £68.42 £82.10
802 - MOTOR BSD-2609004911.A2 2609004911 -
804 - ELECTRONIC ASSEMBLY BSD-1600A00H67.A4 1600A00H67 £81.81 £98.17
805 - GUIDE-PLATE BSD-2609004916.A7 2609004916 £27.23 £32.68
805/6 - O-RING BSD-2609004197.A2 2609004197 £1.75 £2.10
807 - SCREW BSD-2609003827.A17 2609003827 £1.75 £2.10
808 - NAMEPLATE BSD-2609003157.A0 2609003157 £2.61 £3.13
816 - SPLIT PIN BSD-2609004989.A11 2609004989 £2.16 £2.59
820 - SHAFT BSD-2609006274.A7 2609006274 £36.63 £43.96
