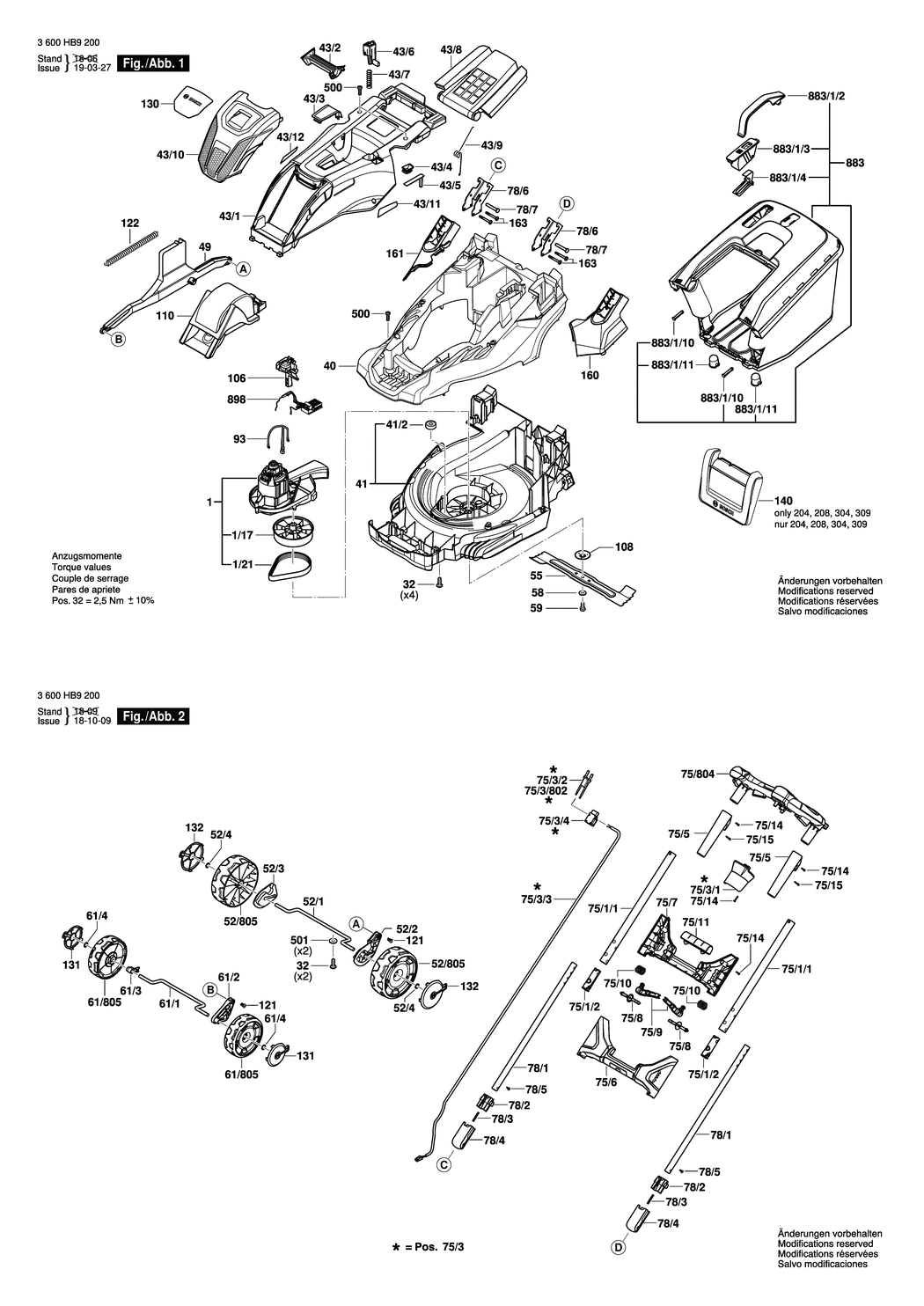

1 - MOTOR
BSD-F016L90455.A12
F016L90455
|
£156.22
|
£187.46
|
|
|
1/17 - DRIVE SHAFT
BSD-F016L65108.A79
F016L65108
|
£13.12
|
£15.75
|
|
|
1/21 - DRIVE BELT
BSD-F016L65109.A22
F016L65109
|
£16.41
|
£19.69
|
|
|
32 - SELF-CUTTING SCREW
BSD-F016L37433.A187
F016L37433
|
£1.75
|
£2.10
|
|
|
40 - MOWER DECK
BSD-F016L90016.A7
F016L90016
|
£31.64
|
£37.97
|
|
|
41 - HOUSING 42 cm
BSD-F016L90443.A10
F016L90443
|
£57.05
|
£68.46
|
|
|
41/2 - BEARING 6003
BSD-F016L64387.A93
F016L64387
|
£5.30
|
£6.36
|
|
|
43/1 - MOTOR HOOD
BSD-F016L90017.A31
F016L90017
|
£18.96
|
£22.75
|
|
|
43/2 - CARRYING HANDLE
BSD-F016L90018.A36
F016L90018
|
£1.75
|
£2.10
|
|
|
43/3 - COVER
BSD-F016L90081.A23
F016L90081
|
£1.75
|
£2.10
|
|
|
43/4 - TRANSPARENT COVER
BSD-F016L90432.A62
F016L90432
|
£1.75
|
£2.10
|
|
|
43/5 - INDICATOR
BSD-F016L90433.A5
F016L90433
|
£3.72
|
£4.47
|
|
|
43/6 - BUTTON
BSD-F016L90019.A10
F016L90019
|
£3.12
|
£3.75
|
|
|
43/7 - BUTTON SPRING
BSD-F016L91168.A39
F016L91168
|
£1.75
|
£2.10
|
|
|
43/8 - GUARD FLAP
BSD-F016L90022.A42
F016L90022
|
£7.36
|
£8.83
|
|
|
43/9 - SPRING
BSD-F016L66165.A94
F016L66165
|
£2.82
|
£3.39
|
|
|
43/10 - GRILLE
BSD-F016L90400.A28
F016L90400
|
£8.67
|
£10.41
|
|
|
43/11 - STICKER logo l
BSD-F016L90076.A18
F016L90076
|
£2.61
|
£3.13
|
|
|
43/12 - STICKER logo r
BSD-F016L90077.A36
F016L90077
|
£2.61
|
£3.13
|
|
|
49 - LINKAGE PART
BSD-F016L90028.A34
F016L90028
|
£10.10
|
£12.12
|
|
|
52/1 - AXLE
BSD-F016L90007.A5
F016L90007
|
£5.30
|
£6.36
|
|
|
52/2 - LINK PIECE
BSD-F016L90033.A7
F016L90033
|
£1.75
|
£2.10
|
|
|
52/3 - LINK PIECE
BSD-F016L90037.A7
F016L90037
|
£1.75
|
£2.10
|
|
|
52/4 - RATCHET CAP
BSD-F016L68095.A217
F016L68095
|
£1.75
|
£2.10
|
|
|
52/805 - WHEEL
BSD-F016105109.A10
F016105109
|
£9.49
|
£11.39
|
|
|
55 - CUTTER BLADE 42 cm
BSD-F016L69572.A15
F016L69572
|
£21.52
|
£25.83
|
|
|
58 - LOCKING WASHER 1/2
BSD-F016L18181.A42
F016L18181
|
£2.16
|
£2.59
|
|
|
59 - HEX SCREW
BSD-F04N004003.A59
F04N004003
|
£1.75
|
£2.10
|
|
|
61/1 - AXLE 42/46
BSD-F016L90006.A35
F016L90006
|
£5.30
|
£6.36
|
|
|
61/2 - LINK PIECE
BSD-F016L90032.A60
F016L90032
|
£1.75
|
£2.10
|
|
|
61/3 - SPACER
BSD-F016L90036.A60
F016L90036
|
£1.75
|
£2.10
|
|
|
61/4 - RATCHET CAP
BSD-F016L68095.A216
F016L68095
|
£1.75
|
£2.10
|
|
|
61/805 - WHEEL
BSD-F016105111.A13
F016105111
|
£7.78
|
£9.33
|
|
|
75/1/1 - HANDLE
BSD-F016L90012.A34
F016L90012
|
£16.41
|
£19.69
|
|
|
75/1/2 - BUSHING
BSD-F016L90064.A27
F016L90064
|
£1.75
|
£2.10
|
|
|
75/3 - WIRING UNIT
BSD-F016L90751.A1
F016L90751
|
£37.27
|
£44.72
|
|
|
75/3/1 - SWITCH HOUSING
BSD-F016L67497.A1
F016L67497
|
£5.30
|
£6.36
|
|
|
75/3/3 - CONNECTION CABLE
BSD-F016L90709.A15
F016L90709
|
-
|
|
|
|
75/3/4 - ON-OFF SWITCH
BSD-F016L67490.A15
F016L67490
|
-
|
|
|
|
75/3/802 - POWER SUPPLY CORD CH
BSD-F016104216.A10
F016104216
|
£10.10
|
£12.12
|
|
|
75/5 - SLEEVE
BSD-F016L90070.A12
F016L90070
|
£2.16
|
£2.59
|
|
|
75/6 - HANDLE
BSD-F016L90066.A27
F016L90066
|
£5.30
|
£6.36
|
|
|
75/7 - HANDLE
BSD-F016L90067.A12
F016L90067
|
£5.58
|
£6.70
|
|
|
75/8 - LOCKING PIN
BSD-F016L90068.A27
F016L90068
|
£1.75
|
£2.10
|
|
|
75/9 - LEVER
BSD-F016L90543.A22
F016L90543
|
£1.75
|
£2.10
|
|
|
75/10 - COMPRESSION SPRING
BSD-F016L90074.A26
F016L90074
|
£1.75
|
£2.10
|
|
|
75/11 - BUTTON
BSD-F016L90065.A7
F016L90065
|
£2.80
|
£3.36
|
|
|
75/14 - SCREW M5x8 Csk Hd.
BSD-F016L36542.A141
F016L36542
|
£2.61
|
£3.13
|
|
|
75/15 - TORX HEAD SCREW
BSD-F016L68124.A113
F016L68124
|
£1.75
|
£2.10
|
|
|
75/804 - SWITCHING UNIT
BSD-F016105287.A46
F016105287
|
-
|
|
|
|
78/1 - BOTTOM HANDLE
BSD-F016L90013.A6
F016L90013
|
£12.04
|
£14.45
|
|
|
78/2 - RELEASE MECHANISM
BSD-F016L90063.A11
F016L90063
|
£1.75
|
£2.10
|
|
|
78/3 - COMPRESSION SPRING
BSD-F016L90841.A24
F016L90841
|
£1.75
|
£2.10
|
|
|
78/4 - RELEASE MECHANISM
BSD-F016L90062.A32
F016L90062
|
£2.61
|
£3.13
|
|
|
78/5 - SCREW M5x8 Csk Hd.
BSD-F016L36542.A142
F016L36542
|
£2.61
|
£3.13
|
|
|
78/6 - BRACKET
BSD-F016L90082.A30
F016L90082
|
£5.58
|
£6.70
|
|
|
78/7 - PIVOT PIN
BSD-F016L90014.A37
F016L90014
|
£1.75
|
£2.10
|
|
|
93 - THERMAL PROTECTOR
BSD-F016L90717.A23
F016L90717
|
£7.36
|
£8.83
|
|
|
106 - WIRE GUIDE
BSD-F016L90419.A6
F016L90419
|
£4.26
|
£5.11
|
|
|
108 - BEARING COVER
BSD-F016L67627.A153
F016L67627
|
£2.71
|
£3.25
|
|
|
110 - BAFFLE
BSD-F016L90089.A38
F016L90089
|
£7.36
|
£8.83
|
|
|
121 - CLIP
BSD-F016L91066.A8
F016L91066
|
£1.75
|
£2.10
|
|
|
122 - SPRING
BSD-F016L90072.A12
F016L90072
|
£2.80
|
£3.36
|
|
|
130 - FRONT COVER P2
BSD-F016L90876.A3
F016L90876
|
£6.52
|
£7.83
|
|
|
131 - COVER
BSD-F016L90164.A7
F016L90164
|
£2.61
|
£3.13
|
|
|
132 - COVER
BSD-F016L90168.A8
F016L90168
|
£2.61
|
£3.13
|
|
|
140 - DEFLECTOR PLATE
BSD-F016L90830.A29
F016L90830
|
£21.52
|
£25.83
|
|
|
160 - COVER
BSD-F016L90060.A31
F016L90060
|
£2.61
|
£3.13
|
|
|
161 - COVER
BSD-F016L90061.A10
F016L90061
|
£2.61
|
£3.13
|
|
|
163 - TORX OVAL-HEAD SCREW M6x50
BSD-1613490011.A43
1613490011
|
£2.16
|
£2.59
|
|
|
500 - TORX HEAD SCREW
BSD-F016L68124.A112
F016L68124
|
£1.75
|
£2.10
|
|
|
501 - PLAIN WASHER
BSD-8716107299.A33
8716107299
|
-
|
|
|
|
883 - COLLECTION BOX
BSD-F016105378.A21
F016105378
|
£59.53
|
£71.44
|
|
|
883/1/2 - HANDLE
BSD-F016L90040.A76
F016L90040
|
£2.19
|
£2.63
|
|
|
883/1/3 - COVER
BSD-F016L90557.A52
F016L90557
|
£2.16
|
£2.59
|
|
|
883/1/4 - PIVOT PLATE
BSD-F016L90558.A8
F016L90558
|
£1.75
|
£2.10
|
|
|
883/1/10 - PIN
BSD-F016L90638.A14
F016L90638
|
£1.32
|
£1.58
|
|
|
883/1/11 - SOCKET INSERT
BSD-F016L90639.A19
F016L90639
|
-
|
|
|
|
898 - SPEED GOVERNOR
BSD-F016105113.A8
F016105113
|
-
|
|
|
