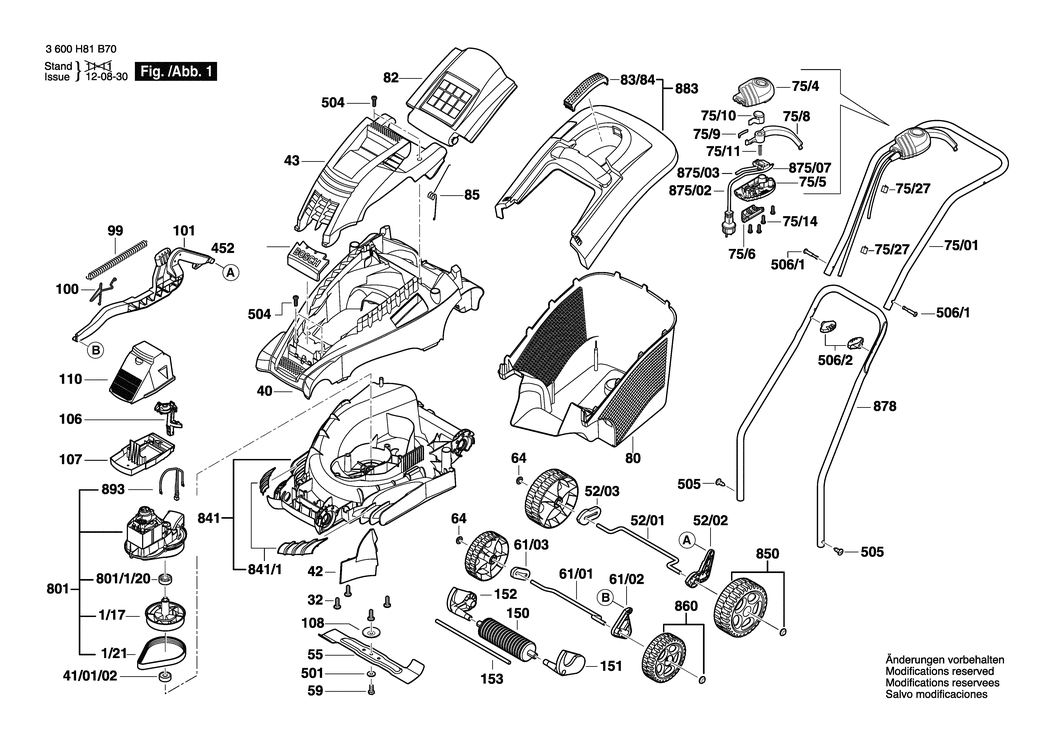

An exploded drawing and listing for the Bosch ROTAK 36 / 3600H81B70 / --- 230 Volt
Ex VAT Inc VAT
1/17 - DRIVE SHAFT BSD-F016103758.A21 F016103758 £14.91 £17.89
1/21 - DRIVE BELT BSD-F016L65351.A14 F016L65351 £13.41 £16.09
32 - SELF-CUTTING SCREW BSD-F016L37433.A33 F016L37433 £1.75 £2.10
40 - MOWER DECK BSD-F016L66158.A35 F016L66158 £33.74 £40.49
41/01/02 - BEARING 6002-2RS BSD-F016L67442.A19 F016L67442 £4.22 £5.06
42 - COVER PANEL BSD-F016L65497.A7 F016L65497 -
43 - MOTOR HOOD BSD-F016L65159.A16 F016L65159 £30.28 £36.33
52/01 - AXLE BSD-F016L65706.A10 F016L65706 £10.10 £12.12
52/02 - LEVER BSD-F016L90582.A83 F016L90582 -
52/03 - SPACER BSD-F016L90583.A109 F016L90583 £2.33 £2.80
55 - CUTTER BLADE BSD-F016L65400.A15 F016L65400 £31.64 £37.97
59 - HEX SCREW M8x20 MM BSD-F016T48547.A45 F016T48547 £2.61 £3.13
61/01 - AXLE BSD-F016L65705.A0 F016L65705 £8.49 £10.19
61/02 - LEVER BSD-F016L90581.A109 F016L90581 £7.78 £9.33
61/03 - SPACER BSD-F016L90585.A83 F016L90585 £1.75 £2.10
64 - RATCHET CAP 9 MM BSD-F016F05700.A28 F016F05700 £1.95 £2.34
75/01 - HANDLE BSD-F016L66131.A1 F016L66131 £23.86 £28.63
75/4 - SWITCH HOUSING BSD-F016L65739.A44 F016L65739 -
75/5 - SWITCH HOUSING BSD-F016L66235.A73 F016L66235 £3.34 £4.01
75/6 - CABLE CLEAT BSD-F016T49630.A20 F016T49630 -
75/8 - POSITIONING LEVER BSD-F016L66238.A26 F016L66238 £5.98 £7.18
75/9 - SPRING LEVER BSD-F016T49845.A65 F016T49845 -
75/10 - PUSH-BUTTON BSD-F016F05705.A48 F016F05705 £3.75 £4.50
75/11 - COMPRESSION SPRING BSD-F016T49226.A51 F016T49226 -
75/14 - SELF-CUTTING SCREW 4x19 MM BSD-F016T49429.A409 F016T49429 £1.75 £2.10
75/27 - CABLE CLIP BSD-F016L90575.A31 F016L90575 £1.75 £2.10
80 - COLLECTOR BOX BOTTOM BSD-F016L65674.A0 F016L65674 £40.80 £48.96
82 - GUARD FLAP BSD-F016L66137.A92 F016L66137 £13.32 £15.99
83/84 - HANDLE BSD-F016L66441.A76 F016L66441 £4.75 £5.70
85 - SPRING BSD-F016L66165.A199 F016L66165 £2.82 £3.39
99 - SPRING BSD-F016L59327.A34 F016L59327 £2.80 £3.36
100 - SPRING BSD-F016L65790.A17 F016L65790 £1.95 £2.34
101 - LINKAGE PART BSD-F016L67260.A18 F016L67260 -
106 - WIRE GUIDE BSD-F016L65802.A3 F016L65802 £1.32 £1.58
107 - FILTER HOUSING BSD-F016L65539.A19 F016L65539 £11.30 £13.56
108 - BEARING COVER BSD-F016L67627.A41 F016L67627 £2.71 £3.25
110 - FILTER HOUSING BSD-F016L65709.A1 F016L65709 £5.87 £7.04
150 - ROLLER DRUM BSD-F016L65871.A12 F016L65871 -
151 - BRACKET BSD-F016L64900.A20 F016L64900 -
152 - BRACKET BSD-F016L64901.A62 F016L64901 -
153 - SPINDLE BSD-F016L65869.A15 F016L65869 £6.52 £7.83
452 - COMPANY LOGO ROTAK 36 BSD-F016L66280.A0 F016L66280 £2.61 £3.13
501 - PLAIN WASHER dia8.15 BSD-F016T48185.A56 F016T48185 £3.72 £4.47
504 - SELF-CUTTING SCREW 4x19 MM BSD-F016T49429.A410 F016T49429 £1.75 £2.10
505 - SCREW BSD-F016L65803.A67 F016L65803 -
506/1 - BOLT M6x50 BSD-F016L59277.A90 F016L59277 £3.80 £4.56
506/2 - WING NUT BSD-F016L66136.A31 F016L66136 £4.26 £5.11
801 - MOTOR BSD-F016103595.A12 F016103595 £120.11 £144.13
801/1/20 - BEARING BSD-F016L64594.A23 F016L64594 £3.75 £4.50
841 - HOUSING BSD-F016103598.A13 F016103598 £27.31 £32.77
841/1 - COVER BSD-F016104316.A39 F016104316 £8.49 £10.19
850 - WHEEL BSD-F016103662.A21 F016103662 £7.78 £9.33
860 - WHEEL BSD-F016103663.A0 F016103663 £8.49 £10.19
875/02 - POWER SUPPLY CORD GB 22m 2 x 0.75mm without plug BSD-F016104085.A6 F016104085 £31.64 £37.97
875/03 - CONNECTING CABLE BSD-F016103602.A21 F016103602 £14.72 £17.67
875/07 - ON-OFF SWITCH BSD-F016F05717.A39 F016F05717 £14.91 £17.89
878 - BOTTOM HANDLE BSD-F016L65166.A7 F016L65166 -
883 - COVER BSD-F016103608.A79 F016103608 £27.23 £32.68
893 - THERMAL PROTECTOR BSD-F016103604.A0 F016103604 £8.49 £10.19
