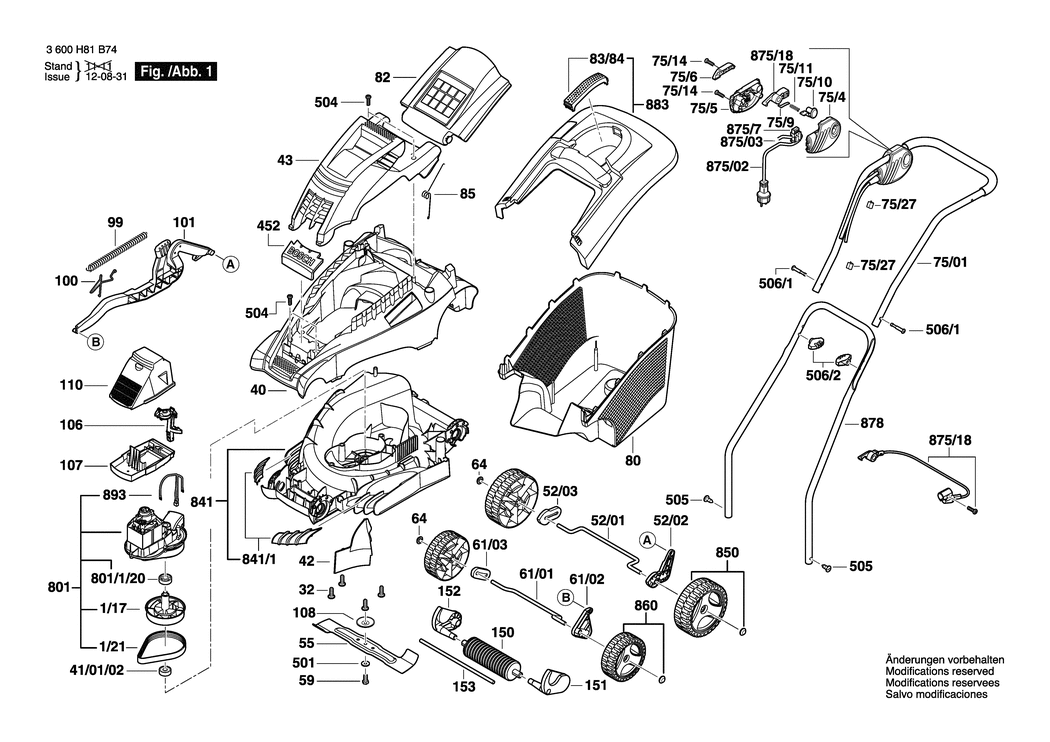

1/17 - DRIVE SHAFT
BSD-F016103758.A19
F016103758
|
£14.91
|
£17.89
|
|
|
1/21 - DRIVE BELT
BSD-F016L65351.A11
F016L65351
|
£13.41
|
£16.09
|
|
|
32 - SELF-CUTTING SCREW
BSD-F016L37433.A37
F016L37433
|
£1.75
|
£2.10
|
|
|
40 - MOWER DECK
BSD-F016L66158.A31
F016L66158
|
£33.74
|
£40.49
|
|
|
41/01/02 - BEARING 6002-2RS
BSD-F016L67442.A20
F016L67442
|
£4.22
|
£5.06
|
|
|
42 - COVER PANEL
BSD-F016L65497.A4
F016L65497
|
-
|
|
|
|
43 - MOTOR HOOD
BSD-F016L65159.A13
F016L65159
|
£30.28
|
£36.33
|
|
|
52/01 - AXLE
BSD-F016L66465.A12
F016L66465
|
£3.34
|
£4.01
|
|
|
52/02 - LEVER
BSD-F016L90582.A85
F016L90582
|
-
|
|
|
|
52/03 - SPACER
BSD-F016L90583.A107
F016L90583
|
£2.33
|
£2.80
|
|
|
55 - CUTTER BLADE
BSD-F016L65400.A18
F016L65400
|
£31.64
|
£37.97
|
|
|
59 - HEX SCREW M8x20 MM
BSD-F016T48547.A47
F016T48547
|
£2.61
|
£3.13
|
|
|
61/01 - AXLE
BSD-F016L66464.A41
F016L66464
|
£4.75
|
£5.70
|
|
|
61/02 - LEVER
BSD-F016L90581.A107
F016L90581
|
£7.78
|
£9.33
|
|
|
61/03 - SPACER
BSD-F016L90585.A85
F016L90585
|
£1.75
|
£2.10
|
|
|
64 - RATCHET CAP 9 MM
BSD-F016F05700.A29
F016F05700
|
£1.95
|
£2.34
|
|
|
75/01 - HANDLE
BSD-F016L66133.A3
F016L66133
|
£23.86
|
£28.63
|
|
|
75/4 - SWITCH HOUSING
BSD-F016L65739.A42
F016L65739
|
-
|
|
|
|
75/5 - SWITCH HOUSING
BSD-F016L66235.A77
F016L66235
|
£3.34
|
£4.01
|
|
|
75/6 - CABLE CLEAT
BSD-F016T49630.A17
F016T49630
|
-
|
|
|
|
75/9 - SPRING LEVER
BSD-F016T49845.A68
F016T49845
|
-
|
|
|
|
75/10 - PUSH-BUTTON
BSD-F016F05705.A44
F016F05705
|
£3.75
|
£4.50
|
|
|
75/11 - COMPRESSION SPRING
BSD-F016T49226.A48
F016T49226
|
-
|
|
|
|
75/14 - SELF-CUTTING SCREW 4x19 MM
BSD-F016T49429.A414
F016T49429
|
£1.75
|
£2.10
|
|
|
75/27 - CABLE CLIP
BSD-F016L90575.A34
F016L90575
|
£1.75
|
£2.10
|
|
|
80 - COLLECTOR BOX BOTTOM
BSD-F016L65674.A3
F016L65674
|
£40.80
|
£48.96
|
|
|
82 - GUARD FLAP
BSD-F016L66137.A95
F016L66137
|
£13.32
|
£15.99
|
|
|
83/84 - HANDLE
BSD-F016L66441.A75
F016L66441
|
£4.75
|
£5.70
|
|
|
85 - SPRING
BSD-F016L66165.A195
F016L66165
|
£2.82
|
£3.39
|
|
|
99 - SPRING
BSD-F016L59327.A37
F016L59327
|
£2.80
|
£3.36
|
|
|
100 - SPRING
BSD-F016L65790.A19
F016L65790
|
£1.95
|
£2.34
|
|
|
101 - LINKAGE PART
BSD-F016L67260.A16
F016L67260
|
-
|
|
|
|
106 - WIRE GUIDE
BSD-F016L65802.A0
F016L65802
|
£1.32
|
£1.58
|
|
|
107 - FILTER HOUSING
BSD-F016L65538.A13
F016L65538
|
£6.61
|
£7.93
|
|
|
108 - BEARING COVER
BSD-F016L67627.A38
F016L67627
|
£2.71
|
£3.25
|
|
|
110 - FILTER HOUSING
BSD-F016L65709.A4
F016L65709
|
£5.87
|
£7.04
|
|
|
150 - ROLLER DRUM
BSD-F016L65871.A15
F016L65871
|
-
|
|
|
|
151 - BRACKET
BSD-F016L64900.A23
F016L64900
|
£3.80
|
£4.56
|
|
|
152 - BRACKET
BSD-F016L64901.A59
F016L64901
|
£3.80
|
£4.56
|
|
|
153 - SPINDLE
BSD-F016L65869.A12
F016L65869
|
£6.52
|
£7.83
|
|
|
452 - COMPANY LOGO ROTAK 36
BSD-F016L66271.A3
F016L66271
|
£2.52
|
£3.02
|
|
|
501 - PLAIN WASHER dia8.15
BSD-F016T48185.A54
F016T48185
|
£3.72
|
£4.47
|
|
|
504 - SELF-CUTTING SCREW 4x19 MM
BSD-F016T49429.A415
F016T49429
|
£1.75
|
£2.10
|
|
|
505 - SCREW
BSD-F016L65803.A70
F016L65803
|
-
|
|
|
|
506/1 - BOLT M6x50
BSD-F016L59277.A87
F016L59277
|
£3.80
|
£4.56
|
|
|
506/2 - WING NUT
BSD-F016L66136.A28
F016L66136
|
£4.26
|
£5.11
|
|
|
801 - MOTOR
BSD-F016103595.A15
F016103595
|
£120.11
|
£144.13
|
|
|
801/1/20 - BEARING
BSD-F016L64594.A20
F016L64594
|
£3.75
|
£4.50
|
|
|
841 - HOUSING
BSD-F016103598.A10
F016103598
|
£27.31
|
£32.77
|
|
|
841/1 - COVER
BSD-F016104316.A37
F016104316
|
£8.49
|
£10.19
|
|
|
850 - WHEEL
BSD-F016103662.A16
F016103662
|
£7.78
|
£9.33
|
|
|
860 - WHEEL
BSD-F016103663.A5
F016103663
|
£8.49
|
£10.19
|
|
|
875/02 - POWER SUPPLY CORD GB 22m 2 x 0.75mm without plug
BSD-F016104085.A9
F016104085
|
£31.64
|
£37.97
|
|
|
875/03 - CONNECTING CABLE
BSD-F016103602.A16
F016103602
|
£14.72
|
£17.67
|
|
|
875/7 - ON-OFF SWITCH
BSD-F016F05717.A34
F016F05717
|
£14.91
|
£17.89
|
|
|
875/18 - CONTROL BAR
BSD-F016103601.A32
F016103601
|
-
|
|
|
|
878 - BOTTOM HANDLE
BSD-F016L65166.A10
F016L65166
|
-
|
|
|
|
883 - COVER
BSD-F016103608.A88
F016103608
|
£27.23
|
£32.68
|
|
|
893 - THERMAL PROTECTOR
BSD-F016103604.A5
F016103604
|
£8.49
|
£10.19
|
|
