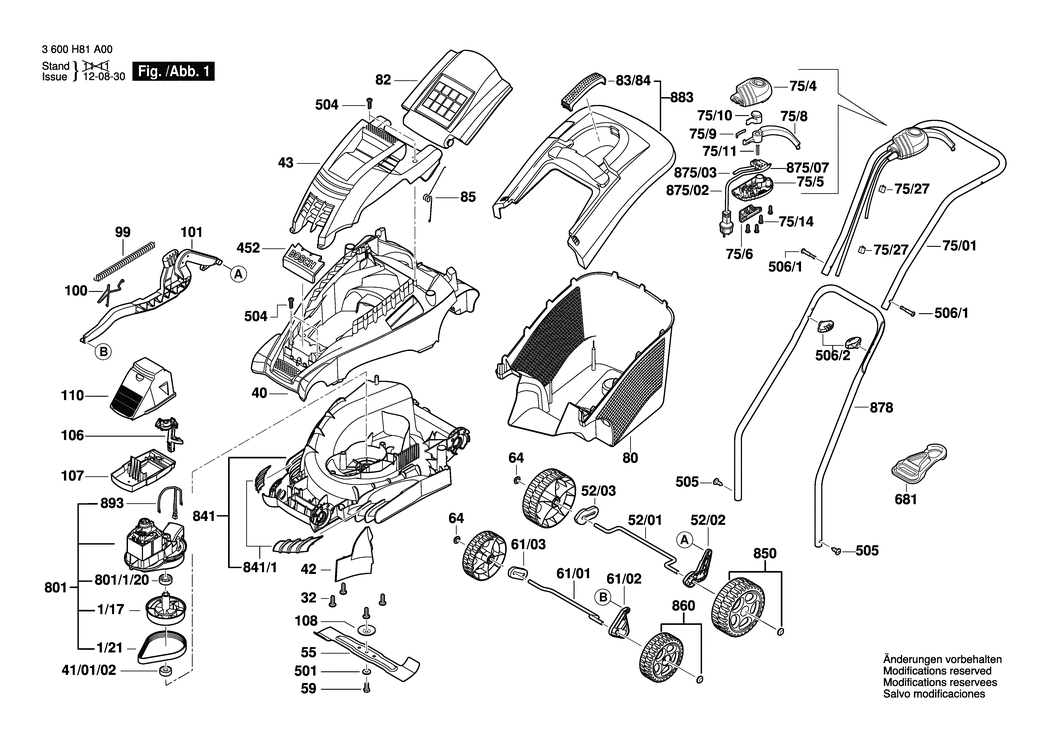

1/17 - DRIVE SHAFT
BSD-F016103758.A30
F016103758
|
£14.91
|
£17.89
|
|
|
1/21 - DRIVE BELT
BSD-F016L65351.A25
F016L65351
|
£13.41
|
£16.09
|
|
|
32 - SELF-CUTTING SCREW
BSD-F016L37433.A96
F016L37433
|
£1.75
|
£2.10
|
|
|
40 - MOWER DECK
BSD-F016L66158.A50
F016L66158
|
£33.74
|
£40.49
|
|
|
41/01/02 - BEARING 6002-2RS
BSD-F016L67442.A9
F016L67442
|
£4.22
|
£5.06
|
|
|
42 - COVER PANEL
BSD-F016L65497.A1
F016L65497
|
-
|
|
|
|
43 - MOTOR HOOD
BSD-F016L65159.A35
F016L65159
|
£30.28
|
£36.33
|
|
|
52/01 - AXLE
BSD-F016L65706.A5
F016L65706
|
£10.10
|
£12.12
|
|
|
52/02 - LEVER
BSD-F016L90582.A11
F016L90582
|
-
|
|
|
|
52/03 - SPACER
BSD-F016L90583.A181
F016L90583
|
£2.33
|
£2.80
|
|
|
55 - CUTTER BLADE
BSD-F016L65400.A21
F016L65400
|
£31.64
|
£37.97
|
|
|
59 - HEX SCREW M8x20 MM
BSD-F016T48547.A88
F016T48547
|
£2.61
|
£3.13
|
|
|
61/01 - AXLE
BSD-F016L65705.A5
F016L65705
|
£8.49
|
£10.19
|
|
|
61/02 - LEVER
BSD-F016L90581.A181
F016L90581
|
£7.78
|
£9.33
|
|
|
61/03 - SPACER
BSD-F016L90585.A11
F016L90585
|
£1.75
|
£2.10
|
|
|
64 - RATCHET CAP 9 MM
BSD-F016F05700.A90
F016F05700
|
£1.95
|
£2.34
|
|
|
75/01 - HANDLE
BSD-F016L66131.A11
F016L66131
|
£23.86
|
£28.63
|
|
|
75/4 - SWITCH HOUSING
BSD-F016L65739.A9
F016L65739
|
-
|
|
|
|
75/5 - SWITCH HOUSING
BSD-F016L66235.A115
F016L66235
|
£3.34
|
£4.01
|
|
|
75/6 - CABLE CLEAT
BSD-F016T49630.A54
F016T49630
|
-
|
|
|
|
75/8 - POSITIONING LEVER
BSD-F016L66238.A12
F016L66238
|
£5.98
|
£7.18
|
|
|
75/9 - SPRING LEVER
BSD-F016T49845.A87
F016T49845
|
-
|
|
|
|
75/10 - PUSH-BUTTON
BSD-F016F05705.A90
F016F05705
|
£3.75
|
£4.50
|
|
|
75/11 - COMPRESSION SPRING
BSD-F016T49226.A80
F016T49226
|
-
|
|
|
|
75/14 - SELF-CUTTING SCREW 4x19 MM
BSD-F016T49429.A214
F016T49429
|
£1.75
|
£2.10
|
|
|
75/27 - CABLE CLIP
BSD-F016L90575.A61
F016L90575
|
£1.75
|
£2.10
|
|
|
80 - COLLECTOR BOX BOTTOM
BSD-F016L65674.A52
F016L65674
|
£40.80
|
£48.96
|
|
|
82 - GUARD FLAP
BSD-F016L66137.A13
F016L66137
|
£13.32
|
£15.99
|
|
|
83/84 - HANDLE
BSD-F016L66441.A118
F016L66441
|
£4.75
|
£5.70
|
|
|
85 - SPRING
BSD-F016L66165.A131
F016L66165
|
£2.82
|
£3.39
|
|
|
99 - SPRING
BSD-F016L59327.A110
F016L59327
|
£2.80
|
£3.36
|
|
|
100 - SPRING
BSD-F016L65790.A56
F016L65790
|
£1.95
|
£2.34
|
|
|
101 - LINKAGE PART
BSD-F016L67260.A50
F016L67260
|
-
|
|
|
|
106 - WIRE GUIDE
BSD-F016L65802.A44
F016L65802
|
£1.32
|
£1.58
|
|
|
107 - FILTER HOUSING
BSD-F016L65538.A15
F016L65538
|
£6.61
|
£7.93
|
|
|
108 - BEARING COVER
BSD-F016L67627.A24
F016L67627
|
£2.71
|
£3.25
|
|
|
110 - FILTER HOUSING
BSD-F016L65709.A38
F016L65709
|
£5.87
|
£7.04
|
|
|
452 - COMPANY LOGO ROTAK 370
BSD-F016L68312.A0
F016L68312
|
£2.80
|
£3.36
|
|
|
501 - PLAIN WASHER dia8.15
BSD-F016T48185.A85
F016T48185
|
£3.72
|
£4.47
|
|
|
504 - SELF-CUTTING SCREW 4x19 MM
BSD-F016T49429.A215
F016T49429
|
£1.75
|
£2.10
|
|
|
505 - SCREW
BSD-F016L65803.A10
F016L65803
|
-
|
|
|
|
506/1 - BOLT M6x50
BSD-F016L59277.A106
F016L59277
|
£3.80
|
£4.56
|
|
|
506/2 - WING NUT
BSD-F016L66136.A88
F016L66136
|
£4.26
|
£5.11
|
|
|
681 - STRAIN-RELIEF CLAMP
BSD-3601398000.A82
3601398000
|
£5.30
|
£6.36
|
|
|
801 - MOTOR
BSD-F016103595.A26
F016103595
|
£120.11
|
£144.13
|
|
|
801/1/20 - BEARING
BSD-F016L64594.A66
F016L64594
|
£3.75
|
£4.50
|
|
|
841 - HOUSING
BSD-F016103598.A1
F016103598
|
£27.31
|
£32.77
|
|
|
841/1 - COVER
BSD-F016104316.A16
F016104316
|
£8.49
|
£10.19
|
|
|
850 - WHEEL
BSD-F016103662.A9
F016103662
|
£7.78
|
£9.33
|
|
|
860 - WHEEL
BSD-F016103663.A15
F016103663
|
£8.49
|
£10.19
|
|
|
875/02 - POWER SUPPLY CORD EU
BSD-F016104086.A31
F016104086
|
£16.74
|
£20.09
|
|
|
875/03 - CONNECTING CABLE
BSD-F016103602.A1
F016103602
|
£14.72
|
£17.67
|
|
|
875/07 - ON-OFF SWITCH
BSD-F016F05717.A101
F016F05717
|
£14.91
|
£17.89
|
|
|
878 - BOTTOM HANDLE
BSD-F016L65166.A39
F016L65166
|
-
|
|
|
|
883 - COVER
BSD-F016103608.A26
F016103608
|
£27.23
|
£32.68
|
|
|
893 - THERMAL PROTECTOR
BSD-F016103604.A39
F016103604
|
£8.49
|
£10.19
|
|
