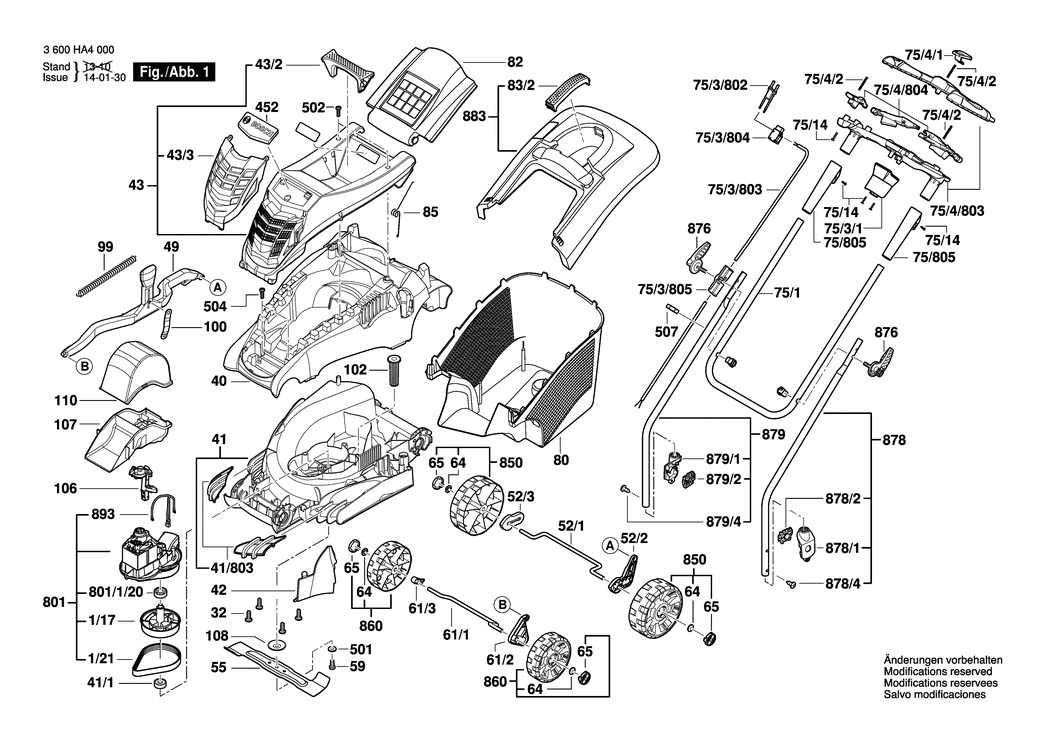

1/17 - DRIVE SHAFT
BSD-F016103758.A1
F016103758
|
£14.91
|
£17.89
|
|
|
1/21 - DRIVE BELT
BSD-F016L65351.A18
F016L65351
|
£13.41
|
£16.09
|
|
|
32 - SELF-CUTTING SCREW
BSD-F016L37433.A69
F016L37433
|
£1.75
|
£2.10
|
|
|
40 - MOWER DECK
BSD-F016L68101.A16
F016L68101
|
£27.31
|
£32.77
|
|
|
41 - HOUSING
BSD-F016Z68099.A5
F016Z68099
|
£31.64
|
£37.97
|
|
|
41/1 - BEARING 6002-2RS
BSD-F016L67442.A62
F016L67442
|
£4.22
|
£5.06
|
|
|
41/803 - COVER PANEL
BSD-F016104420.A2
F016104420
|
£19.45
|
£23.34
|
|
|
42 - COVER PANEL
BSD-F016L66039.A21
F016L66039
|
£3.34
|
£4.01
|
|
|
43 - MOTOR HOOD
BSD-F016L68149.A30
F016L68149
|
£27.31
|
£32.77
|
|
|
43/2 - CARRYING HANDLE
BSD-F016L68084.A76
F016L68084
|
£2.16
|
£2.59
|
|
|
43/3 - GRILLE
BSD-F016L68150.A6
F016L68150
|
£5.30
|
£6.36
|
|
|
49 - LINKAGE PART
BSD-F016L68111.A1
F016L68111
|
-
|
|
|
|
52/1 - AXLE
BSD-F016L68527.A5
F016L68527
|
£3.80
|
£4.56
|
|
|
52/2 - LEVER
BSD-F016L90582.A122
F016L90582
|
-
|
|
|
|
52/3 - SPACER
BSD-F016L90583.A70
F016L90583
|
£2.33
|
£2.80
|
|
|
55 - CUTTER BLADE
BSD-F016L65400.A5
F016L65400
|
£31.64
|
£37.97
|
|
|
59 - HEX SCREW M8x20 MM
BSD-F016T48547.A42
F016T48547
|
£2.61
|
£3.13
|
|
|
61/1 - AXLE
BSD-F016L68526.A14
F016L68526
|
£3.34
|
£4.01
|
|
|
61/2 - LEVER
BSD-F016L90581.A70
F016L90581
|
£7.78
|
£9.33
|
|
|
61/3 - SPACER
BSD-F016L90585.A122
F016L90585
|
£1.75
|
£2.10
|
|
|
64 - RATCHET CAP
BSD-F016L68095.A2
F016L68095
|
£1.75
|
£2.10
|
|
|
65 - COVER
BSD-F016L68116.A73
F016L68116
|
£1.75
|
£2.10
|
|
|
75/1 - HANDLE
BSD-F016L90608.A44
F016L90608
|
£16.41
|
£19.69
|
|
|
75/3/1 - SWITCH HOUSING
BSD-F016L67497.A6
F016L67497
|
£5.30
|
£6.36
|
|
|
75/3/802 - POWER SUPPLY CORD CH
BSD-F016104216.A4
F016104216
|
£10.10
|
£12.12
|
|
|
75/3/803 - CONNECTING CABLE
BSD-F016104164.A55
F016104164
|
£11.78
|
£14.13
|
|
|
75/3/804 - SWITCH KIT
BSD-F016104162.A20
F016104162
|
£13.12
|
£15.75
|
|
|
75/3/805 - CABLE GUIDE
BSD-F016104213.A51
F016104213
|
£8.67
|
£10.41
|
|
|
75/4/1 - PUSH-BUTTON
BSD-F016L67150.A36
F016L67150
|
£2.08
|
£2.50
|
|
|
75/4/2 - BUTTON SPRING
BSD-F016L67151.A105
F016L67151
|
£1.75
|
£2.10
|
|
|
75/4/803 - HOUSING SET
BSD-F016104159.A22
F016104159
|
£21.52
|
£25.83
|
|
|
75/4/804 - SWITCH SEGMENT
BSD-F016104160.A111
F016104160
|
£10.82
|
£12.99
|
|
|
75/14 - SELF-CUTTING SCREW 4x19 MM
BSD-F016T49429.A652
F016T49429
|
£1.75
|
£2.10
|
|
|
75/805 - SLEEVE
BSD-F016104161.A22
F016104161
|
£5.58
|
£6.70
|
|
|
80 - COLLECTOR BOX BOTTOM
BSD-F016L65674.A38
F016L65674
|
£40.80
|
£48.96
|
|
|
82 - GUARD FLAP
BSD-F016L66137.A58
F016L66137
|
£13.32
|
£15.99
|
|
|
83/2 - HANDLE
BSD-F016L66441.A22
F016L66441
|
£4.75
|
£5.70
|
|
|
85 - SPRING
BSD-F016L66165.A153
F016L66165
|
£2.82
|
£3.39
|
|
|
99 - SPRING
BSD-F016L59327.A72
F016L59327
|
£2.80
|
£3.36
|
|
|
100 - LEAF SPRING
BSD-F016L68117.A7
F016L68117
|
£1.75
|
£2.10
|
|
|
102 - HOLDING PLUG
BSD-F016L68536.A14
F016L68536
|
£21.52
|
£25.83
|
|
|
106 - WIRE GUIDE
BSD-F016L65802.A31
F016L65802
|
£1.32
|
£1.58
|
|
|
107 - BAFFLE
BSD-F016L68449.A0
F016L68449
|
-
|
|
|
|
108 - BEARING COVER
BSD-F016L67627.A82
F016L67627
|
£2.71
|
£3.25
|
|
|
110 - BAFFLE
BSD-F016L68448.A7
F016L68448
|
£3.34
|
£4.01
|
|
|
452 - COMPANY LOGO Rotak 37
BSD-F016L68175.A0
F016L68175
|
£3.72
|
£4.47
|
|
|
501 - PLAIN WASHER dia8.15 MM
BSD-F016T40590.A8
F016T40590
|
£1.75
|
£2.10
|
|
|
502 - TORX HEAD SCREW
BSD-F016L68124.A5
F016L68124
|
£1.75
|
£2.10
|
|
|
504 - SELF-CUTTING SCREW 4x19 MM
BSD-F016T49429.A651
F016T49429
|
£1.75
|
£2.10
|
|
|
507 - CABLE CLIP
BSD-F016L66895.A51
F016L66895
|
£1.75
|
£2.10
|
|
|
801 - MOTOR
BSD-F016103595.A21
F016103595
|
£120.11
|
£144.13
|
|
|
801/1/20 - BEARING
BSD-F016L64594.A39
F016L64594
|
£3.75
|
£4.50
|
|
|
850 - WHEEL
BSD-F016104422.A2
F016104422
|
£13.12
|
£15.75
|
|
|
860 - WHEEL
BSD-F016104421.A17
F016104421
|
£10.82
|
£12.99
|
|
|
876 - CLAMPING LEVER
BSD-F016L67530.A29
F016L67530
|
£11.30
|
£13.56
|
|
|
878 - BOTTOM HANDLE
BSD-F016104581.A13
F016104581
|
£13.41
|
£16.09
|
|
|
878/1 - MOUNTING BRACKET
BSD-F016L68102.A4
F016L68102
|
£1.75
|
£2.10
|
|
|
878/2 - PUSH-BUTTON
BSD-F016L68103.A33
F016L68103
|
£1.75
|
£2.10
|
|
|
878/4 - SCREW M5x8 Csk Hd.
BSD-F016L36542.A74
F016L36542
|
£2.61
|
£3.13
|
|
|
879 - BOTTOM HANDLE
BSD-F016104582.A4
F016104582
|
£10.82
|
£12.99
|
|
|
879/1 - MOUNTING BRACKET
BSD-F016L68102.A5
F016L68102
|
£1.75
|
£2.10
|
|
|
879/2 - PUSH-BUTTON
BSD-F016L68103.A32
F016L68103
|
£1.75
|
£2.10
|
|
|
879/4 - SCREW M5x8 Csk Hd.
BSD-F016L36542.A75
F016L36542
|
£2.61
|
£3.13
|
|
|
883 - COLLECTOR BOX TOP
BSD-F016104465.A3
F016104465
|
£16.74
|
£20.09
|
|
|
893 - THERMAL PROTECTOR
BSD-F016103604.A19
F016103604
|
£8.49
|
£10.19
|
|
