Bosch ART 23 / 0600821042 / GB 230 Volt Spare Parts

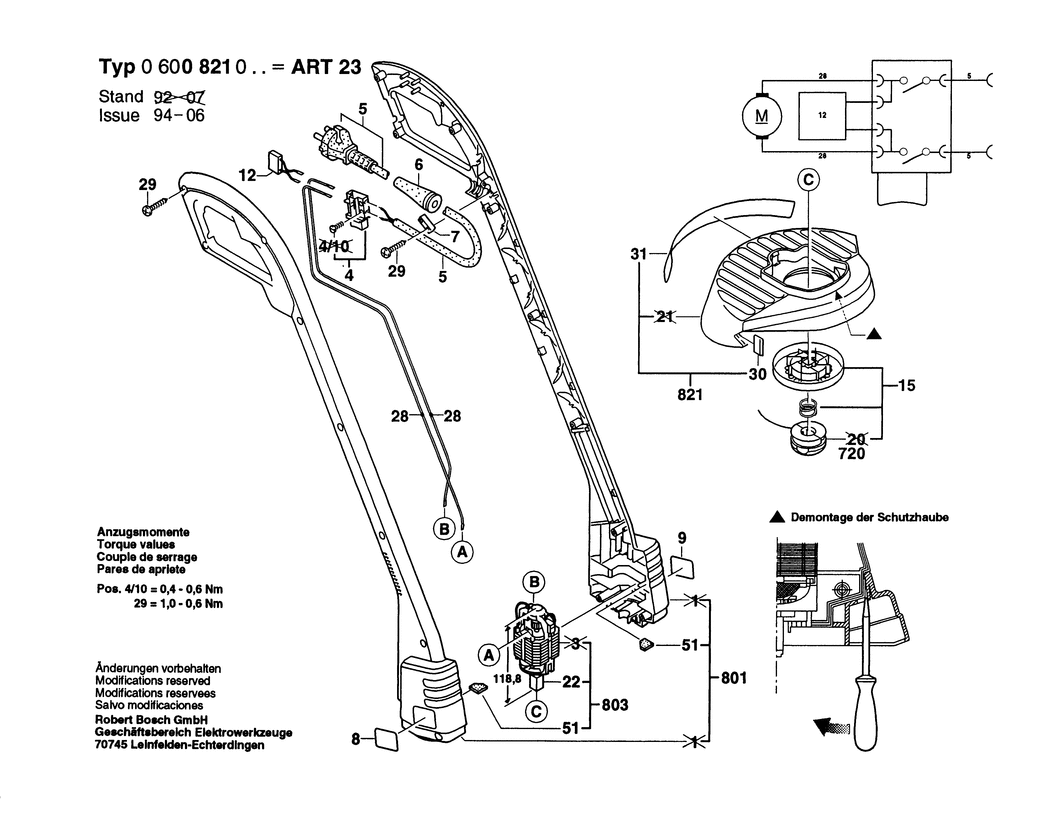

An exploded drawing and listing for the Bosch ART 23 / 0600821042 / GB 230 Volt

	Ex VAT	Inc VAT
4 - SWITCH BSD-1607200116.A30 1607200116	-
5 - POWER SUPPLY CORD BSD-1604460165.A9 1604460165	-
6 - GROMMET dia7.2-dia9.5x81 MM BSD-1600703026.A23 1600703026	£2.16	£2.59
6 - GROMMET BSD-2609005766.A8 2609005766	£2.80	£3.36
7 - CABLE CLIP BSD-2601035001.A187 2601035001	£1.75	£2.10
8 - NAMEPLATE BSD-1601110903.A0 1601110903	-
12 - SUPPRESSION FILTER BSD-1607328028.A532 1607328028	£5.30	£6.36
15 - CUTTING LINE CARTRIDGE BSD-1606610138.A18 1606610138	-
22 - SUPPORT CLAMP BSD-1608040113.A25 1608040113	£3.34	£4.01
28 - CONNECTING CABLE L=825 MM BSD-1604448012.A10 1604448012	-
29 - OVAL-HEAD SCREW 4x18 MM.TORX T20 BSD-2914201506.A118 2914201506	£1.75	£2.10
30 - CUTTER PLATE BSD-1608635042.A29 1608635042	-
51 - RUBBER-INTER CALATION BSD-1601006010.A0 1601006010	-
52 - RUBBER COLLAR BSD-1601015029.A8 1601015029	-
720 - CUTTING LINE CARTRIDGE BSD-F016102388.A22 F016102388	-
801 - MOTOR HOUSING BSD-1607000292.A8 1607000292	-
803 - ALTERNATING-CURRENT MOTOR BSD-1607220045.A45 1607220045	£24.45	£29.34
821 - PROTECTIVE COVER BSD-1607000949.A4 1607000949	-
