Bosch ART 25 F / 0600822468 / GB 230 Volt Spare Parts

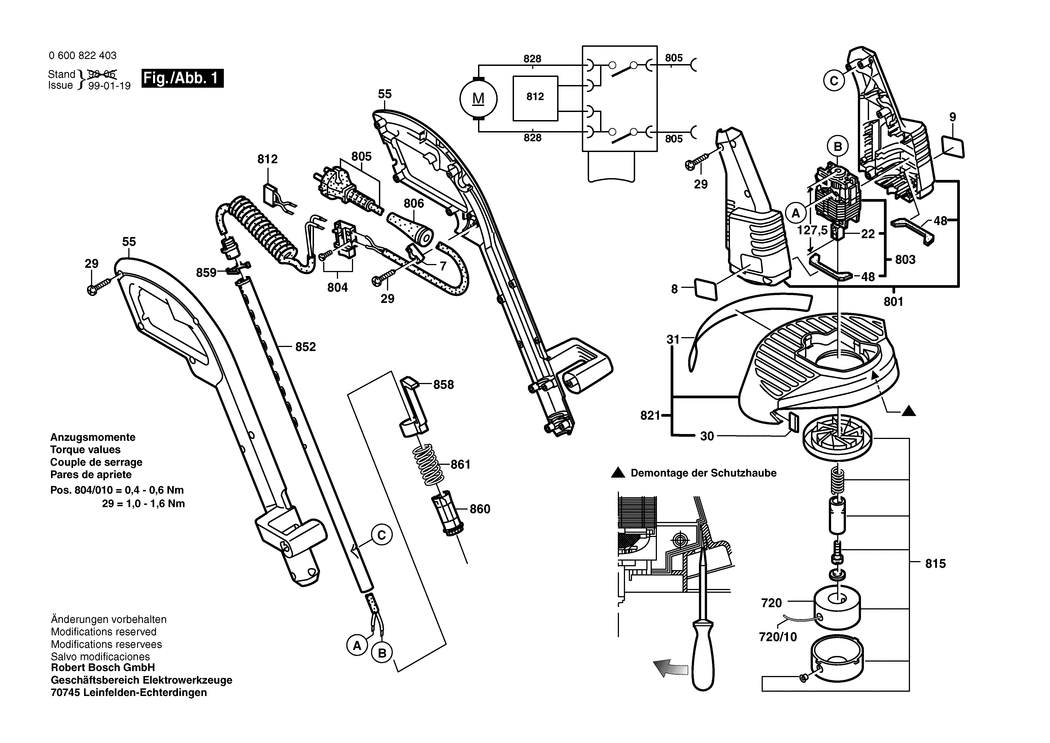

An exploded drawing and listing for the Bosch ART 25 F / 0600822468 / GB 230 Volt

	Ex VAT	Inc VAT
7 - CABLE CLIP BSD-2601035001.A171 2601035001	£1.75	£2.10
8 - NAMEPLATE BSD-1601118975.A0 1601118975	-
9 - MANUFACTURER'S NAMEPLATE BSD-1601118035.A1 1601118035	-
22 - SUPPORT CLAMP BSD-1608040116.A9 1608040116	-
29 - OVAL-HEAD SCREW 4x18 MM.TORX T20 BSD-2914201506.A103 2914201506	£1.75	£2.10
30 - CUTTER PLATE BSD-1608635042.A9 1608635042	-
31 - REFERENCE PLATE BSD-1601118435.A6 1601118435	£3.34	£4.01
48 - RUBBER PLATE BSD-1601016012.A15 1601016012	-
55 - HANDLE COVER BSD-1605133040.A12 1605133040	-
720 - CUTTING LINE CARTRIDGE BSD-F016800002.A0 F016800002	-
720/10 - PLASTIC CABLE dia1.4 MM. L=24 M BSD-1604700004.A3 1604700004	-
801 - MOTOR HOUSING BSD-1607000849.A3 1607000849	-
803 - ALTERNATING-CURRENT MOTOR BSD-1607000850.A4 1607000850	-
804 - SWITCH BSD-1607200116.A35 1607200116	-
805 - POWER SUPPLY CORD GB 240V 10.2m 2 x 1.0mm H05 VV-F BSD-1604460184.A0 1604460184	£33.73	£40.48
806 - GROMMET dia7.2-dia9.5x81 MM BSD-1600703026.A8 1600703026	£2.16	£2.59
812 - SUPPRESSION FILTER BSD-1607328028.A573 1607328028	£5.30	£6.36
815 - CUTTING LINE CARTRIDGE BSD-F016102658.A34 F016102658	-
821 - PROTECTIVE COVER BSD-1607000954.A10 1607000954	-
852 - GUIDE TUBE BSD-1607000869.A2 1607000869	-
858 - GUIDE SLEEVE BSD-1600499008.A10 1600499008	-
859 - STOP PLATE BSD-1602388032.A8 1602388032	-
860 - SPRING SLEEVE BSD-1600499009.A0 1600499009	-
861 - COMPRESSION SPRING BSD-1604615013.A4 1604615013	-

Attribute Name	Value
Brand	Bosch
