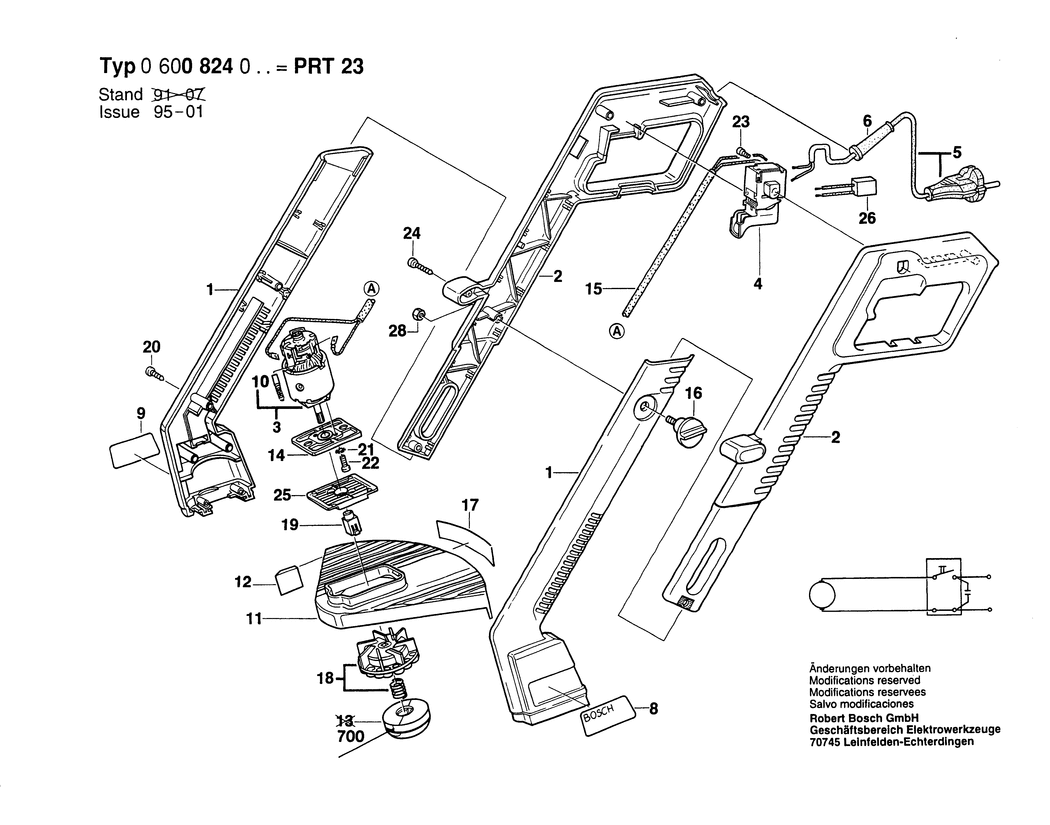

1 - HOUSING HALF
BSD-1609202551.A9
1609202551
|
-
|
|
|
|
2 - HOUSING HALF
BSD-1609202552.A1
1609202552
|
-
|
|
|
|
3 - ALTERNATING-CURRENT MOTOR
BSD-1609202409.A0
1609202409
|
-
|
|
|
|
4 - ON-OFF SWITCH
BSD-2607200261.A38
2607200261
|
-
|
|
|
|
5 - POWER SUPPLY CORD GB 0.40m 2 x 1.0mm H05 VV-F
BSD-2604420030.A10
2604420030
|
-
|
|
|
|
6 - GROMMET
BSD-1609201893.A14
1609201893
|
-
|
|
|
|
8 - NAMEPLATE
BSD-1601110961.A1
1601110961
|
-
|
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601110957.A4
1601110957
|
-
|
|
|
|
10 - CARBON-BRUSH SET
BSD-1609202316.A12
1609202316
|
-
|
|
|
|
11 - PROTECTIVE SHIELD
BSD-1609201894.A2
1609201894
|
-
|
|
|
|
12 - CUTTER PLATE 24x7x0.8 MM
BSD-1609202358.A11
1609202358
|
-
|
|
|
|
14 - MOTOR PLATE
BSD-1609202317.A1
1609202317
|
-
|
|
|
|
15 - CONNECTING CABLE
BSD-1609202318.A13
1609202318
|
-
|
|
|
|
16 - WING SCREW M 4x12 MM
BSD-1609201897.A16
1609201897
|
-
|
|
|
|
18 - FAN
BSD-1609201898.A2
1609201898
|
-
|
|
|
|
19 - SUPPORT CLAMP
BSD-1609202324.A8
1609202324
|
£2.16
|
£2.59
|
|
|
20 - TAPPING SCREW 3.5x20 MM
BSD-1609202016.A16
1609202016
|
-
|
|
|
|
21 - TOOTHED LOCK WASHER DIN 6797-A4.3-FST
BSD-2916030006.A54
2916030006
|
£1.75
|
£2.10
|
|
|
22 - OVAL-HEAD SCREW DIN 7985-M4X8-4.8
BSD-2910641118.A14
2910641118
|
-
|
|
|
|
23 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A338
2603410001
|
£1.75
|
£2.10
|
|
|
24 - TAPPING SCREW 3.5x35 MM
BSD-1609202017.A4
1609202017
|
-
|
|
|
|
25 - INSULATING PLATE
BSD-1609202319.A4
1609202319
|
-
|
|
|
|
26 - SUPPRESSION FILTER
BSD-1607328034.A451
1607328034
|
£4.26
|
£5.11
|
|
|
27 - REFERENCE PLATE
BSD-1601110653.A6
1601110653
|
-
|
|
|
|
650 - CONNECTOR
BSD-2604483000.A14
2604483000
|
-
|
|
|
|
700 - CUTTING LINE CARTRIDGE
BSD-F016102388.A10
F016102388
|
-
|
|
|
|
828 - HEX NUT DIN 934 -M4-m-8
BSD-2915011005.A625
2915011005
|
£1.75
|
£2.10
|
|
