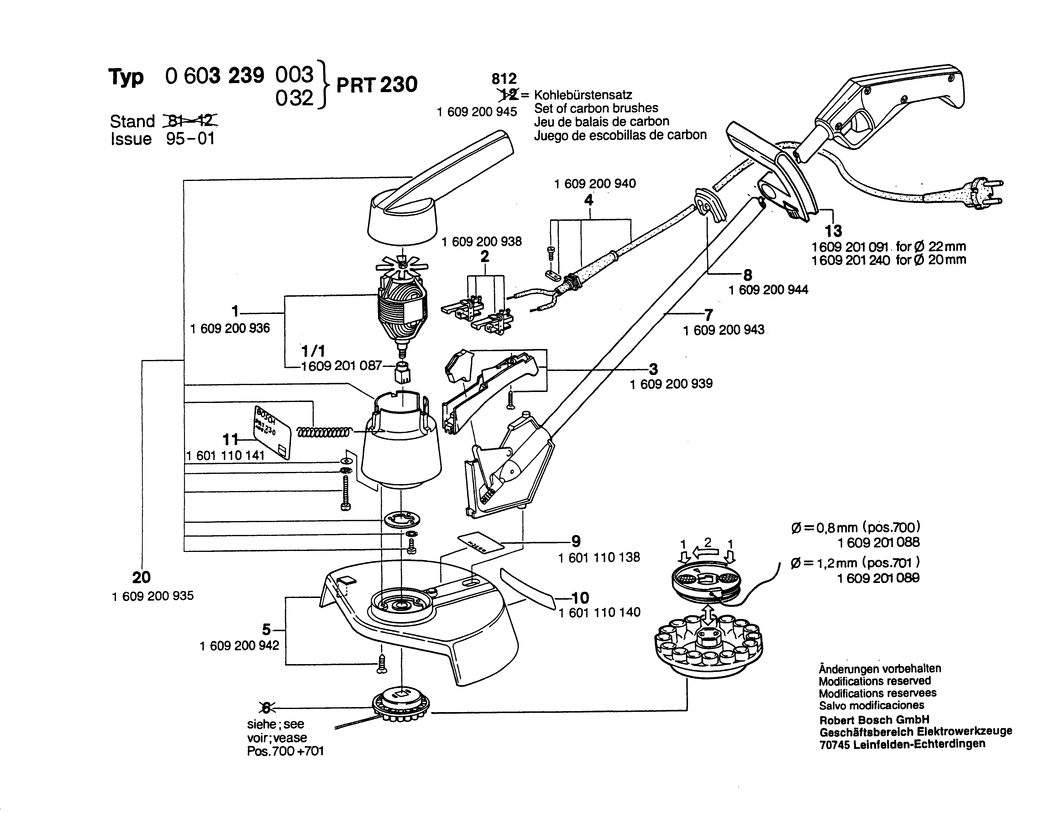

An exploded drawing and listing for the Bosch PRT 230 / 0603239032 / CH 220 Volt
Ex VAT Inc VAT
1 - ALTERNATING-CURRENT MOTOR BSD-1609200936.A0 1609200936 -
1/1 - SUPPORT CLAMP BSD-1609201087.A0 1609201087 -
2 - ON-OFF SWITCH BSD-1609200938.A1 1609200938 -
3 - SWITCH COVER BSD-1609200939.A0 1609200939 -
4 - POWER SUPPLY CORD BSD-1609200940.A1 1609200940 -
5 - PROTECTIVE COVER BSD-1609200942.A0 1609200942 -
7 - HANDLE BSD-1609200943.A1 1609200943 -
8 - PIPE CLAMP BSD-1609200944.A0 1609200944 -
9 - NAMEPLATE BSD-1601110138.A1 1601110138 -
10 - REFERENCE PLATE BSD-1601110140.A0 1601110140 -
11 - STICKER BSD-1601110141.A1 1601110141 -
13 - AUXILIARY HANDLE dia 20 MM BSD-1609201240.A1 1609201240 -
13 - AUXILIARY HANDLE dia 22 MM BSD-1609201091.A0 1609201091 -
20 - MOTOR HOUSING BSD-1609200935.A0 1609200935 -
700 - CUTTING LINE CARTRIDGE dia 1.4 MM BSD-1609202300.A0 1609202300 -
812 - CARBON-BRUSH SET BSD-1609200945.A1 1609200945 -
