Bosch GLL 3-80 C / 3601K63R00 / EU Spare Parts

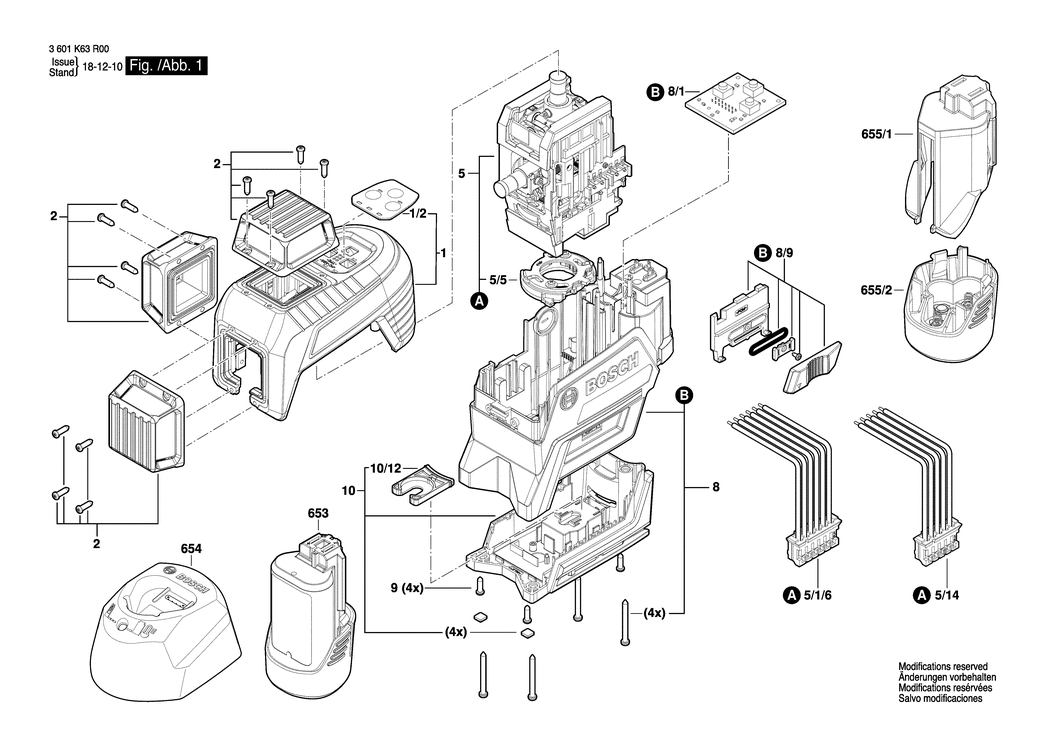

An exploded drawing and listing for the Bosch GLL 3-80 C / 3601K63R00 / EU

	Ex VAT	Inc VAT
1 - ASSEMBLY BSD-1600A00NN0.A0 1600A00NN0	£16.41	£19.69
1/2 - RUBBER PAD BSD-1600A00NL7.A0 1600A00NL7	£6.52	£7.83
2 - ASSEMBLY BSD-1600A00NN4.A0 1600A00NN4	£40.80	£48.96
5 - ASSEMBLY STAND BSD-1600A011PJ.A0 1600A011PJ	£251.67	£302.00
5/1/6 - CONNECTING WIRE BSD-1600A00RM1.A1 1600A00RM1	-
5/5 - ASSEMBLY BSD-1618C0119V.A1 1618C0119V	£2.33	£2.80
5/14 - CONNECTING WIRE BSD-1600A00RM4.A1 1600A00RM4	-
8 - ASSEMBLY BSD-1600A00NP8.A0 1600A00NP8	£93.88	£112.65
8/1 - PRINTED-BOARD ASSEMBLY BSD-1600A00NK6.A0 1600A00NK6	£11.30	£13.56
8/9 - LINKAGE BSD-1600A00NL4.A0 1600A00NL4	£2.61	£3.13
9 - TAPPING SCREW BSD-1618C01473.A0 1618C01473	£1.75	£2.10
10 - ASSEMBLY BSD-1600A00RK8.A0 1600A00RK8	£23.86	£28.63
10/12 - HOUSING BSD-1600A00NN2.A0 1600A00NN2	£1.75	£2.10
653 - BATTERY PACK GBA 12V 2.0Ah Li SCM BSD-1607A350C5.A23 1607A350C5	-
654 - FAST CHARGER EU GAL 1230 CV 230/12V BSD-2607226101.A48 2607226101	£63.50	£76.20
654 - FAST CHARGER GB GAL 1230 CV 230/12V BSD-2607226105.A16 2607226105	-
655/1 - HOLDER BSD-2609199766.A1 2609199766	£7.36	£8.83
655/2 - BATTERY COVER BSD-2609199769.A8 2609199769	£14.91	£17.89

Attribute Name	Value
Brand	Bosch
