Bosch GOL 20 D / 3601K68400 / EU Spare Parts

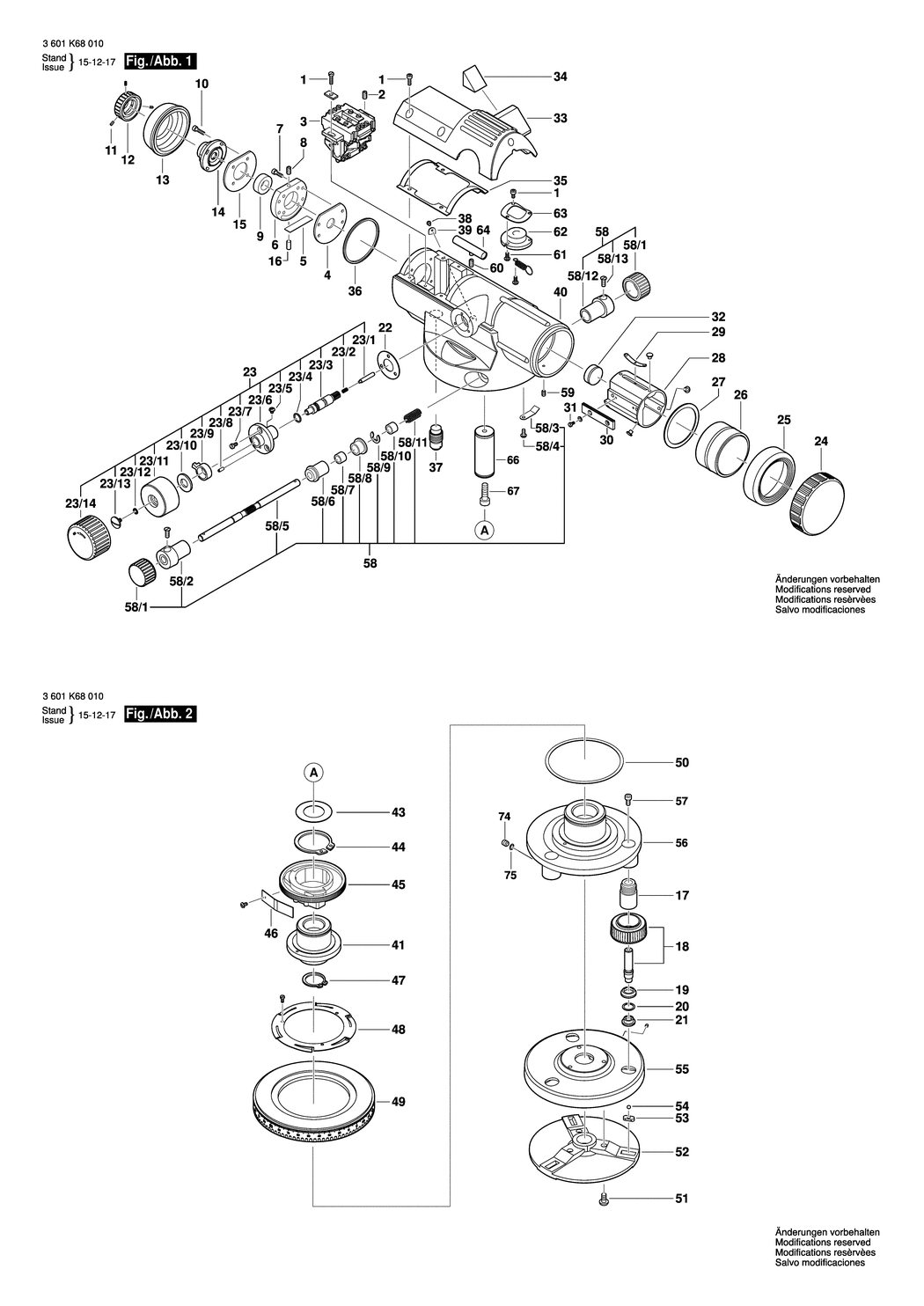

An exploded drawing and listing for the Bosch GOL 20 D / 3601K68400 / EU

	Ex VAT	Inc VAT
1 - SCREW BSD-2610A02324.A3 2610A02324	£1.75	£2.10
2 - PIVOT PIN BSD-2610A05748.A1 2610A05748	£1.75	£2.10
3 - COMPENSATOR BSD-2610A03364.A4 2610A03364	£59.53	£71.44
4 - MAT SEAL BSD-2610A05661.A2 2610A05661	£1.75	£2.10
5 - CONTACT STRAP BSD-2610A05662.A2 2610A05662	£1.75	£2.10
6 - MOUNTING BRACKET BSD-2610A05723.A1 2610A05723	£7.36	£8.83
7 - SCREW BSD-2610A05712.A1 2610A05712	£1.75	£2.10
8 - SCREW BSD-2610A05614.A1 2610A05614	£1.75	£2.10
9 - CROSS HAIR INSERT BSD-1619PA5003.A2 1619PA5003	£27.23	£32.68
10 - SCREW BSD-2610A05726.A1 2610A05726	£1.75	£2.10
11 - SET SCREW BSD-2610A05724.A3 2610A05724	£1.75	£2.10
12 - PROTECTIVE COVER BSD-2610A11682.A2 2610A11682	£5.30	£6.36
13 - COVER BSD-2610A11683.A1 2610A11683	£6.52	£7.83
14 - EYEPIECE BSD-2610A14365.A1 2610A14365	£63.50	£76.20
15 - MAT SEAL BSD-2610A05731.A3 2610A05731	£1.75	£2.10
16 - PISTON BSD-2610A05622.A2 2610A05622	£1.75	£2.10
17 - SCREW BUSHING BSD-2610A05709.A2 2610A05709	-
18 - CONTROL KNOB BSD-2610A05628.A2 2610A05628	£5.30	£6.36
19 - TENSION CONE BSD-2610A05629.A8 2610A05629	£1.75	£2.10
20 - WASHER BSD-2610A05630.A2 2610A05630	£1.75	£2.10
21 - NUT BSD-2610A05631.A8 2610A05631	£1.75	£2.10
22 - MAT SEAL BSD-2610A03399.A1 2610A03399	£1.75	£2.10
23 - FOCUSING DEVICE BSD-2610A03385.A2 2610A03385	£21.52	£25.83
23/1 - PIN BSD-2610A03400.A2 2610A03400	£1.75	£2.10
23/2 - CONTACT STRAP BSD-2610A03338.A2 2610A03338	£1.75	£2.10
23/3 - SHAFT BSD-2610A03397.A1 2610A03397	£5.30	£6.36
23/4 - O-RING BSD-2610A03401.A1 2610A03401	£1.75	£2.10
23/5 - SCREW BSD-2610A02507.A2 2610A02507	£1.75	£2.10
23/6 - GEAR HOUSING BSD-2610A03398.A2 2610A03398	£16.41	£19.69
23/7 - SCREW BSD-2610A02504.A1 2610A02504	£1.75	£2.10
23/8 - SPRING PIN BSD-2610A02550.A1 2610A02550	£1.75	£2.10
23/9 - STOP RING BSD-2610A03402.A2 2610A03402	£1.75	£2.10
23/10 - WASHER BSD-2610A02546.A1 2610A02546	£1.75	£2.10
23/11 - ADJUSTMENT KNOB BSD-2610A03403.A1 2610A03403	£1.75	£2.10
23/12 - WASHER BSD-2610A02549.A2 2610A02549	£1.75	£2.10
23/13 - SCREW BSD-2610A03405.A2 2610A03405	£2.16	£2.59
23/14 - CAP BSD-2610A03404.A1 2610A03404	£7.36	£8.83
24 - CAP BSD-2610A03394.A3 2610A03394	£3.72	£4.47
25 - COVER RING BSD-2610A11684.A3 2610A11684	£5.30	£6.36
26 - LENS BSD-2610A03366.A0 2610A03366	£63.50	£76.20
27 - SPACER BSD-2610A03392.A1 2610A03392	£4.75	£5.70
28 - PUSHER BSD-2610A03377.A2 2610A03377	£18.96	£22.75
29 - CONTACT STRAP BSD-2610A05649.A1 2610A05649	£1.75	£2.10
30 - TOOTHED RACK BSD-2610A05652.A3 2610A05652	£2.16	£2.59
31 - SCREW BSD-2610A03380.A2 2610A03380	£1.75	£2.10
32 - LENS BSD-2610A05653.A1 2610A05653	£21.52	£25.83
33 - HOUSING COVER BSD-2610A11685.A3 2610A11685	£11.30	£13.56
34 - READER BSD-2610A03379.A2 2610A03379	£2.80	£3.36
35 - O-RING BSD-2610A03367.A2 2610A03367	£2.61	£3.13
36 - MAT SEAL BSD-2610A11904.A4 2610A11904	£1.75	£2.10
37 - TRANSPORT LOCK BSD-2610A05751.A7 2610A05751	£2.80	£3.36
38 - SCREW BSD-2610A03368.A2 2610A03368	£1.75	£2.10
39 - INDICATOR BSD-2610A03339.A3 2610A03339	£1.75	£2.10
40 - TELESCOPE GOL 20 D BSD-1619PA5053.A0 1619PA5053	£59.53	£71.44
41 - SPINDLE BSD-2610A05664.A2 2610A05664	£23.86	£28.63
42 - SCREW BSD-2610A03384.A0 2610A03384	£1.75	£2.10
43 - WASHER BSD-2610A05665.A1 2610A05665	£1.75	£2.10
44 - RETAINING RING BSD-2610A05666.A3 2610A05666	£1.75	£2.10
45 - GEAR BSD-2610A05667.A1 2610A05667	£6.52	£7.83
46 - CONTACT STRAP BSD-2610A05669.A3 2610A05669	£2.61	£3.13
47 - RETAINING RING BSD-2610A05671.A1 2610A05671	£1.75	£2.10
48 - RETAINING RING BSD-2610A05744.A8 2610A05744	£1.75	£2.10
49 - GRADUATED DISC BSD-2610A05674.A0 2610A05674	£8.67	£10.41
50 - WASHER BSD-2610A05675.A3 2610A05675	£5.30	£6.36
51 - SCREW BSD-2610A05694.A4 2610A05694	£7.36	£8.83
52 - BASE PLATE BSD-2610A05691.A0 2610A05691	£10.10	£12.12
53 - BALL SEAT BSD-2610A05693.A6 2610A05693	£1.75	£2.10
54 - BALL BSD-2610A05692.A4 2610A05692	£1.75	£2.10
55 - COVER PLATE BSD-2610A11687.A0 2610A11687	£12.04	£14.45
56 - BASE PLATE BSD-1619PA5054.A0 1619PA5054	£21.52	£25.83
57 - SCREW BSD-2610A05734.A2 2610A05734	£1.75	£2.10
58 - ADJUSTING SCREW BSD-2610A05702.A9 2610A05702	£21.68	£26.01
58/1 - CAP BSD-2610A05677.A1 2610A05677	£1.75	£2.10
58/2 - ADJUSTMENT KNOB BSD-2610A05679.A3 2610A05679	£2.61	£3.13
58/3 - CONTACT STRAP BSD-2610A03389.A1 2610A03389	£1.75	£2.10
58/4 - SCREW BSD-2610A03369.A1 2610A03369	£1.75	£2.10
58/5 - SCREW BSD-2610A05686.A0 2610A05686	£7.36	£8.83
58/6 - BUSHING BSD-2610A05685.A3 2610A05685	£6.52	£7.83
58/7 - SPACER BSD-2610A05684.A0 2610A05684	£6.52	£7.83
58/8 - CONTACT RETAINER BSD-2610A05683.A3 2610A05683	£7.36	£8.83
58/9 - WASHER BSD-2610A05682.A0 2610A05682	£1.75	£2.10
58/10 - SPACER BSD-2610A05681.A3 2610A05681	£1.75	£2.10
58/11 - CONTACT STRAP BSD-2610A05680.A0 2610A05680	£1.75	£2.10
58/12 - ADJUSTMENT KNOB BSD-2610A05689.A3 2610A05689	£2.61	£3.13
58/13 - SCREW BSD-2610A03381.A2 2610A03381	£1.75	£2.10
59 - SCREW BSD-2610A03382.A1 2610A03382	£1.75	£2.10
60 - SET SCREW BSD-2610A03370.A2 2610A03370	£1.75	£2.10
61 - SCREW BSD-2610A05758.A9 2610A05758	£1.75	£2.10
62 - BUBBLE LEVEL BSD-2610A05718.A6 2610A05718	£11.30	£13.56
63 - CONTACT STRAP BSD-2610A05697.A6 2610A05697	£1.75	£2.10
64 - VIEWFINDER TUBE BSD-2610A03383.A4 2610A03383	£3.72	£4.47
66 - HEX SOCKET HEAD CAP SCREW BSD-1619PA5043.A2 1619PA5043	£1.75	£2.10
67 - HEX HEAD TAPPING SCREW BSD-1619PA5044.A2 1619PA5044	£1.75	£2.10
74 - SCREW BSD-1619PA5234.A2 1619PA5234	£1.75	£2.10
75 - WASHER BSD-1619PA5235.A2 1619PA5235	£1.75	£2.10
