Bosch PAL26D / F034K688NE / EU Spare Parts

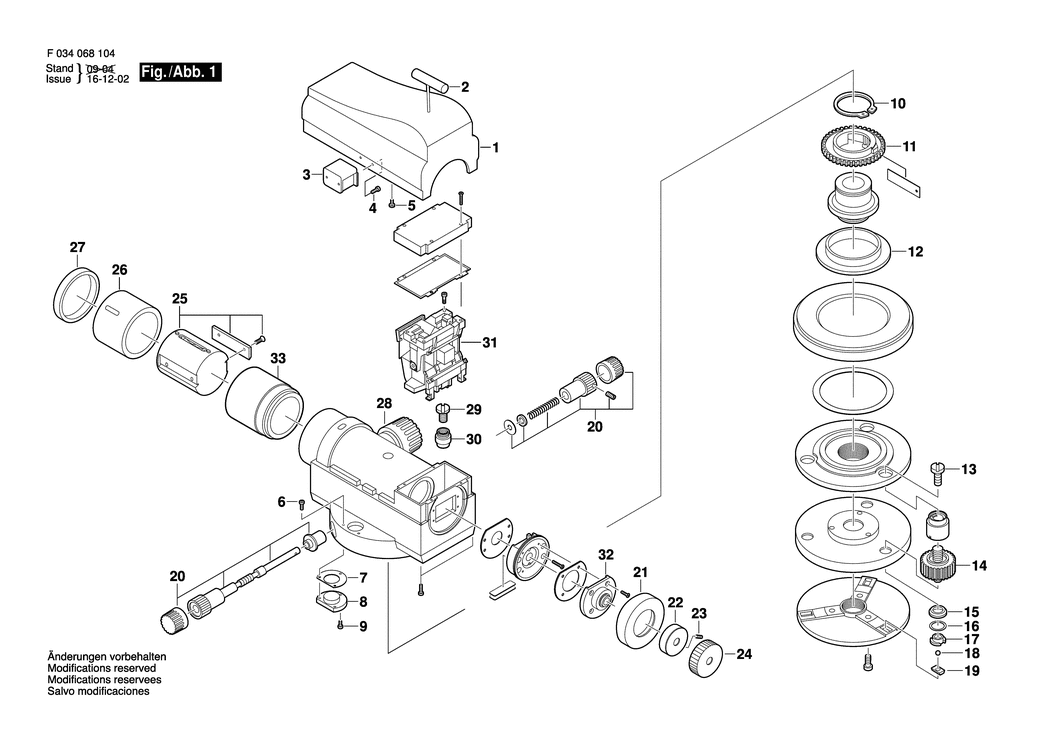

An exploded drawing and listing for the Bosch PAL26D / F034K688NE / EU

	Ex VAT	Inc VAT
1 - HOUSING COVER BSD-2610A11950.A0 2610A11950	£12.04	£14.45
2 - VIEWFINDER TUBE BSD-2610A05655.A1 2610A05655	£3.72	£4.47
3 - READER BSD-2610A05657.A1 2610A05657	£12.04	£14.45
4 - SCREW BSD-2610A05656.A3 2610A05656	£1.75	£2.10
5 - SCREW BSD-2610A05696.A4 2610A05696	£1.75	£2.10
6 - SCREW BSD-2610A05698.A4 2610A05698	£1.75	£2.10
7 - CONTACT STRAP BSD-2610A05697.A0 2610A05697	£1.75	£2.10
8 - BUBBLE LEVEL BSD-2610A05718.A5 2610A05718	£11.30	£13.56
9 - SCREW BSD-2610A05758.A3 2610A05758	£1.75	£2.10
10 - RETAINING RING BSD-2610A05671.A6 2610A05671	£1.75	£2.10
11 - GEAR BSD-2610A05667.A9 2610A05667	£6.52	£7.83
12 - RETAINING RING BSD-2610A05744.A3 2610A05744	£1.75	£2.10
13 - SCREW BSD-2610A05734.A8 2610A05734	£1.75	£2.10
14 - CONTROL KNOB BSD-2610A05628.A9 2610A05628	£5.30	£6.36
15 - TENSION CONE BSD-2610A05629.A1 2610A05629	£1.75	£2.10
16 - WASHER BSD-2610A05630.A9 2610A05630	£1.75	£2.10
17 - NUT BSD-2610A05631.A1 2610A05631	£1.75	£2.10
18 - BALL BSD-2610A05692.A9 2610A05692	£1.75	£2.10
19 - BALL SEAT BSD-2610A05693.A1 2610A05693	£1.75	£2.10
20 - ADJUSTING SCREW BSD-2610A05702.A5 2610A05702	£21.68	£26.01
21 - COVER RING BSD-2610A05749.A2 2610A05749	£2.80	£3.36
22 - COVER BSD-2610A05725.A0 2610A05725	-
23 - SET SCREW BSD-2610A05724.A10 2610A05724	£1.75	£2.10
24 - CAP BSD-2610A05750.A3 2610A05750	£3.80	£4.56
25 - PUSHER BSD-2610A05651.A4 2610A05651	£23.86	£28.63
26 - SUN SHADE BSD-2610A05757.A2 2610A05757	£5.30	£6.36
27 - COVER BSD-2610A05715.A0 2610A05715	-
28 - FOCUSING DEVICE BSD-2610A05701.A0 2610A05701	£21.52	£25.83
29 - LOCK SCREW BSD-2610A05752.A3 2610A05752	£2.16	£2.59
30 - TRANSPORT LOCK BSD-2610A05751.A2 2610A05751	£2.80	£3.36
31 - COMPENSATOR BSD-2610A05722.A0 2610A05722	£63.50	£76.20
32 - EYEPIECE BSD-2610A05772.A0 2610A05772	£48.38	£58.06
33 - ASSEMBLY BSD-2610A05735.A2 2610A05735	-

Attribute Name	Value
Brand	Bosch
