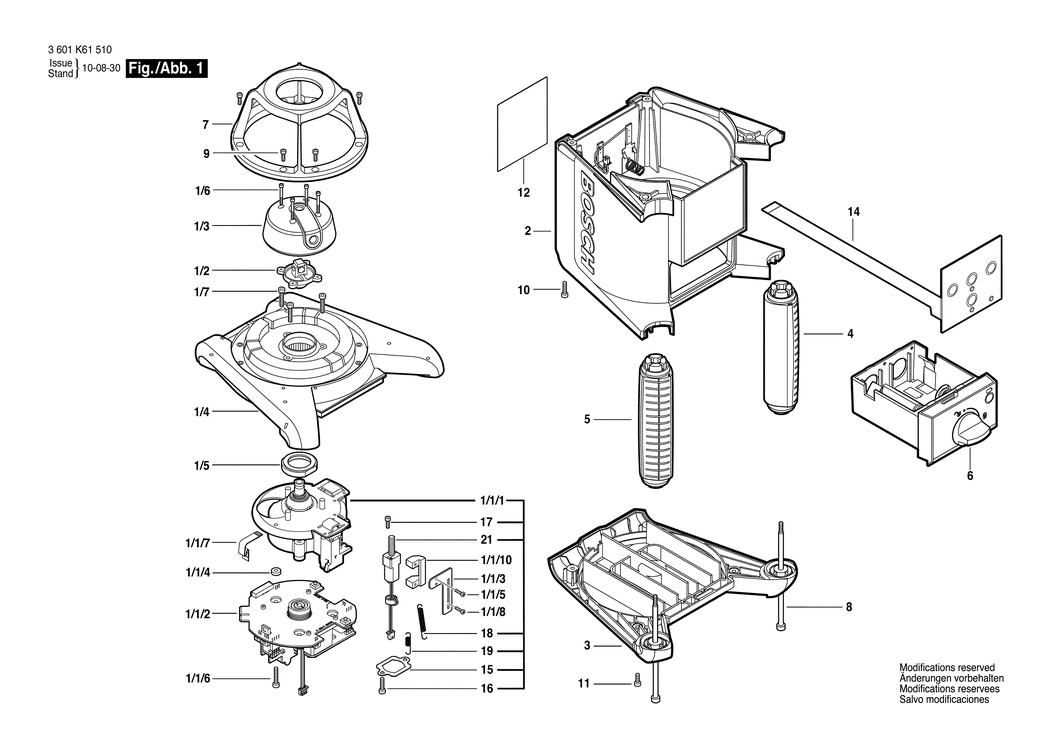

An exploded drawing and listing for the Bosch GRL 250 HV / 3601K61600 / EU
Ex VAT Inc VAT
1/2 - LENS MOUNT BSD-2610A12298.A3 2610A12298 £63.50 £76.20
1/3 - ROTATION UNIT BSD-2610A12321.A0 2610A12321 -
1/4 - ASSEMBLY BSD-2610A12340.A3 2610A12340 £72.18 £86.62
1/5 - BALL SLEEVE BSD-2610A12224.A3 2610A12224 £1.32 £1.58
1/6 - HEX SOCKET HEAD CAP SCREW BSD-2610A12461.A0 2610A12461 £1.75 £2.10
1/7 - HEX SOCKET HEAD CAP SCREW BSD-2610A12284.A19 2610A12284 £1.75 £2.10
1/1/1 - MOTOR HOUSING BSD-2610A12237.A3 2610A12237 £263.33 £316.00
1/1/2 - LASER MODULE BSD-2610A15779.A0 2610A15779 -
1/1/3 - LIMIT SWITCH BSD-2610A13397.A4 2610A13397 £1.75 £2.10
1/1/4 - SPECIAL WASHER BSD-2610A12269.A7 2610A12269 £2.61 £3.13
1/1/5 - HEX SOCKET HEAD CAP SCREW BSD-2610A12272.A4 2610A12272 £1.75 £2.10
1/1/6 - HEX SOCKET HEAD CAP SCREW BSD-2610A12284.A22 2610A12284 £1.75 £2.10
1/1/7 - FLEXIBLE PCB BSD-2610A12359.A2 2610A12359 £3.34 £4.01
1/1/8 - TAPPING SCREW BSD-2610A12301.A15 2610A12301 £1.75 £2.10
1/1/10 - LIMIT SWITCH BSD-2610A13399.A11 2610A13399 £1.75 £2.10
2 - HOUSING BSD-2610A12342.A2 2610A12342 -
3 - HOUSING BSD-2610A12957.A6 2610A12957 £27.23 £32.68
4 - HANDLE BSD-2610A12464.A0 2610A12464 £21.68 £26.01
5 - HANDLE BSD-2610A12309.A3 2610A12309 £21.68 £26.01
6 - BATTERY BOX ASSEMBLY BSD-2610A12327.A3 2610A12327 £14.91 £17.89
7 - CAGE BSD-2610A12311.A3 2610A12311 £27.23 £32.68
8 - THREADED BOLT BSD-2610A12310.A3 2610A12310 £2.80 £3.36
9 - HEX SOCKET HEAD CAP SCREW BSD-2610A12348.A4 2610A12348 £2.16 £2.59
10 - HEX SOCKET HEAD CAP SCREW BSD-2610A12459.A3 2610A12459 £1.75 £2.10
11 - HEX SOCKET HEAD CAP SCREW BSD-2610A12460.A3 2610A12460 £1.75 £2.10
12 - NAMEPLATE BSD-2610A13610.A0 2610A13610 £2.33 £2.80
14 - KEYBOARD BSD-2610A13404.A0 2610A13404 £23.86 £28.63
15 - MOTOR PLATE BSD-2610A12302.A7 2610A12302 -
16 - TAPPING SCREW BSD-2610A12301.A16 2610A12301 £1.75 £2.10
17 - HEX SOCKET HEAD CAP SCREW BSD-2610A12275.A10 2610A12275 £1.75 £2.10
18 - EXTENSION SPRING BSD-2610A12283.A5 2610A12283 £1.75 £2.10
19 - EXTENSION SPRING BSD-2610A13065.A0 2610A13065 £1.75 £2.10
21 - MOTOR-GEARBOX ASSEMBLY BSD-2610A13249.A15 2610A13249 £33.74 £40.49
