Bosch ---- / 0601999011 / --- Spare Parts

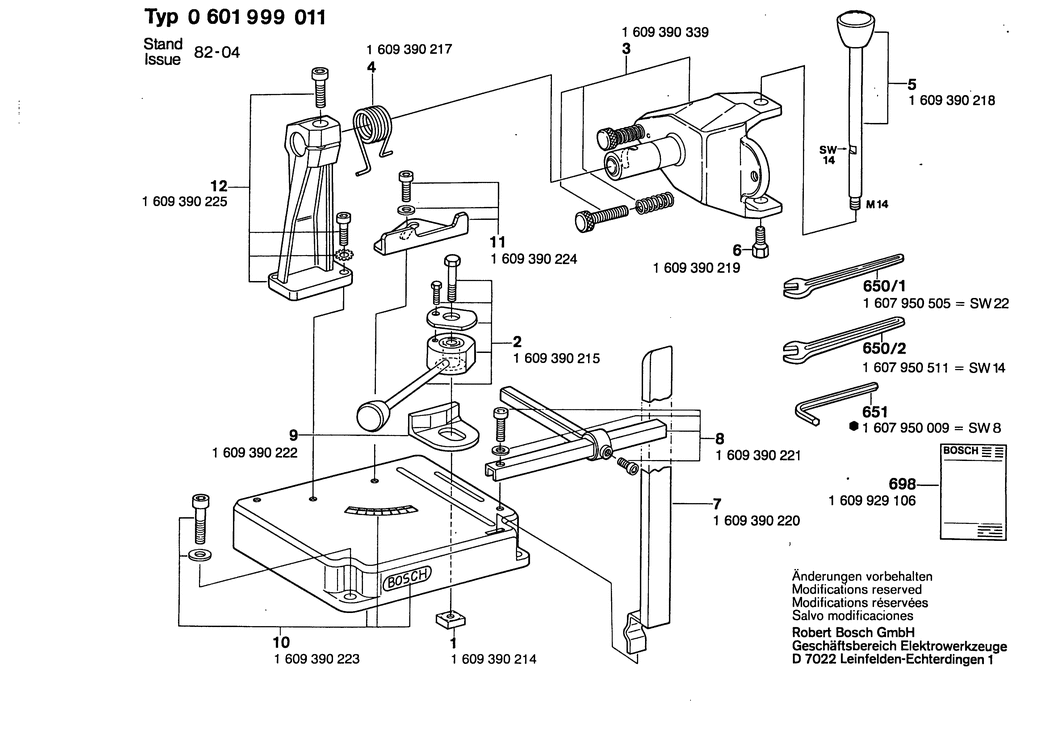

An exploded drawing and listing for the Bosch ---- / 0601999011 / ---

	Ex VAT	Inc VAT
1 - SQUARE NUT BSD-1609390214.A0 1609390214	-
2 - TENSIONING DEVICE BSD-1609390215.A1 1609390215	-
3 - DRIVE-MACHINE HOLDER BSD-1609390339.A0 1609390339	-
4 - COILED SPRING BSD-1609390217.A1 1609390217	-
5 - SWIVELLING LEVER BSD-1609390218.A0 1609390218	-
6 - HEX SCREW BSD-1609390219.A1 1609390219	£8.67	£10.41
7 - PROTECTIVE SHIELD BSD-1609390220.A0 1609390220	-
8 - END STOP BSD-1609390221.A1 1609390221	-
9 - HOLDING BRACKET BSD-1609390222.A0 1609390222	-
10 - BASE PLATE BSD-1609390223.A1 1609390223	-
11 - MITER SQUARE BSD-1609390224.A0 1609390224	-
12 - BEARING PEDESTAL BSD-1609390225.A1 1609390225	-
650 - SINGLE-HEAD ENG. WRENCH SW22 BSD-1607950505.A87 1607950505	£16.41	£19.69
650 - SINGLE-HEAD ENG. WRENCH SW14 BSD-1607950511.A3 1607950511	£5.45	£6.54
651 - OFFSET SCREWDRIVER SW8 BSD-1607950009.A16 1607950009	-

Attribute Name	Value
Brand	Bosch
