Bosch ---- / 0601999012 / --- Spare Parts

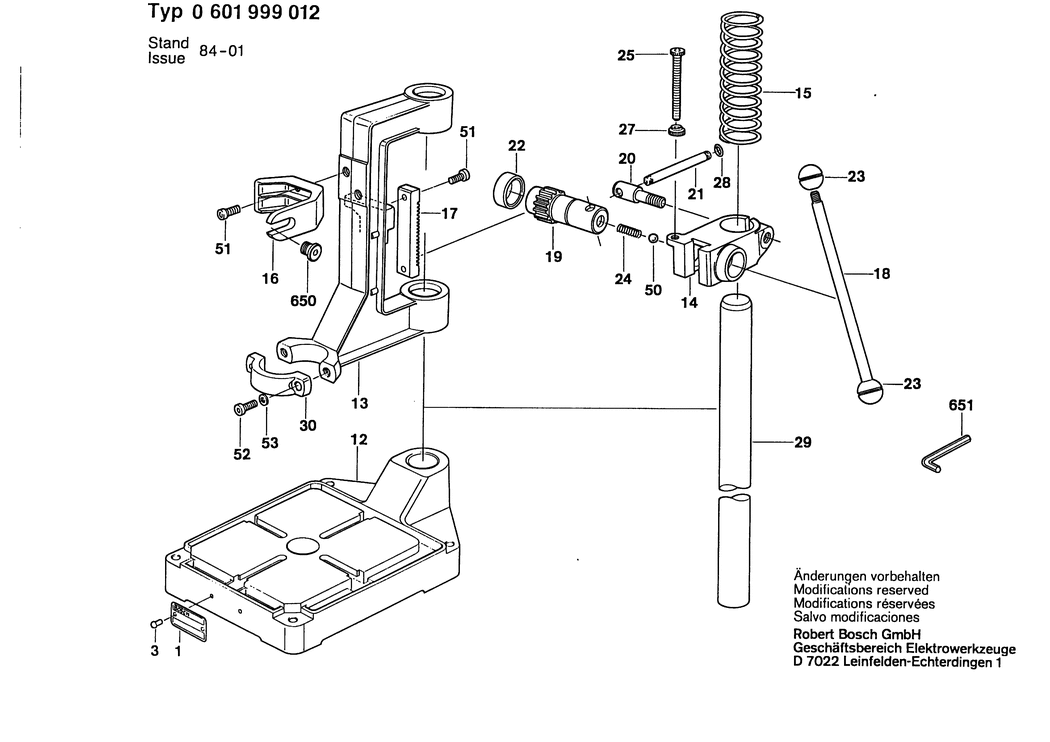

An exploded drawing and listing for the Bosch ---- / 0601999012 / ---

	Ex VAT	Inc VAT
1 - NAMEPLATE BSD-1601107017.A0 1601107017	-
3 - ROUND-HEAD GROOVED PIN 3x6 DIN 1476-ST BSD-2917721074.A0 2917721074	-
12 - BASE PLATE BSD-1609330047.A0 1609330047	-
13 - RETAINING BRACKET BSD-1609330048.A0 1609330048	-
14 - CLAMPING PIECE BSD-1609330049.A0 1609330049	-
15 - COMPRESSION SPRING BSD-1609330050.A0 1609330050	-
16 - RETAINING BRACKET BSD-1609330051.A0 1609330051	-
17 - TOOTHED RACK BSD-1609330052.A0 1609330052	-
18 - FEED LEVER BSD-1609330053.A0 1609330053	-
19 - SPINDLE WITH GEAR BSD-1609330054.A0 1609330054	-
20 - CLAMP SCREW BSD-1609330055.A0 1609330055	-
21 - CLAMPING LEVER BSD-1609330056.A0 1609330056	-
22 - BUSHING BSD-1609330057.A0 1609330057	-
23 - BALL HANDLE BSD-1609330058.A0 1609330058	-
24 - COMPRESSION SPRING BSD-1609330059.A0 1609330059	-
25 - KNURLED THUMBSCREW BSD-1609330060.A0 1609330060	-
27 - KNURLED NUT BSD-1609330061.A0 1609330061	-
28 - O-RING 6.0x2.5 MM BSD-1610210069.A1 1610210069	£1.75	£2.10
29 - GUIDE COLUMN BSD-1609330062.A0 1609330062	-
30 - CLAMP BSD-1609330063.A0 1609330063	-
50 - BALL BSD-1609330064.A0 1609330064	-
51 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x25-8.8 BSD-2910141244.A141 2910141244	£1.75	£2.10
52 - HEX SOCKET HEAD CAP SCREW DIN 912-M10x50-8.8 BSD-2910141301.A0 2910141301	-
53 - PLAIN WASHER DIN 125-A10.5-ST BSD-2916011017.A22 2916011017	£1.75	£2.10
650 - HEX SOCKET HEAD CAP SCREW BSD-1609330065.A0 1609330065	-
651 - OFFSET SCREWDRIVER SW8 BSD-1607950009.A17 1607950009	-

Attribute Name	Value
Brand	Bosch
