Bosch ---- / 0601999016 / --- Spare Parts

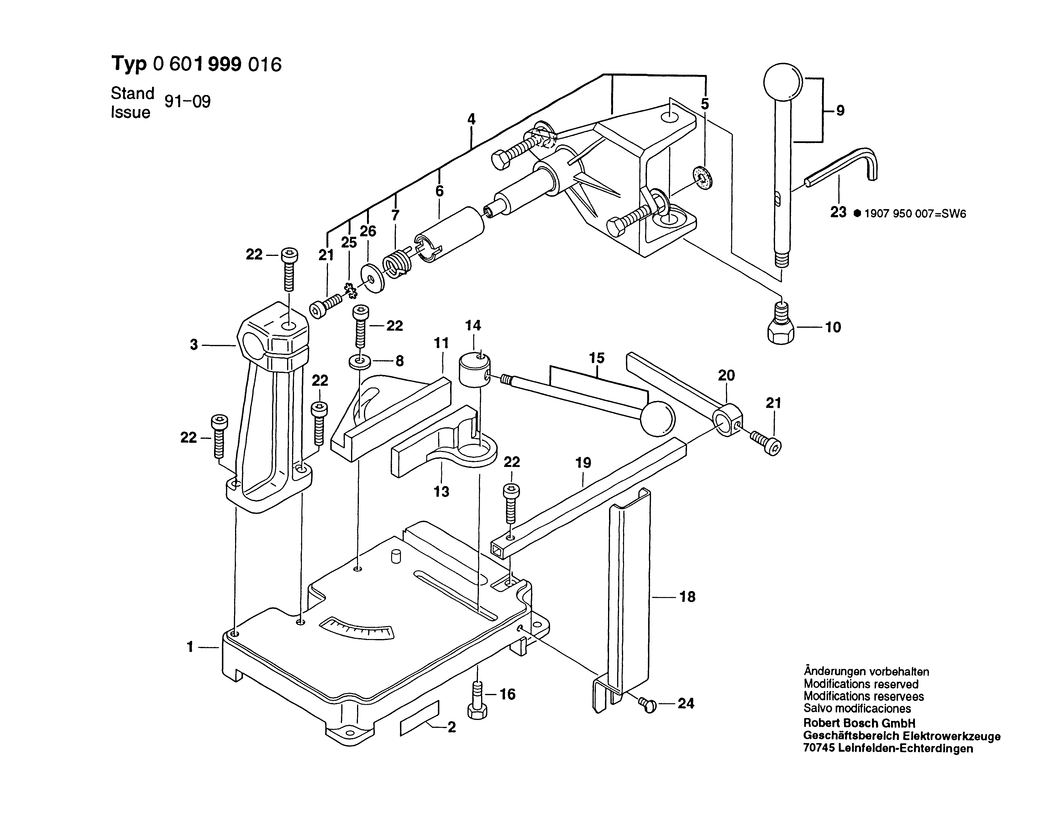

An exploded drawing and listing for the Bosch ---- / 0601999016 / ---

	Ex VAT	Inc VAT
1 - BASE PLATE BSD-1609202421.A0 1609202421	-
2 - MANUFACTURER'S NAMEPLATE BSD-2601110601.A85 2601110601	-
3 - BEARING PEDESTAL BSD-1609201513.A1 1609201513	-
4 - DRIVE-MACHINE HOLDER BSD-2609200260.A0 2609200260	-
5 - RUBBER DISC BSD-1609202447.A1 1609202447	-
6 - BUSHING BSD-1609202423.A0 1609202423	-
7 - TORSION SPRING BSD-1609201517.A1 1609201517	£12.04	£14.45
8 - PLAIN WASHER BSD-1609202448.A0 1609202448	-
9 - SWIVELLING LEVER BSD-1609201518.A0 1609201518	£13.41	£16.09
10 - HEX SCREW BSD-1609390219.A3 1609390219	£8.67	£10.41
11 - CLAMPING JAWS BSD-1609201519.A2 1609201519	-
13 - CLAMPING JAWS BSD-1609201520.A2 1609201520	£33.74	£40.49
14 - MOUNTING PIECE BSD-1609202424.A0 1609202424	-
15 - TENSIONING LEVER BSD-1609202425.A1 1609202425	-
16 - HEX SCREW BSD-1609202426.A0 1609202426	£14.91	£17.89
18 - PROTECTIVE SHIELD BSD-1609201524.A0 1609201524	-
19 - GUIDE ROD BSD-1609201525.A1 1609201525	-
20 - END STOP BSD-1609201526.A0 1609201526	-
21 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x16-8.8 BSD-2910141238.A2 2910141238	-
22 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x25-8.8 BSD-2910141244.A139 2910141244	£1.75	£2.10
23 - OFFSET SCREWDRIVER DIN 911;SW6 BSD-1907950007.A513 1907950007	£5.30	£6.36
24 - PAN HEAD SCREW BSD-1609202449.A0 1609202449	-
25 - TOOTHED LOCK WASHER BSD-1609202553.A1 1609202553	-
26 - PLAIN WASHER 2.5 MM BSD-1600100013.A1 1600100013	-

Attribute Name	Value
Brand	Bosch
