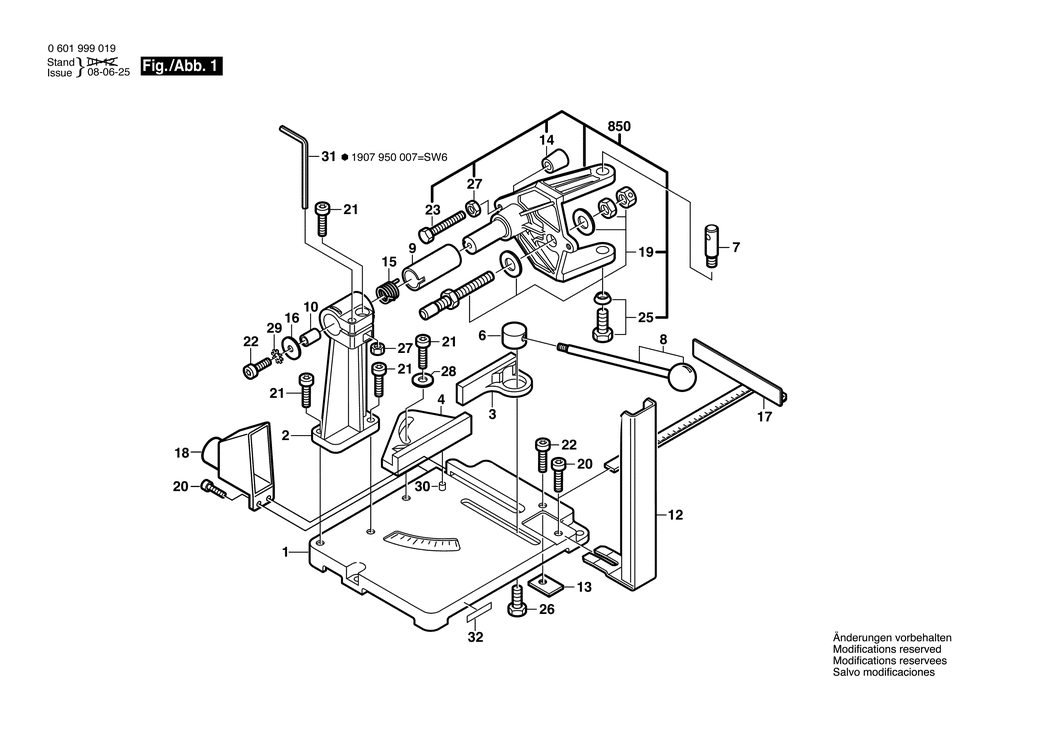

An exploded drawing and listing for the Bosch ---- / 0601999019 / ---
Ex VAT Inc VAT
1 - BASE PLATE BSD-2609200267.A1 2609200267 £120.11 £144.13
2 - COLUMN BSD-2609200259.A0 2609200259 £33.74 £40.49
3 - CLAMPING JAWS BSD-1609201520.A1 1609201520 £33.74 £40.49
4 - CLAMPING JAWS BSD-1609201519.A3 1609201519 -
6 - ECCENTRIC BSD-2609200261.A1 2609200261 £37.27 £44.72
7 - SWIVELLING LEVER BSD-2609200268.A0 2609200268 £21.68 £26.01
8 - TENSIONING LEVER BSD-1609201522.A1 1609201522 £12.04 £14.45
9 - GUIDE BUSHING BSD-2609200262.A0 2609200262 £21.68 £26.01
10 - PIPE BSD-2609200263.A1 2609200263 -
12 - PROTECTIVE SHIELD BSD-2609200264.A0 2609200264 £12.04 £14.45
13 - CLAMPING PIECE BSD-2609200265.A1 2609200265 £14.91 £17.89
14 - PROTECTIVE CAP BSD-2609200266.A0 2609200266 £1.75 £2.10
15 - TORSION SPRING BSD-1609201517.A3 1609201517 £12.04 £14.45
16 - PLAIN WASHER 2.5 MM BSD-1600100013.A3 1600100013 -
17 - EDGE GUIDE BSD-2608190002.A128 2608190002 -
18 - SUCTION SOCKET BSD-2609200269.A0 2609200269 £21.52 £25.83
19 - STRAINING SCREW BSD-2609201086.A0 2609201086 -
20 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x16-8.8 BSD-2910141238.A0 2910141238 -
21 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x20-8.8 BSD-2910141242.A95 2910141242 £1.75 £2.10
22 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x30-8.8 BSD-2910141246.A2 2910141246 -
23 - HEX SCREW DIN 933-M8x50-8.8 BSD-2911061254.A1 2911061254 -
25 - HEX SCREW BSD-1609390219.A5 1609390219 £8.67 £10.41
26 - HEX SCREW M 14x25 DIN 933-8.8 BSD-2911061388.A4 2911061388 -
27 - HEX NUT DIN 934-M8-8-A BSD-2915011009.A17 2915011009 £2.61 £3.13
28 - PLAIN WASHER DIN 9021-A8.4-ST BSD-2916012885.A0 2916012885 -
29 - TOOTHED LOCK WASHER DIN 6797-A8.4-FSt BSD-2916030020.A1 2916030020 £1.75 £2.10
30 - HALF-LENGTH-TPR.GRVD. PIN DIN 1472-8x20-St BSD-2917580174.A0 2917580174 -
31 - OFFSET SCREWDRIVER DIN 911;SW6 BSD-1907950007.A511 1907950007 £5.30 £6.36
32 - MANUFACTURER'S NAMEPLATE BSD-2601110601.A88 2601110601 -
850 - MODIFICATION SET 230V BSD-2609201087.A0 2609201087 £102.57 £123.08
