Bosch ---- / 1607000173 / --- Spare Parts

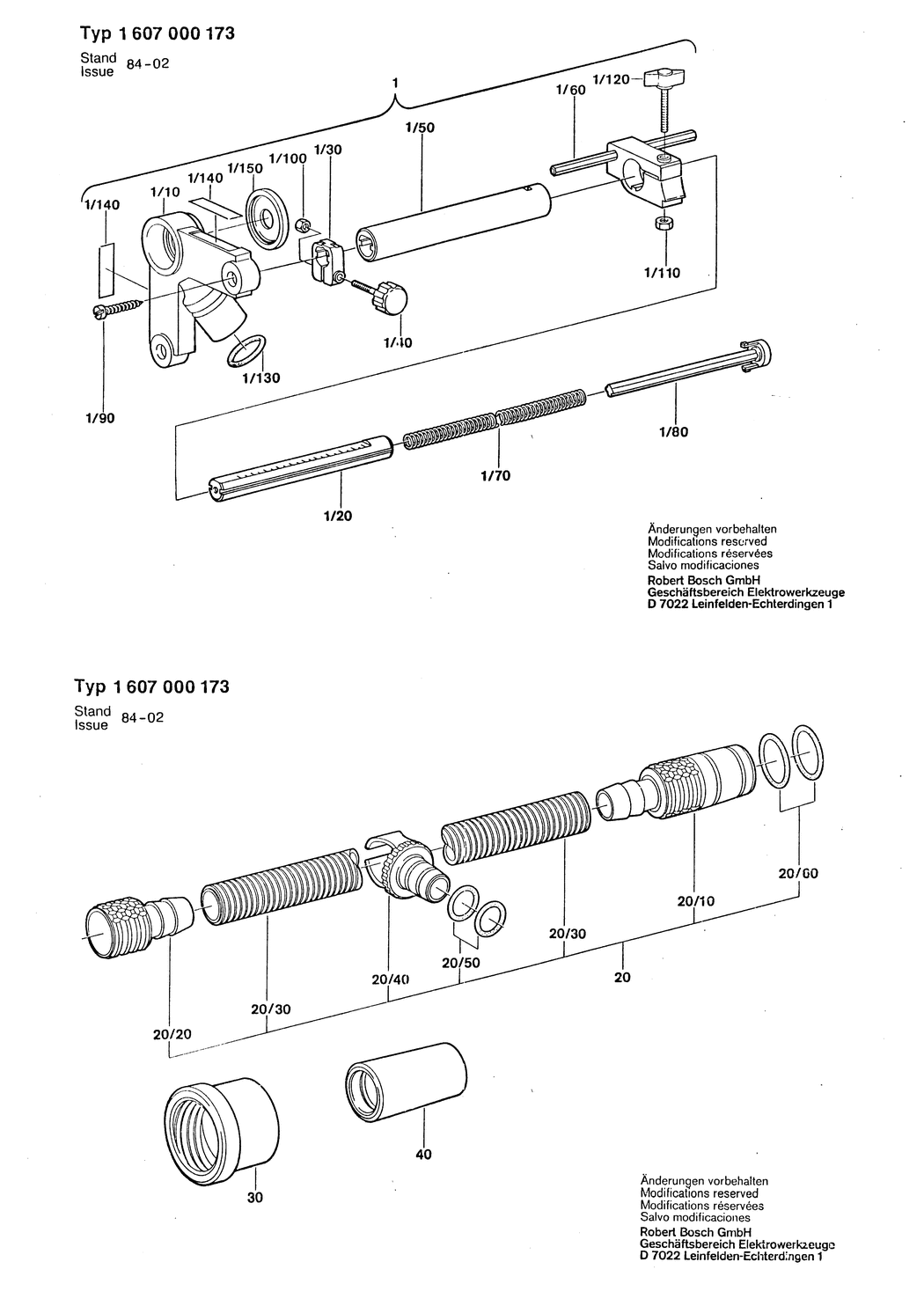

An exploded drawing and listing for the Bosch ---- / 1607000173 / ---

	Ex VAT	Inc VAT
1 - SUCTION DEVICE BSD-1618190006.A0 1618190006	-
1/10 - EXTRACTOR HEAD BSD-1615719015.A0 1615719015	-
1/20 - TELESCOPE PIPE BSD-1613002001.A7 1613002001	-
1/30 - CLAMPING PIECE BSD-1611315008.A9 1611315008	-
1/40 - CLAMP SCREW BSD-1613481003.A7 1613481003	£2.80	£3.36
1/50 - GUIDE TUBE BSD-1610715001.A7 1610715001	-
1/60 - SUPPORT CLAMP BSD-1618040043.A0 1618040043	-
1/70 - COMPRESSION SPRING BSD-1614611003.A7 1614611003	-
1/80 - SEALING CAP BSD-1615500264.A7 1615500264	-
1/90 - TAPPING SCREW DIN 7971-B4.8x19 BSD-2910211234.A25 2910211234	£1.75	£2.10
1/100 - HEX NUT DIN 985-M4-8 BSD-2915061002.A19 2915061002	£1.75	£2.10
1/110 - HEX NUT DIN 985-M6-8 BSD-2915061004.A89 2915061004	£1.75	£2.10
1/120 - WING SCREW M6x25 MM BSD-1613480009.A1 1613480009	£1.88	£2.25
1/130 - O-RING 23.0x3.0 MM BSD-1610210045.A9 1610210045	£2.61	£3.13
1/140 - MANUFACTURER'S NAMEPLATE BSD-1601110013.A194 1601110013	-
1/150 - SEALING CAP BSD-1610591006.A4 1610591006	£5.30	£6.36
20 - AIR HOSE dia19 MM. L=5M. 3/4 BSD-1610793002.A8 1610793002	£34.99	£41.99
20/10 - FITTING BSD-1613386027.A11 1613386027	-
20/20 - FITTING BSD-1613386028.A1 1613386028	£10.82	£12.99
20/30 - AIR HOSE L=5 M BSD-1610712033.A1 1610712033	-
20/50 - O-RING 18x3 MM BSD-1900210117.A82 1900210117	£3.72	£4.47
20/60 - O-RING 28x3 MM BSD-1900210129.A84 1900210129	£2.61	£3.13
30 - REDUCTION SLEEVE dia 49/35 MM+3/4 BSD-1609200933.A57 1609200933	£7.21	£8.65
40 - REDUCTION SLEEVE BSD-1610390012.A0 1610390012	-
700 - VERTICAL LEVELING AID BSD-1618190008.A6 1618190008	-

Attribute Name	Value
Brand	Bosch
