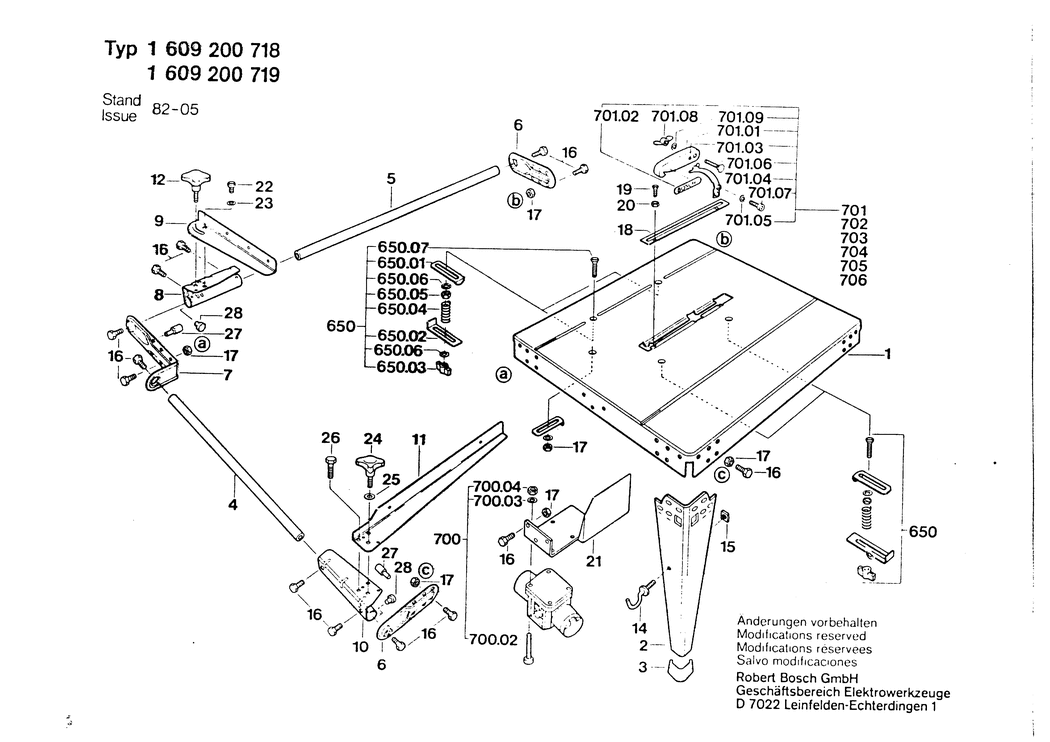

1 - TABLE TOP 535x655 MM
BSD-1609200733.A0
1609200733
|
-
|
|
|
2 - PEDESTAL H=350 MM
BSD-1609200734.A0
1609200734
|
-
|
|
|
3 - BASE PLATE
BSD-1609209736.A0
1609209736
|
-
|
|
|
4 - GUIDE ROD L=430 MM
BSD-1609200737.A1
1609200737
|
-
|
|
|
5 - GUIDE ROD L=655 MM
BSD-1609200738.A0
1609200738
|
-
|
|
|
6 - GUIDE PLATE
BSD-1609200739.A1
1609200739
|
-
|
|
|
7 - STOP BRACKET
BSD-1609200740.A0
1609200740
|
-
|
|
|
8 - GUIDE ROD
BSD-1609200741.A2
1609200741
|
-
|
|
|
9 - STOP BRACKET
BSD-1609200742.A0
1609200742
|
-
|
|
|
10 - GUIDE ROD
BSD-1609200741.A3
1609200741
|
-
|
|
|
11 - PARALLEL-GUIDE
BSD-1609200744.A1
1609200744
|
-
|
|
|
12 - STAR KNOB SCREW M 8x20 MM
BSD-1609200823.A0
1609200823
|
-
|
|
|
14 - HOOK
BSD-1609200824.A1
1609200824
|
-
|
|
|
15 - HEX NUT DIN 934 -M4-m-8
BSD-2915011005.A173
2915011005
|
£1.75
|
£2.10
|
|
16 - HEX SCREW DIN 933-M 6x16-8.8
BSD-2911061197.A12
2911061197
|
-
|
|
|
17 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A333
2915011007
|
-
|
|
|
18 - GUIDE
BSD-1609200746.A0
1609200746
|
-
|
|
|
19 - COUNTERSUNK-HEAD SCREW DIN 963-M4x10-CuZn
BSD-2910800120.A0
2910800120
|
-
|
|
|
20 - HEX NUT DIN 934-M4-M-MS
BSD-2915010405.A1
2915010405
|
-
|
|
|
21 - COVER PLATE
BSD-1609200825.A0
1609200825
|
-
|
|
|
22 - PAN HEAD SCREW M 8x3.5x7 MM
BSD-1609200826.A1
1609200826
|
-
|
|
|
23 - SPRING WASHER B 10 DIN 137-ST
BSD-2916060014.A1
2916060014
|
-
|
|
|
24 - STAR KNOB SCREW M 8x25 MM
BSD-1609200827.A0
1609200827
|
-
|
|
|
25 - PLAIN WASHER DIN 125-A 8.4-ST
BSD-2916011016.A79
2916011016
|
£1.75
|
£2.10
|
|
26 - HEX SCREW DIN 933-M8x12-8.8
BSD-2911062234.A1
2911062234
|
-
|
|
|
27 - STOP BOLT
BSD-1609200828.A1
1609200828
|
-
|
|
|
28 - BUFFER
BSD-1609200829.A0
1609200829
|
-
|
|
|
650 - PARTS SET
BSD-1609200720.A1
1609200720
|
-
|
|
|
650/01 - END STOP
BSD-1609200721.A0
1609200721
|
-
|
|
|
650/02 - CLAMPING CLAW
BSD-1609200722.A1
1609200722
|
-
|
|
|
650/03 - WING NUT M6
BSD-1609233000.A140
1609233000
|
-
|
|
|
650/04 - COMPRESSION SPRING
BSD-1609200724.A0
1609200724
|
-
|
|
|
650/05 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A334
2915011007
|
-
|
|
|
650/06 - PLAIN WASHER dia6.4xdia16x2 MM
BSD-1609201082.A94
1609201082
|
-
|
|
|
650/07 - COUNTERSUNK-HEAD SCREW DIN 963-M6x30-4.8
BSD-2910761205.A1
2910761205
|
-
|
|
|
700 - PARTS SET
BSD-1609200821.A4
1609200821
|
-
|
|
|
700/02 - SOCKET HEAD CAP SCREW M5x35 DIN 84-5.8
BSD-2910011168.A32
2910011168
|
-
|
|
|
700/03 - PLAIN WASHER DIN 433-5.3-ST
BSD-2916011011.A93
2916011011
|
£1.75
|
£2.10
|
|
700/04 - HEX NUT DIN 934-M 5-m-8
BSD-2915011006.A169
2915011006
|
-
|
|
|
701 - PROTECTIVE COVER
BSD-1609200004.A2
1609200004
|
-
|
|
|
701/01 - PROTECTIVE COVER
BSD-1609255010.A5
1609255010
|
-
|
|
|
701/02 - MANUFACTURER'S NAMEPLATE
BSD-1601110017.A58
1601110017
|
-
|
|
|
701/03 - CLAMPING SLEEVE DIN 1481-3x28
BSD-2917760086.A4
2917760086
|
-
|
|
|
701/04 - RIVING KNIFE
BSD-1609200007.A1
1609200007
|
-
|
|
|
701/05 - PLAIN WASHER dia6.4xdia16x2 MM
BSD-1609201082.A92
1609201082
|
-
|
|
|
701/06 - ROUND-HEAD BOLT DIN 603-M6x40
BSD-2910281209.A1
2910281209
|
-
|
|
|
701/07 - HEX SOCKET HEAD CAP SCREW DIN 6912 M6x12-8.8
BSD-2910375193.A129
2910375193
|
-
|
|
|
701/08 - WING NUT M6 DIN 315-G-GTW-40
BSD-2915191006.A56
2915191006
|
-
|
|
|
701/09 - PLAIN WASHER DIN 125-A 6.4-ST
BSD-2916011014.A410
2916011014
|
£1.75
|
£2.10
|
|
702 - PROTECTIVE COVER
BSD-1609200005.A1
1609200005
|
-
|
|
|
702/04 - RIVING KNIFE
BSD-1609200008.A2
1609200008
|
-
|
|
|
703 - PROTECTIVE COVER
BSD-1609200011.A0
1609200011
|
-
|
|
|
703/04 - RIVING KNIFE
BSD-1609200014.A2
1609200014
|
-
|
|
|
704 - PROTECTIVE COVER
BSD-1609200012.A2
1609200012
|
-
|
|
|
704/04 - RIVING KNIFE
BSD-1609200013.A0
1609200013
|
-
|
|
|
705 - PROTECTIVE COVER
BSD-1609200539.A1
1609200539
|
-
|
|
|
705/04 - RIVING KNIFE
BSD-1609200540.A2
1609200540
|
-
|
|
|
706 - PROTECTIVE COVER
BSD-1609200725.A1
1609200725
|
-
|
|
|
706/01 - PROTECTIVE COVER
BSD-1609200747.A1
1609200747
|
-
|
|
|
706/04 - RIVING KNIFE
BSD-1609200726.A0
1609200726
|
-
|
|
|
