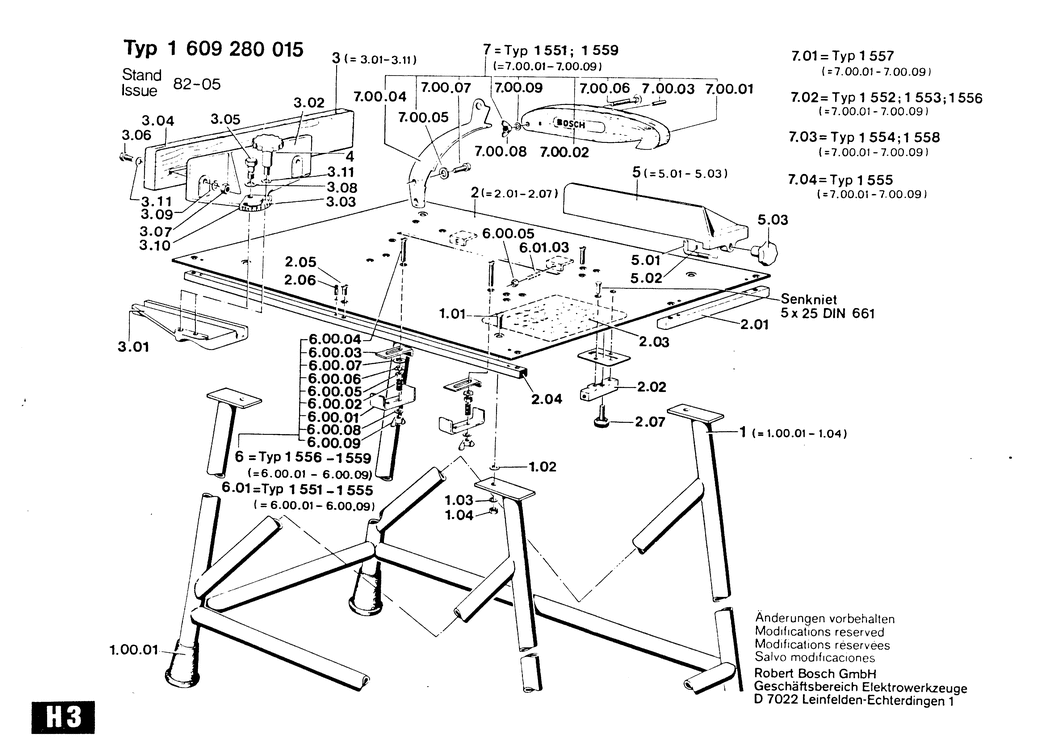

1 - PIPE FRAME
BSD-1609280021.A0
1609280021
|
-
|
|
|
1/00/01 - CAP GR.2
BSD-1609205005.A0
1609205005
|
-
|
|
|
1/01 - COUNTERSUNK-HEAD SCREW DIN 7991-M8x25-8.8
BSD-2910542244.A0
2910542244
|
-
|
|
|
1/02 - PLAIN WASHER DIN 125-A 8.4-ST
BSD-2916011016.A82
2916011016
|
£1.75
|
£2.10
|
|
1/03 - SPRING LOCK WASHER DIN 127-A 8
BSD-2916680035.A5
2916680035
|
-
|
|
|
1/04 - HEX NUT DIN 934-M8-8-A
BSD-2915011009.A204
2915011009
|
£2.61
|
£3.13
|
|
2 - TABLE TOP
BSD-1609280016.A0
1609280016
|
-
|
|
|
2/01 - STRIP
BSD-1609223003.A0
1609223003
|
-
|
|
|
2/02 - END STOP
BSD-1609210009.A0
1609210009
|
-
|
|
|
2/03 - REFERENCE PLATE
BSD-1609211002.A0
1609211002
|
-
|
|
|
2/04 - STRIP
BSD-1609223004.A0
1609223004
|
-
|
|
|
2/05 - COUNTERSUNK-HEAD SCREW DIN 87-M6x15MM
BSD-2910501196.A0
2910501196
|
-
|
|
|
2/06 - CLAMPING SLEEVE DIN 1 481-5x16
BSD-2917761120.A0
2917761120
|
-
|
|
|
2/07 - KNURLED THUMBSCREW
BSD-1609234012.A0
1609234012
|
-
|
|
|
3 - MITRE GAUGE
BSD-1609280023.A0
1609280023
|
-
|
|
|
3/01 - GUIDE PLATE
BSD-1609280022.A0
1609280022
|
-
|
|
|
3/02 - MITRE GAUGE
BSD-1609280020.A0
1609280020
|
-
|
|
|
3/03 - SCALE
BSD-1609211003.A0
1609211003
|
-
|
|
|
3/04 - STRIP
BSD-1609223005.A0
1609223005
|
-
|
|
|
3/05 - SCREW
BSD-1609234009.A0
1609234009
|
-
|
|
|
3/06 - HEX SCREW DIN 933-M 10x30
BSD-2911051293.A1
2911051293
|
-
|
|
|
3/07 - HEX NUT DIN 934-M 10-m-8
BSD-2915011010.A9
2915011010
|
-
|
|
|
3/08 - PLAIN WASHER DIN 125-A13-ST
BSD-2916011020.A1
2916011020
|
-
|
|
|
3/09 - SPRING LOCK WASHER A 10 DIN 127
BSD-2916680036.A0
2916680036
|
-
|
|
|
3/10 - ROUND-HEAD GROOVED PIN DIN 1476-2x5-ST
BSD-2917721033.A3
2917721033
|
-
|
|
|
3/11 - PLAIN WASHER DIN 125-A10.5-ST
BSD-2916012018.A0
2916012018
|
-
|
|
|
4 - STAR KNOB
BSD-1609234010.A0
1609234010
|
-
|
|
|
5 - END STOP
BSD-1609280018.A0
1609280018
|
-
|
|
|
5/01 - SCREW
BSD-1609234011.A0
1609234011
|
-
|
|
|
5/02 - SOCKET HEAD CAP SCREW DIN 7-4M6x10
BSD-2917500144.A0
2917500144
|
-
|
|
|
5/03 - STAR KNOB
BSD-1906621181.A0
1906621181
|
-
|
|
|
6 - PARTS SET
BSD-1609270004.A0
1609270004
|
-
|
|
|
6/00/01 - CLAMPING CLAW
BSD-1609213011.A1
1609213011
|
-
|
|
|
6/00/02 - SPRING
BSD-1609246003.A0
1609246003
|
-
|
|
|
6/00/03 - END STOP
BSD-1609280043.A0
1609280043
|
-
|
|
|
6/00/04 - COUNTERSUNK-HEAD SCREW DIN 63-M6x40MM
BSD-2910501209.A0
2910501209
|
-
|
|
|
6/00/05 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A332
2915011007
|
-
|
|
|
6/00/06 - TOOTHED LOCK WASHER DIN 6797-M6-CUZN-A
BSD-2916030008.A0
2916030008
|
-
|
|
|
6/00/07 - PLAIN WASHER DIN 9021-A6.4-ST
BSD-2916011884.A0
2916011884
|
-
|
|
|
6/00/08 - PLAIN WASHER DIN 125-A 6.4-ST
BSD-2916011014.A414
2916011014
|
£1.75
|
£2.10
|
|
6/00/09 - WING NUT M6 DIN 315-G-GTW-40
BSD-2915191006.A52
2915191006
|
-
|
|
|
6/01 - PARTS SET
BSD-1609270022.A0
1609270022
|
-
|
|
|
6/01/03 - SET SCREW DIN 551-M6x40
BSD-2912031209.A0
2912031209
|
-
|
|
|
6/02 - PARTS SET
BSD-1609270005.A1
1609270005
|
-
|
|
|
7 - PROTECTIVE COVER
BSD-1609200003.A1
1609200003
|
-
|
|
|
7/00/01 - PROTECTIVE COVER
BSD-1609255009.A0
1609255009
|
-
|
|
|
7/00/1 - PROTECTIVE COVER
BSD-1609270014.A0
1609270014
|
-
|
|
|
7/00/02 - MANUFACTURER'S NAMEPLATE
BSD-1601110016.A42
1601110016
|
-
|
|
|
7/00/2 - PROTECTIVE COVER
BSD-1609270020.A0
1609270020
|
-
|
|
|
7/00/03 - SLOTTED SPRING PIN DIN 1481-3x24
BSD-2917760083.A5
2917760083
|
-
|
|
|
7/00/04 - RIVING KNIFE
BSD-1609200006.A0
1609200006
|
-
|
|
|
7/00/05 - WASHER
BSD-1609201004.A1
1609201004
|
-
|
|
|
7/00/06 - ROUND-HEAD BOLT DIN 603-M6x35
BSD-2910281207.A61
2910281207
|
£1.75
|
£2.10
|
|
7/00/07 - HEX SOCKET HEAD CAP SCREW DIN 6912 M6x12-8.8
BSD-2910375193.A130
2910375193
|
-
|
|
|
7/00/08 - WING NUT M6 DIN 315-G-GTW-40
BSD-2915191006.A53
2915191006
|
-
|
|
|
7/00/09 - PLAIN WASHER DIN 125-A 6.4-ST
BSD-2916011014.A413
2916011014
|
£1.75
|
£2.10
|
|
7/01 - PROTECTIVE COVER
BSD-1609200004.A0
1609200004
|
-
|
|
|
7/01/01 - PROTECTIVE COVER
BSD-1609255010.A1
1609255010
|
-
|
|
|
7/01/1 - PROTECTIVE COVER
BSD-1609270018.A0
1609270018
|
-
|
|
|
7/01/02 - MANUFACTURER'S NAMEPLATE
BSD-1601110017.A53
1601110017
|
-
|
|
|
7/01/03 - CLAMPING SLEEVE DIN 1481-3x28
BSD-2917760086.A0
2917760086
|
-
|
|
|
7/01/04 - RIVING KNIFE
BSD-1609200007.A2
1609200007
|
-
|
|
|
7/01/06 - ROUND-HEAD BOLT DIN 603-M6x40
BSD-2910281209.A3
2910281209
|
-
|
|
|
7/02 - PROTECTIVE COVER
BSD-1609200005.A3
1609200005
|
-
|
|
|
7/02/1 - PROTECTIVE COVER
BSD-1609270015.A0
1609270015
|
-
|
|
|
7/02/2 - PROTECTIVE COVER
BSD-1609270016.A0
1609270016
|
-
|
|
|
7/02/3 - PROTECTIVE COVER
BSD-1609270017.A0
1609270017
|
-
|
|
|
7/02/04 - RIVING KNIFE
BSD-1609200008.A1
1609200008
|
-
|
|
|
7/03 - PROTECTIVE COVER
BSD-1609200011.A1
1609200011
|
-
|
|
|
7/03/1 - PROTECTIVE COVER
BSD-1609270013.A0
1609270013
|
-
|
|
|
7/03/2 - PROTECTIVE COVER
BSD-1609270019.A0
1609270019
|
-
|
|
|
7/03/04 - RIVING KNIFE
BSD-1609200014.A1
1609200014
|
-
|
|
|
7/04 - PROTECTIVE COVER
BSD-1609200012.A1
1609200012
|
-
|
|
|
7/04/01 - PROTECTIVE COVER
BSD-1609255010.A4
1609255010
|
-
|
|
|
7/04/1 - PROTECTIVE COVER
BSD-1609200539.A2
1609200539
|
-
|
|
|
7/04/2 - PROTECTIVE COVER
BSD-1609270012.A0
1609270012
|
-
|
|
|
7/04/04 - RIVING KNIFE
BSD-1609200013.A1
1609200013
|
-
|
|
|
8 - PROTECTIVE COVER
BSD-1609200537.A0
1609200537
|
-
|
|
|
