Bosch ---- / 1617224019 / --- Spare Parts

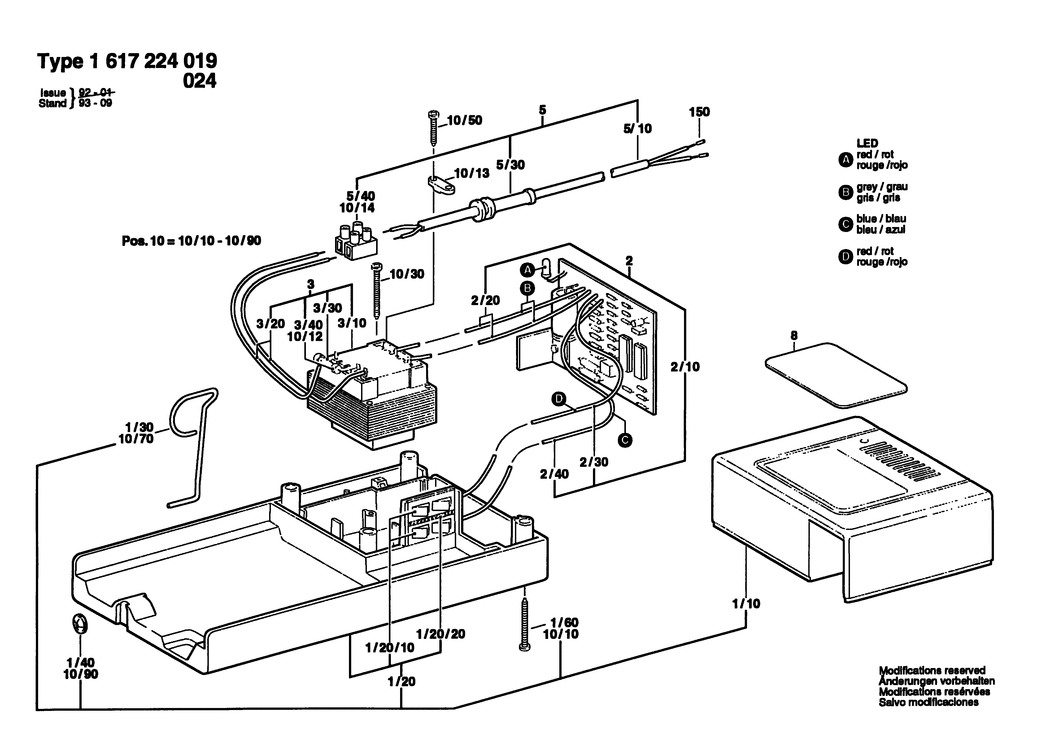

An exploded drawing and listing for the Bosch ---- / 1617224019 / ---

	Ex VAT	Inc VAT
1 - HOUSING BSD-1615190015.A28 1615190015	-
1/10 - HOUSING COVER BSD-1615500273.A17 1615500273	-
1/20 - HOUSING BASE BSD-1615190014.A6 1615190014	-
2 - PRINTED-BOARD ASSEMBLY 220V BSD-1618300000.A22 1618300000	-
3 - POWER TRANSFORMER 115V BSD-1617224016.A5 1617224016	-
3/30 - FUSE SET BSD-1617000166.A7 1617000166	-
3/30/1 - EQUIPMENT FUSE LINK DIN41662TRAEGE-400mA BSD-1904522329.A3 1904522329	-
5 - POWER SUPPLY CORD BSD-1614460034.A8 1614460034	-
8 - NAMEPLATE BSD-1611110341.A1 1611110341	-
10 - PARTS SET BSD-1617000116.A21 1617000116	-
10/70 - HOLDING SPRING BSD-1614680004.A27 1614680004	-
150 - END SPLICE BSD-3604477008.A474 3604477008	£1.75	£2.10

Attribute Name	Value
Brand	Bosch
